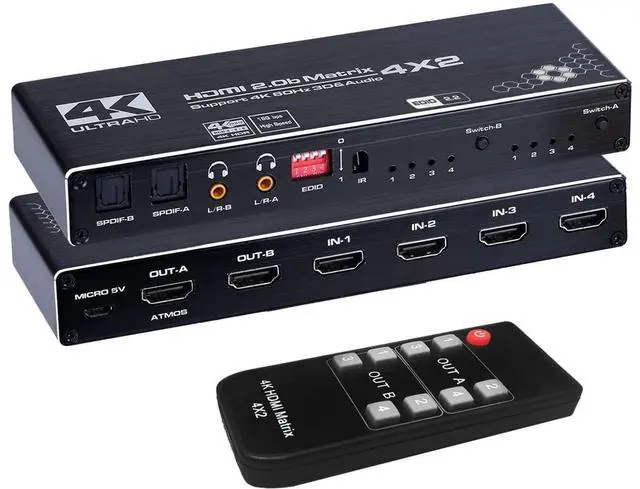

HD-MI Matrix 4x2, 4K @60Hz HD-MI Matrix Switch 4 in 2 Out with EDID Extractor and IR Remote Control, Support HD-MI 2.0b, HDCP2.2, HDR10, Ultra HD, 3D eokCXOY

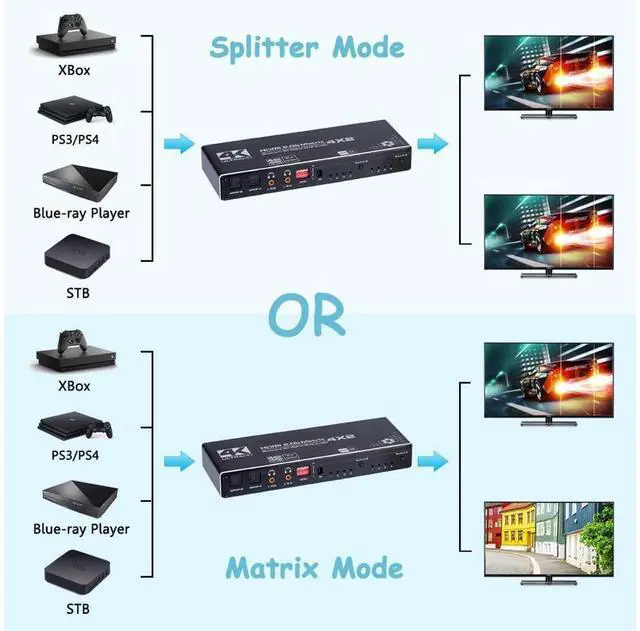

HD-MI Matrix 4x2 HD-MI Matrix 4 in 2 out: It can connect four 4K HDR signal sources to two HD display or monitor, and it can also extract the HD-MI input Audio signal with Toslink SPDIF optical fiber or 3.5 mm stereo headphone output.

Note:

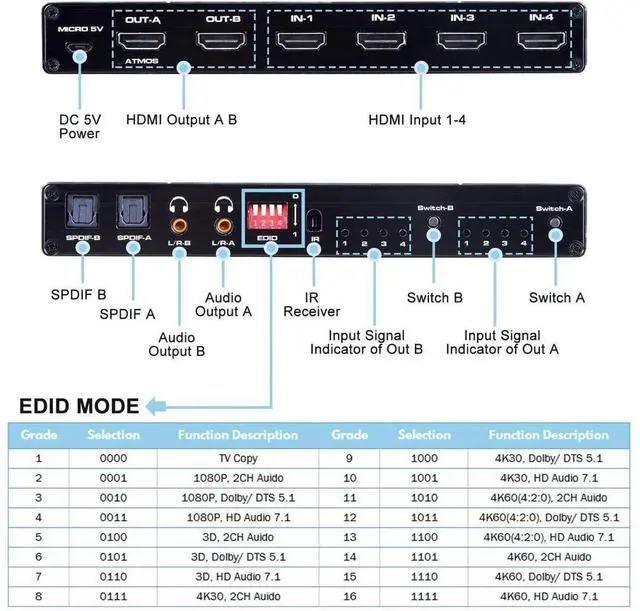

1. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right.

2. After you had set the EDID, Please restart your HD-MI Matrix Switch.

Features: Wide Compatibility Support HDCP 2.2, compatible with HD-MI 2.0 b.

Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc.

Output support: Projector, HDTV etc. Settable EDID EDID switch sets the video and audio mode of the HD-MI source. Flexible EDID switching provides 16 switching modes that can be met for different resolution needs. Support 4K 60HZ &

3D HD-MI Resolution: 3D, Full HD, 4kx2k, up to 3840X2160/60Hz, RGB

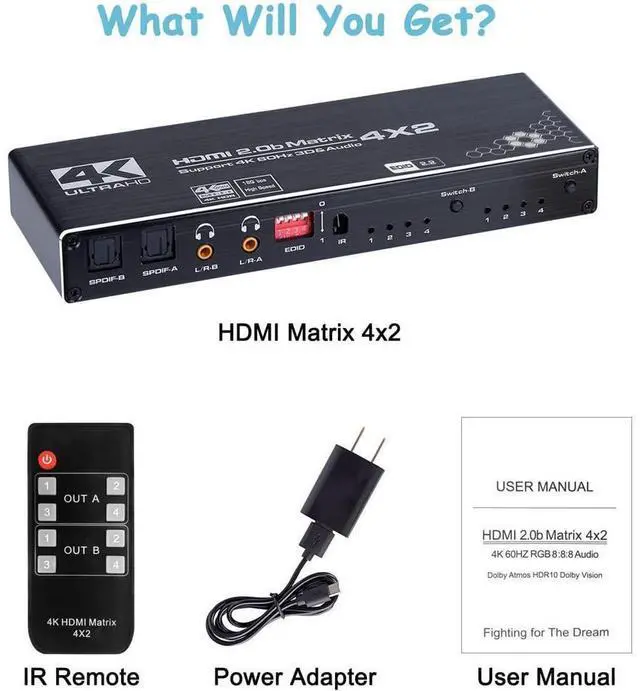

4:4: 4, HDR Support 18.5G bps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. Two Switching Modes Manual Switch - Simply choose whichever inputs you want with the button on the box. Remote Control Switch - Effortlessly swap HD-MI channels up to 15 ft with the remote HD-MI Audio Extract Support HD-MI audio outputs, 3.5 mm earphone jack and optical output at same time. Support LPCM/Dolby/DTS 5.1 channel Package contents 1x HD-MI Matrix 4x2 1x 5V power adapter 1x IR Remote Control 1x User Manual
