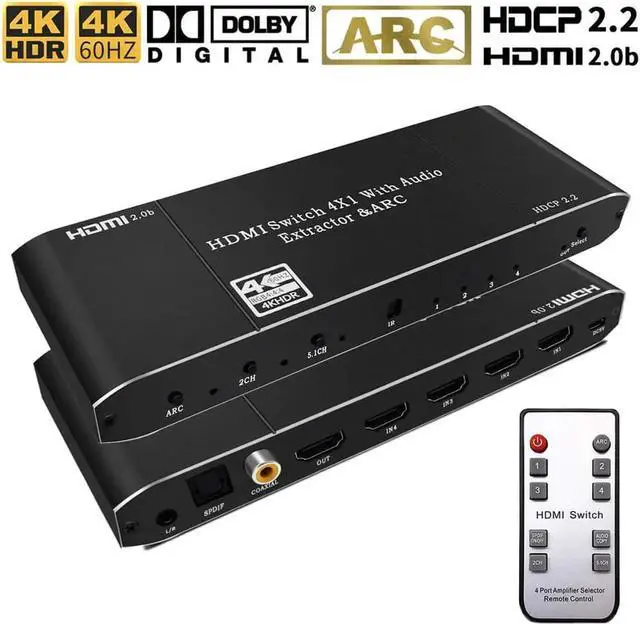

    HDMI Switch with Audio Extractor 4K 60Hz Optical + 3.5mm AUX + Coaxial Output, HDMI Switcher 4 in 1 Out HDMI Audio Splitter Converter IR Remote Support ARC HDCP2.2 1080P 3D Dobly Atmos,EDID,HDR10

    Limited time offer, ends 01/09 By Smart core

    Be the first to review this product...
    • There are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
    • Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
    • Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
    • HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
    • Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI. We do not recommended that you use HDMI to DVI cable connect to your projector /monitor)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

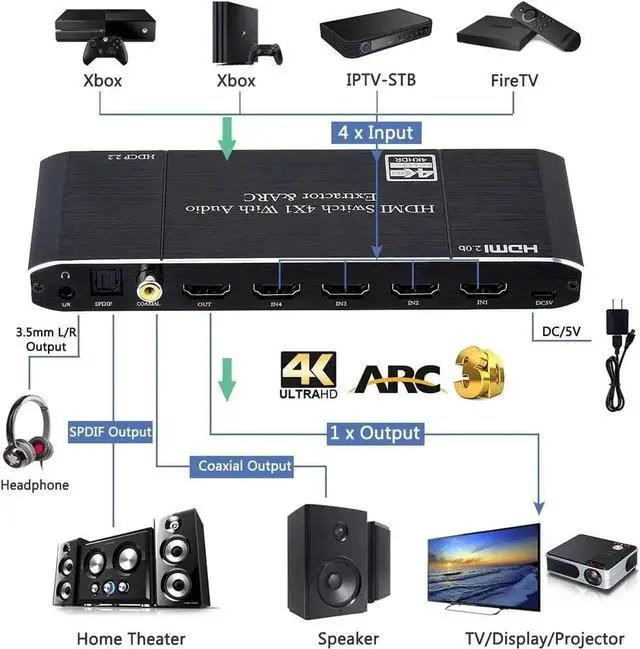

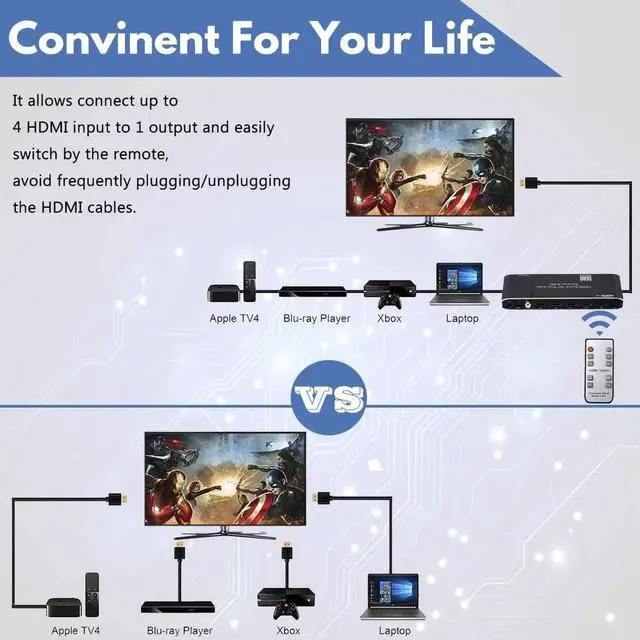

    1. There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, 3.5mm Jack output.

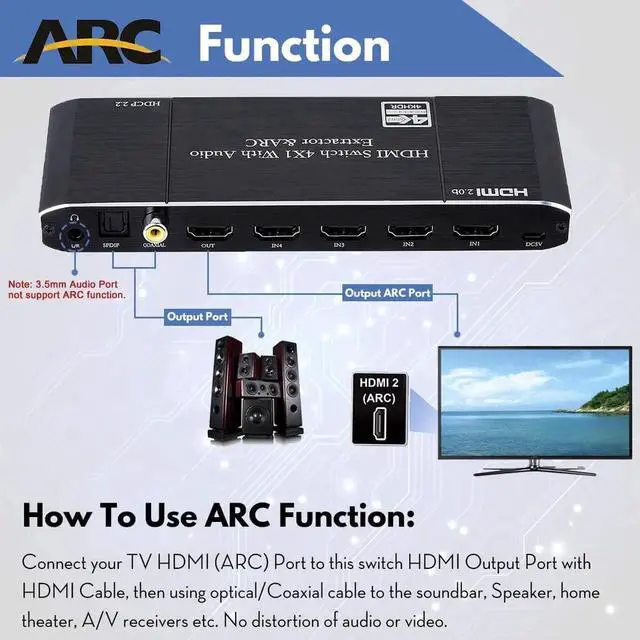

    2. 2.Coaxial and Toslink port output support audio return function (ARC)
    3. 3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
    4. support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
    5. Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
    6. Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
    7. Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
    8. Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
    9. Support HDR 4K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X,PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.


    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: 30 days
    • This item is covered by Smart core Return Policy
