JAENFONG HDMI 2.0 Matrix 4x2 4K60Hz Switch Splitter HDCP2.2 EDID 4Kx2K HDR ARC HIFI HDMI Switcher SPDIF COAX 3.5mm Stereo Audio
Limited time offer, ends 07/28 By Smart core

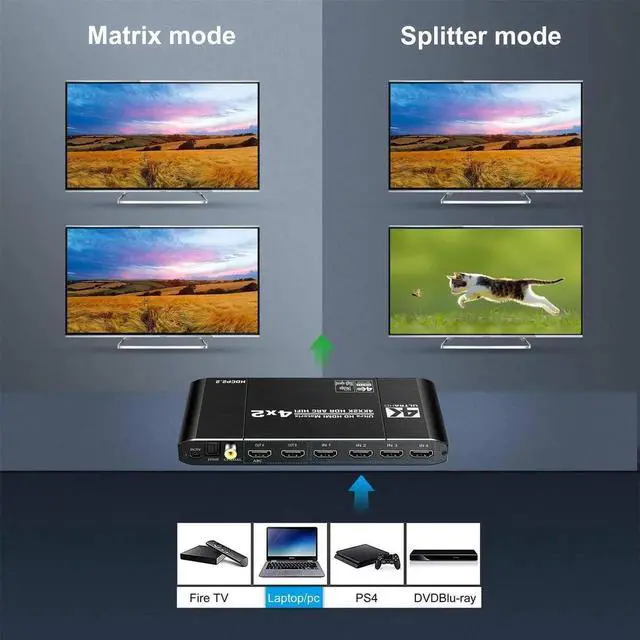

- The HDMI 2.0 matrix 4x2 simultaneously transmits four HDMII sources to two HDMI displays. It combines HDMI splitter, switcher, 4 HDMI input switching or separation functions to two HD displays. It can display the same or different images on your TV.
- 4K@60Hz Ultra HD Resolution - It supports up to 4K2K 60Hz YCbCr 4:4 and HDCP2.2 resolution (backward compatible), and supports HDMI V2.0 and HDR. Support 2.0/5.1/ADV three audio mode options/support ARC, TV audio will be returned and output through the optical port;
- Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

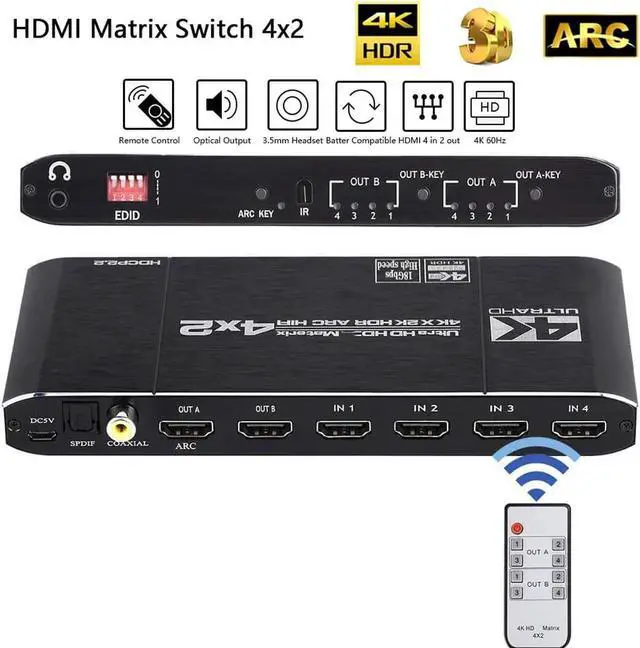

HDMI Matrix Switch Splitter 4X2, HDMI Switcher with EDID Extractor and Remote Control

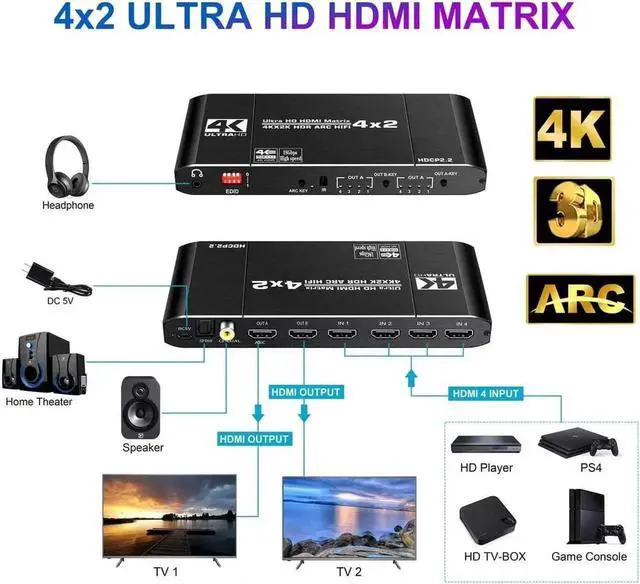

HDMI Matrix can connect up to 4 HDMI Source to 2 HDMI Display terminals with Audio Extractor Function and ARC function with Toslink SPDIF port, coaxial port, 3.5mm Aux port. Please Note: ARC Function and Audio Extractor only supports Output A port.
4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR

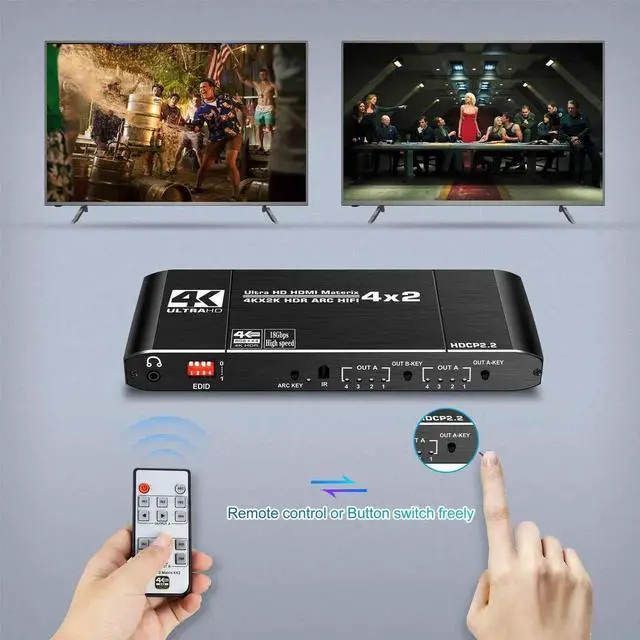

Supports LPCM/ Dolby/DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract by the SPDIF or 3.5mm headphone audio output port separately. Built-in IR sensor comes with a handy, intuitive remote control that makes switching inputs, it can do also switch by press button. ARC function achieve audio return. And Only Output A Supports ARC. Note: 3.5mm port not support ARC function and TV HDMI port need to support ARC
Support HDCP2.2, HDMI2.0b. Input support: PS3, PS4 Xbox etc. Output support: Projector, HDTV etc.
Specifications
Product Type:HDMI-CompatibleSplitter 1x4.

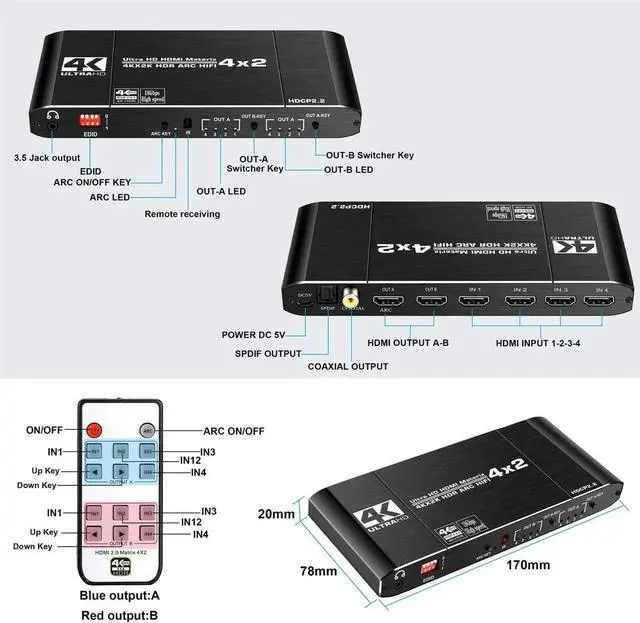

Interface Type: 4 HDMI-Compatible in, 2 HDMI-Compatible out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Features
Support HDMI-Compatible 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI-Compatible audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI-Compatible resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI-Compatible inputs switch and split to 2 HDMI-Compatible displays
Support LPCM/Dolby/DTS 5 1 audio
