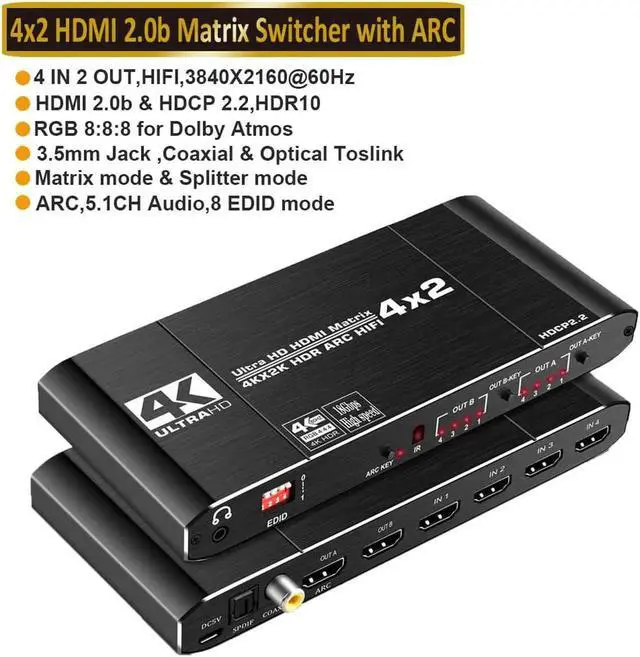

JAENFONG 4x2 Matrix Switch Splitter with SPDIF and L/R 3.5mm HDR HDMI-compatible Switch 4x2 Support HDCP 2.2 ARC 3D 4K@60Hz for TV HDTV PS4 PS5
- 4K@60Hz Matrix 4x2 18.5 Gbps HDMI-compatible Switch Splitter with SPDIF and L/R 3.5mm HDR 4x2 Support HDCP 2.2 3D
- HDMI Compliance:HDMI 2.0b
- HDCP Compliance:HDCP 2.2 and HDCP 1.4
- Video Bandwidth:4K2K@50/60Hz RGB 8:8:8,[email protected] HDMI 3D TV format
- Color Space:RGB 8:8:8 YUV 4:4:4 YCbCr4:2:2
- Color Depth:8-bit, 10-bit, 12-bit
- HDMI Audio Formats:PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
- Optical Audio Formats:LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
- Coaxial Audio Formats:LPCM 2CH.LPCM 5.1 .Dolby Digital 2/5.1 CH.DTS 2/5.1 CH
- L/R Audio Formats:Analog stereo 2CH
- ESD Protection:Human-body Model: ±8kV(Air-gap discharge), ±4kV (Contact discharge)
- Inputs:4xHDMI,1xlR Receiver Window
- Outputs:2xHDMI,1xL/R Audio out (3.5mm Stereo Minijack),1xOptical out(S/PDIF)ARC,1XCoaxial
- Housing:Metal
- Dimensions:170 mm(W)x78 mm(D)x20 mm(H)
- Weight:0.25kg
- Power Output: DC5V/1A
- Power Consumption:5.2 W( max)
- Overview
- Specs
- Reviews
- Q & A
- +
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

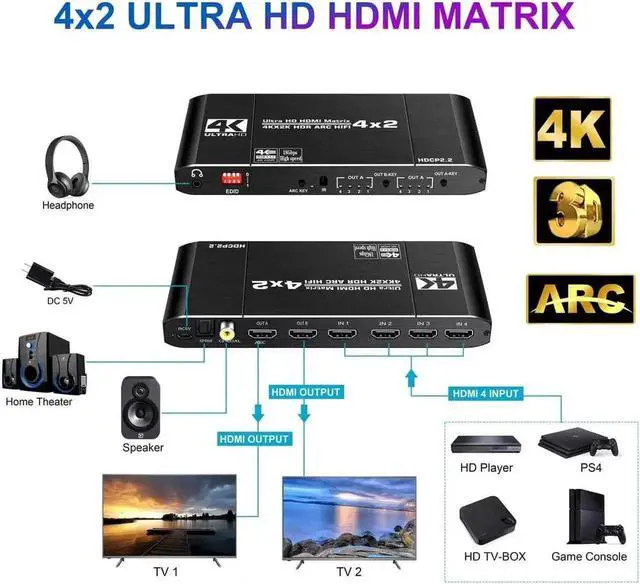

HDMI Matrix can connect up to 4 HDMI Source to 2 HDMI Display terminals with Audio Extractor Function and ARC function with Toslink SPDIF port, coaxial port, 3.5mm Aux port. Please Note: ARC Function and Audio Extractor only supports Output A port.

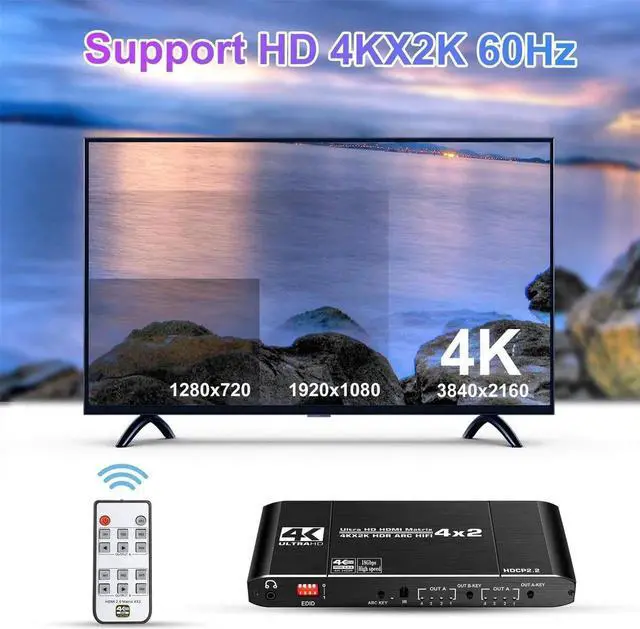

4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR

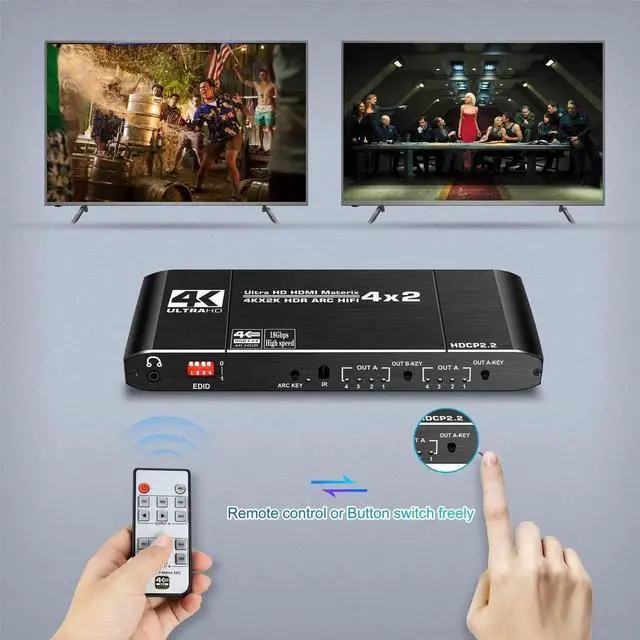

Supports LPCM/ Dolby/DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract by the SPDIF or 3.5mm headphone audio output port separately. Built-in IR sensor comes with a handy, intuitive remote control that makes switching inputs, it can do also switch by press button. ARC function achieve audio return. And Only Output A Supports ARC. Note: 3.5mm port not support ARC function and TV HDMI port need to support ARC
Support HDCP2.2, HDMI2.0b. Input support: PS3, PS4 Xbox etc. Output support: Projector, HDTV etc.
Specifications
Product Type:HDMI-CompatibleSplitter 1x4.
Interface Type: 4 HDMI-Compatible in, 2 HDMI-Compatible out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C

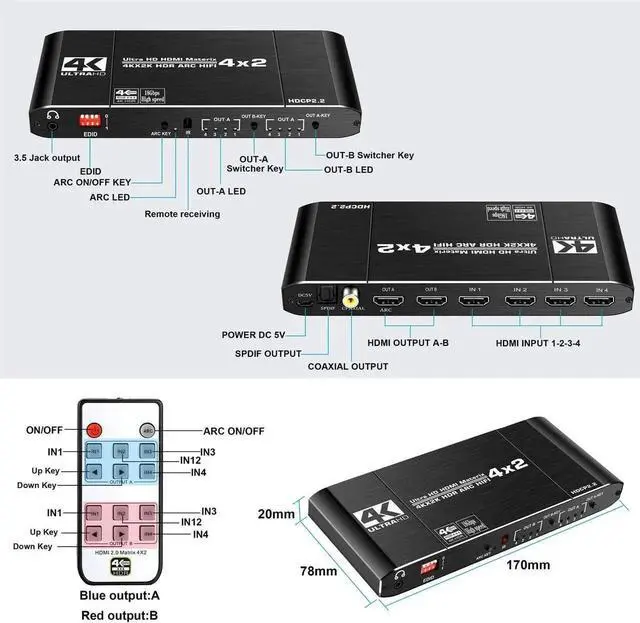

Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Features
Support HDMI-Compatible 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI-Compatible audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI-Compatible resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI-Compatible inputs switch and split to 2 HDMI-Compatible displays
Support LPCM/Dolby/DTS 5 1 audio
