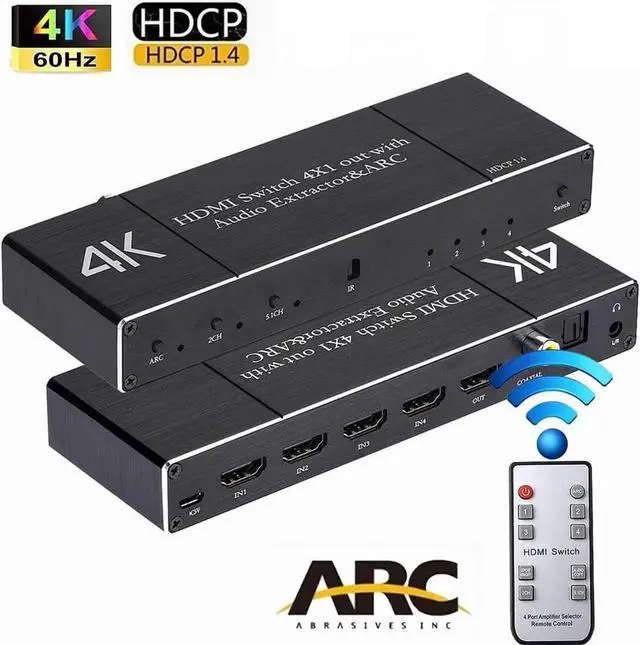

    4K HDMI Switch 60Hz HDMI Switcher 4 Port 4x1 HDMI Switcher Splitter Box hdmi Audio Extractor Supports ARC HDR10 ARC 18Gbps HDCP2.2,RGB 8:8:8,3D with Remote Control, OZQ7 Be the first to review this pr

    Be the first to review this product...

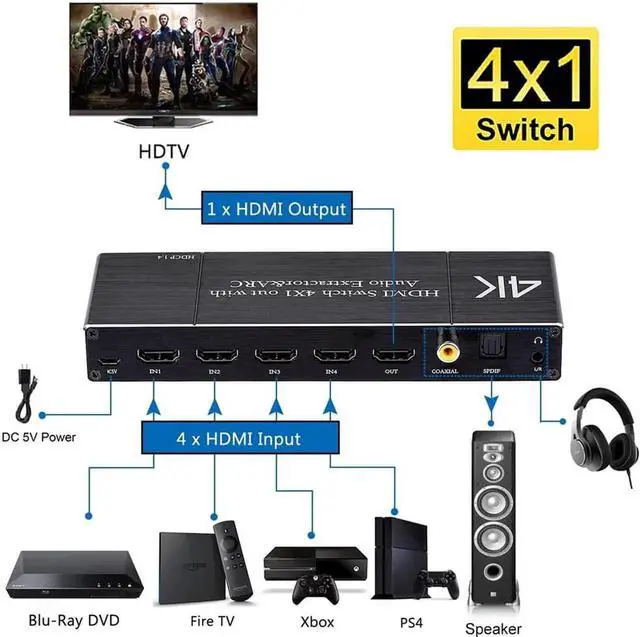

    • This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver.
    • -Input: HDMI x 4
    • -Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1
    • -Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)
    • -support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)
    • -Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps
    • -Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
    • -HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. Input: HDMI x 4
    3. Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1
    5. Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)
    7. support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)
    9. Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps
    11. Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
    13. Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI.we do not recommended that you use HDMI to DVI cable connect to your projector /monitor)
    15. HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ
