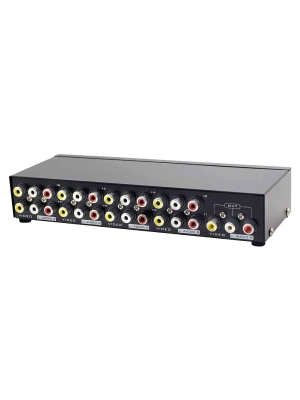

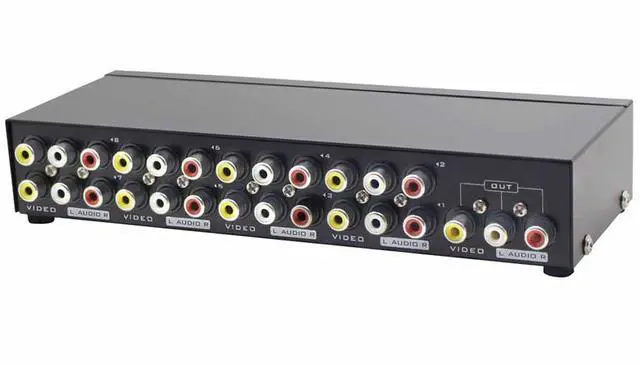

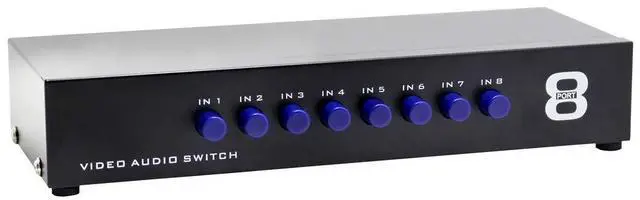

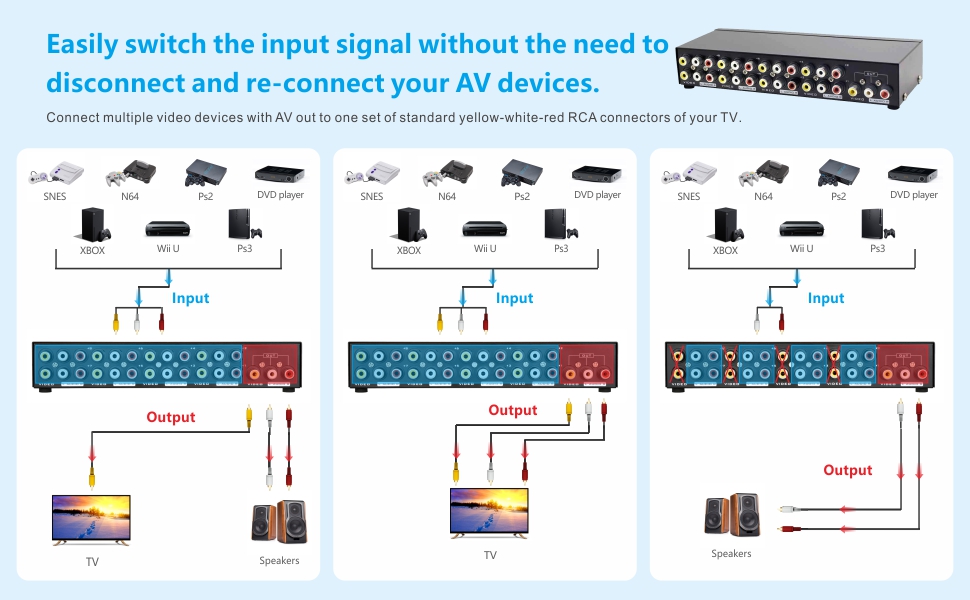

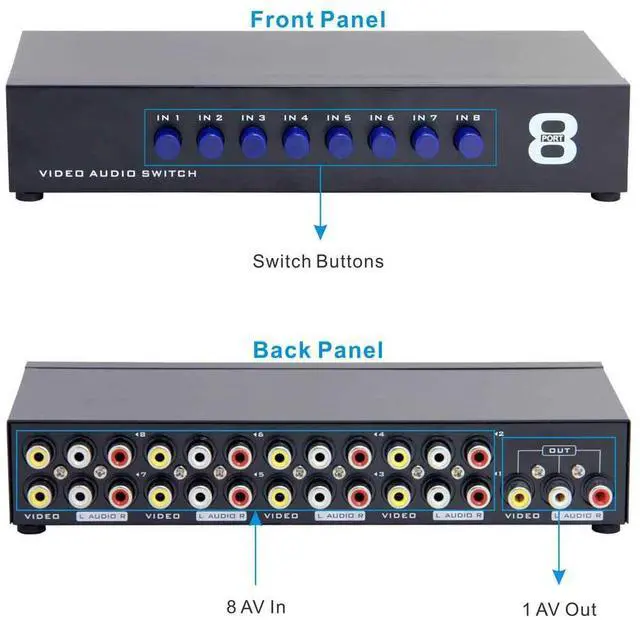

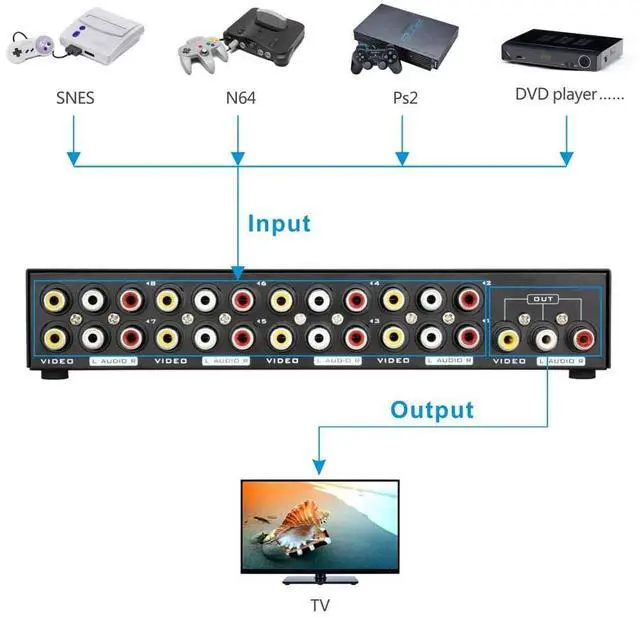

Panlong 8 In 1 Out RCA switch box lets you connect up to eight composite video and stereo audio sources that have yellow-white-red RCA connectors, such as Wii, XBOX, DVD, PS2, Nintendo, etc. Simply push the button, you can switch back and forth between them without un-plugging/re-plugging cables.
The series of Panlong RCA switcher has no crosstalk, no noticeable loss in video or audio quality. It is a must for every retro enthusiast.
- Metal shell, sturdy but lightweight
- Simple mechanical switch can last years
- No external power needed
Specifications:
Video
Input level Resistance: VS 0.8-1.0Vp-p/75O
Output level Resistance: VS 0.8-1.0Vp-p/75O
Bandwidth: 50Hz-5.5MHz
Audio
Input level Resistance: 2V(RMS)/47KO
Output level Resistance: 2V(RMS)/1KO
Frequency: 10Hz-20KHz, 0db
 8x1 A/V Switcher |  4x1 A/V Switcher |  2x1 A/V Switcher | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — | — |
| Connect Type | RCA/AV | RCA/AV | RCA/AV |
| Input No. | 8 | 4 | 2 |
| Output No. | 1 | 1 | 1 |
| Switch Type | Mechanical | Mechanical | Mechanical |
| Plug & Play | ? | ? | ? |
Starting with a passion for seamless media experiences, Panlong is dedicated to providing high-quality RCA switchers for years.
We noticed the need for reliable and efficient switchers that could enhance the way people enjoy their audio video content. We developed 2-port, 4-port and 8-port AV switchers, hoping to provide exceptional products that make a difference in people's lives.
8 in 1 Out RCA AV Switch
4 in 1 Out RCA AV Switch
2 in 1 Out RCA AV Switch
