3.5mm Audio Selector Audio Switcher, Speaker Switch, AUX Switch Box, AB Switcher Selector, Bi-Directional (3.5mm 1In-2Out/2In-1Out)

Features:

• Input and output port: 3.5mm AUX
• AB switching is simple to use, plug and play.
• No external power supply is required and sound quality is not affected. (It will not improve the sound quality)
• With one-key mute function, it is very useful in special situations.
• With volume knob, you can easily control the volume.
• All aluminum alloy housing, durable.
• Analog signal maximum support 2V p-p input and output.
• Input and output frequency range: 20Hz ~ 20KHz.
• Use standard audio cable, input transmission distance up to 8 meters, output transmission distance up to 8 meters.

Two-way use

How to use:

• 1: Easily connect two audio signals to one speaker at the same time, and then switch one output. (Note: not two simultaneous outputs)

For example: connect the audio signal of PC and game, and output to a speaker, you can switch the two of your audio at will, without frequent plugging and swapping.

• 2: Output an audio signal to two speakers.

For example: you can connect the speakers and headphones to the PC to play music, and you can switch the listening mode at will.

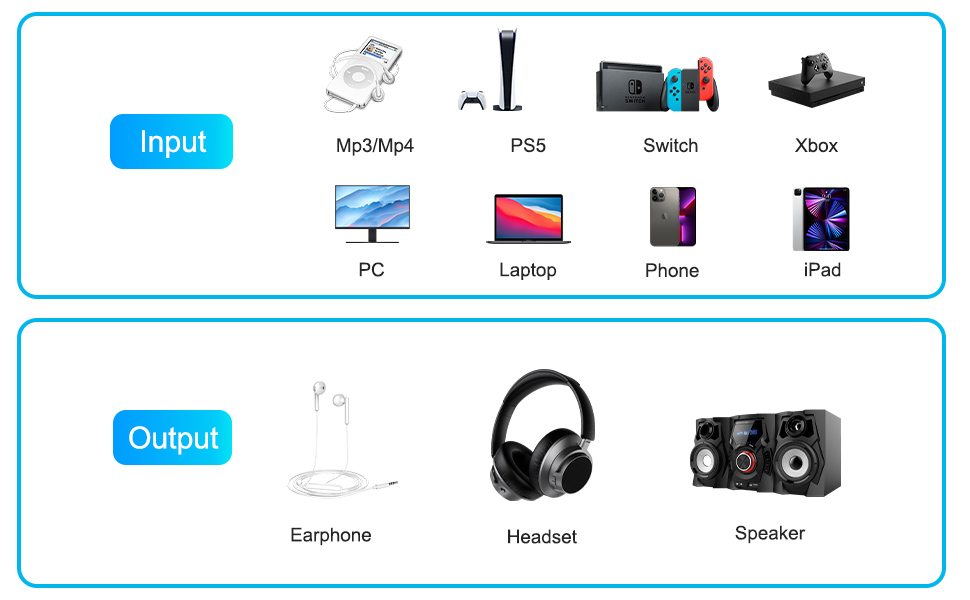

Wide Compatibility

NOTE:

1. Please switch your output port correctly (no output if incorrectly selected)
2. Only one audio can be output at a time, not simultaneously.
3. 3.5mm Audio Selector is suitable for 3-segment earphones. (four-segment headphones are not supported)
4. You can only control the output volume of the speaker and headset, not the volume of the microphone.
