 Video Wall Controller, 4K 2X2 TV Wall Processor with HDMI+DVI+RS232 Input, Su... |  Video Wall Controller, 4K@30Hz 2X3 TV Wall Processor with 1 HDMI Input+ 6 HDM... |  Video Wall Controller 3x3, TV Wall Processor, 4K x 2K HDMI Multi-Screen Splic... |  Video Wall Controller, 4K@30Hz 4x4 TV Wall Processor 16 Ways Large Screen Vid... | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Product Nam | 2x2 Video Wall Controller | 2x3 Video Wall Controller | 3x3 Video Wall Controller | 4x4 Video Wall Controller |
| Input support | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 |
| Input resolution | 3840x2160P@30Hz | 3840x2160P@30Hz | 3840x2160P@30Hz | 3840x2160P@30Hz |
| Output resolution | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz |
| Splicing Modes | 8 | 14 | 13 | 24 |

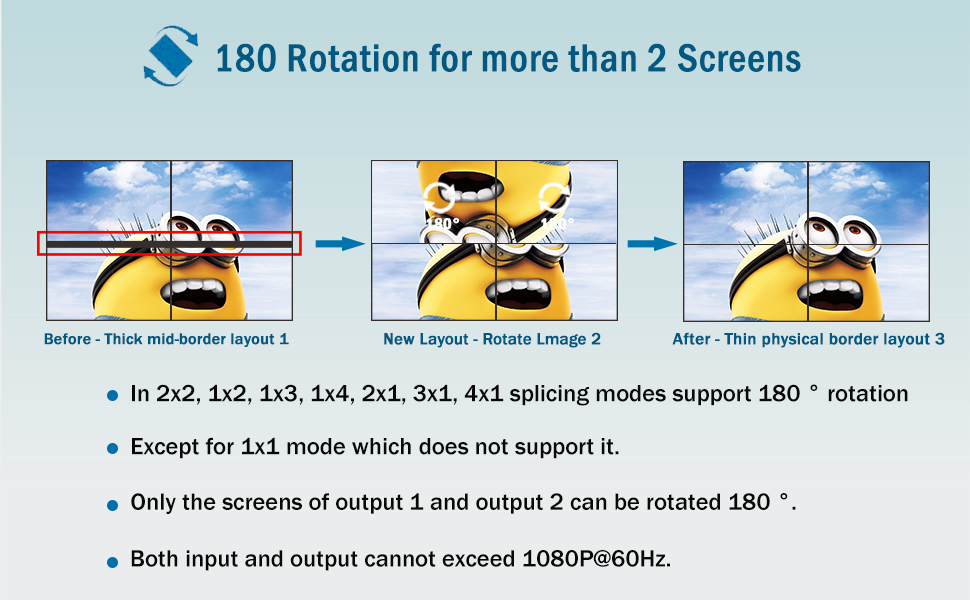

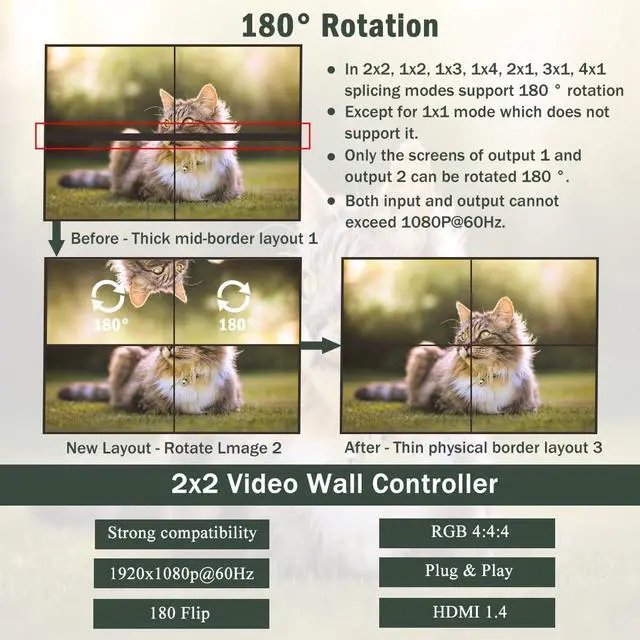

| 180° Screen Rotation | ? | ? | ? | ? |
| RS232 Signal | ? | ? | ? | × |

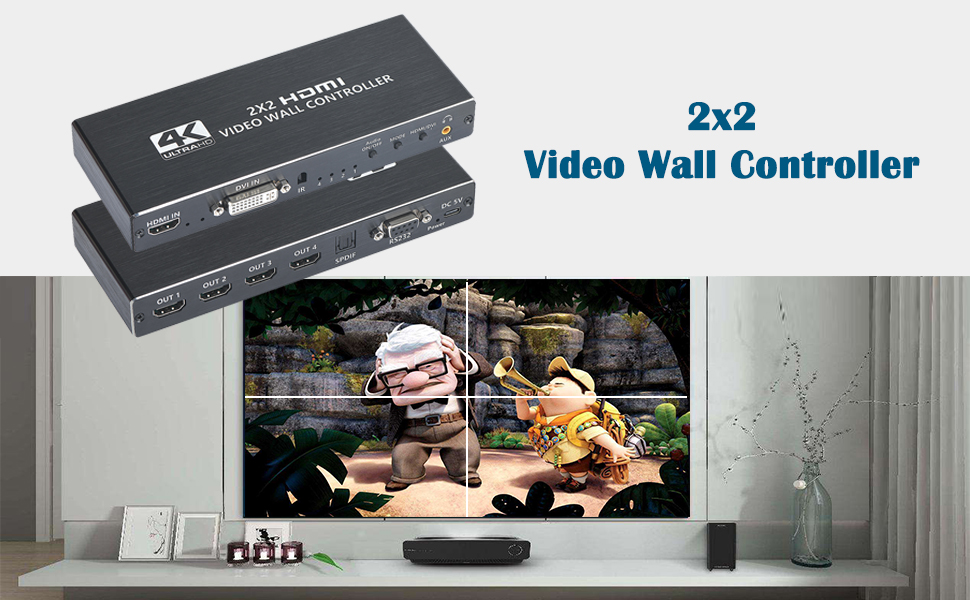

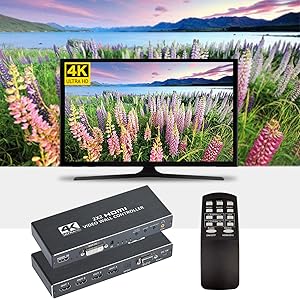

2x2 Video Wall Controller

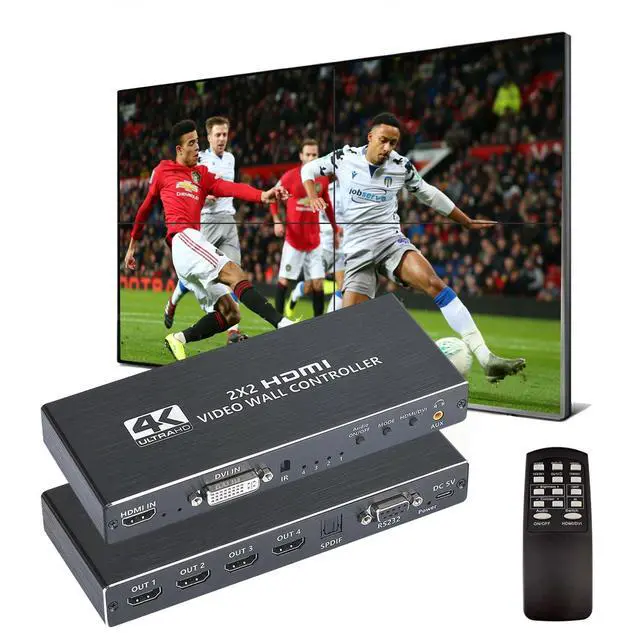

The 4K 2X2 video wall controller, support 1-way HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI, DVI HD image singal into 4 blocks and assign to 4 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.
Feature

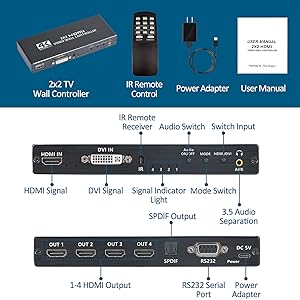

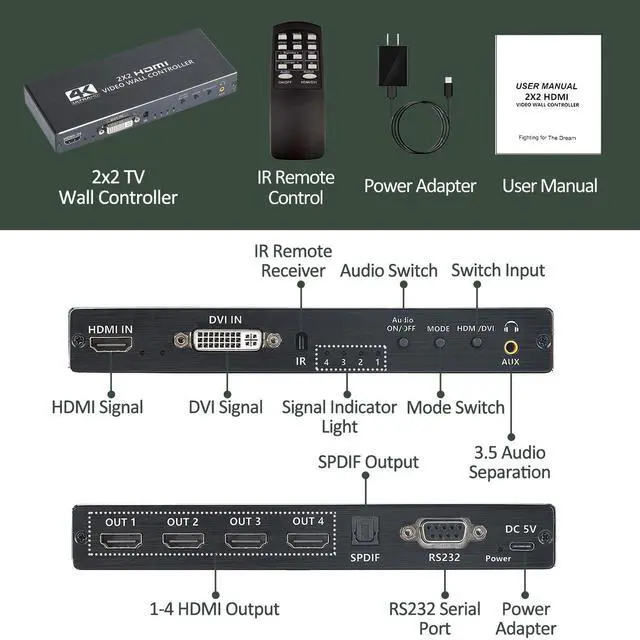

- Support 1 HDMI or DVI input and 4 HDMI outputs.
- High-definition picture presentation, support 1080P high-definition picture input and output, presenting a high-definition, vivid and delicate screenz.
- No need for other software settings, pure hardware devices, simple settings, support to modify the stitching mode through the button switch, after the stitching mode is modified, the device needs to be powered off to restart the device.
- Gold-plating interface, firm & durable. Independent chip is adopted to ensure the stable performance of the device, with no delay and distortion.
- The case is made of metal with multi-hole design, better anti-interference, corrosion- resistant and heat dissipation performance, to ensure its longer service life.
- Supports splicing mode to change freely, plug and play, easy to operate. Support for splicing 2x2/ 2x1.
Input & Output Support
Our splicing controller supports HDMI/ DVI/ RS232 and other signal input.
It support video pause, fast forward, loop playback, program list and other functions, and support the playback of rolling subtitles. Computers, laptops, set-top boxes, DVD players, PS3/4 can all be perfect sources.

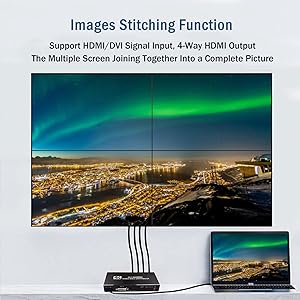

Images Stitching Function

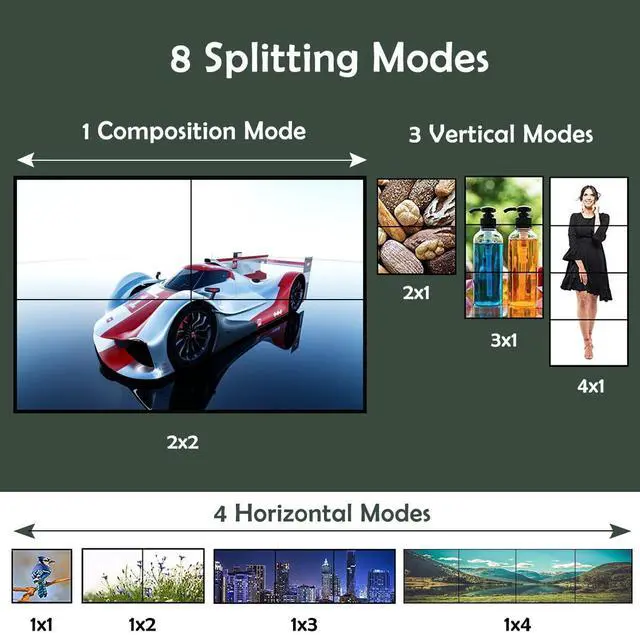

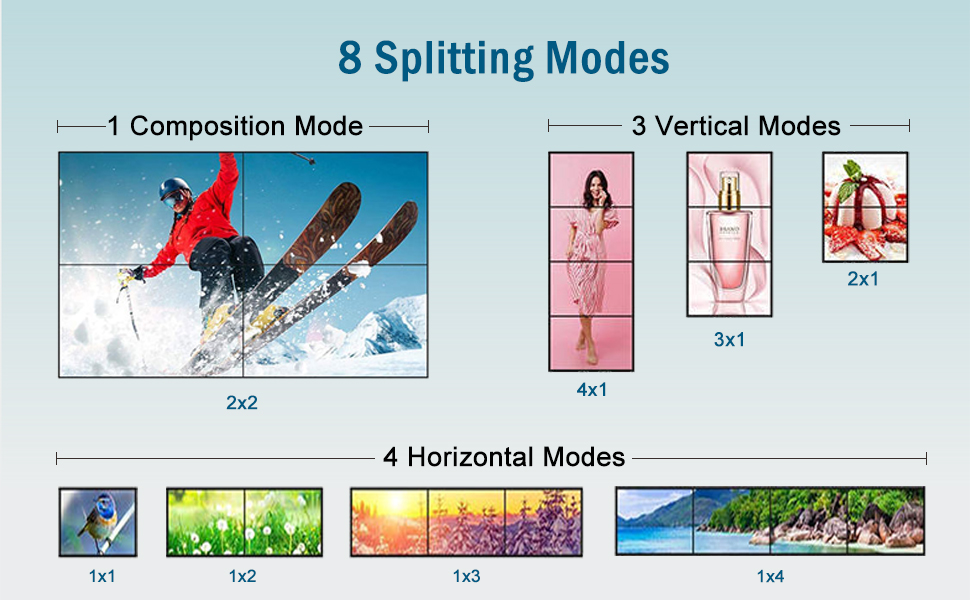

Our video processor can output from 4 channels, support multiple modes display 2x2, 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1. It has strong compatibility and supports most brand products on the market. Suitable for LCD TV, projector, DLP, plasma display, etc. Let us enjoy movie-level picture quality at home at any time.
HD Display
The video wall display has the AUDIO own audio decoding and separation output port, which can be connected to audio, Input devices can support up to 4k, but output devices up to 1080P, restore the original appearance of the image, and present a natural and complete picture, no details are missed, and the colors are real and clearly visible.
Video Wall Controller, 4K 2X2 TV Wall Processor with HDMI+DVI+RS232 Input, Su... | Video Wall Controller, 4K@30Hz 2X3 TV Wall Processor with 1 HDMI Input+ 6 HDM... | Video Wall Controller 3x3, TV Wall Processor, 4K x 2K HDMI Multi-Screen Splic... | Video Wall Controller, 4K@30Hz 4x4 TV Wall Processor 16 Ways Large Screen Vid... | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Product Nam | 2x2 Video Wall Controller | 2x3 Video Wall Controller | 3x3 Video Wall Controller | 4x4 Video Wall Controller |
| Input support | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 | HDMI 1.4, HDCP 1.4 |
| Input resolution | 3840x2160P@30Hz | 3840x2160P@30Hz | 3840x2160P@30Hz | 3840x2160P@30Hz |
| Output resolution | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz | 1920 x 1080P@60Hz |
| Splicing Modes | 8 | 14 | 13 | 24 |
| 180° Screen Rotation | ? | ? | ? | ? |
| RS232 Signal | ? | ? | ? | × |
2x2 Video Wall Controller
The 4K 2X2 video wall controller, support 1-way HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI, DVI HD image singal into 4 blocks and assign to 4 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.
Feature
- Support 1 HDMI or DVI input and 4 HDMI outputs.
- High-definition picture presentation, support 1080P high-definition picture input and output, presenting a high-definition, vivid and delicate screenz.
- No need for other software settings, pure hardware devices, simple settings, support to modify the stitching mode through the button switch, after the stitching mode is modified, the device needs to be powered off to restart the device.
- Gold-plating interface, firm & durable. Independent chip is adopted to ensure the stable performance of the device, with no delay and distortion.
- The case is made of metal with multi-hole design, better anti-interference, corrosion- resistant and heat dissipation performance, to ensure its longer service life.
- Supports splicing mode to change freely, plug and play, easy to operate. Support for splicing 2x2/ 2x1.
| Product Name | 2x2 video wall controller |
| Shell material | alloy |
| Power supply | 5V/ 2A |
| Input support | 1920x1080P 25/30/50/60Hz,3840x2160P 24/30HZ |
| Output support | 1920x1080P 60HZ |
| Input format | RGB/YUV24bit; Output format: RGB444 24bit |
| Sound Output | SPDIF Interface, Support Left and Right Channel Stereo, AV Signal Synchronous Switching |
| RS232 Signal | RS232 serial port command controls the splicing mode |

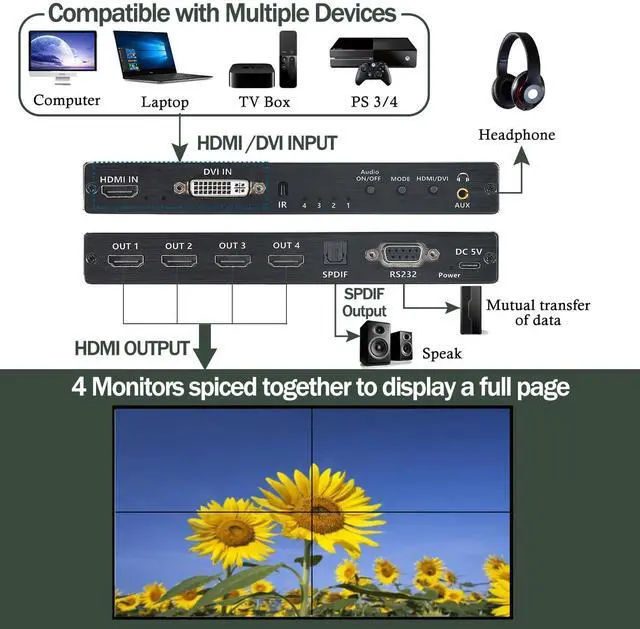

Input & Output Support
Our splicing controller supports HDMI/ DVI/ RS232 and other signal input.
It support video pause, fast forward, loop playback, program list and other functions, and support the playback of rolling subtitles. Computers, laptops, set-top boxes, DVD players, PS3/4 can all be perfect sources.
Images Stitching Function
Our video processor can output from 4 channels, support multiple modes display 2x2, 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1. It has strong compatibility and supports most brand products on the market. Suitable for LCD TV, projector, DLP, plasma display, etc. Let us enjoy movie-level picture quality at home at any time.
HD Display
The video wall display has the AUDIO own audio decoding and separation output port, which can be connected to audio, Input devices can support up to 4k, but output devices up to 1080P, restore the original appearance of the image, and present a natural and complete picture, no details are missed, and the colors are real and clearly visible.
