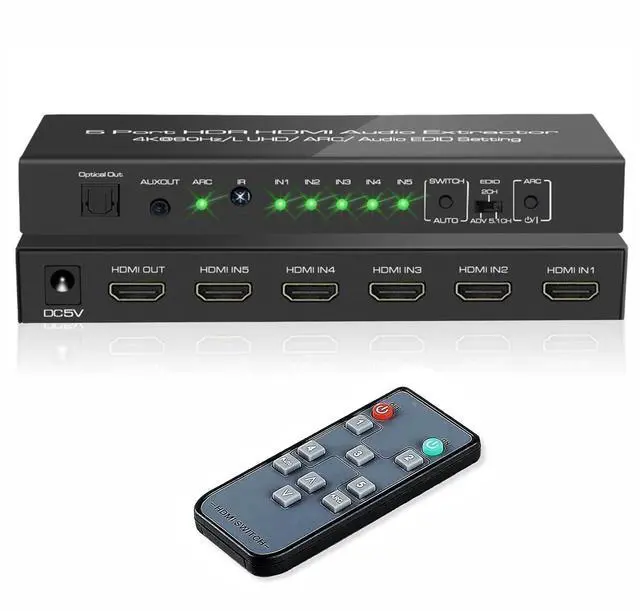

iArkPower 5-port 4K@60Hz HDMI Switch Audio Extractor allows you to connect up to five HDMI devices (like gaming consoles, media streaming devices…) to a single display or TV.

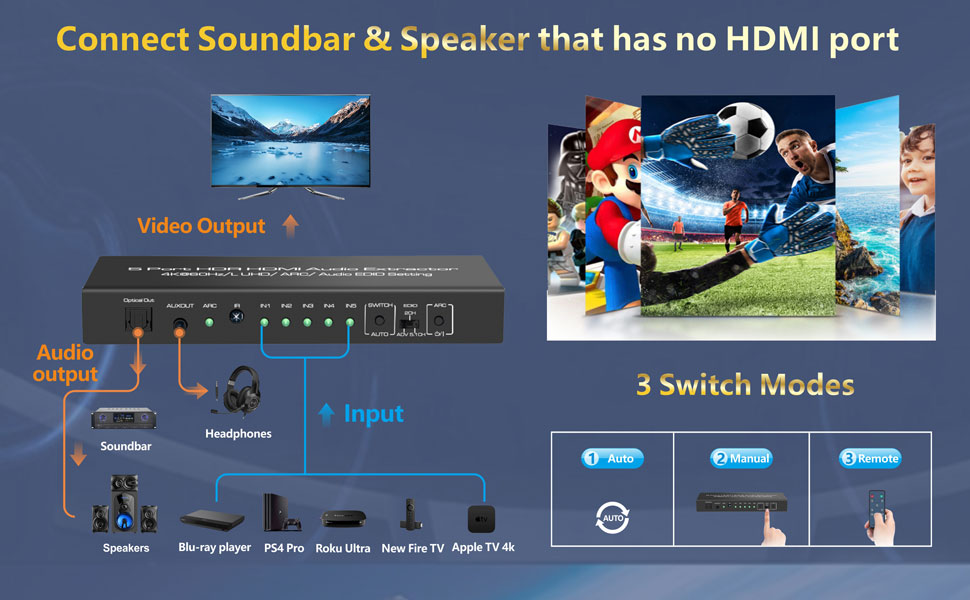

Equipped with optical and 3.5mm ports, it can extract audio from the HDMI signal and send to external speakers, soundbars, or headphones.
All your devices can now be easily accessed with a simple push of a button.

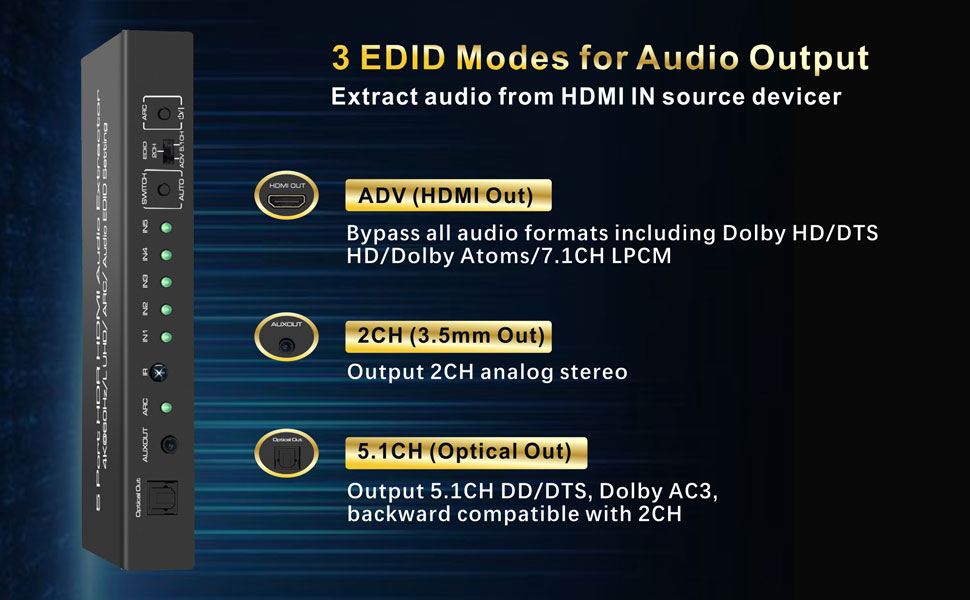

3 EDID Audio Settings
- ADV -- Bypass all audio via HDMI output, including Dolby HD, DTS HD, Dolby Atoms, 7.1CH, 5.1CH, 2CH LPCM/PCM etc.
- 5.1CH – Get 5.1CH Dolby Digital/DTS from optical port; HDMI port will send 5.1CH audio simultaneously;
- 2CH -- Get 2CH analog stereo from 3.5mm AUX port; optical and HDMI port will send 2CH audio simultaneously.
- Resolution Support -- 4K@60Hz, 1080P@120Hz, 1080P/720P@60/50/30Hz...
- Video Features Support -- Dolby Vision, HDR, HDR 10+;
- Transmission Rate -- 18Gbps (600MHz bandwidth per channel);
- Other Features -- HDCP 2.2, CEC compliant.
Devices Support:

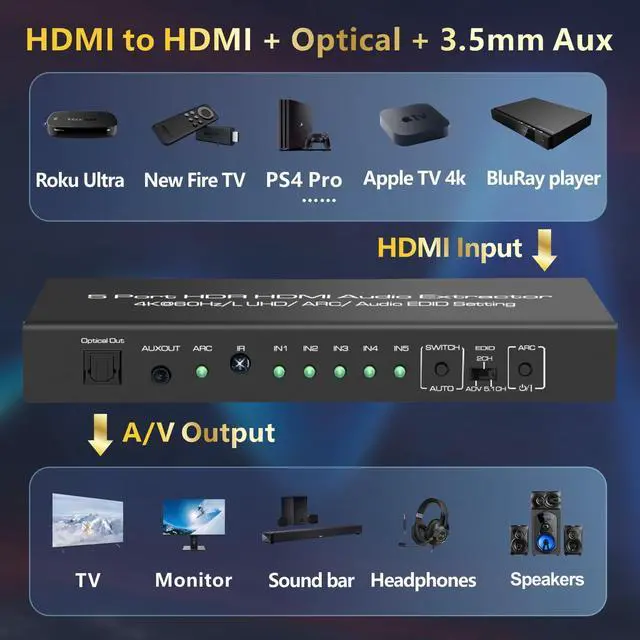

- Input: PC, cable box, Roku, PS4, Xbox, new Fire TV, Apple TV 4K, Blu-Ray Player, etc.
- Video Output: UHD TV, projector, gaming monitor;
- Audio Output: receiver, soundbar, speakers, headphones.

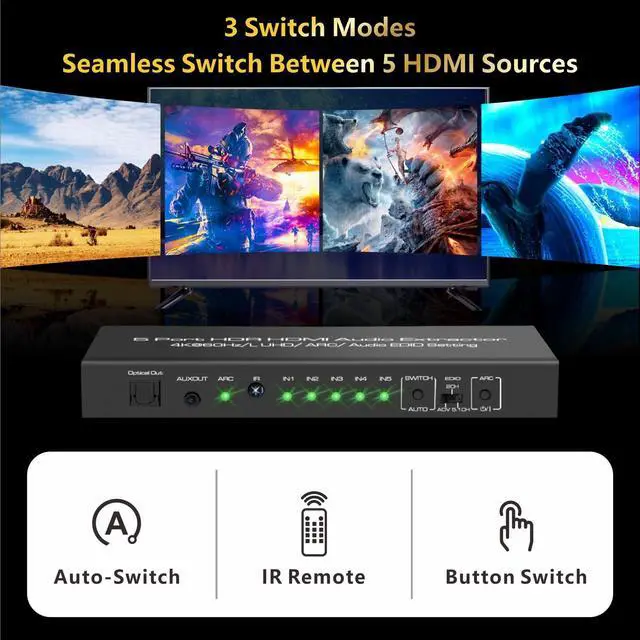

Three Switch Modes:
- Auto Switch (can be turned on/off);
- Manual Switch by pressing button;
- Manual Switch by remote.

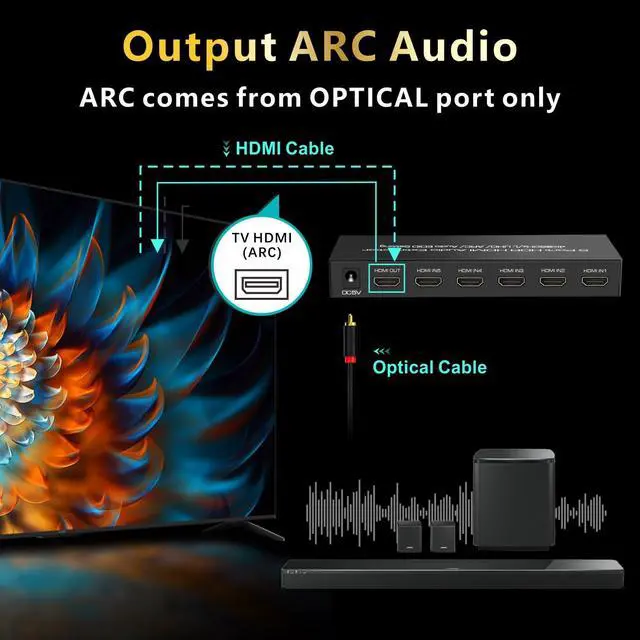

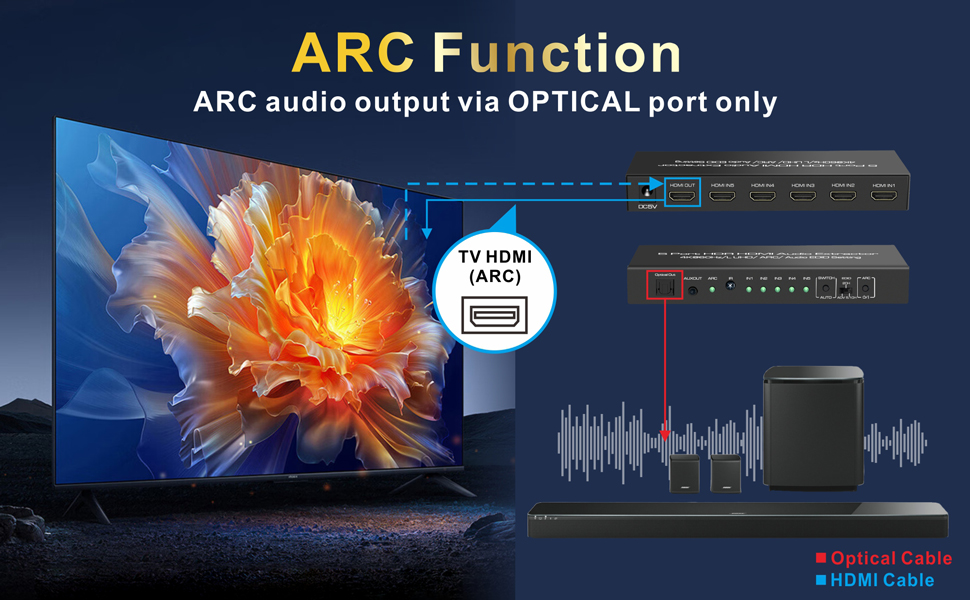

ARC (Audio Return Channel) Function:
- Send ARC from TV to your non-arc sound system;
- ARC audio comes from OPTICAL port only;
- 3.5mm port cannot output ARC audio.
 HDMl 2.0 Switch w/Audio Extractor |  HDMI 2.1 Audio Extractor | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — no data |
| Max Resolution | 4K@60Hz | 4K@120Hz, 8K@60Hz, |
| Input Port | 5 x HDMI | 1 x HDMI |
| Output Port | 1 x HDMI, 1 x Optical, 1 x 3.5mm | 1 x HDMI, 1 x Optical, 1 x 3.5mm |
| Transfer Rate | 18Gbps | 48Gbps |
| Extract Audio | ? | ? |
| Output ARC | ? | ? |
| HDR/Dolby Vison/Dolby Atmos | ? | ? |
| HDMI Version | HDMI 2.0 | HDMI 2.1 |
| HDCP Version | HDCP 2.2 | HDCP 2.3 |
| Power Adapter | AC 100~240V, DC 5V/1A | AC 100~240V, DC 5V/1A |
