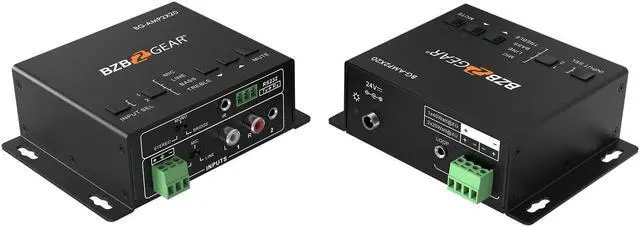

BZBGEAR 2-Channel 40W 4/8 Ohms Stereo/Mono Audio Amplifier

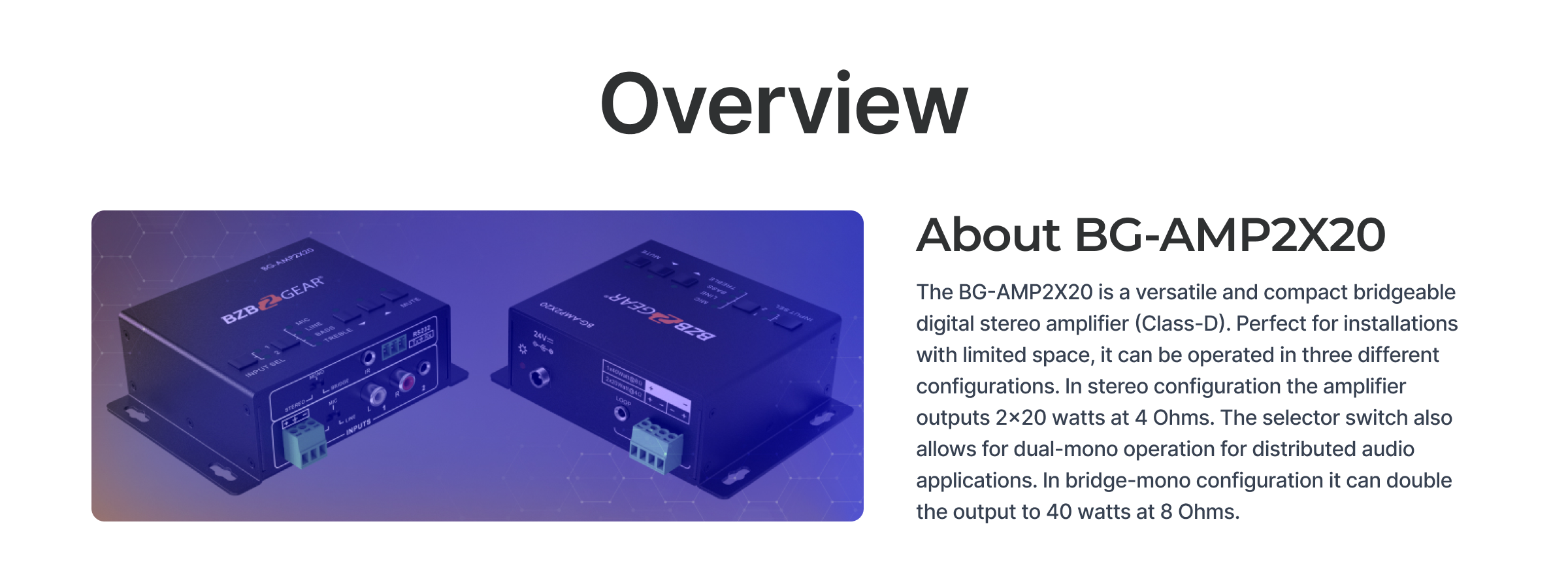

The BG-AMP2X20 is a versatile and compact bridgeable digital stereo amplifier (Class-D). Perfect for installations with limited space, it can be operated in three different configurations. In stereo configuration the amplifier outputs 2x20 watts at 4 Ohms. The selector switch also allows for dual-mono operation for distributed audio applications. In bridge-mono configuration it can double the output to 40 watts at 8 Ohms.

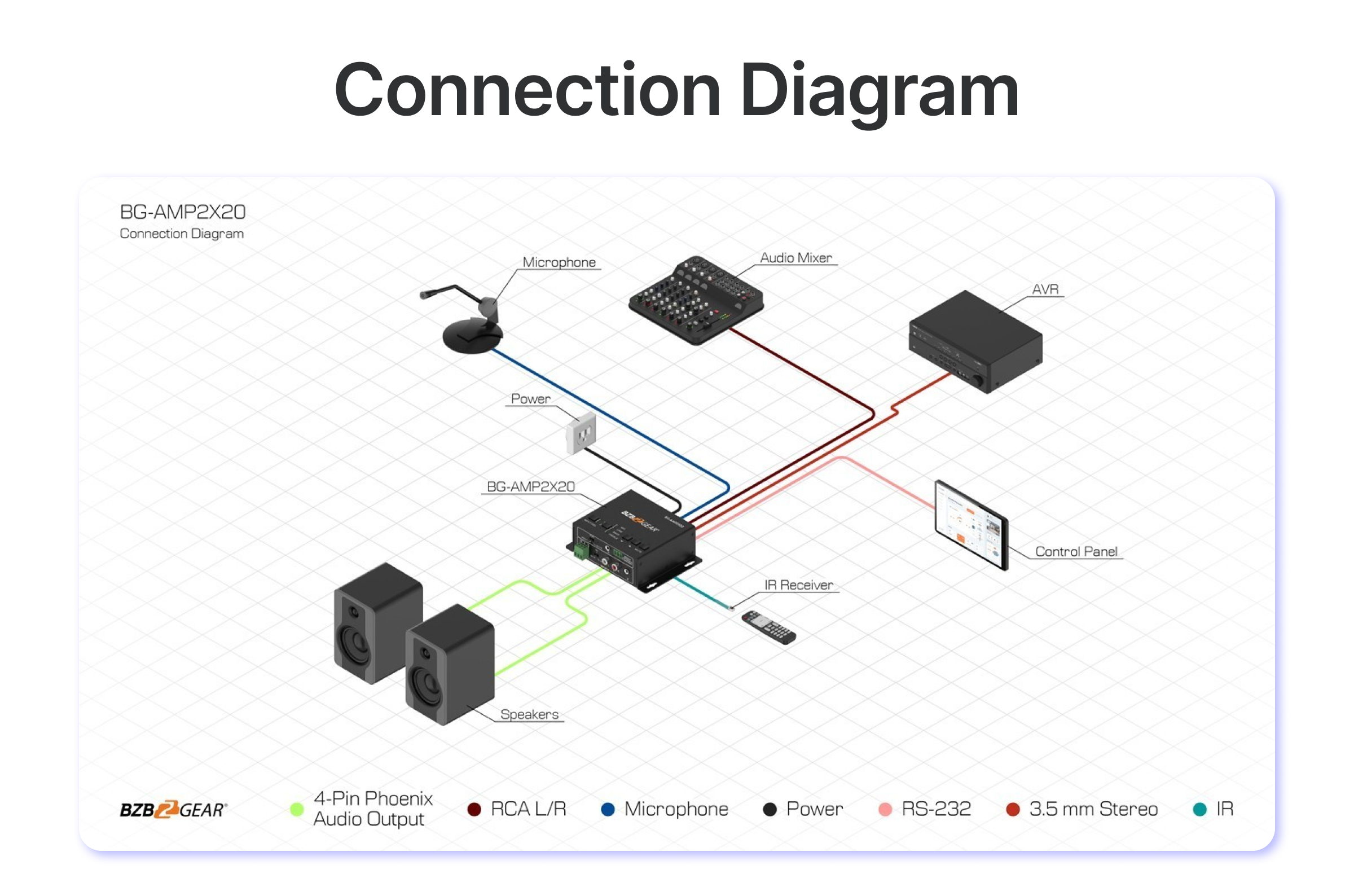

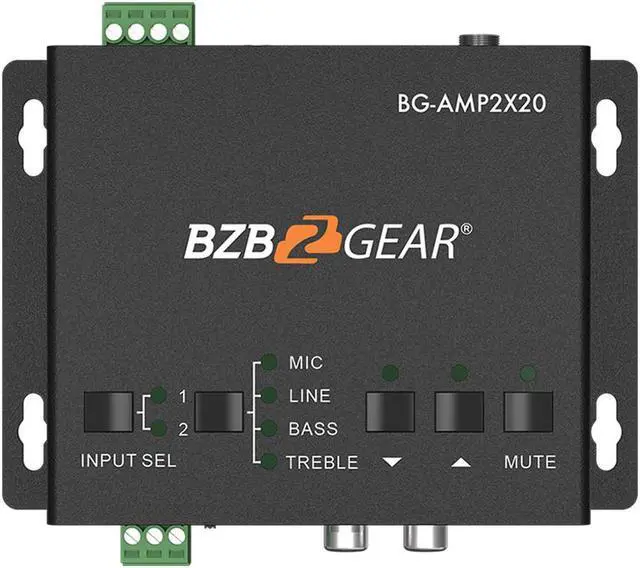

Inputs include 1 x stereo RCA, 1 x 3.5mm, and a microphone input with switchable 48v phantom power. Bass, Treble, volume level, and input selection are all controllable via the integrated buttons on the bottom panel, IR remote control, or RS-232.

The features and performance combined with its compact form factor make this amplifier the perfect solution for situations that do not allow a full-sized amplifier.

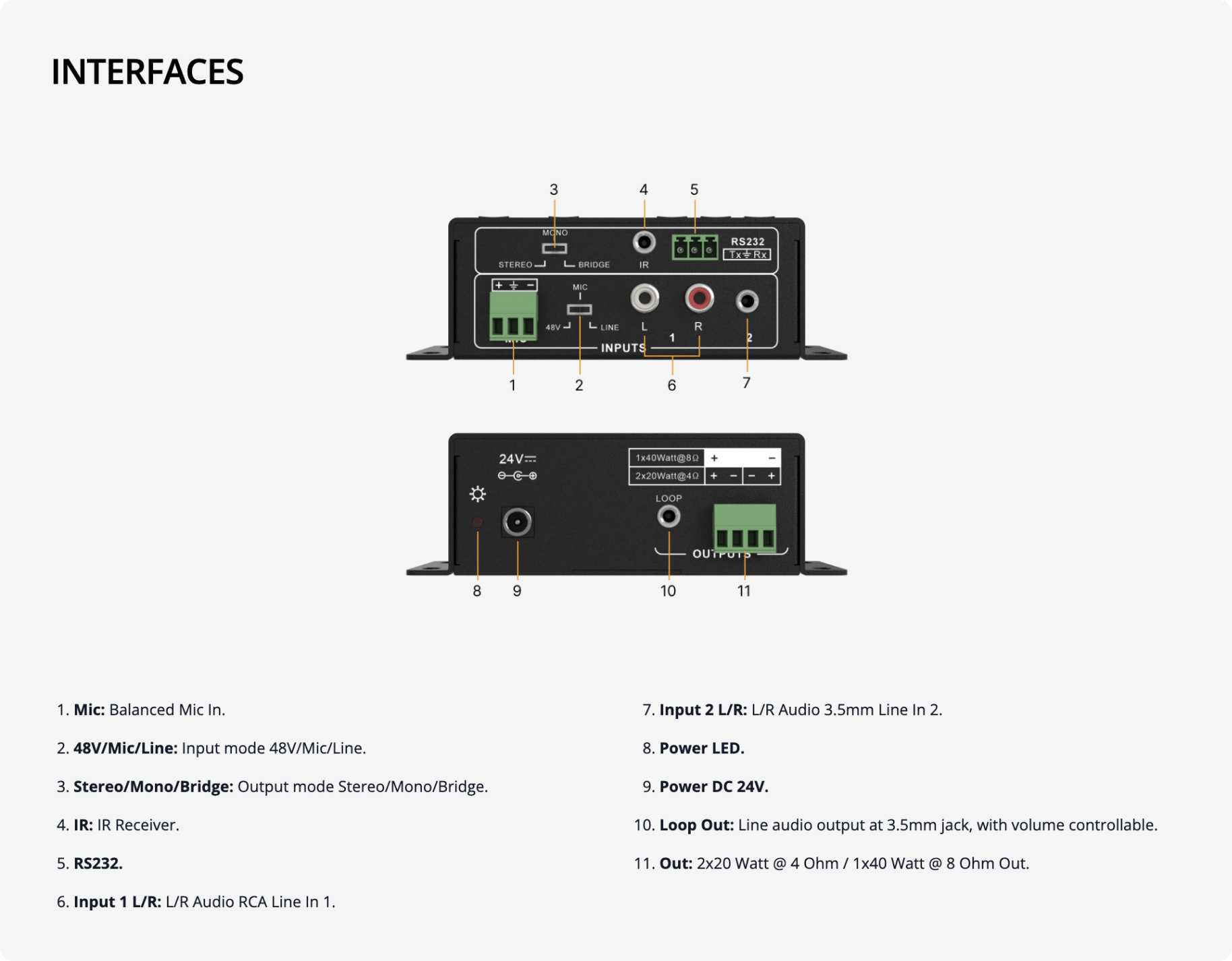

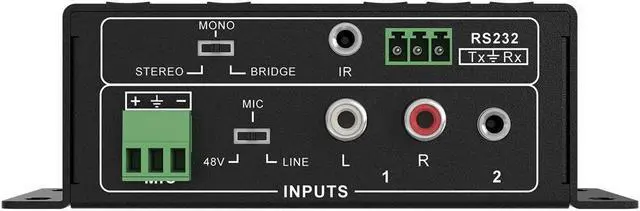

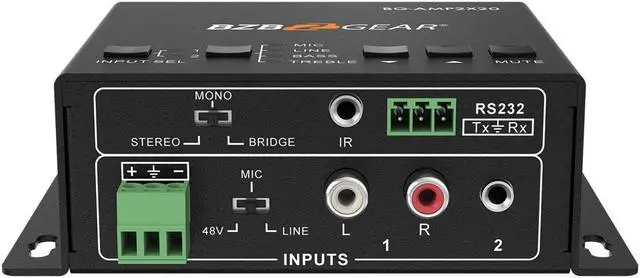

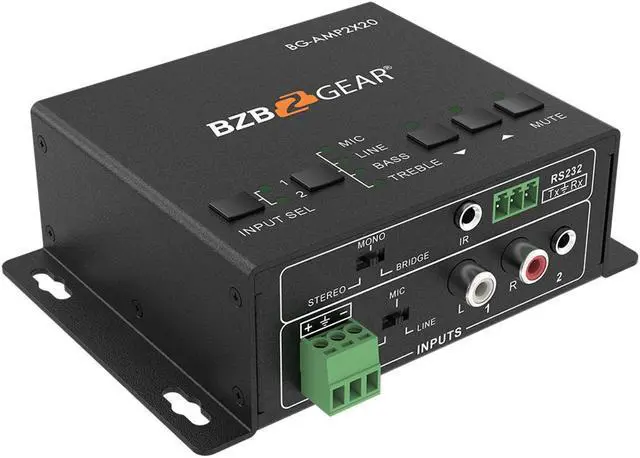

1. Mic: Balanced Mic In.
2. 48V/Mic/Line: Input mode 48V/Mic/Line.
3. Stereo/Mono/Bridge: Output mode Stereo/Mono/Bridge.
4. IR: IR Receiver.
5. RS232.
6. Input 1 L/R: L/R Audio RCA Line In 1.
7. Input 2 L/R: L/R Audio 3.5mm Line In 2.

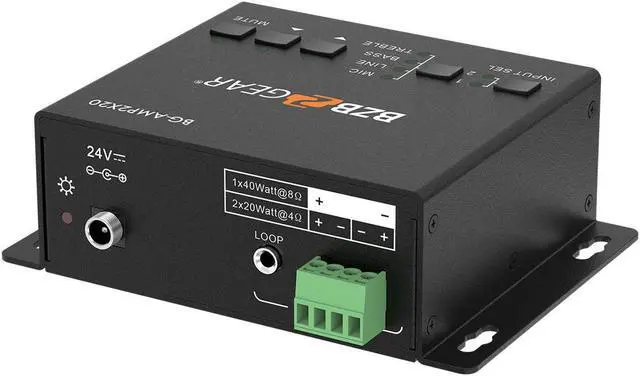

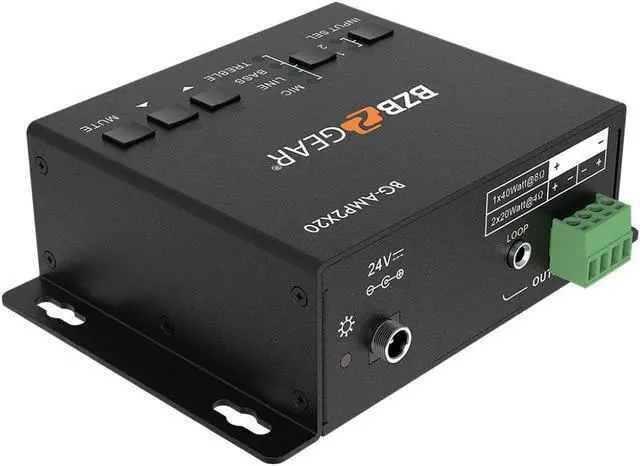

8. Power LED.
9. Power DC 24V.
10. Loop Out: Line audio output at 3.5mm jack, with volume controllable.
11. Out: 2x20 Watt @ 4 Ohm / 1x40 Watt @ 8 Ohm Out.
