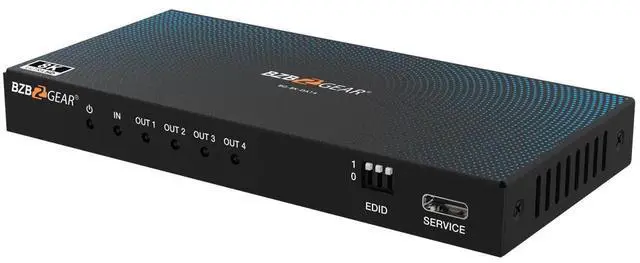

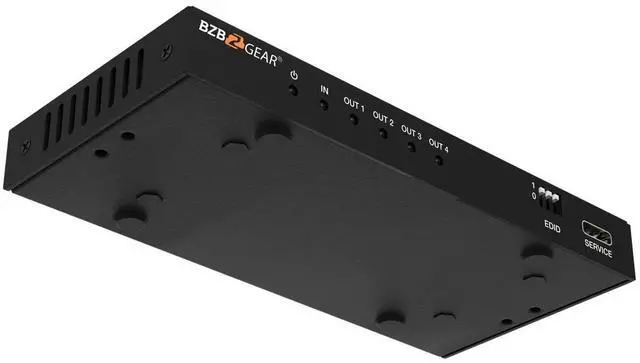

1x4 8K UHD HDMI 2.1 Splitter with Auto Downscaling
HDCP 2.3 Compliant | High-Resolution Video | HDMI 2.1 Protocols | Advanced Audio
Experience unparalleled video distribution with our advanced BG-8K-DA14 1x4 HDMI Splitter, designed to deliver a single HDMI signal to four outputs simultaneously with impeccable precision and quality. Supporting video resolutions up to 8K at 60Hz (4:2:0, 12-bit) and data rates up to 48Gbps, this splitter ensures an exceptional viewing experience. Compliant with HDMI 2.1 and HDCP 2.3 standards, it offers seamless integration and enhanced performance for modern entertainment systems, including gaming consoles like Xbox and PS5, enabling stunning 4K at 120Hz on your TVs or compatible monitors.
HDCP 2.3 Compliant
Ensures secure content protection, enabling seamless connectivity with the latest devices
High-Resolution Video
Supports video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) as specified in HDMI 2.1
HDMI 2.1 & 48Gbps Bandwidth
Supports VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping); provides ultra-high-speed data transmission for optimal performance
Advanced Audio
Supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats for immersive sound
Auto Downscaling
Automatically scales 8K to 4K or 8K/4K to 1080P on all outputs for compatibility with various displays
Advanced EDID Management
Simplifies the integration process and enhances compatibility with various devices
HDR Pass-Through & Conversion
Compatible with HDR, HDR 10, HDR 10+, Dolby Vision, and HLG, providing vivid and lifelike visuals; automatically converts HDR to SDR on all outputs, ensuring compatibility with older displays
Compact Design
Offers easy and flexible installation, fitting seamlessly into any setup
Connection Diagram
Connect one HDMI source, such as a PC or a gaming console like Xbox or PS5, to the IN port and deliver the same signal to up to four displays at once through the OUT 1-4 ports, with auto downscaling for compatibility with various displays.

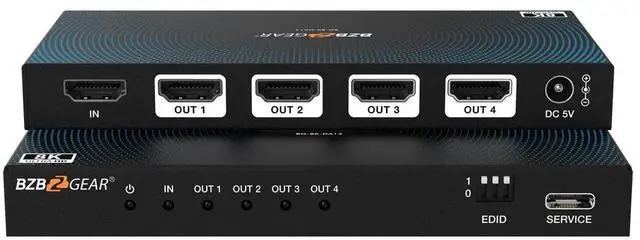

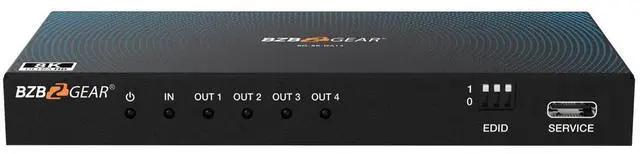

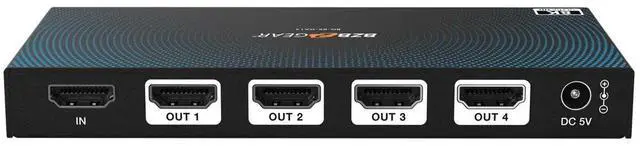

Front and Rear Panels
1. Power LED - When the device is powered on, the red LED will be on
2. IN LED - When the HDMI IN port connects to an active source device, the green LED will be on
3. OUT LED (1~4) - When the HDMI OUT 1/2/3/4 port connects to a display device and outputs signal, the corresponding green LED will be on
4. EDID DIP switch - Use the DIP switch to set EDID
5. SERVICE - Firmware update port
6. IN port - HDMI signal input port, connected to HDMI source device such as DVD or PS5 with an HDMI cable
7. OUT port (1~4) - HDMI signal output port, connected to HDMI display device such as TV or Monitor with an HDMI cable
8. DC 5V - DC 5V/2A power input port
| HDMI Compliance | HDMI 2.1 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 1080p240Hz |
| Color Depth | 8/10/12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Input | 1 x HDMI IN [Type A, 19-pin female] |
| Output | 4 x HDMI OUT [Type A, 19-pin female] |
| Control | 1 x SERVICE [USB Type C, Update port] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm] |
| Weight | 0.58 lbs [263g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5.5W (Max) |
| Operation Temperature | 32 F ~ 104 F / 0 C ~ 40 C |
| Storage Temperature | -4 F ~ 140 F / -20 C ~ 60 C |
| Relative Humidity | 20~90% RH (non-condensing) |
| HDMI Cable Length (HDMI in / out) - 8K | 3m/10ft (Ultra HDMI 2.1) |
| HDMI Cable Length (HDMI in / out) - 4K60 | 8m/26ft |
| HDMI Cable Length (HDMI in / out) - 4K24 | 12m/39ft |
| HDMI Cable Length (HDMI in / out) - 1080P | 15m/49ft |
| Note | The use of "Premium High-Speed HDMI" cables is highly recommended. |
| Package Contents | 1x 48Gbps 1x4 Splitter; 1x 5V/2A Multinational Power Supply; 1x User Manual |
