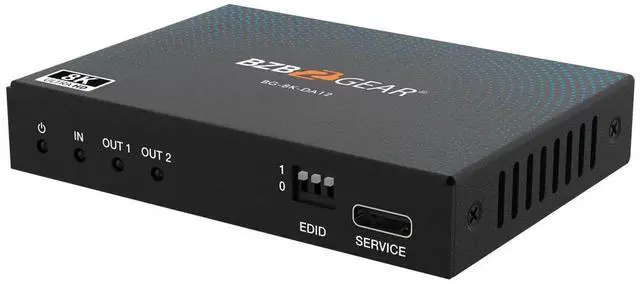

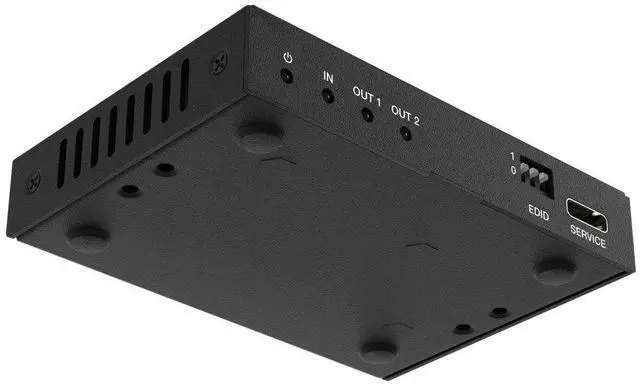

1x2 8K UHD HDMI 2.1 Splitter with Auto Downscaling
HDCP 2.3 Compliant | Stunning Resolution Support | HDMI 2.1 Protocols
The BG-8K-DA12 1x2 HDMI Splitter is a high-performance device designed to split a single HDMI signal into two simultaneous HDMI outputs, delivering exceptional video quality with resolutions up to 8K@60Hz 4:2:0 12-bit. Engineered for demanding applications, this splitter supports data rates up to 48Gbps and complies with the latest HDMI 2.1 and HDCP 2.3 standards, ensuring seamless integration into any setup.
With advanced EDID management and cable equalization features, it's the ideal solution for gaming and high-definition video environments. Whether connected to an Xbox, PS5, or any 4K/8K-capable device, this splitter allows for 4K@120Hz output on multiple TVs or monitors, offering a seamless experience for gaming and entertainment enthusiasts alike.
HDCP 2.3 Compliant
Ensures secure content protection and compatibility with the latest HDMI standards
Resolution Support & Downscaling
Handles video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) as per HDMI 2.1 specifications; automatically downscales 8K to 4K or 8K/4K to 1080P on all outputs for compatibility with lower-resolution displays
HDMI 2.1 Protocols
Supports VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and dynamic video performance
HDR Compatibility & Conversion
Passes through HDR, HDR10, HDR10+, Dolby Vision, and HLG for vivid color and contrast; automatically converts HDR content to SDR on all outputs for seamless viewing on non-HDR displays
Compact Design
Enables easy and flexible installation in any setup
High-Bandwidth Support
Provides 48Gbps FRL and 18Gbps TMDS video bandwidth for smooth and reliable video transmission
High-Quality Audio Pass-Through
Supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats
Advanced EDID Management
Ensures optimal device communication and performance
Connection Diagram
The BG-8K-DA12 splits one HDMI source into two simultaneous HDMI outputs, as shown in the connection diagram.

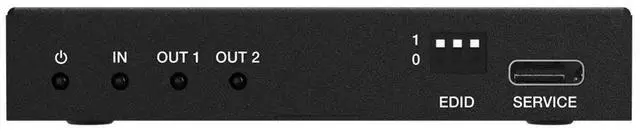

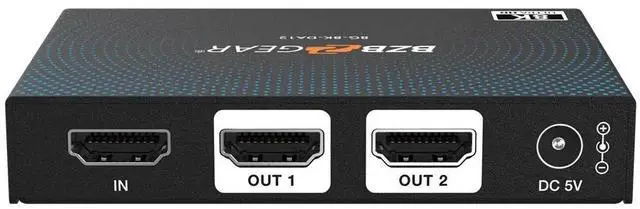

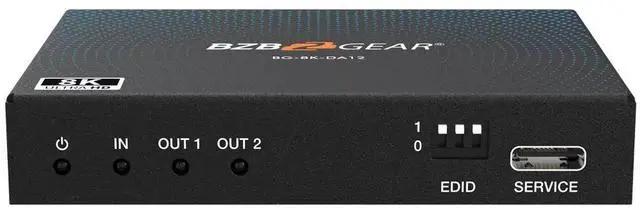

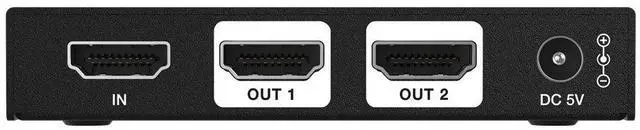

Front and Rear Panels
1. Power LED - When the device is powered on, the red LED will be on
2. IN LED - When the HDMI IN port connects to an active source device, the green LED will be on
3. OUT LED (1~2) - When the HDMI OUT 1/2 port connects to a display device and outputs a signal, the corresponding green LED will be on
4. EDID DIP switch - Use the DIP switch to set EDID
5. SERVICE - Firmware update port
6. IN port - HDMI signal input port, connected to HDMI source device such as DVD or PS5 with an HDMI cable
7. OUT port (1~2) - HDMI signal output port, connected to HDMI display device such as a TV or Monitor with an HDMI cable
8. DC 5V: DC 5V/2A power input port.
| HDMI Compliance | HDMI 2.1 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 1080p240Hz |
| Color Depth | 8/10/12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Input | 1 x HDMI IN [Type A, 19-pin female] |
| Output | 2 x HDMI OUT [Type A, 19-pin female] |
| Control | 1 x SERVICE [USB Type C, Update port] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm] |
| Weight | 0.39 lbs [177g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 4.3W (Max) |
| Operation Temperature | 32 F ~ 104 F / 0 C ~ 40 C |
| Storage Temperature | -4 F ~ 140 F / -20 C ~ 60 C |
| Relative Humidity | 20~90% RH (non-condensing) |
| HDMI Cable Length (HDMI in / out) - 8K | 3m/10ft (Ultra HDMI 2.1) |
| HDMI Cable Length (HDMI in / out) - 4K60 | 8m/26ft |
| HDMI Cable Length (HDMI in / out) - 4K24 | 12m/39ft |
| HDMI Cable Length (HDMI in / out) - 1080P | 15m/49ft |
| Note | The use of "Premium High-Speed HDMI" cables is highly recommended. |
| Package Contents | 1x 48Gbps 1x2 Splitter; 1x 5V/2A Multinational Power Supply; 1x User Manual |
