Meet Your Seller

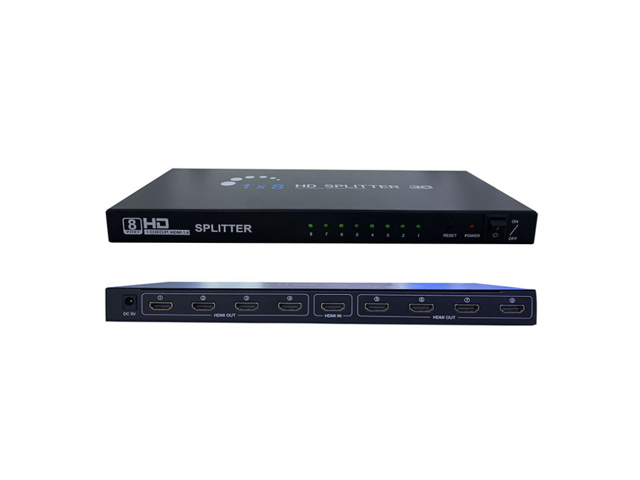

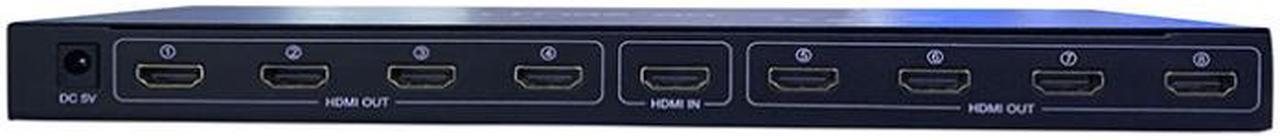

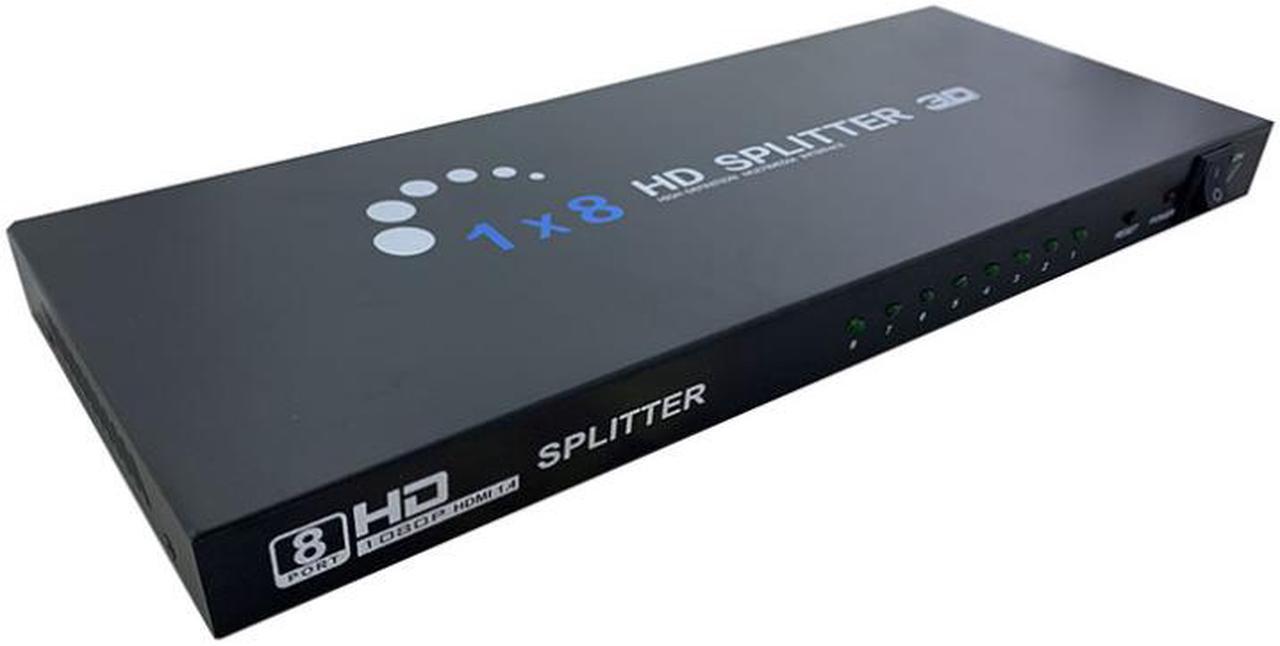

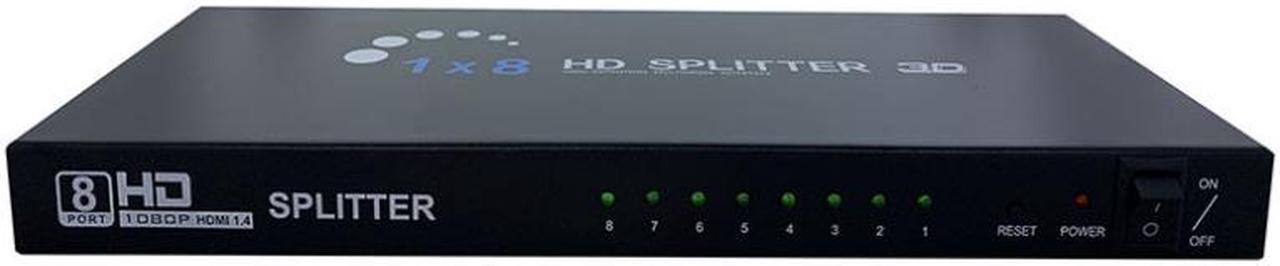

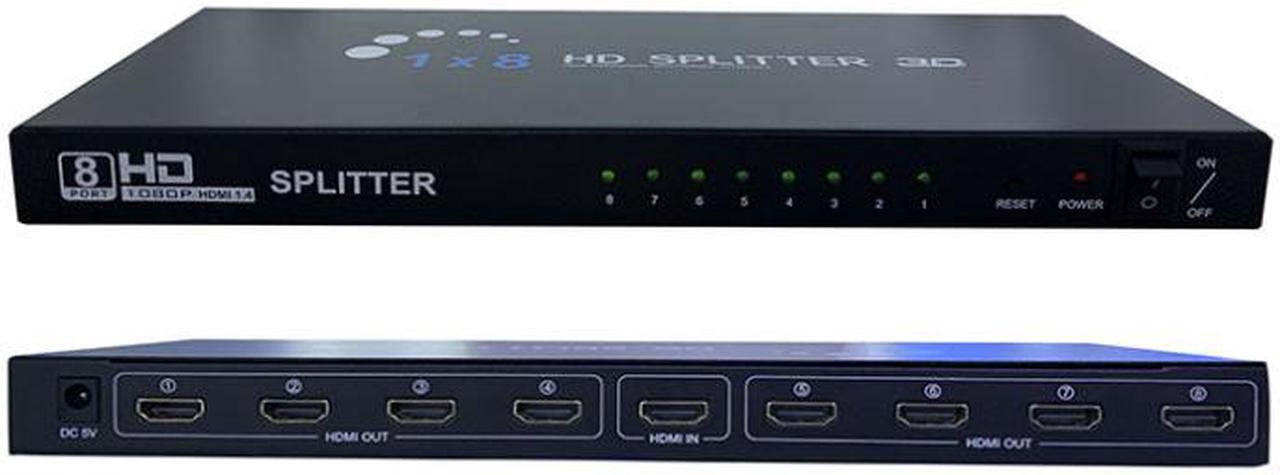

SA HDMI Splitter - 8-Port - 3D 1080P - HDMI Splitter 1 In 8 Out - 8 Way HDMI Splitter - HDMI Port Splitter -For PS 3/4, Xbox, HDTVs, projectors, PC monitors,Blu-ray DVD player
- HDMI Splitter amplifies and distributes the HDMI input signal into eight identical, synchronized outputs. The splitter also has the ability of buffering and amplifying to achieve longer transmission distance of HDMI signal. Compatible with HDTVs, projectors, PC monitors, as well as various HDMI source devices including PC, cable/satellite receiver, Blu-ray DVD player, PS 3/4, Xbox, Chromecast, Amazon Fire TV etc., this splitter is suitable for home theater and other dual display applications such as data center control, information distribution, conference room presentation, school and corporate training environment.
- Features:
- l 1 HDMI signal input, allocated as 8 HDMI outputs
- l HDMI resolution supports up to 4K/30fs, supports 3D
- l Support 24-bit/dark 30-bit/36-bit
- l Support Blu-ray DVD24/50/60fs/HD-DVD/xvYCC
- l HDMI supports audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
- l Support signal timing rearrangement
- l Use AWG24 HDMI 1.4b version standard cable, the input transmis
+
+
Overview
Specs
Reviews
Product parameters:
HDMI input and output resolution........ Support up to 4K/30fs
HDMI supports video color format............24 bit/deep color 30 bit/36 bit
HDMI supports audio formats...DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/DSD
HDMI maximum transmission bandwidth............ 340MHz
HDMI maximum transmission speed...10.2Gbps
Input and output TMDS signal...0.5~1.5Vp-p(TTL)
Input and output DDC signal..........................................5Vp-p( TTL)
Input cable length when HDMI 1080P......=15m AWG24 HDMI standard cable
Output cable length when HDMI1080P...=20m AWG24 HDMI standard cable
Input cable length when HDMI 4K/30fs...=10m AWG24 HDMI standard cable
HDMI 4K/30fs output cable length......=15m AWG24 HDMI standard cable
Maximum working current............................................... ....380mA
Power adapter specifications............AC 100V-240V 50/60HZ, DC 5V/1A
Operating temperature................................................ ..-10~+55?
Storage temperature......................................... ...-20~+60?
Working humidity........................................10~90%RH (No condensation)
Storage humidity............................................5~95 %RH (no condensation)
Shell size............ 276x111x25 (mm )
weight................................................. .......579g
Package Contents:
Distributor... ..........1pcs
DC5V/1A power adapter.................. .1pcs
User Manual................................................ ........1pcs
HDMI input and output resolution........ Support up to 4K/30fs
HDMI supports video color format............24 bit/deep color 30 bit/36 bit
HDMI supports audio formats...DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/DSD
HDMI maximum transmission bandwidth............ 340MHz
HDMI maximum transmission speed...10.2Gbps
Input and output TMDS signal...0.5~1.5Vp-p(TTL)
Input and output DDC signal..........................................5Vp-p( TTL)
Input cable length when HDMI 1080P......=15m AWG24 HDMI standard cable
Output cable length when HDMI1080P...=20m AWG24 HDMI standard cable
Input cable length when HDMI 4K/30fs...=10m AWG24 HDMI standard cable
HDMI 4K/30fs output cable length......=15m AWG24 HDMI standard cable
Maximum working current............................................... ....380mA
Power adapter specifications............AC 100V-240V 50/60HZ, DC 5V/1A
Operating temperature................................................ ..-10~+55?
Storage temperature......................................... ...-20~+60?
Working humidity........................................10~90%RH (No condensation)
Storage humidity............................................5~95 %RH (no condensation)
Shell size............ 276x111x25 (mm )
weight................................................. .......579g
Package Contents:
Distributor... ..........1pcs
DC5V/1A power adapter.................. .1pcs
User Manual................................................ ........1pcs
