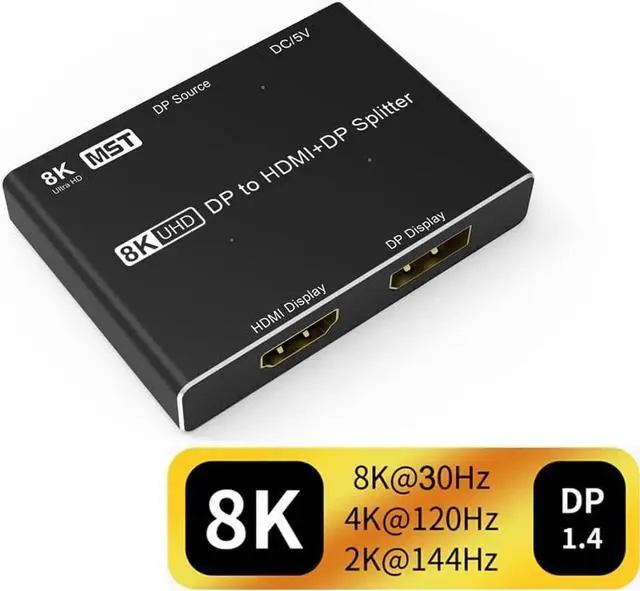

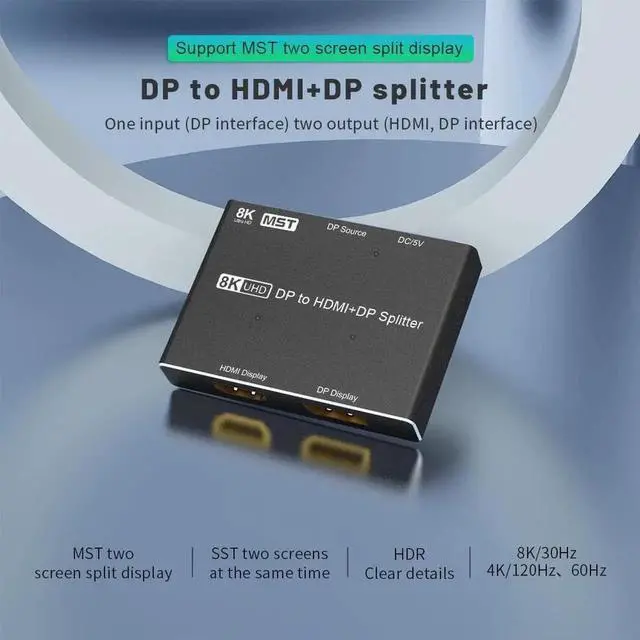

DisplayPort 1.4 MST Hub Splitter with HDMI & Displayport Out, 2-Port DP Multi-Stream Transport 4K@120Hz Over The HDMI Out(Single Display Only), DP MST-Enabled Video Card(Windows PC Only)

The Dual Port DisplayPort 1.4 MST Hub splits a DisplayPort 1.4 single output source into 2 Displays(HDMI+Displayport). It connects 2 monitors to the DisplayPort output with MST capability on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them.

Product Description:

Compatible with all DisplayPort input and HDMI, DisplayPort output

Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications

Support resolution:

8K@30Hz

4K@120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output

Not supported)

(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)

Support operating system: Apple (iOS) system, Windows system, Android system

Support HDR

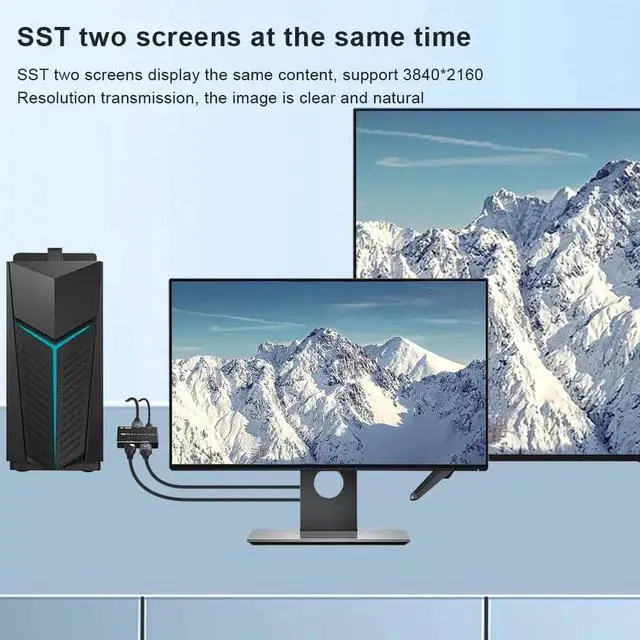

Support SST (Mirror) and MST (Extended) mode

Support 4:4: 4, 4:2: 2, 4:2: 0

Remarks:

1. An external power supply is required: When using, please use the provided USB power cord to power the switch

2. Note that the output of HDMI or DP single port in MST extended mode can reach 8K when used alone,

The output of 2 ports can only reach 4K at the same time

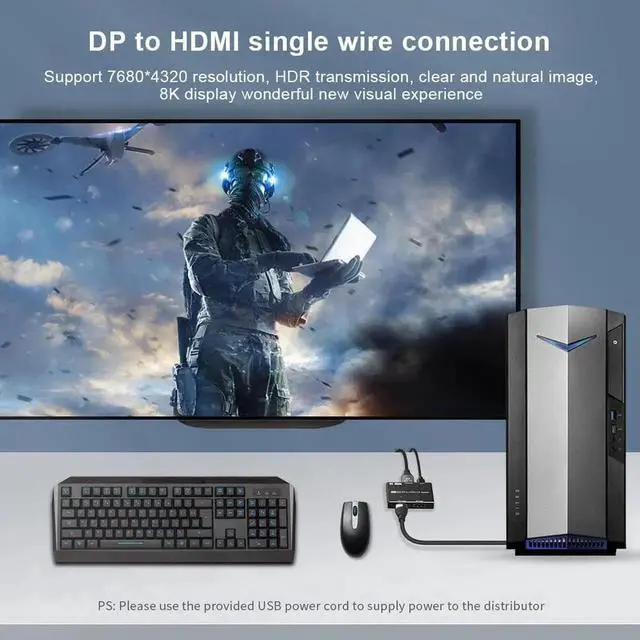

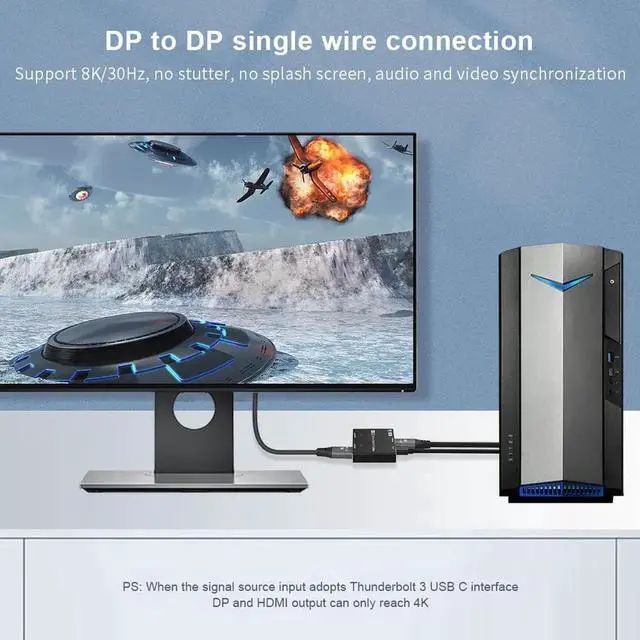

3. When the Thunderbolt 3 USB C interface is used as the signal source input, the DP and HDMI output can only reach 4K

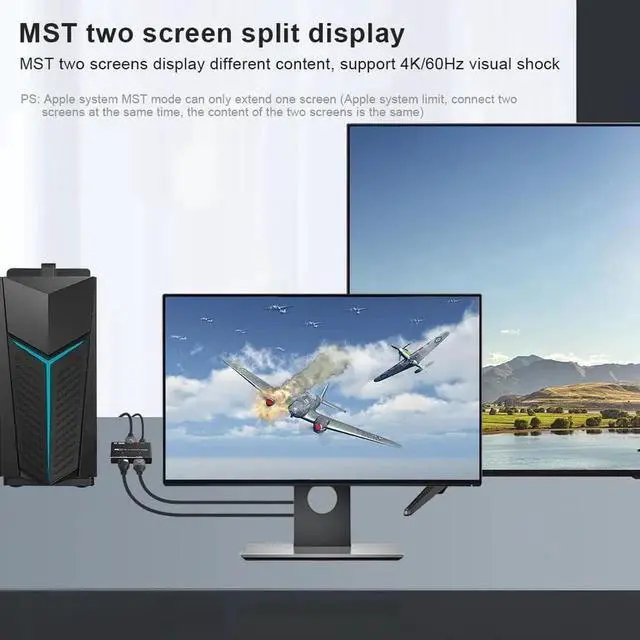

4. Apple system MST mode can only extend one screen (Apple system limit, connect two at the same time

Screen, the content of the two screens is the same)

Package list:

Learn more about the Detailed Specifications
