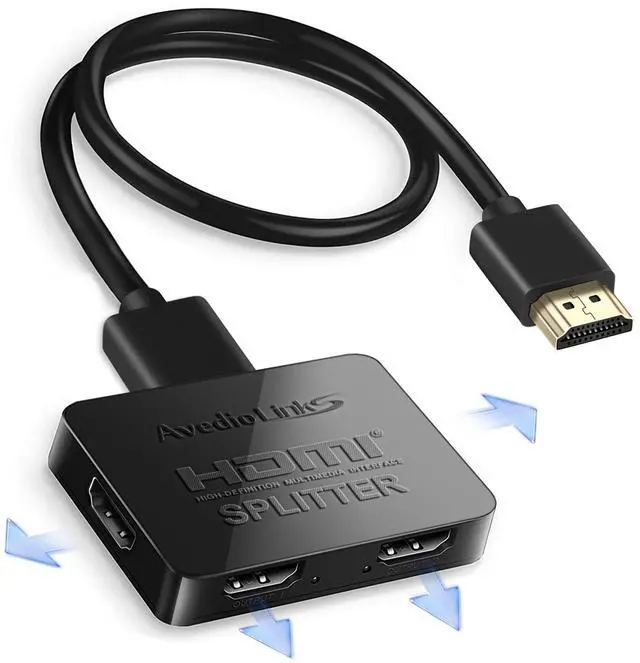

This 4X1 HDMI splitter allows one HDMI input source to four HDMI monitors, distributes video and audio simultaneously without any loss.
NOTE: JUST DUPLICATE / MIRROR SCREENS ONLY, NOT SUPPORT EXTEND!
OPERATION AND FEATURES --

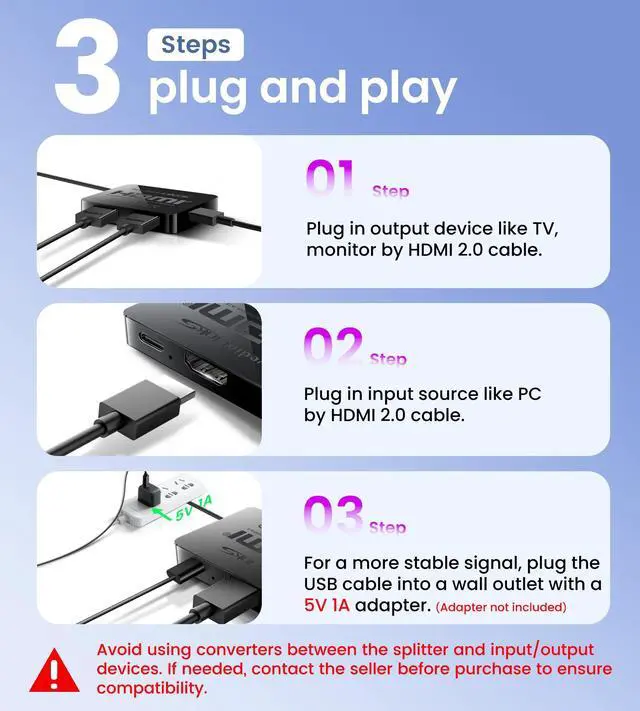

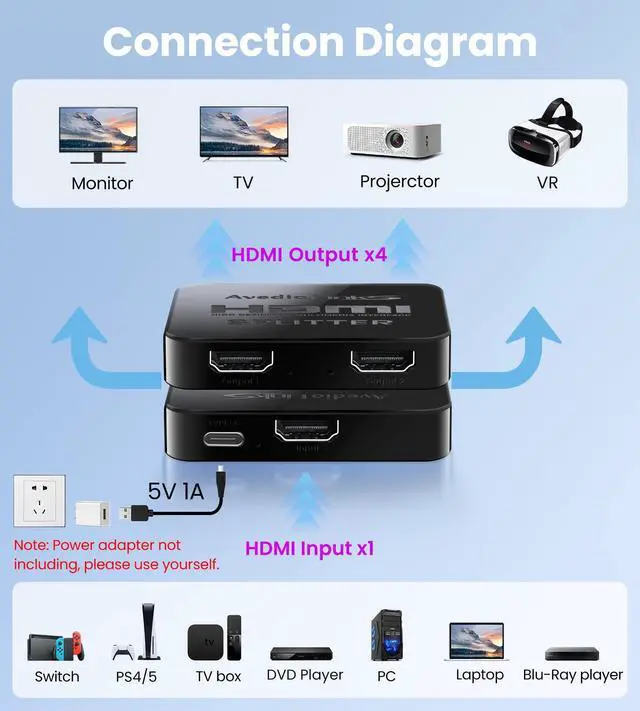

1.Hook up HDMI 2.0 cable from HDMI source devices into HDMI Splitter input.
2.Hook up HDMI 2.0 cable from each display (monitor or projector) into the HDMI Splitter output.
3.In most cases, HDMI Splitter 1 into 4 output can work without a power supply. If it does not work, please connect to a 5V/1A power USB cable to supply enough power.
4.PLEASE set the all output devices resolution to be the same to ensure display normally.
5. For 1080p resolution, support input up to 15 meters AWG26 HDMI standard cable, output up to 15 meters AWG26 cable.
6. For 4K 30Hz, support input up to 5 meters AWG26 HDMI standard cable , output up to 5 meters AWG26 cable.
7.This 1x4 Splitter will display the lower resolution of three device with only 1 HDMI source, and the resolution of the 4 output screens will be the same SPECIFICATIONS, it cant support mixed different resolution to display. --
HDMI Resolution: 4Kx2K@30Hz / 3D/ 1080p/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i
Support Audio Format: DTS-HD/ Dob-ly-true HD/ DTS/ Dob-ly-AC3, DSD
Support Video Color Format: 8/10/12bit
PACKAGE CONTENTS --
1 x 4K@30Hz HDMI Splitter 4 Port
1 x USB power cable (not included power adapter)
1 x User Manual
Lifetime technical support.
| Compatible Devices | Monitor, PS3, PS4, Projector, Television |
| Connector Type | HDMI |
| Color | 4K@30Hz |
| Item dimensions L x W x H | 2.4 x 2 x 0.4 inches |
| Brand | KEHIPI |
| Product Dimensions | 2.4 x 2 x 0.4 inches |
| Item Weight | 6.4 ounces |
| Item model number | HDMI 1 in 4 Out |
| Date First Available | July 28, 2023 |
| Manufacturer | KEHIPI |
