HDMI Splitter 1 in 2 Out,Jansicotek 1x2 HDMI Splitter -Full HD 4K 3D 1080P Compatible with Switch blu-ray DVD STB Projector PS4 (Black)

Description:

4K HDMI Splitter - The HDMI Splitter 1x2 offers HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centers, information distribution, conference rooms presentation, education and training, corporation showrooms, home theaters and more.

ONE INPUT TO TWO OUTPUTS - This mini HDMI splitter can distribute one HDMI input signal to two HDMI displays, transmit video and audio simultaneously, no loss, nolag (NOTE: This product does not extend monitors, only to duplicate)(the unit does comes with a USB-micro USB cable, But does not come with a 110v power source) .

PORTABLE - Mini size: 2.5 x 2.1 x 0.5 inches/ 6.3X 5.3X 1.2 cm ( L X W X H ), easy to use and carry, travel friendly. USB cable included (it needs to be powered via usb), no need external driver, safety and Eco-friendly (Seller recommend 25ft long hdmi cable (max) ) .

4K ULTRA HD RESOLUTION - Support 4K, 3840x2160p, 3D, and 480i@60Hz/ 480p@60Hz/ 576i@50Hz/ 576p@50Hz/ 720p@50/ 60Hz/ 1080i@50/60Hz/ 1080p@50/60Hz/ 1080P 24Hz 3D/720 60Hz /4K@30HZ [For 4K resolution, the frequency can't above 30Hz].

NOTE:

Not Compatible With HDCP 2.2.

SUPPORT :

Support HDMI v 1.3 / 1.4, HDCP compliant ( version 1.2 ). Support deep color 30 bit/36 bit.

Support audio format: DTS-HD/Dubly-true HD/LPCM 7.1 /DTS/Dulby-AC3/DSD/HD (HBR)

Features:

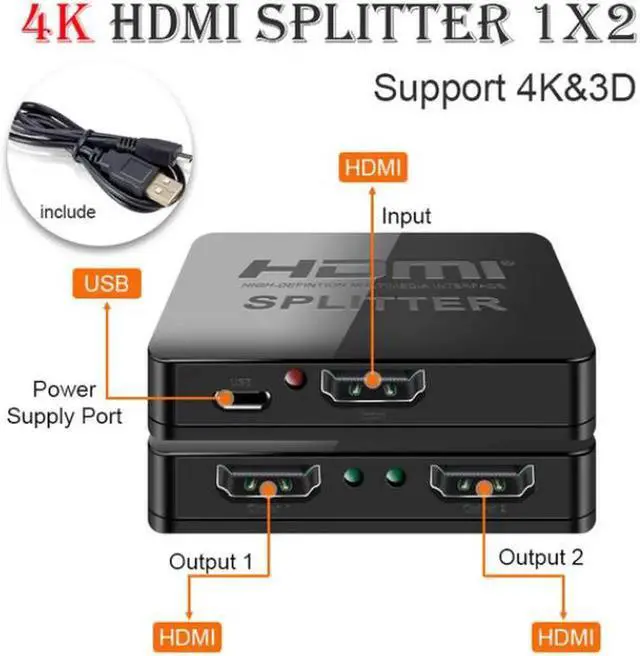

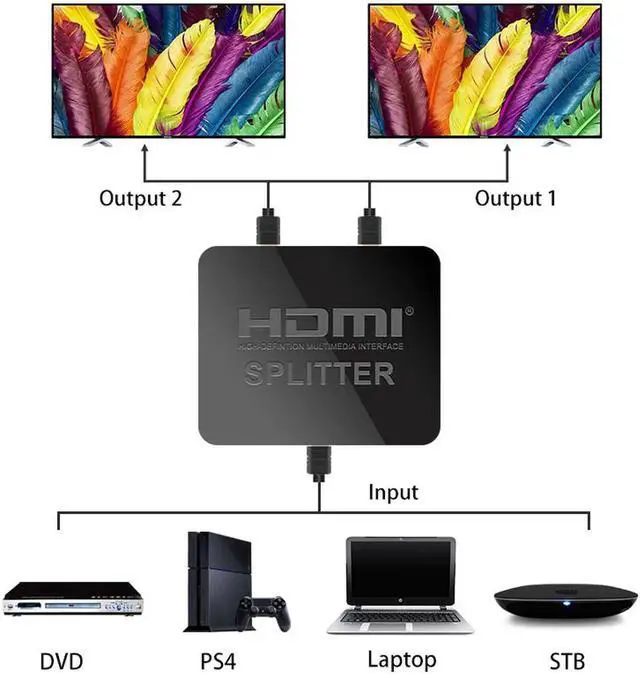

One HDMI input signal split to two HDMI sink devices

Support 4K HD, Full 3D Support up to 1080P/60Hz

Support CEC Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC Digital audio format, as DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD/HD (HBR)

Support signal retiming

Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length No loss of quality

SPECIFICATIONS:

HDMI version: HDMI

1.4 a HDMI resolution: UP TO 1920*1080/60Hz

Support video color format: 24bit/deep color 30bit, 36bit

Support audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD HD (HBR)

Max bandwidth: 225MHz

Max baud rate: 2.25G bps

Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p (TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance: 15m AWG26 HDMI standard cable

Output cable distance: 20m AWG26 HDMI standard cable

Max working current: 350mA

Operating Temperature range:(-15 to +55) Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 63x53x12mm

Package: 1* HDMI Splitter 1* USB power cable
