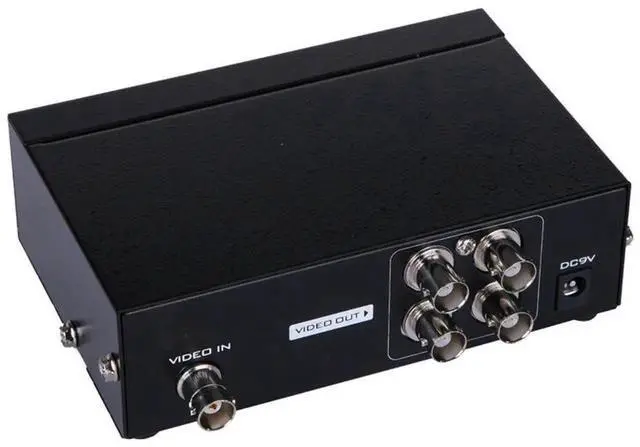

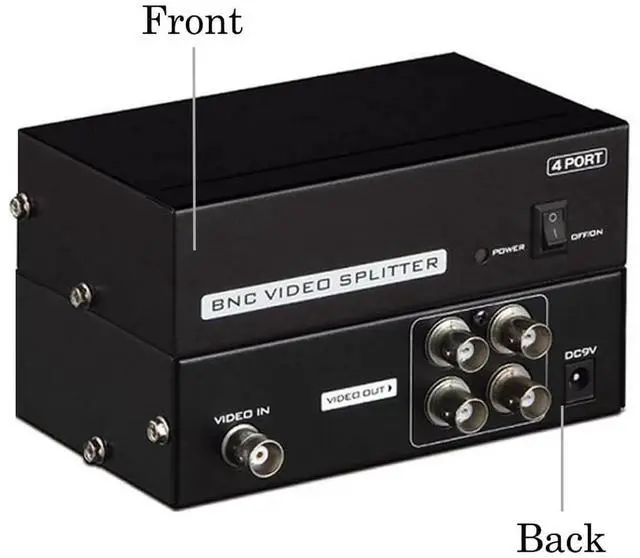

4-Port (1 Input 4 Output) BNC Video Splitter Box Coaxial Distributor Amplifier for Video Monitoring System CCTV Security Camera
- 1-to-4 Signal Splitting: Receives one BNC video input and delivers high-quality, distortion-free output to 4 BNC-compatible displays or devices simultaneously. Perfect for surveillance systems, TV studios, and more.
- 1080p Crystal-Clear Resolution: Equipped with advanced components, supports resolutions up to 1080p at 60Hz. Enjoy stable, interference-free video signal transmission with excellent clarity.
- Plug-and-Play Convenience: Designed for easy installationsimply connect the BNC input and output ports, and the device is ready to use without any additional setup or configuration.

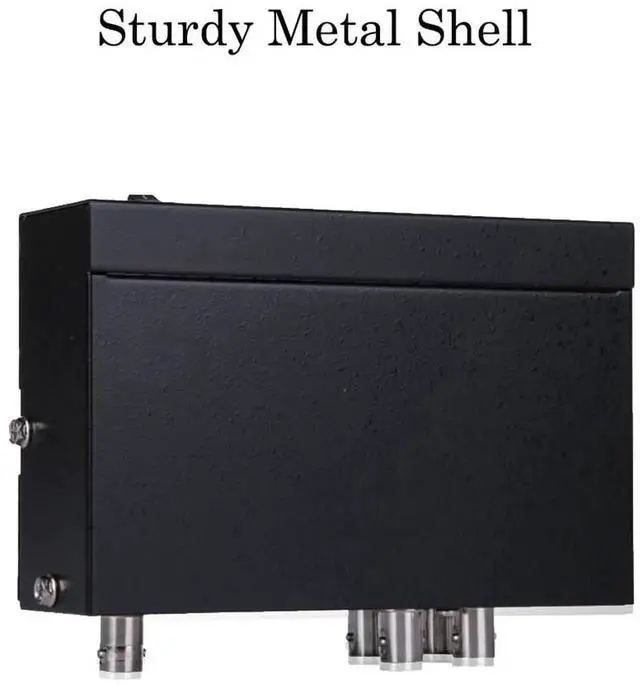

- Built for Performance and Durability: Crafted with a durable metal housing to ensure stability, reliability, and heat resistance. Compact design with high-quality materials, making it ideal for continuous operation.
- Ready-to-Use Package: Includes a 4-port BNC splitter, US power adapter, and a user manual. Backed by a one-year warranty from , providing peace of mind with every purchase.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BNC splitter receives one BNC input and retransmits the signal to 4 BNC outputs for real time viewing across multiple displays. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with BNC outputs to 4 BNC-compliant displays or video processors.

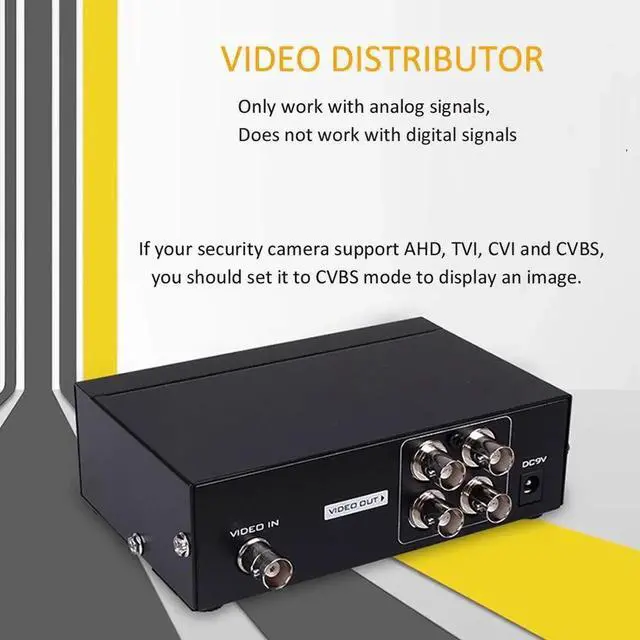

Only compatible with analog signals, does not work for digital signals.
If your security cameras support AHD, TVI, CVI and CVBS, you should set it to CVBS to display an image on the screen.
Product Feature:
One video inputs to four video outputs
Compatible with PAL, NTSC or SECAM format
Video bandwidth: 50Hz-5.5MHz
Video Input level Resistance: VS 0.8-1.0Vp-p/75ohm
Video Output level Resistance: VS 0.8-1.0Vp-p/75ohm
Video Max. data rate: 2.97 Gbps
Supported Resolutions: 720p & 50/59.94/60Hz; 1080i & 50/59.94/60 Hz; 1080p & 23.97/24/25/29.97/30/50/59.94/60Hz
Power consumption: DC 9V 500mA

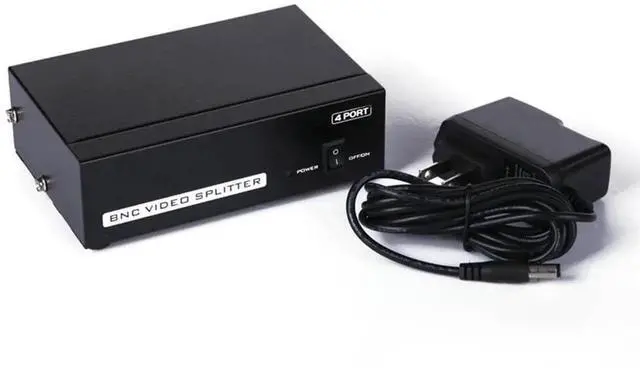

Package Content:
1 x 4-Port BNC splitter
1 x AC Adapter
1 x User manual
PLEASE NOTE:
This is only BNC splitter, it is not SDI splitter. so please make sure that your camera support analog CVBS video output.
The difference between BNC splitter and SDI splitter is that BNC splitter transfer analog signal, but the SDI splitter transfer digital signal. Please use 75-Ohm Coax Cable.
- Wide Compatibility: Works with analog signal formats such as PAL, NTSC, and SECAM. Ensure cameras are set to CVBS mode for seamless video output. Not compatible with SDI or digital signal
