    4K@60Hz/1080p@120Hz HDMI 2.0 Splitter 1 in 2 Out, Auto Downscaler with HDR10 &3D, 18Gbps Zero Latency, AV Access Gaming Splitter, Duplicate/Mirror Screens, HDCP 2.2, for Xbox, PS5

    • 4K@60Hz/1080P@120Hz 1 in 2 out HDMI Splitter: Supports resolution up to 4K@60Hz (YUV 4:4:4) with 3D effect . Supports lossless audio formats such as Atmos, DTS: X, DTS-HD Master Audio, TrueHD. It distributes one HDMI signal to two Ultra HD displays simultaneously at 18Gbps bandwidth, fast and stable. It bypasses 4K HDR Atmos signal when the 4K TV supports.
    • 4K and 1080P Simultaneously by Smart EDID: HDMI 2.0 Splitter supports auto downscalilng and EDID. When a 1080P display is connected with a 4K display, the HDMI output automatically downscales 4K to 1080P for the 1080P display while the 4K display still having 4K signal. Which means it automatically select the most suitable resolution for displays.
    • Excellent Compatibility: 4K Splitter compatible with all standard HDMI devices with any operating system, such as Windows 10/8/8.1/7/Vista/XP and Mac OS X, Linux and Chrome OS. It works perfect with PS4 Pro, Xbox one X, Roku, Apple etc.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

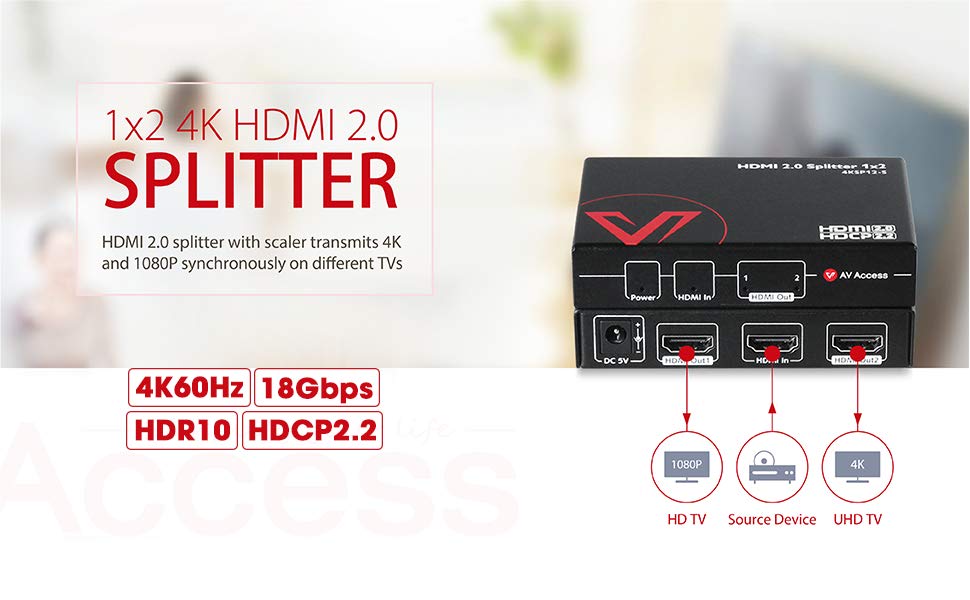

    The 4KSP12-S is a 1 x 2 HDMI splitter with scaler, reliably distributes one HDMI input signal to two outputs at resolutions up to
    4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications,
    including supported data rates up to 18 Gbps, HDR (high dynamic range)/Dobly Vision, 3D and HD lossless audio formats.

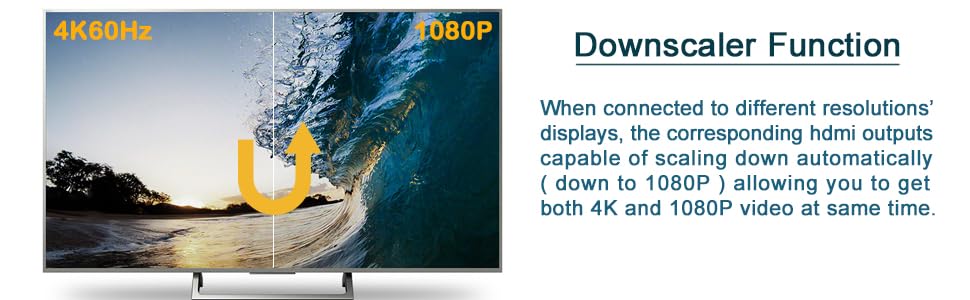

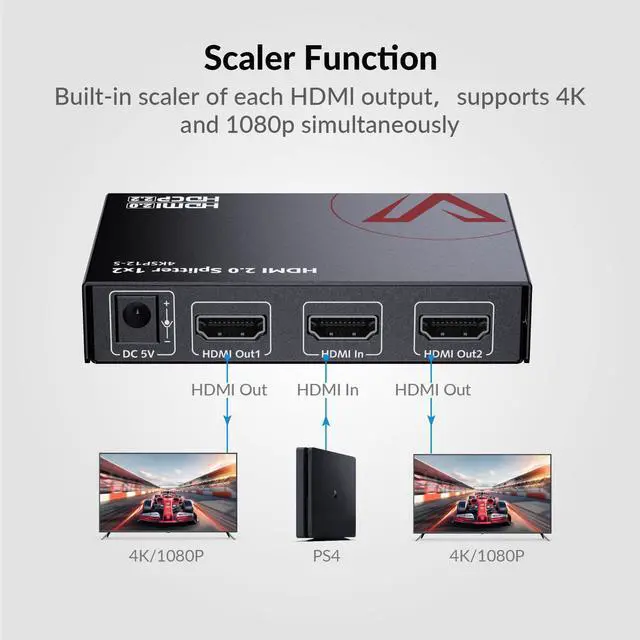

    With the built-in scaler, when connected to two different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
    The splitter provides HDCP management which continuously authenticates HDCP encryption between all devices, ensuring correct source content is output to each display.
    It also features automatic input cable equalization, actively conditions input HDMI signals to compensate for signal loss when using long cables or cascading multiple units.


    Product information

    Color 1 in 2 Out 4K@60hz
    Connector Type HDMI
    Brand v AV Access
    Compatible Devices Gaming Console, Television
    Cable Type HDMI
    Product Dimensions 3.94 x 0.79 x 2.57 inches
    Item Weight 15.5 ounces
    Item model number 4KSP12-S
    Is Discontinued By Manufacturer No
    OS All Operating System
    Special features HDMI 1 IN 2 OUT, 4K & 1080P
    Other display features Wireless
    Manufacturer AV Access
    Date First Available June 21, 2018

    Additional Features

    • Read before Order: A. When using 4K & 1080P TVs, please make sure that the 4K display is connected to output 1 and 1080p to output 2, in this way both will have HDR effect; B. Please do not use this splitter as an audio splitter to receiver or soundbar, unless they both support the same standard in audio.

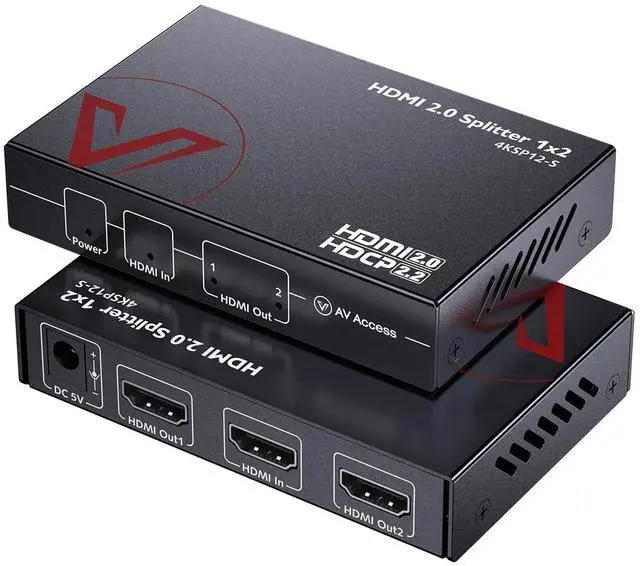

    AV Access 1 in 2 Out UHD 4K@60Hz HDMI 2.0 Splitter with Auto Scaling

    4KSP12-S

    Professional 1*2 4K@60Hz HDMI 2.0 Splitter

    • UHD 4K60Hz with HDR and 3D
    • Standard HDMI 2.0 and HDCP 2.2
    • 4K to 1080P Auto Downscaling
    • Auto EDID Management
    • High Speed 18Gbps Bandwidth

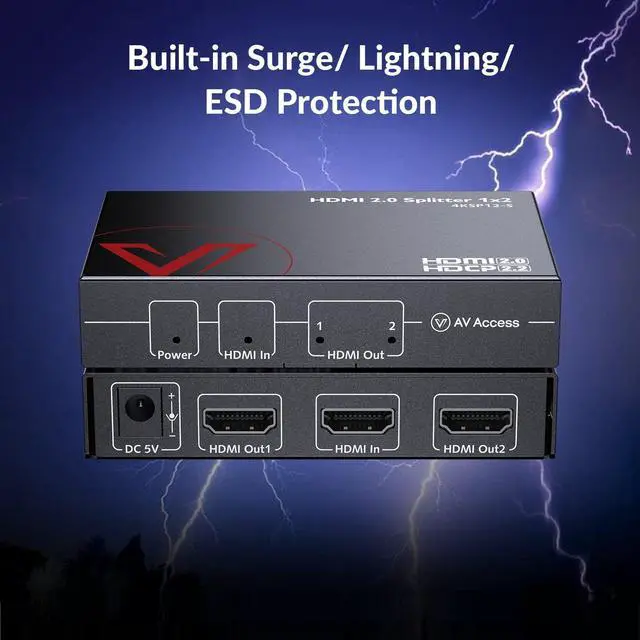

    • Surge/Lightning & ESD Protection

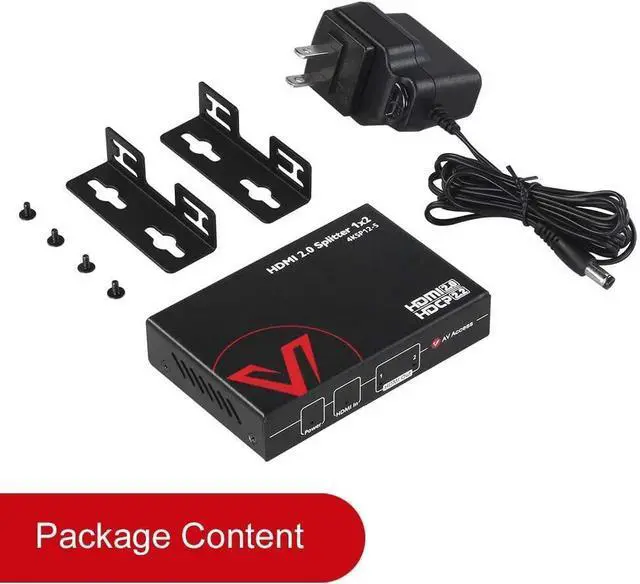

    Package

    • 1*HDMI 2.0 Splitter
    • 1*Power Adapter
    • 2*Rack Mount
    • 4*Screws

    2

    Note

    • HDMI 1.4 cables (or below HDMI 1.4) don't support 4k resolution (4096*2160), for stable 4K signal, please use a HDMI 2.0 cable.

    Technical Specifications

    Input/Output Signal Type HDMI 2.0 with 4K@60Hz 4:4:4 8bit, HDCP 2.2
    Input/Output Resolution(VESA) 800 x 600@60Hz, 1024 x 768@60Hz, 1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1440 x 900@60Hz, 1600 x 1200@60Hz, 1680 x 1050@60Hz, 1920 x 1200@60Hz
    Input/Output Resolution(SMPTE) 1280 x 720P@60Hz, 1920 x 1080P@60Hz, 3840 x 2160@60Hz, 4096 x 2160@60Hz
    HDR HDR10; HDR 10+; HLG;Dolby Vision
    Audio Format Supported Dolby TrueHD, DTS-HD Master Audio, PCM2.1/5.1/7.1
    Max Bandwidth 18Gbps
    Product Weight 0.24kg/0.53lb

    Details

    hdr

    HDMI 2.0 with HDR and 3D

    • High resolution up to 4K@60Hz and 4K@60Hz (YUV 4:4:4) with HDR 3D effect.

    4KSP12-S

    Compatible with HDCP 2.2

    • compatible with HDCP 2.2
    • compatible with all operating system
    • works perfect with PS4 Pro, Xbox one X, Roku, Apple etc.

    A

    Fantastic Audio Formats

    • Support Dolby/ DTS 2.1/5.1/7.1CH, LPCM. Stereo Audio format.

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/78d0fc81-49c2-4da7-8630-19b7277b611e.__CR0,0,150,300_PT0_SX150_V1___.jpg

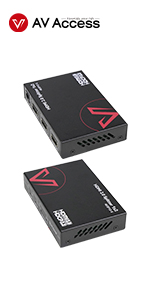

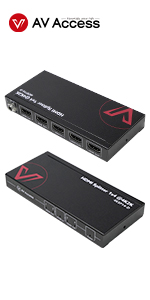

    4KSP14-D
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/5f730e0d-0e91-48da-811b-d1c47e56bdab.__CR0,0,150,300_PT0_SX150_V1___.jpg

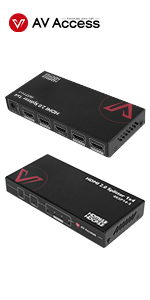

    4KSP14-S
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/83dae496-36ec-4d53-bf5e-2064964651fb.__CR0,0,150,300_PT0_SX150_V1___.jpg
    4KSP12-S
    Customer Reviews
    Price
    Supported Resolution 4K@30Hz 4K@60Hz 4K@60Hz
    Downscaler No Yes Yes
    I / O 1 IN 4 OUT 1 IN 4 OUT 1 IN 2 OUT
    HDMI Version 1.4 2.0 2.0
    HDCP Version 1.4 2.2 2.2

    AV Access 1 in 2 Out UHD 4K@60Hz HDMI 2.0 Splitter with Auto Scaling

    4KSP12-S

    Professional 1*2 4K@60Hz HDMI 2.0 Splitter

    • UHD 4K60Hz with HDR and 3D
    • Standard HDMI 2.0 and HDCP 2.2
    • 4K to 1080P Auto Downscaling
    • Auto EDID Management
    • High Speed 18Gbps Bandwidth
    • Surge/Lightning & ESD Protection

    Package

    • 1*HDMI 2.0 Splitter
    • 1*Power Adapter
    • 2*Rack Mount
    • 4*Screws

    2

    Note

    • HDMI 1.4 cables (or below HDMI 1.4) don't support 4k resolution (4096*2160), for stable 4K signal, please use a HDMI 2.0 cable.

    Technical Specifications

    Input/Output Signal Type HDMI 2.0 with 4K@60Hz 4:4:4 8bit, HDCP 2.2
    Input/Output Resolution(VESA) 800 x 600@60Hz, 1024 x 768@60Hz, 1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1440 x 900@60Hz, 1600 x 1200@60Hz, 1680 x 1050@60Hz, 1920 x 1200@60Hz
    Input/Output Resolution(SMPTE) 1280 x 720P@60Hz, 1920 x 1080P@60Hz, 3840 x 2160@60Hz, 4096 x 2160@60Hz
    HDR HDR10; HDR 10+; HLG;Dolby Vision
    Audio Format Supported Dolby TrueHD, DTS-HD Master Audio, PCM2.1/5.1/7.1
    Max Bandwidth 18Gbps
    Product Weight 0.24kg/0.53lb

    Details

    hdr

    HDMI 2.0 with HDR and 3D

    • High resolution up to 4K@60Hz and 4K@60Hz (YUV 4:4:4) with HDR 3D effect.

    4KSP12-S

    Compatible with HDCP 2.2

    • compatible with HDCP 2.2
    • compatible with all operating system
    • works perfect with PS4 Pro, Xbox one X, Roku, Apple etc.

    A

    Fantastic Audio Formats

    • Support Dolby/ DTS 2.1/5.1/7.1CH, LPCM. Stereo Audio format.

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/78d0fc81-49c2-4da7-8630-19b7277b611e.__CR0,0,150,300_PT0_SX150_V1___.jpg
    4KSP14-D
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/5f730e0d-0e91-48da-811b-d1c47e56bdab.__CR0,0,150,300_PT0_SX150_V1___.jpg
    4KSP14-S
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/83dae496-36ec-4d53-bf5e-2064964651fb.__CR0,0,150,300_PT0_SX150_V1___.jpg
    4KSP12-S
    Customer Reviews
    Price
    Supported Resolution 4K@30Hz 4K@60Hz 4K@60Hz
    Downscaler No Yes Yes
    I / O 1 IN 4 OUT 1 IN 4 OUT 1 IN 2 OUT
    HDMI Version 1.4 2.0 2.0
    HDCP Version 1.4 2.2 2.2
