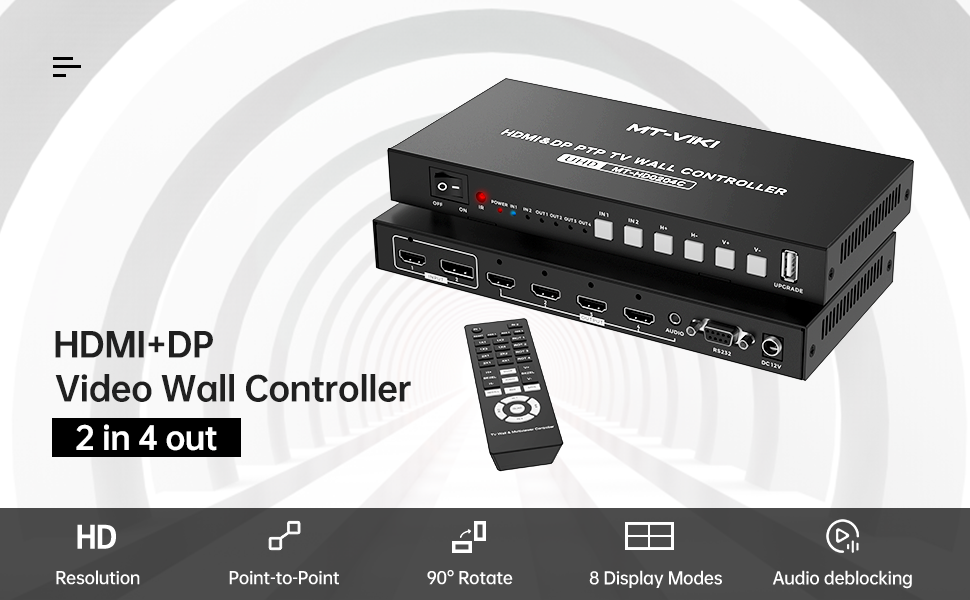

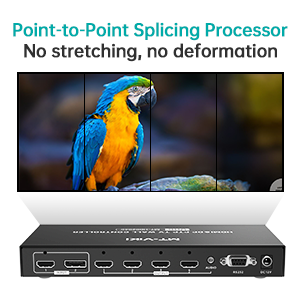

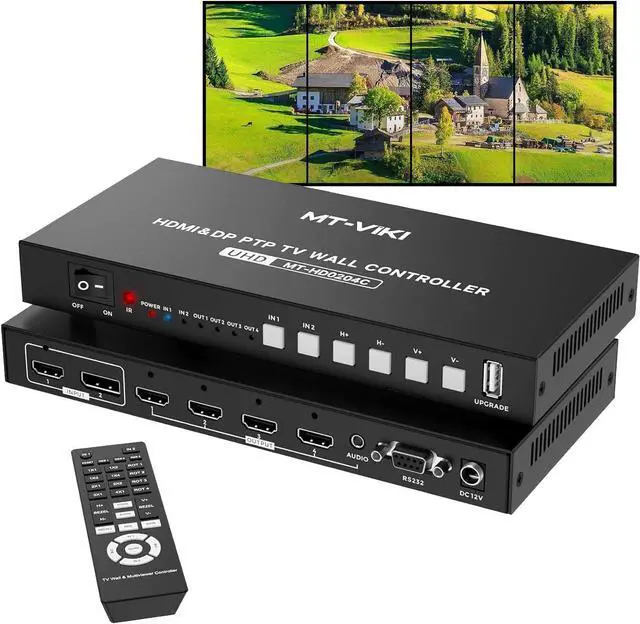

This video wall controller includes 1 HDMI & 1 Displayport inputs with 7680x1080@60Hz resolution and 4 HDMI outputs with 1080P resolution. It can output a maximum of one video source to four display devices with a resolution up to 7680x1080@60Hz.
Specification

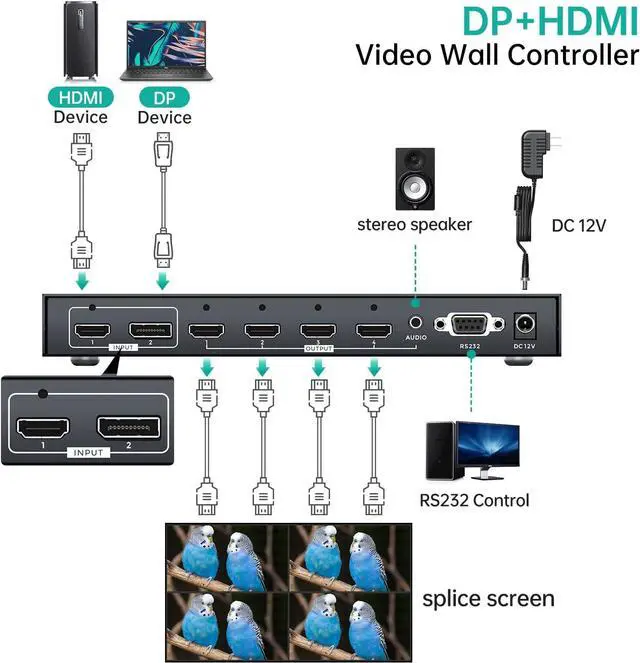

OUTPUT: 4 HDMI outputs to connect to displays

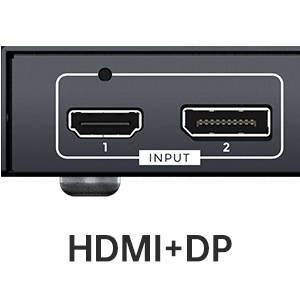

INPUT: 1 HDMI & 1 DP input ports (can't display at the same time)
AUDIO OUT: for the audio de-embedded
DC 12V: power supply

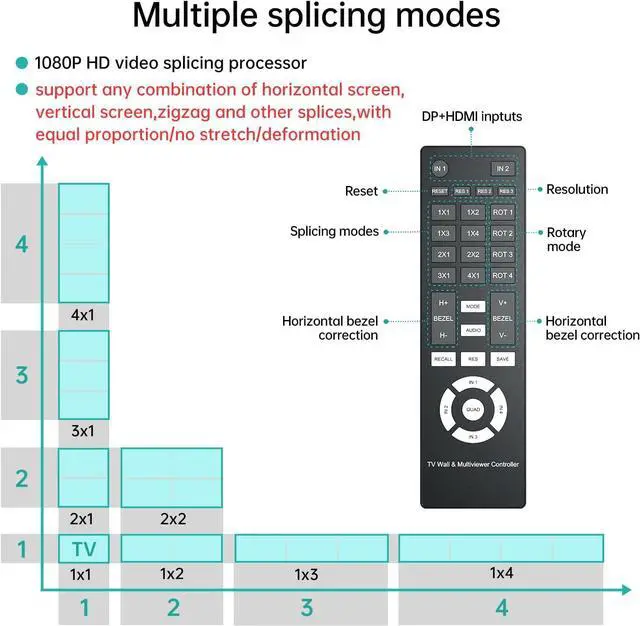

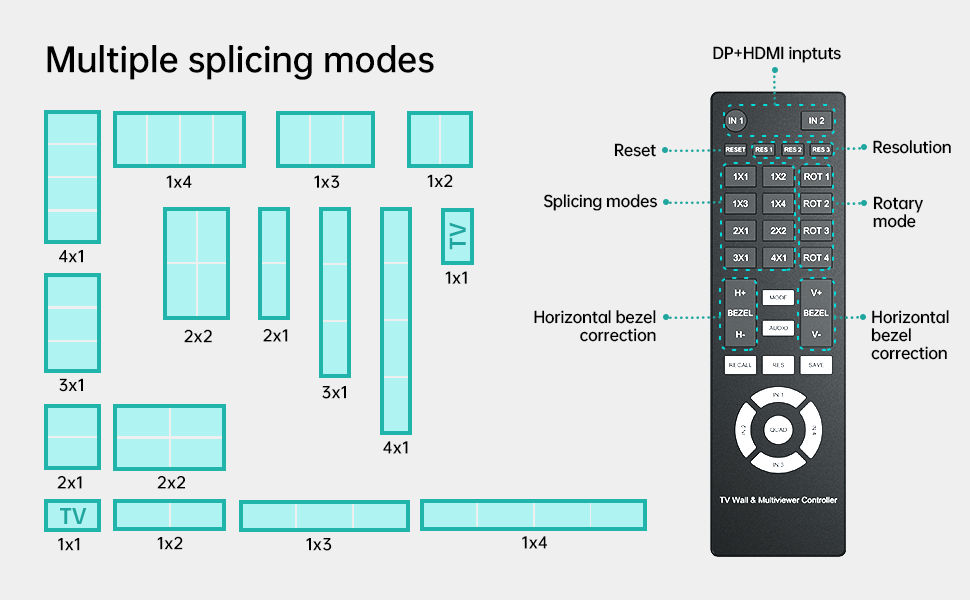

This 4K video wall controller supports 8 different Video Wall modes for the screen in landscape or portrait orientation, 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1.
Function
Supports 1 HDMI & 1 DP inputs, resolution up to 7680x1080@60Hz, Supports 4 HDMI with 1080P@60Hz resolution outputs

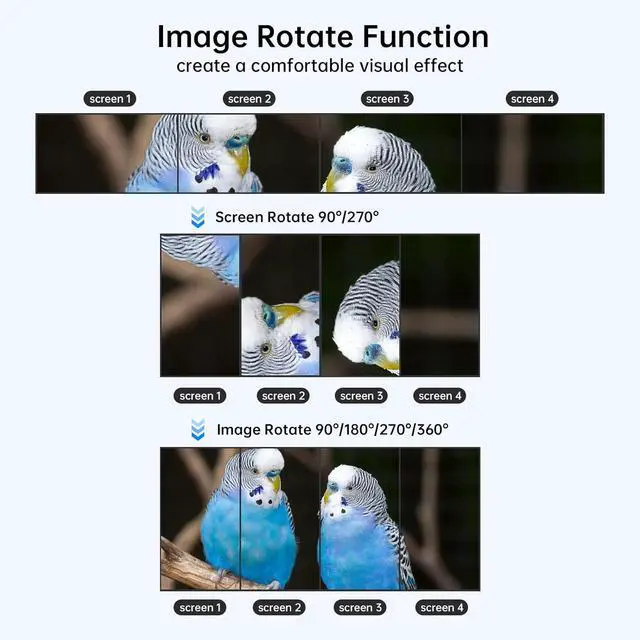

Supports image 90°,180°,270° degrees rotation(good for the ceiling installation)
Support audio de-embedding, the front rotary button can control the volume
Supports the splicing edge adjustment
Supports HDMI 2.0, HDCP 2.2 compatible

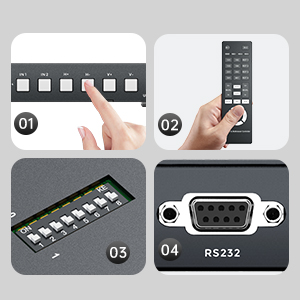

Supports the IR remote, push-button, DIP, RS232 control
Support Daisy chain:
To meet the different needs of applications, you can use 3 sets of controllers to set a 3x3 or use 5 sets of it to set 4x4 splicing function.

IR remote
Push-button
DIP Control
RS232 control

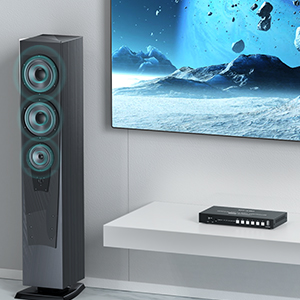

Come with 3.5mm audio out for speaker, Supports audio de-embedding

- 2X2 display mode, support 4K@60Hz output

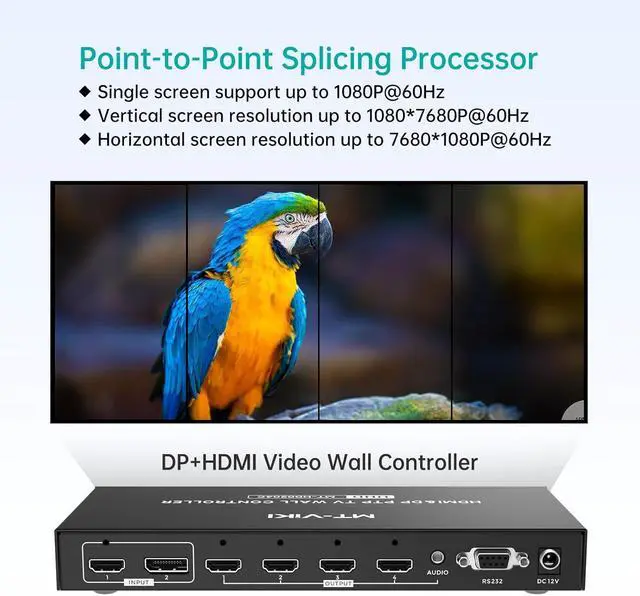

- 1x4 mode, support 7680x1080@60Hz output
- 1x3 mode, support 5760x1080@60Hz output
- 3x1 mode, support 1920x3240@60Hz output
- 2x1mode, support 1920x2160@60Hz output
- 4x1 mode, support 1920x4320@60Hz output

Work for different interface device

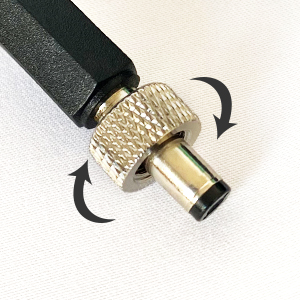

Prevent loose power supply, more stable

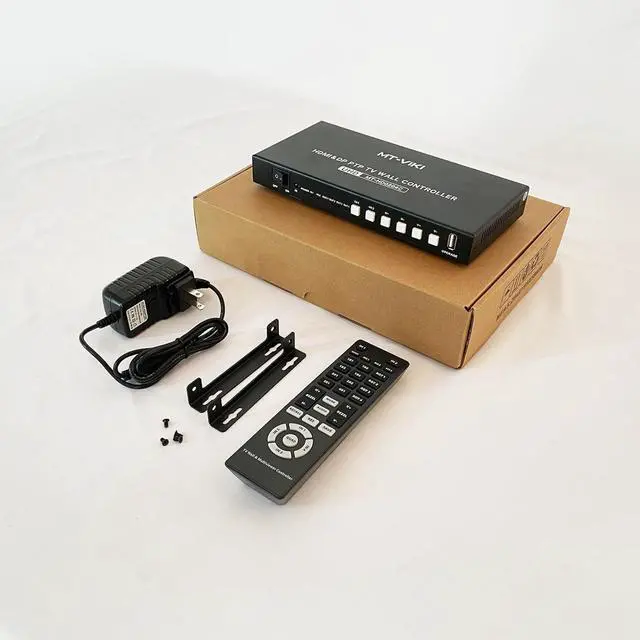

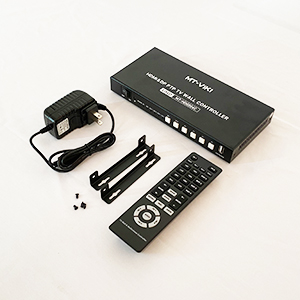

2x2 Video Wall Controller x 1
DC12V 3A Power Adapter x 1
IR Remote Control x 1
Mounting Ears & screw x 1set
