HDMI eARC Audio Extractor Splitter, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support eARC Function

192KHz HDMI eARC Audio Extractor with 7.1CH Atoms, HDMI to HDMI + Optical Toslink SPDIF + Coaxial + 3.5 mm Jack +L/R Stereo Audio, HDMI Audio Converter Adapter for PS5, Xbox, Fire Stick

HDMI eARC (EnhancedAudio Return Channel) adapter converter, it could transmit audio from TV of support eARC function to HDMI AUDIO ONLY, optical, coaxial, 3.5 mm jack audio of adapter via HDMI eARC interface, and output simultaneously, which perfectly solves problems of having no audio output interface that TV can not be connected to sound system.

Specifications

:

Support HDMI ONLY output

Support Optical SPDIF output

Support Coaxial output

Support 3.5 mm stereo headphone output

High performance audio amplifier

Support switch noise reduction

Support automatic signal mute function

Support transmission of 192 KHz audio sampling rate

HDMI ONLY interface supports 7.1 channel transsmission

Optical fiber/Coaxial interface supports 5.1 channel transsmission

ARC and 3.5 mm headphone output volume can be controlled by TV (CEC)

Features:

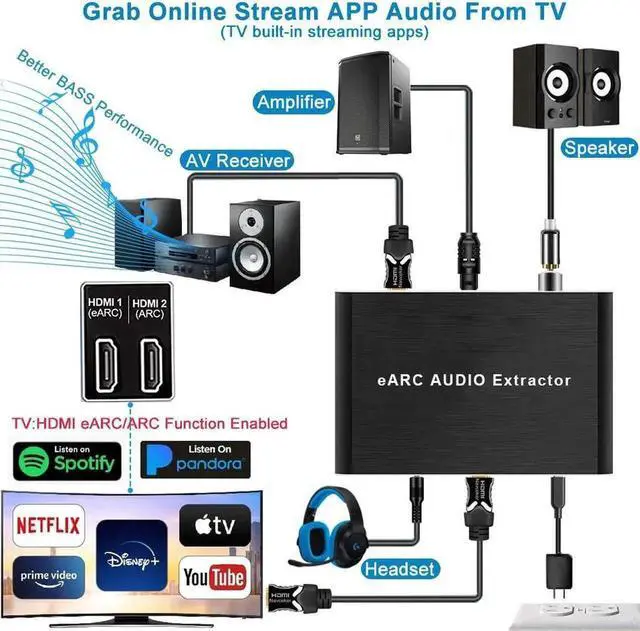

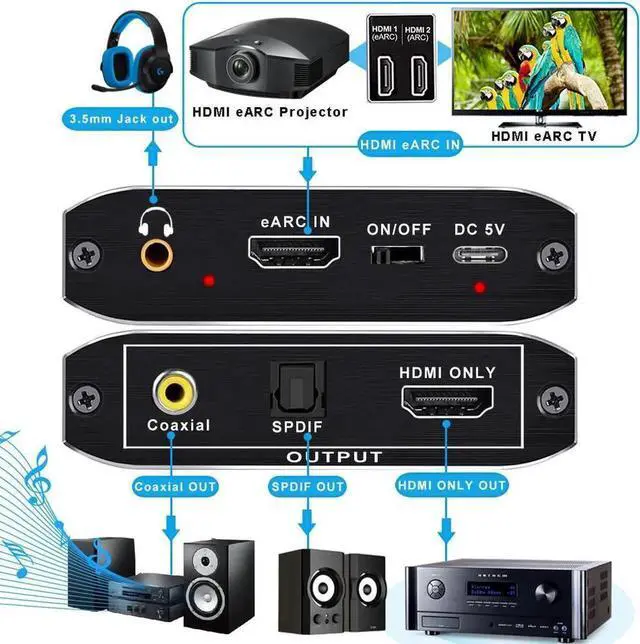

HDMI eARC function: (The TV must have an eARC port, otherwise it cannot be used). Extract audio from your TV to Soundbar or Amplifier via the TV's eARC port. Use HDMI cable or Micro cable to connect one end to TV eARC port, one end to HDMI eARC Converter, then connect HDMI ONLY, SPDIF/Coaxial or 3.5 mm to sound bar, speaker, home theater, A/V receiver, etc.

192KHz sampling rate: Built-in CEC volume control protocol, the TV remote control can adjust the volume. Effectively solve the defects of similar products. Support 32, 44.1, 48, 96, 192KHz sampling rate, 24-bit left and right channels. (19pin HDMI 2.0 cable recommended).

2.0 ch/ 5.1CH / 7.1CH Extractor:

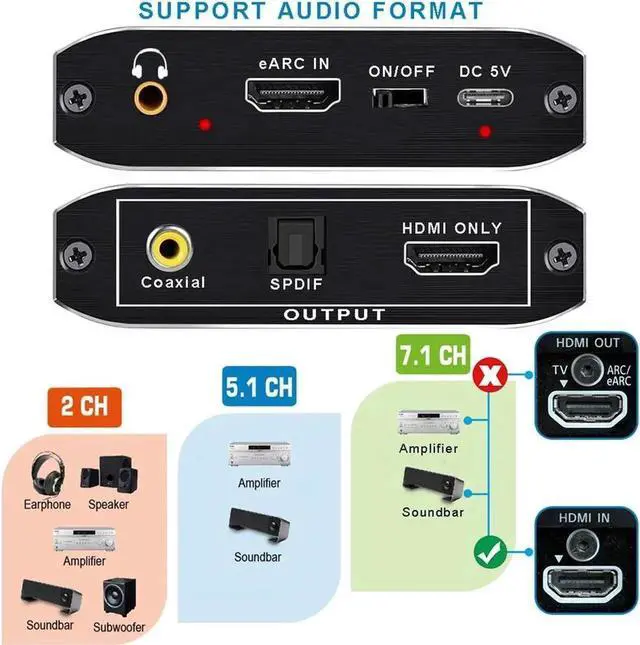

Input: HDMI eARC, Output: 3.5 mm Jack, Toslink/SPDIF, Coaxial and HDMI ONLY. Supports PCM 5.1 / LPCM 2.0 Channel, HDMI eARC Input to 2.0CH 3.5 mm jack or Optical/Coaxial 5.1 Output or 7.1CH hdmi only Output; Just Plug and Play

Dolby Digital Audio: Supports Dolby atmos, Dolby Digital Plus, DTS-X, Dolby@ 5.1, DTS@ 5.1, Dolby AC3, DSD, PCM, LPCM. etc. (when you use 3.5 mm jack, Also please set the Audio Output to PCM or LPCM before Using)

Digital Noise Reduction: Using high-end chips, digital noise reduction technology, signal gain technology, dual signal processing, the sound quality is clear and pleasant. The aluminum alloy shell has good heat dissipation and durability. Support multi-channel simultaneous audio output, sound synchronization without delay. No driver, plug and play.

Note:

please connect HDMI port with "eARC" for HDMI TV.

3.5 mm Jack only support PCM/LPCM audio. if you want the headset audio to work properly, please set the HDMI eARC audio output format of TV to PCM/LPCM.

When enjoy 7.1CH ATMOS, please connect HDMI ONLY to HDMI IN of Soundbar/AVR, Not use HDMI eARC/ARC of Soundbar/AVR

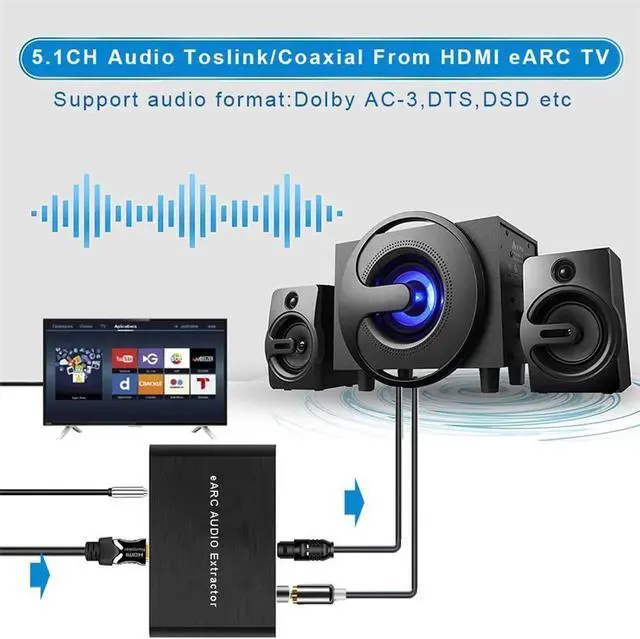

Instructions for Coaxial fiber 5.1 audio output

A: Check whether the TV is currently playing 5.1 -channel audio.

B: Set the fiber port of the TV as source code output.

Instructions for HDMI Audio Only audio 7.1 audio output only

A: Check whether the TV is currently playing 7.1 channel audio.

B: Set the fiber port of the TV as source code output.

When optical fiber coaxial outputs 5.1 or HDMI AUDOI 7.1, the player's audio source device must be set to "source code" (different manufacturers have different representations, including source code SPDIF digital, bitstream, transparent transmission, automatic, RAW, etc. ), and only when the souce code is transmitted to HD371 can it be separated into source code 5.1 / 7.1 output.
