JAENFONG 4Kx2K@60Hz HDMI Splitter - HDMI Splitter 1 in 2 Out HDMI Male to Dual HDMI Female 1 to 2 Way for HDMI HD, LED, LCD, TV, Support Two The Same TVs at The Same Time

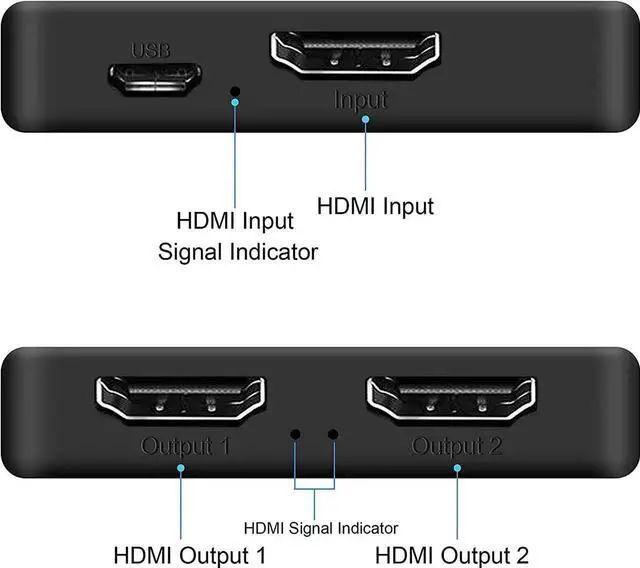

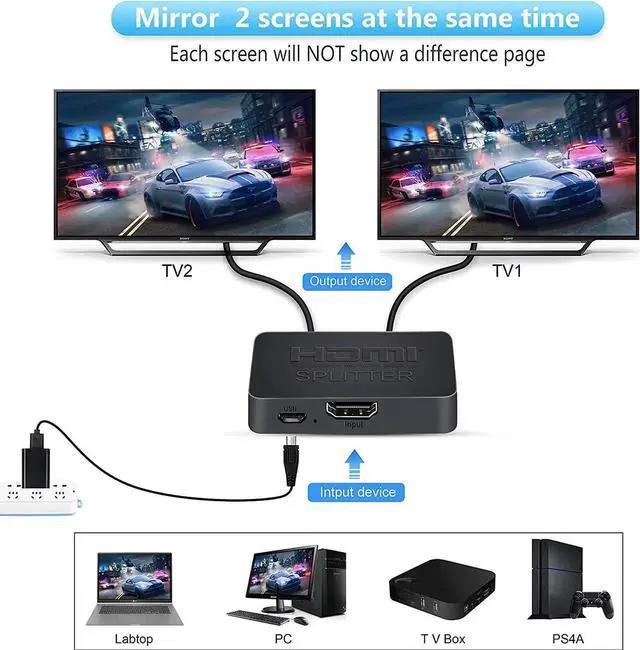

1. HDMI2.0b SPLITTER 1 IN 2 OUT - MIRROR ONLY: HDMI 1 in 2 out Splitter 4K@60Hz can distribute 1 HDMI input signal to dual HDMI display (TV, monitor, projector etc), duplicating or mirror video and audio simultaneously without any loss. Note: Not support extend and CEC!

1. 4K@60HZ HDMI 2.0b SPLITTER: 1x2 HDMI splitter support Ultra HD 4Kx2K @60Hz RGB 4:4:4, HDCP 2.2, HDMI2.0b, HDR, 1080P@120Hz, Support deep color 30bit,36bit, Max Bandwidth of 18.5Gbps, backward compatible with 1080i/720P/576P/576i/480P.

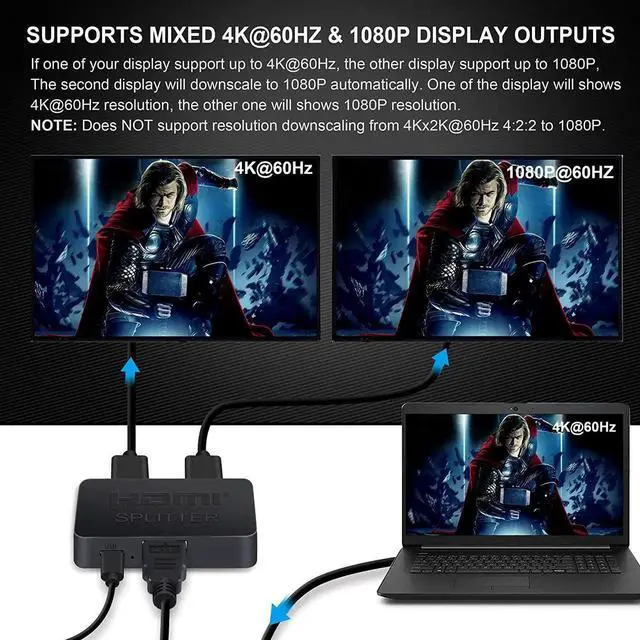

2. Auto Video SCALING/DOWNSCALING: Powered HDMI splitter cable supports mixed 4K@60Hz & 1080p display outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling. Supports auto downscale or forced downscale.**NOTE: Does NOT support resolution downscaling from 4Kx2K@60Hz 4:2:2 to 1080P.

1. WIDE APPLICATION: 2 way hdmi splitter 4K@60Hz offers solutions for HDTV retailer, and show site, HDTV, STB, DVD and Projector factory noise space and security concerns data center control, information distribution, conference room presentation, school and corporate training environments.

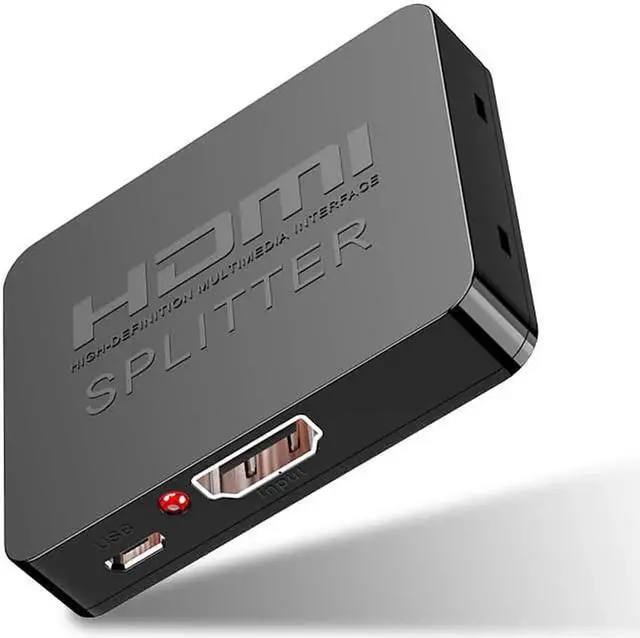

1X2 4K@60Hz HDMI 2.0b Splitter

This HDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on TWO screens, Support RGB 4:4:4, 4K@60HZ super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.

If you need to connect the capture card through the 1×2 HDMI SPLITTER, such as

INPUT: Blu-Ray OUTPUT 1: HDTV OUTPUT 2: Capture card

Please set the following :1. Turn off the HDR output of the input source. 2. Set the resolution of the input source to 1080p. 3. Set the audio to PCM format
