JAENFONG 8K@60Hz HDMI Audio Extractor with 7.1CH Atmos, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch Out Splitter Converter Adapter
- HDMI Audio Extractor 4K 120Hz 8K 7.1/5.1/2.1ch EDID Switch Atmos VRR CEC- SPDIF 5.1CH Optical Toslink Stereo Breakout, HDCP 2.2/2.3 Bypass for PS 5 Xbox X, Splitter 1x1 De-embedder Decoder
- There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
- Support 8K@30/60Hz, 5120x1440@120/60Hz, 4K@120Hz RGB 4:4:4, 4K@165Hz, 4K@144Hz ,2K@60/120/144Hz,1080P@60/120/240Hz, and back forward,with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2
- Max transmission speed :48Gbps
- Compatible with Dolby Vision,HDMI 2.1,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
- Supports CEC,Dynamic HDR, HDR10+, Dolby atmos, Chroma 4:2:0 /4:2:2 / 4:4:4.

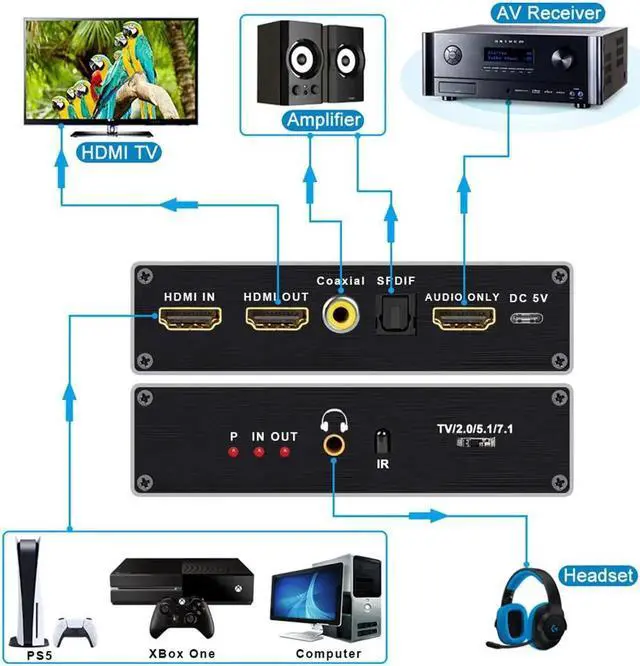

- HDMI 2.1 Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Jansicotek 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Extractor With 7.1CH Atmos & Optical Toslink 48Gbps HDMI Audio Splitter 8K 60Hz HDMI Audio Converter for PS5 XBox One
Description:
Jansicotek 4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
SPECIFICATIONS
- Input ports: 1XHDMI
- Output port: 1 XHDMI(Female type )
- 1 XHDMI Audio output: support 7.1CH audio extract function
- 1 XToslink Audio output: support 5.1CH audio extract function
- 1 XCoaxial Audio output: support 5.1CH audio extract function
- 1 x3.5mmJack output: support 2.0CH audio extract function
- Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
- Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
- Dimensions: 130X61X30MM
Notes :
- Jansicotek HDMI 2.1 audio extractor not support ARC or eARC function
- When you use 7.1CH mode,if your TV/monitor not support 7.1CH audio,there are be no audio signal.
- when you want to get 7.1CH audio,please you set audio out of your HDMI 2.1 source(PS5/XBox etc) with auto mode or source mode or 7.1CH mode.
- When you use eARC or ARC soundbar,such as ARC, e-ARC/Sonos ARC soundbar,please you use HDMI INPUT of soundbar connect with HDMI AUDIO ONLY port of our audio extractor,please DO NOT use HDMI eARC/ARC Input of soundbar that can not get any audio.because eARC port of Soundbar ONLY could connect HDMI eARC INPUT of HDMI TV directly,it can not add another device between eARC soundbar and HDMI eARC TV
Features:

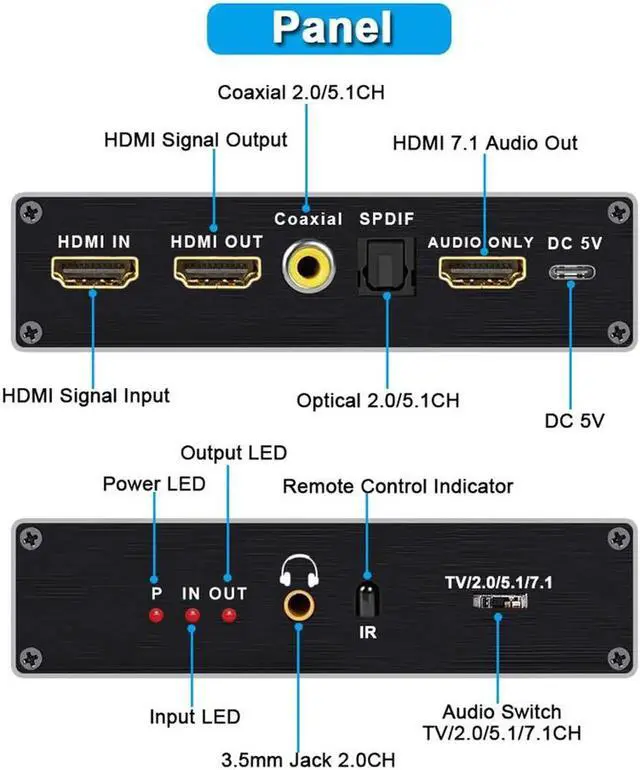

- There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
- Compatible with Dolby Vision,HDMI 2.1,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
- Max transmission speed :48Gbps
- Support 8K@30/60Hz, 5120x1440@120/60Hz, 4K@120Hz RGB 4:4:4, 4K@165Hz, 4K@144Hz ,2K@60/120/144Hz,1080P@60/120/240Hz, and back forward,with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2
