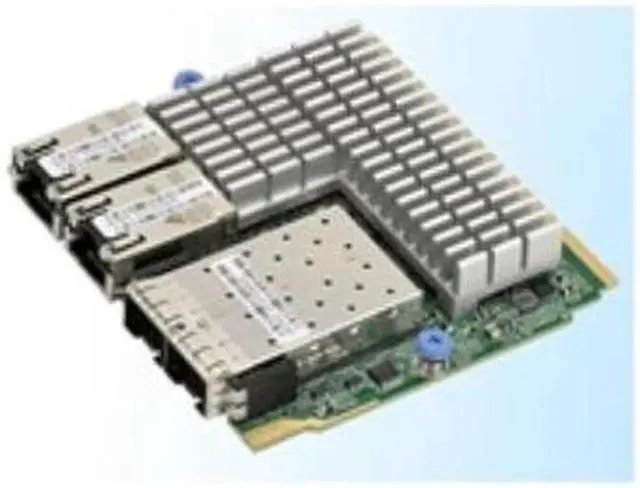

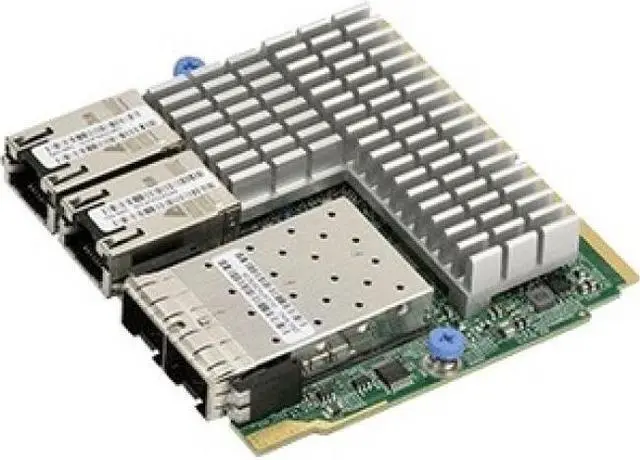

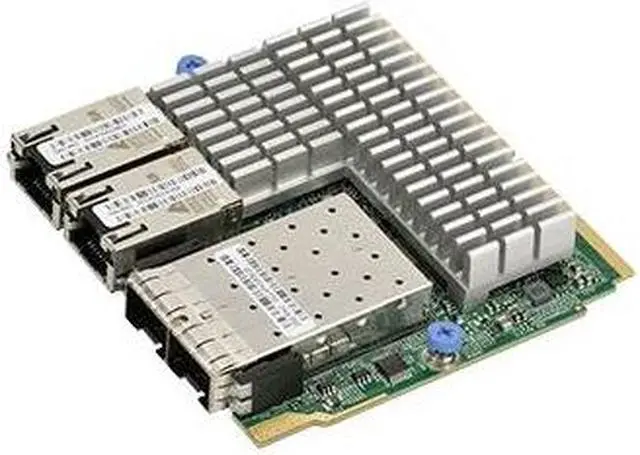

Supermicro AOC-MH25G-M2S2TM Dual-port 25 Gigabit & Dual-port 10 Gigabit Ethernet Adapter

Mfr Part Number: AOC-MH25G-M2S2TM
•Features:?Super I/O Module (SIOM) Form Factor
?Mellanox ConnectX-4 Lx EN 25GbE controller Dual SFP28 connectors
?Intel X550-AT2 10GbE controller, Dual RJ45 Connectors
?Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic
?SR-IOV for virtualization
?Low latency RDMA over Converged Ethernet(RoCE) (25GbE Controller only)
?Jumbo Frames Support
?NC-SI for Remote Management (10GbE Controller only)
?Asset Management Features with thermal sensor
?RoHS compliant 6/6

•General:?Super I/O Module (SIOM) Form Factor
?Mellanox ConnectX-4 Lx EN 25GbE controller
?Dual SFP28 connectors with speed up to 25Gbps per port - Intel X550-AT2 10GbE 10GBase-T controller
?Dual RJ45 connectors with speed up to 10Gbps per port

•25GbE SFP28 Specifications:????Ethernet:????25GbE/ 10GbE/ 1GbE
?IEEE 802.3ad, 802.1AX Link Aggregation
?IEEE 802.1Q, 802.1P VLAN tags and priority
?IEEE 1588v2
?Jumbo frames support (9.6KB)

?Enhanced Features:????Hardware-based reliable transport
?Collective operations offloads
?Vector collective operations offloads
?64/66 encoding
?Dynamically Connected transport (DCT)
?Enhanced Atomic operations
?Support for MSI/MSI-X mechanisms

?Storage Offloads:????RAID offload - erasure coding (Reed-Solomon) offload

?CPU Offload Features:????RDMA over Converged Ethernet (RoCE)
?TCP/UDP/IP stateless offload
?LSO, LRO, checksum offload
?RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion/stripping, Receive flow steering
?Intelligent interrupt coalescence

?Overlay Networks:????Stateless offloads for overlay networks and tunneling protocols
?Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks

?Hardware-Based I/O Virtualization:????Single Root IOV
?Multi-function per port
?Multiple queues per virtual machine
?VMware NetQueue support

?Virtualization:????SR-IOV - Up to 256 Virtual Functions
?SR-IOV - Up to 16 Physical Functions per port

?Management Features:????Remote boot over iSCSI
?PXE and UEFI

?OS Support:????RHEL/CentOS
?Windows
?FreeBSD
?VMware


•10GbE RJ45 Specifications:?I/O Features:?MXI-X Support
?Intel Flow Director
?Low Latency
?Multiple Queues - 64 Tx and Rx per Port
?Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities
?Tx TCP Segmentation Offload (IPv4, IPv6)

?Network Features:?Jumbo frames up to 15.5KB
?IEEE 802.3az Energy Efficient Ethernet (EEE)

?Virtualization Features:?Multi-mode I/O Virtualization Operations
?VXLAN Stateless Offloads
?NVGRE Stateless Offloads
?Virtual Machine Device Queues (VMDq)
?64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port
?FPP - 64 VFs Per Port
?Support for PCI-SIG SR-IOV Specification
?IEEE 802.1Q VLAN Support

?Management Features:??Preboot eXecution Environment (PXE) support
?iSCSI Remote Boot Support and FCoE
?NC-SI for remote management

?OS Support: ?Linux RHEL, Linux SLES
?Windows
?FreeBSD
?VMWare


•Cables Support:?25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers)
?10GbE RJ45: RJ-45 Category-6 up to 55m; Category-6A up to 100m

•Power Consumption: Maximum 25W
•Physical Dimensions: ?Card PCB Dimensions (WxD): 3.62 x 3.43 inch / 92.0 x 87.1 mm

•RoHS Compliant
