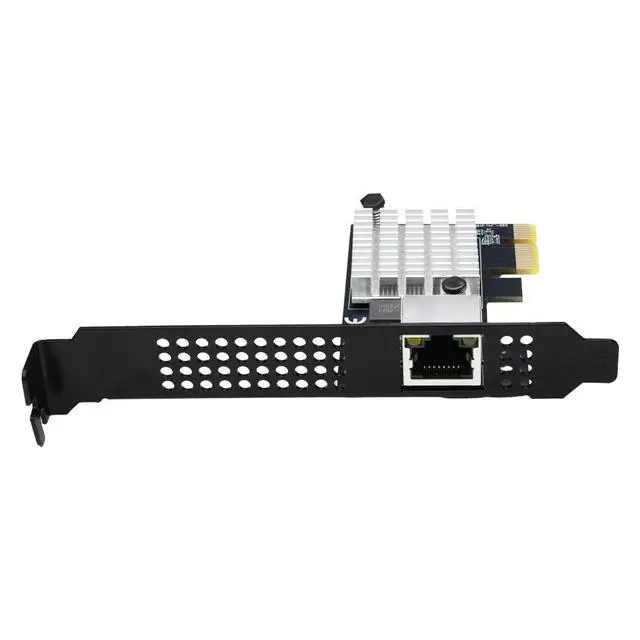

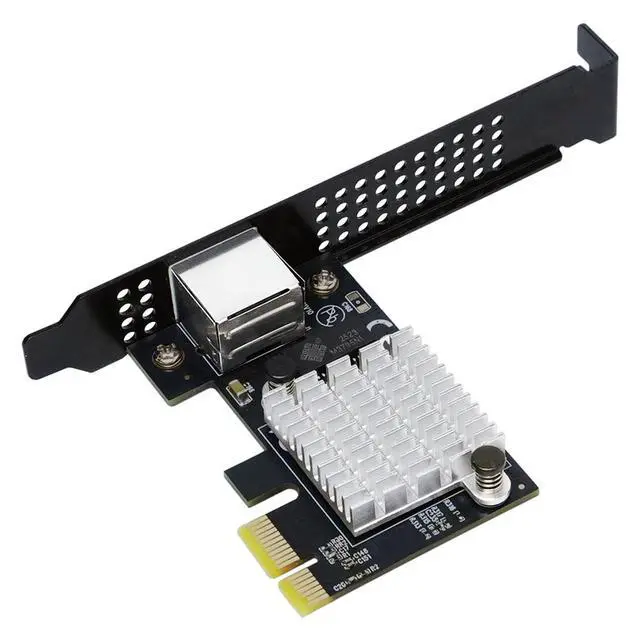

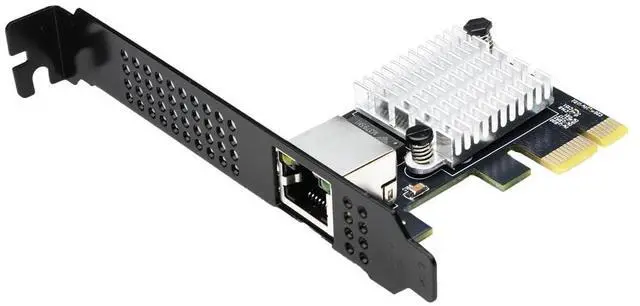

    IO CREST Single Port 10 Gigabit Ethernet PCI-e x1 Network Card RTL8127 Chipset

    • Chipset: RTL8127AT-CG
    • Number of Port: 1
    • Support bus widths:Gen4 x1, Gen4 x4, x16
    • Support PCI Express Gen-III x1
    • Support line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane
    • Jumbo frame support up to 16 KB
    • Support 10G/5G/2.5G/1000M/100M LAN speed
    • 1.79W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
    • 1.37W typical 5GBASE-T operating power per port
    • 1.21W typical 2.5GBASE-T operating power per port
    • 0.92W typical 1GBASE-T operating power per port
    • 0.54W typical 100BASE-T operating power per port
    • 0.29W typical 10BASE-T operating power per port
    • Support ECMA-393 ProxZzzy Standard for sleeping hosts
    • Support LTR(Latency Tolerance Reporting)
    • Support Wake-On-LAN andRealWoW
    • Support Legacy PXE (minimal support) and EFI PXE
    • Support 32-set 128-byte Wake-Up Frame pattern exact matching
    • Support Microsoft WPI(Wake Packet Indication)
    • Compatible with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3bz
    • Support Synchronous Ethernet and Precision Time Protocol (PTP) including IEEE 1588v1,IEEE 1588v2,IEEE 802.1AS
    • Support IEEE 802.1P Layer 2 Priority Encoding
    • Support IEEE 802.1Q VLAN tagging
    • Support IEEE 802.1 ad Double VLAN
    • Support IEEE 802.3az (Energy Efficient Ethernet)
    • Support IEEE 802.3an (10GBase-T)
    • Support Full Duplex flow control (IEEE 802.3x)
    • Jumbo frame support up to 16 KB
    • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4,IPv6,TCP,UDP) and Segmentation Task-offload (Large send v1 and Large send v2)
    • Support quad core Receive -Side Scaling (RSS)
    • Support Protocol Offload (ARP &
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    The SI-PEX24102 is an 10G ethernet card which offers significantly faster data transfer speeds compared to a standard gigabit ethernet card, allowing for smoother handling of large data files, improved network performance for demanding applications like video streaming or high-resolution graphics, and better scalability to accommodate growing network needs, all while minimizing data bottlenecks in high-traffic environments. The SI-PEX24102 NIC supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. It is also compliant with IEEE 802.3bz standard and backwards-compatible with legacy 1000BASE-T Ethernet. The RTL8127AT-CG is a single-chip, single-port, high-performance PCIe 3.0 Multi-Gig 10GBASE-T/5GBASE-T/2.5GBASE-T/ 1000BASE-T/100BASE-TX Ethernet adapter.
