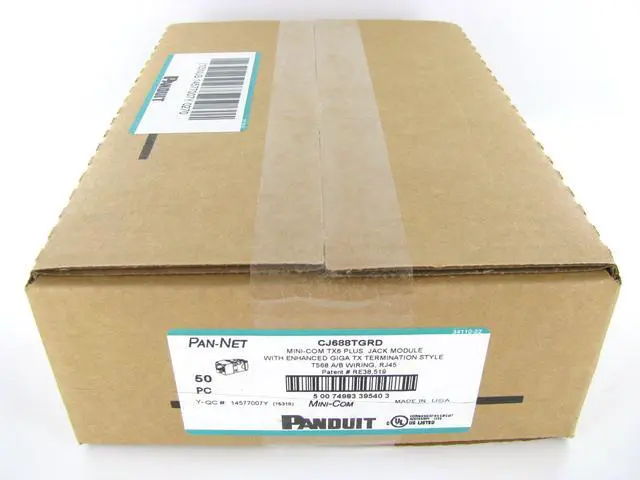

Panduit CJ688TGRD Mini-Com TX6 Plus Giga-Channel Cat6 Jack, Red, Box of 50
- Product Type Jack Module
- Performance Level Category 6
- Connector Type Jack Module - Standard
- Termination Style TG Style
- Body Material Polycarbonate
- Contact Material Plated Phosphor Bronze
- Module Type Mini-Com®
- Wiring Scheme T568A/T568B
- Shield Type Unshielded (UTP)
- Sub Brand Pan-Net®
- Resistance Properties Heat-Resistant
- Color Red
- Standards Met Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

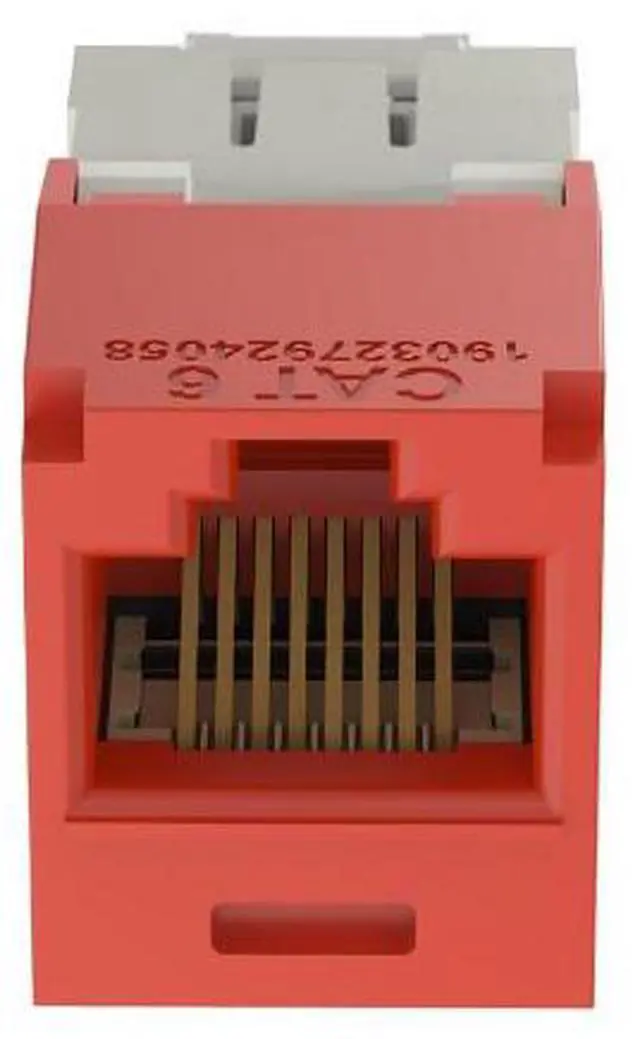

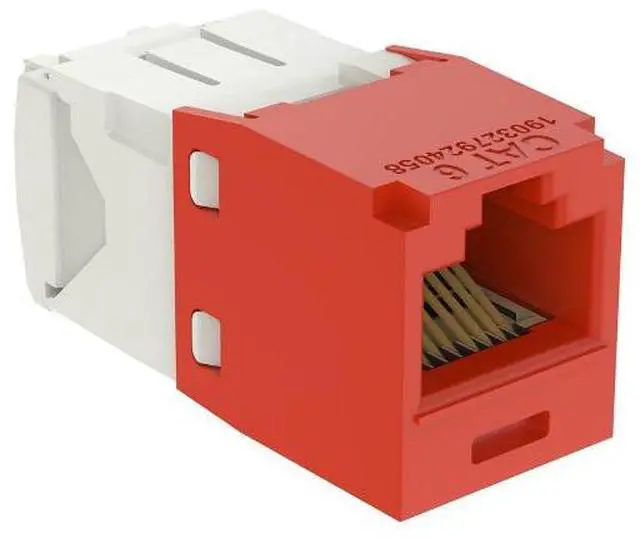

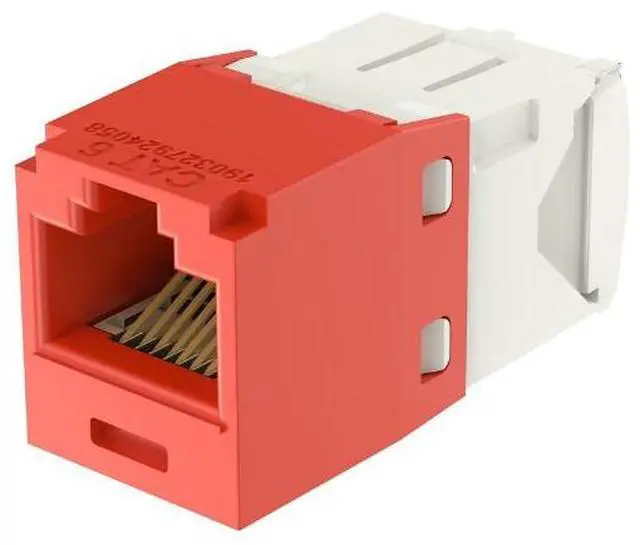

Panduit Mini-Com® UTP RJ45 Cat 6 TG Jack Module, Red, Box of 50
Part # CJ688TGRD
The Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is red.
Part # CJ688TGRD
The Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is red.
