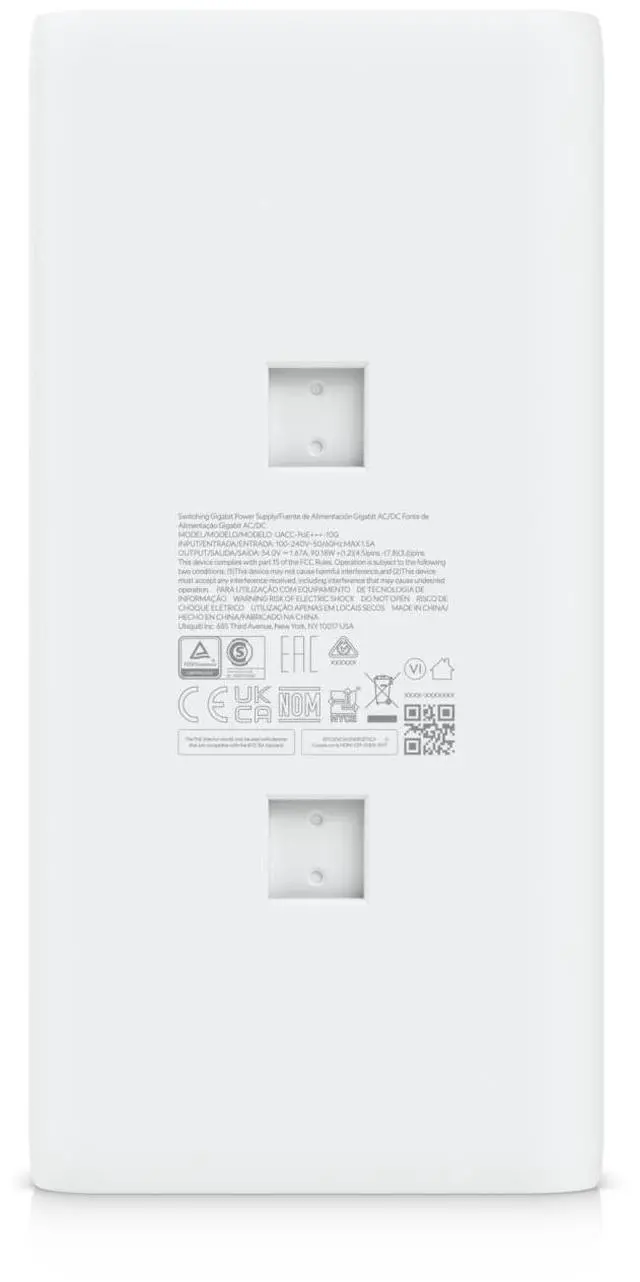

    Ubiquiti Unifi 10G PoE+++ Adapter (90W)

    Be the first to review this product...
    • An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
    • Overview
    • Dimensions: 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7")
    • Weight: 372 g (13.1 oz)
    • Power Cable: Included
    • Output Voltage: 54V DC @ 1.67A
    • Rated Voltage: 100-240V AC at 50/60Hz
    • Gigabit LAN Port:
    • 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    • Clamping Protection: 11V data, 60V power
    • Data In / PoE: RJ45 shielded socket
    • Input Current: 1.5A Max.
    • Inrush Current: <120A peak @ 230V AC
    • Efficiency: >88%
    • Switching Frequency: 65 kHz
    • Output Ripple: 1% Max.
    • Line Regulation: 2%
    • Load Regulation: 5%
    • Max. PoE+ Wattage per Port by PSE: 90W
    • Max. Surge Discharge: 1500A (8/20 µs) power
    • Peak Pulse Current: 36A (10/1000 µs) data
    • Response Time: <1 ns
    • Shunt Capacitance: <5 pF data
    • Surge Protection: Difference and common mode
    • Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
    • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
    • Ambient Operating Humidity: 10 to 95% noncondensing
    • NDAA Compliant:
    • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Overview
    1. Dimensions: 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7")
    2. Weight: 372 g (13.1 oz)
    3. Power Cable: Included
    4. Output Voltage: 54V DC @ 1.67A
    5. Rated Voltage: 100-240V AC at 50/60Hz
    6. Gigabit LAN Port:
    7. 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    8. Clamping Protection: 11V data, 60V power
    9. Data In / PoE: RJ45 shielded socket
    10. Input Current: 1.5A Max.
    11. Inrush Current: <120A peak @ 230V AC
    12. Efficiency: >88%
    13. Switching Frequency: 65 kHz
    14. Output Ripple: 1% Max.
    15. Line Regulation: 2%
    16. Load Regulation: 5%
    17. Max. PoE+ Wattage per Port by PSE: 90W
    18. Max. Surge Discharge: 1500A (8/20 µs) power
    19. Peak Pulse Current: 36A (10/1000 µs) data
    20. Response Time: <1 ns
    21. Shunt Capacitance: <5 pF data
    22. Surge Protection: Difference and common mode
    23. Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
    24. Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
    25. Ambient Operating Humidity: 10 to 95% noncondensing
    26. NDAA Compliant:
    27. Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
