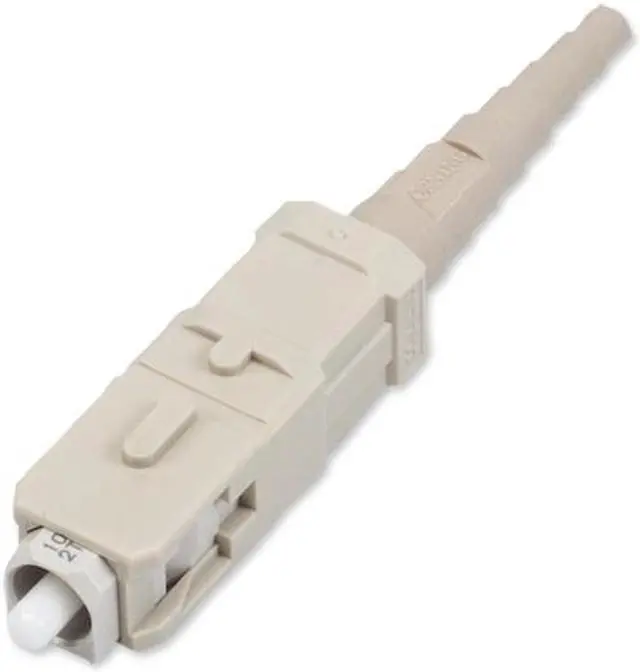

UniCam SC connector for OM1 fiber
Model and installation guide
The Corning 95-000-41 provides an SC field-installable termination for 62.5 um OM1 multimode fiber. Its factory-polished design is used with compatible UniCam installation tooling.
TECHNICAL DETAILS
Model: 95-000-41.
Connector interface: SC.
Fiber category: OM1, 62.5 um multimode.
Beige housing and boot identification.
Individual connector.
BEFORE ORDERING
Match the fiber category, buffer and connector interface. Follow the Corning fiber preparation and UniCam installation procedure. Tools and cable are separate.
Corning UniCam® Connector, SC 62.5 µm multimode (OM1)
Part Number: 95-000-41
Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss 0.1 dB typical/ 0.5 dB maximum per connector pair for multimode, 0.2 dB typical/ 0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC, or ST® Compatible Connector can be accomplished in about 45 seconds with the UniCam High-Performance Tool Kit. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time. This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.
