Corning CCH-UM12-05-93Q Closet Connector Housing Module, 12 Fiber Shuttered LC Duplex to MTP Module, Multimode 50um OM4
- General Specifications
- Product Number CCH-UM12-05-93Q
- EAN Code 4042673386674
- Product Type Panels and Modules
- Fiber Category 50 µm MM (OM4)
- Application Data Center LAN/SAN
- Standards
- RoHS Free of hazardous substances according to RoHS 2011/65/EU
- Design
- Fiber Count 12
- Adapter Type Back MTP®
- Adapter Color Back Aqua
- Adapter Color Front Aqua
- Adapter Type Front Shuttered LC
- Housing Type CCH
- Number of Adapters per Panel 6
- Cable Design
- Fiber Count 12
- Optical Specification - Hardware
- Insertion Loss 0.5 dB
- Fiber Category 50 µm MM (OM4)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

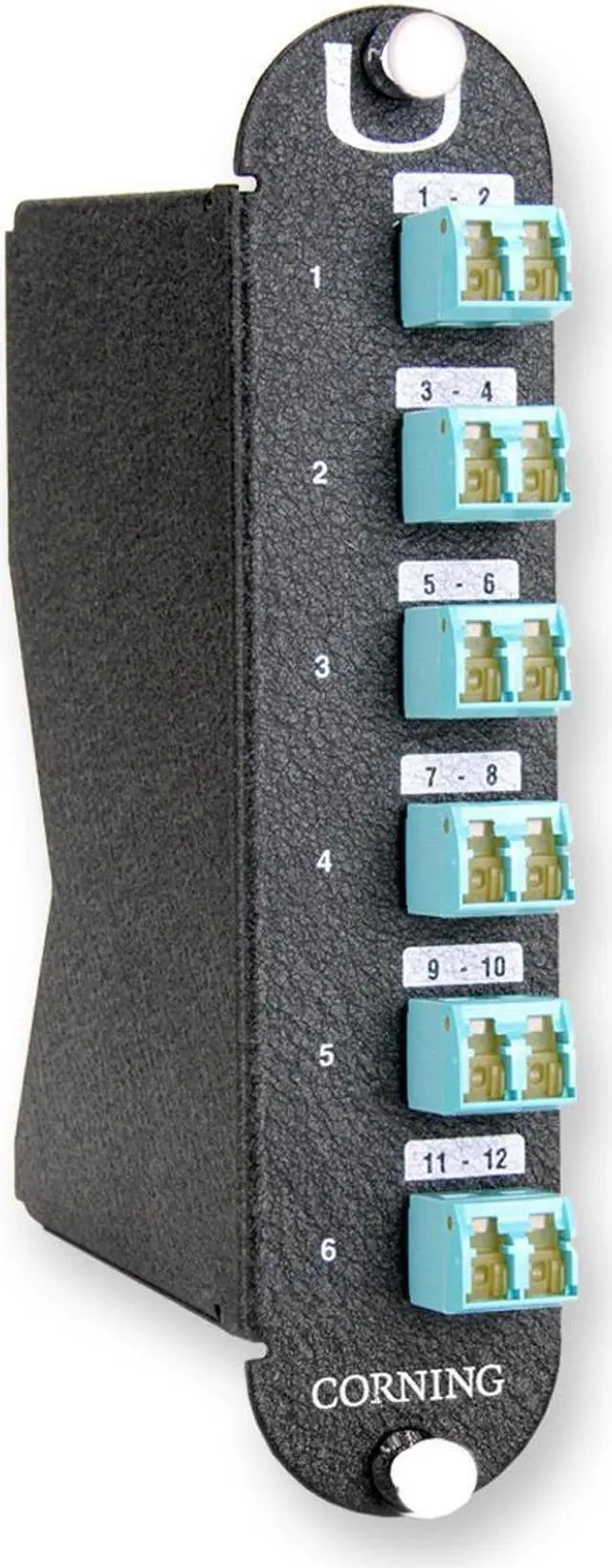

Corning Plug & Play Universal Module, Low-Loss, 12 F, Shuttered LC to MTP®, 50 µm multimode (OM4)
Part Number: CCH-UM12-05-93Q
The Plug & Play modules provide the interface between the MTP® on the trunk and the LC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted. Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.
Part Number: CCH-UM12-05-93Q
The Plug & Play modules provide the interface between the MTP® on the trunk and the LC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted. Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.
