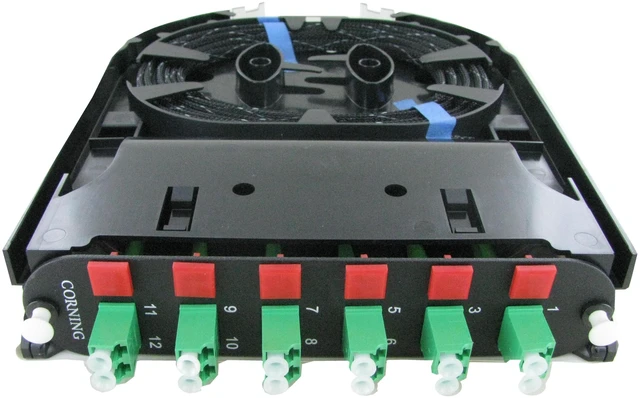

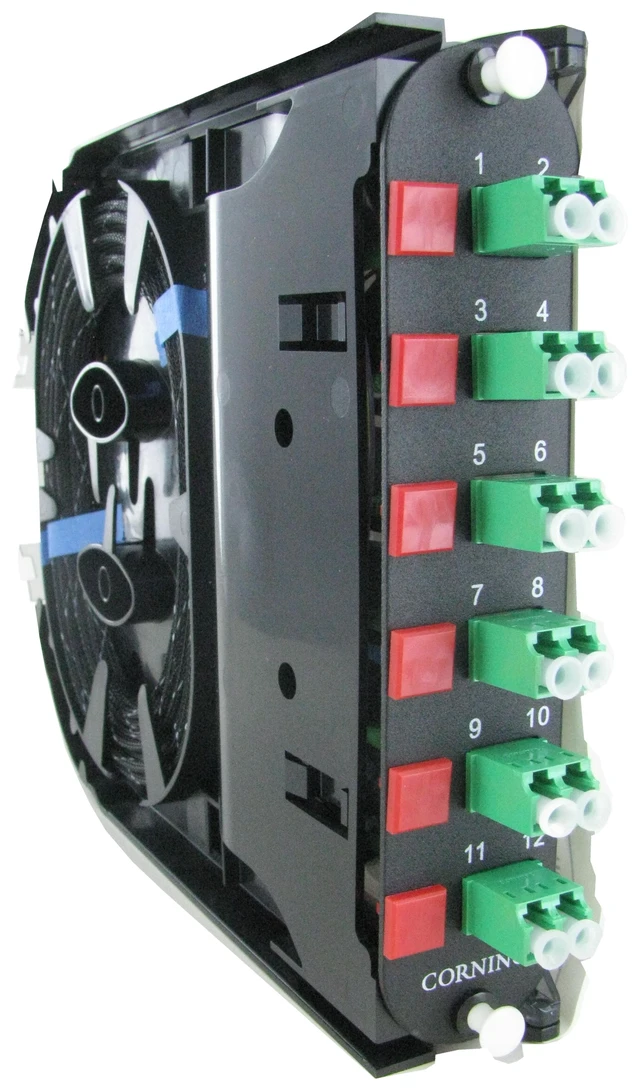

    Corning CCH-CS12-B3-P00RE Fiber Optic Splice Cassette, 12 Fiber, LC Duplex SM OS2, APC Polish

    Be the first to review this product...
    • Fiber Count 12
    • Connector Configuration LC Duplex
    • Polish APC
    • Panel or Module Type CCH
    • Splice Protectors Type Heat Shrink, single fiber
    • Number of Splice Protectors 12
    • Adapter Type LC Duplex
    • Polish APC
    • Manage cable slack for a CCH panel in a modular footprint
    • Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
    • Includes everything needed to convert a CCH housing for modular routing and/or splicing
    • Easy ordering and field installation
    • Modular splice capability
    • Manage all splices inside the housing
    • 900 µm jacket at the connector panel
    • Added fiber protection at the connector
    • Colored 250 µm at splice point
    • Easy to identify and prep colored 250 µm for fast and easy splicing
    • Pre-prepped splice cassette
    • Saves time in the field with a ready to splice product
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    Organized fiber splicing in a modular cassette

    CCH-CS12-B3-P00RE

    CCH-CS12-B3-P00RE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 12 fibers with LC APC duplex connections for OS2 single-mode fiber.

    Technical details

    CCH-CS12-B3-P00RE specifications

    Manufacturer: Corning
    Model: CCH-CS12-B3-P00RE
    Fiber count: 12
    Connections: LC APC duplex
    Fiber type: OS2 single-mode
    Listed condition: New

    Fit and package contents

    Check before ordering

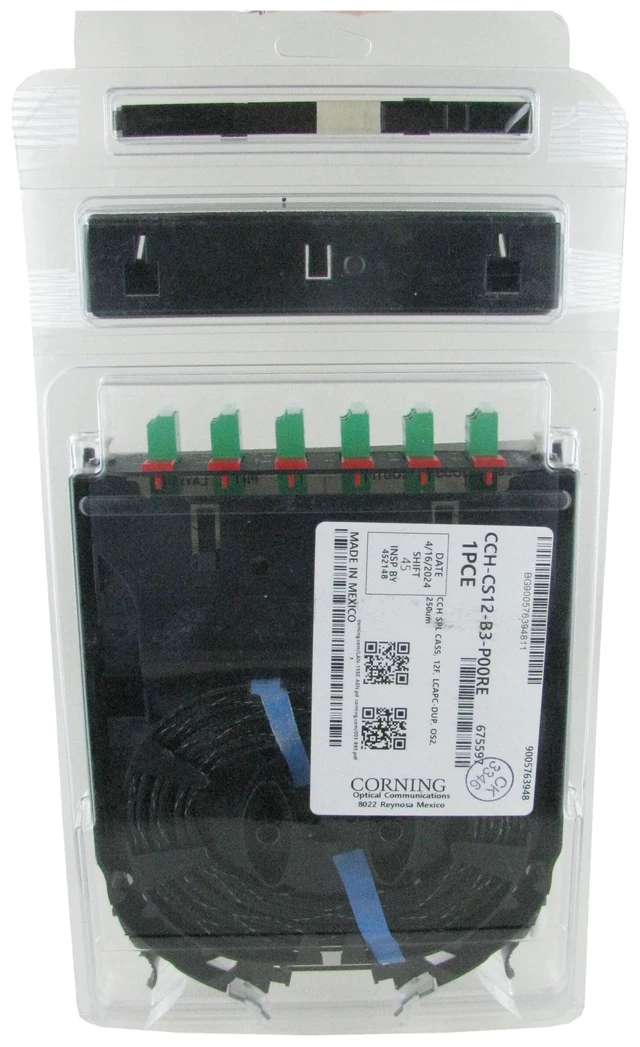

    Includes one pigtailed splice cassette assembly. Listed condition: New. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    CCH Pigtailed Splice Cassette, 124 F, LC APC duplex, Single-mode (OS2), single-fiber (250 µm)
    Part Number: CCH-CS12-B3-P00RE

    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

    The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

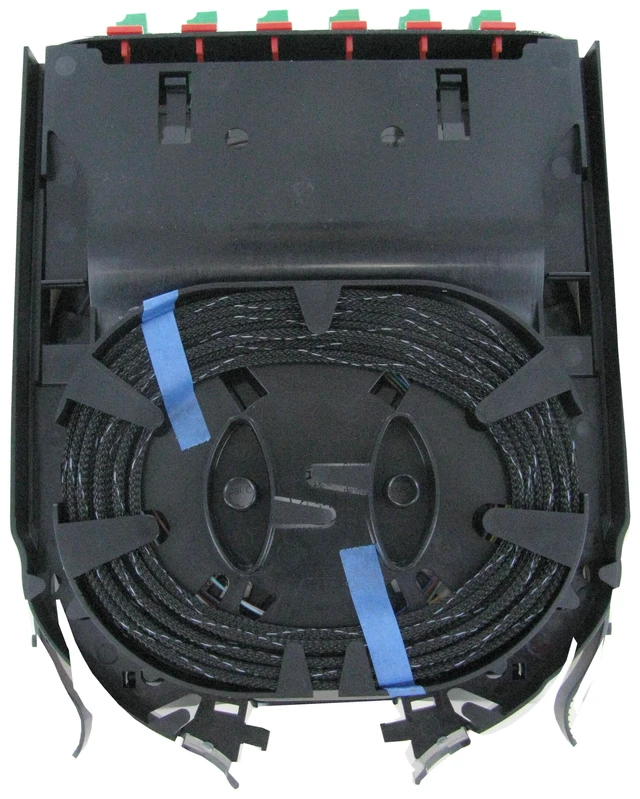

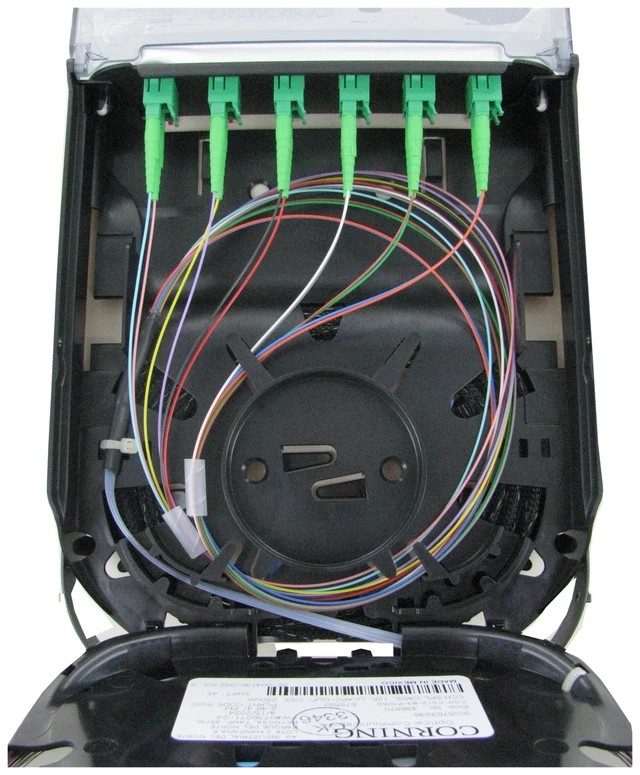

    The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 3m pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

    With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

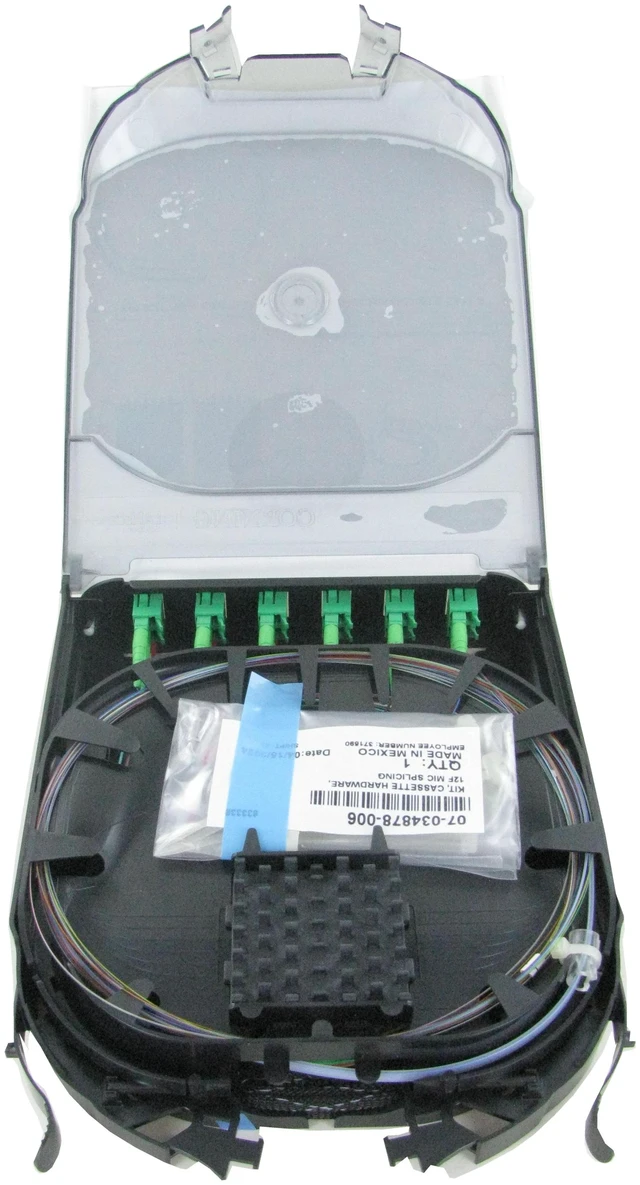

    Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.
