    Corning CCH-CS24-E4-P00QE Pigtailed Fiber Optic Splice Cassette, 24 Fiber, LC PC Duplex 50um Multimode (OM4), Single-Fiber (250 um)

    Be the first to review this product...
    • Product Number CCH-CS24-E4-P00QE
    • Product Type Rack-Mountable Hardware
    • Fiber Category 50 µm MM (OM4)
    • RoHS Free of hazardous substances according to RoHS 2011/65/EU
    • Approvals and Listings Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-3125, UL1863 - Communication Circuit Accessories
    • Fiber Count 24
    • Panel or Module Type CCH
    • Splice Protectors Type Heat Shrink, single fiber
    • Cable Design
    • Design - Adapter
    • Adapter Type LC Duplex
    • Dimensions
    • Length 406 mm
    • Height 198 mm
    • Width 362 mm
    • Weight 664.58 g
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

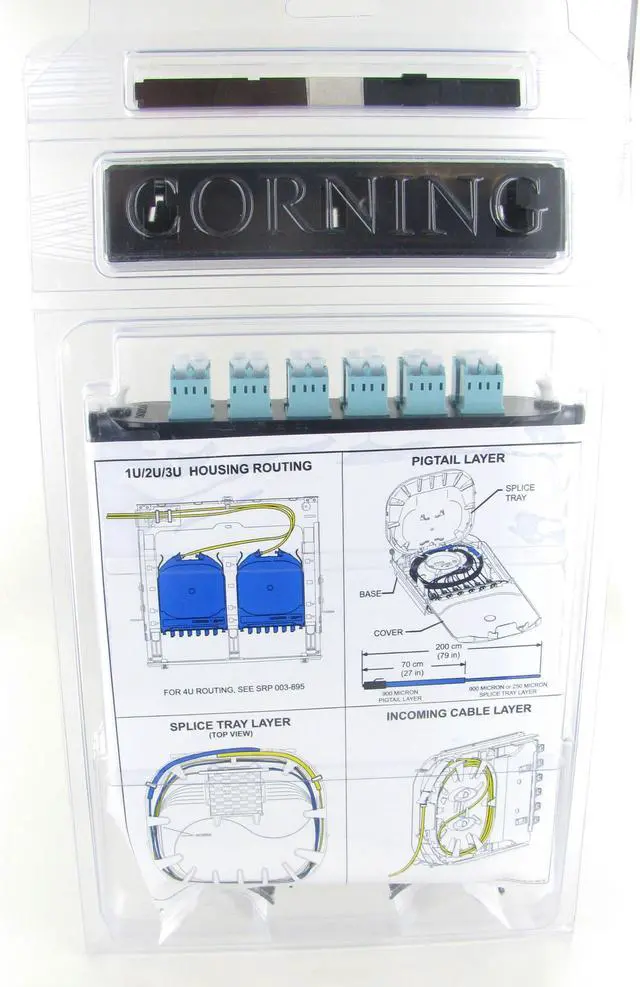

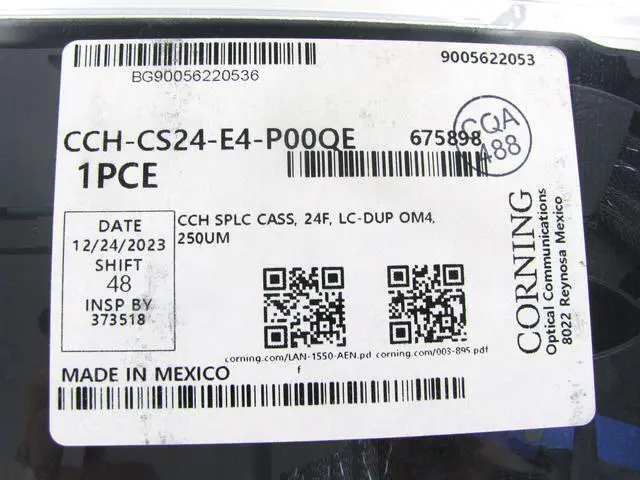

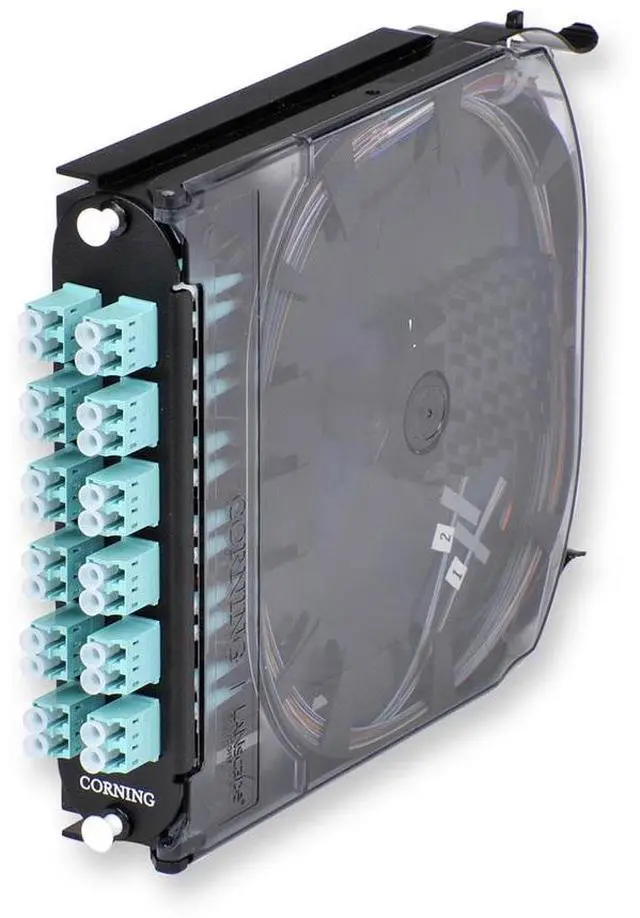

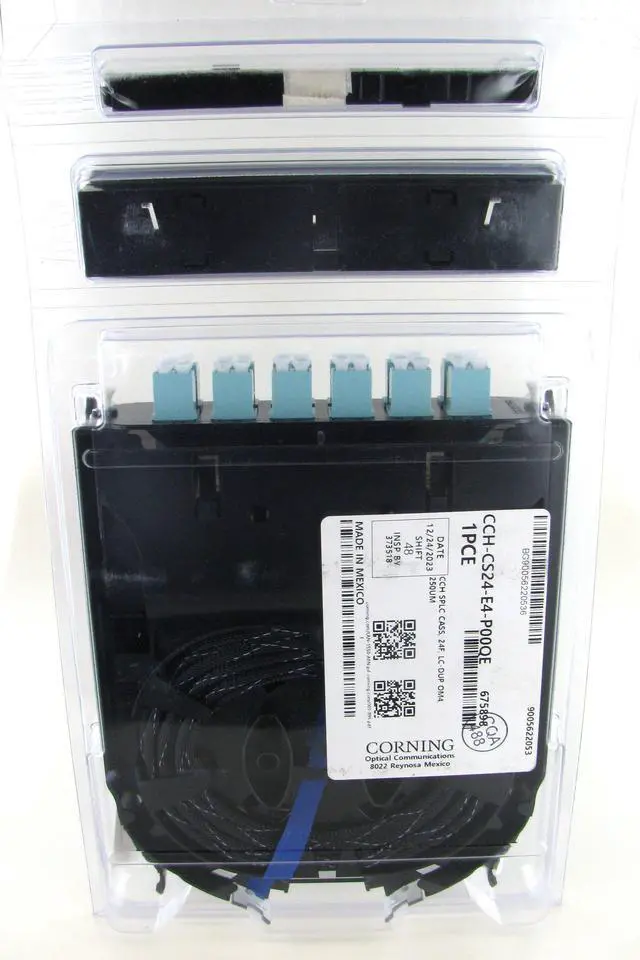

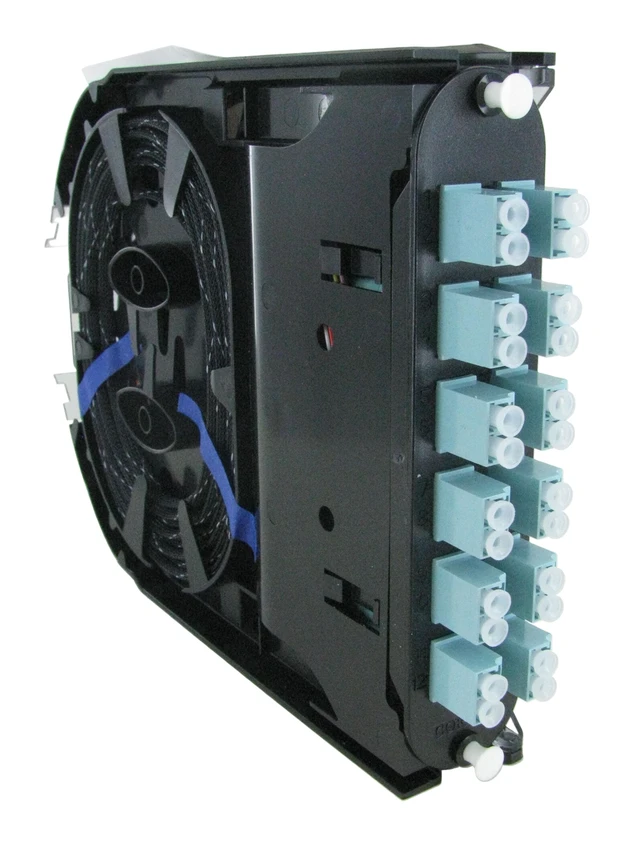

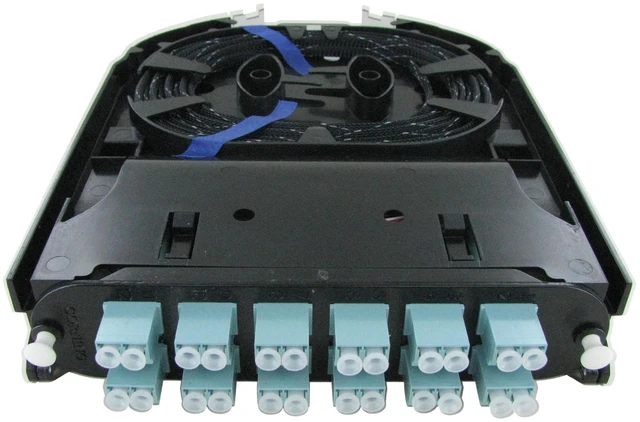

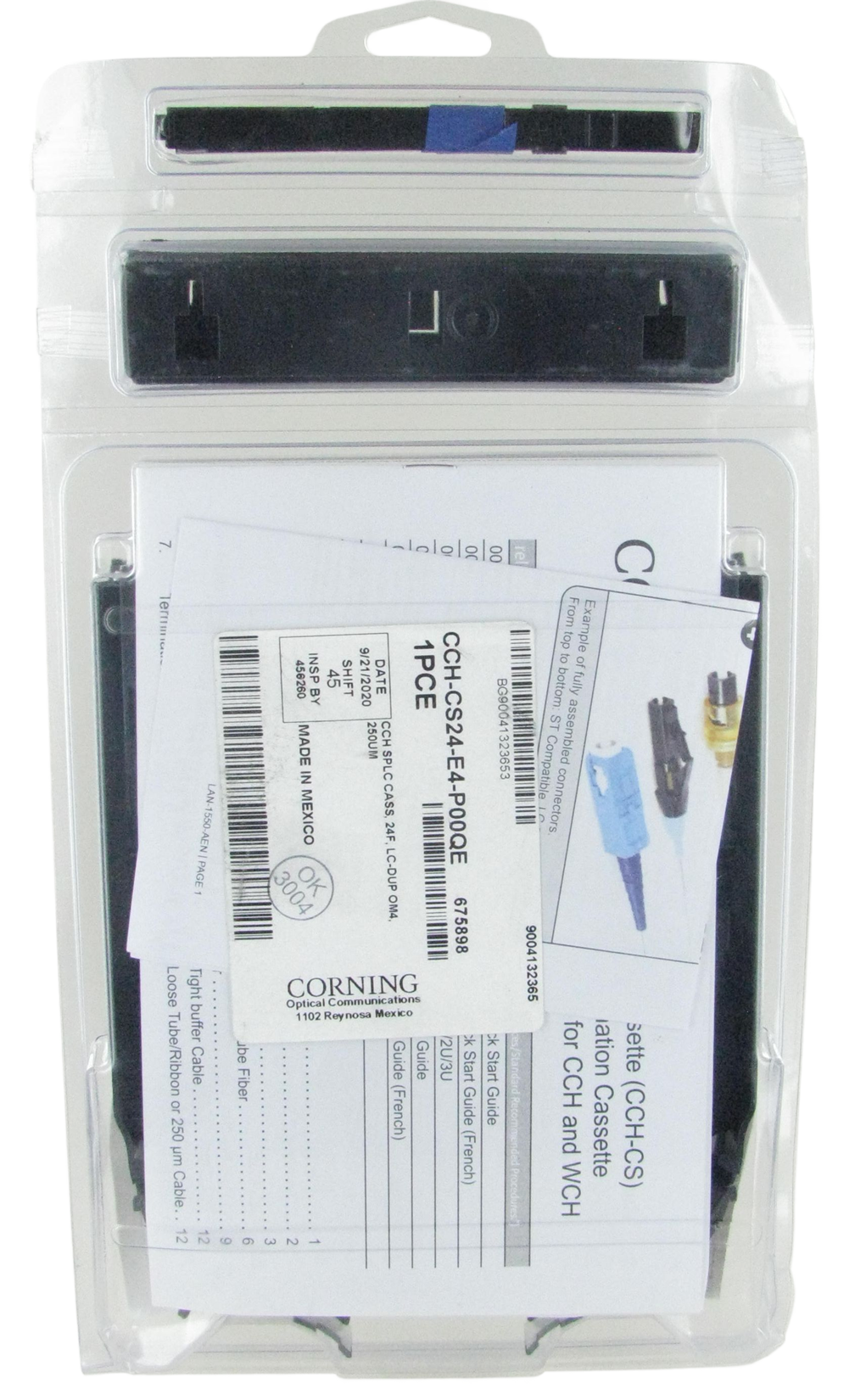

    Corning CCH-CS24-E4-P00QE 24-fiber LC duplex OM4 pigtailed splice cassette
    CCH-CS24-E4-P00QE
    LC duplex - 24 fibers - OM4

    A pigtailed splice cassette with 24 fibers and aqua LC duplex connectivity. Confirm the OM4 fiber type and LC connector interface match your installation.

    Organized fiber splicing in a modular cassette

    CCH-CS24-E4-P00QE

    CCH-CS24-E4-P00QE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 24 fibers with LC PC duplex connections for 50 um OM4 multimode fiber.

    Technical details

    CCH-CS24-E4-P00QE specifications

    Manufacturer: Corning
    Model: CCH-CS24-E4-P00QE
    Fiber count: 24
    Connections: LC PC duplex
    Fiber type: 50 um OM4 multimode
    Configuration: 250 um single fiber

    Fit and package contents

    Check before ordering

    Includes one new pigtailed splice cassette assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    CCH Pigtailed Splice Cassette 24 F, LC duplex, 50 µm multimode (OM4)
    Part Number: CCH-CS24-E4-P00TE

    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

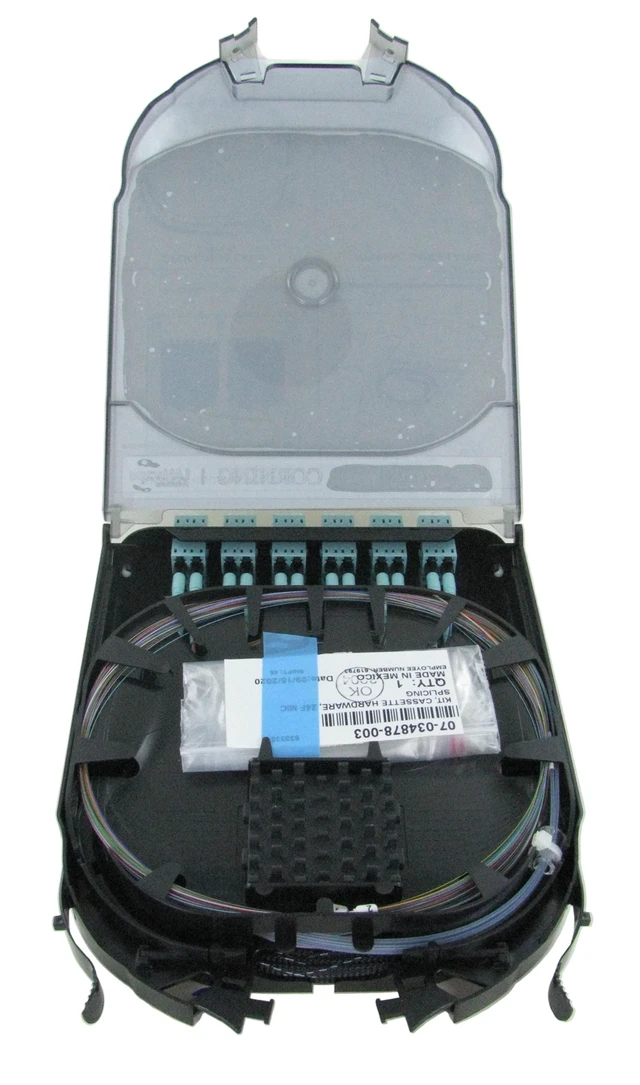

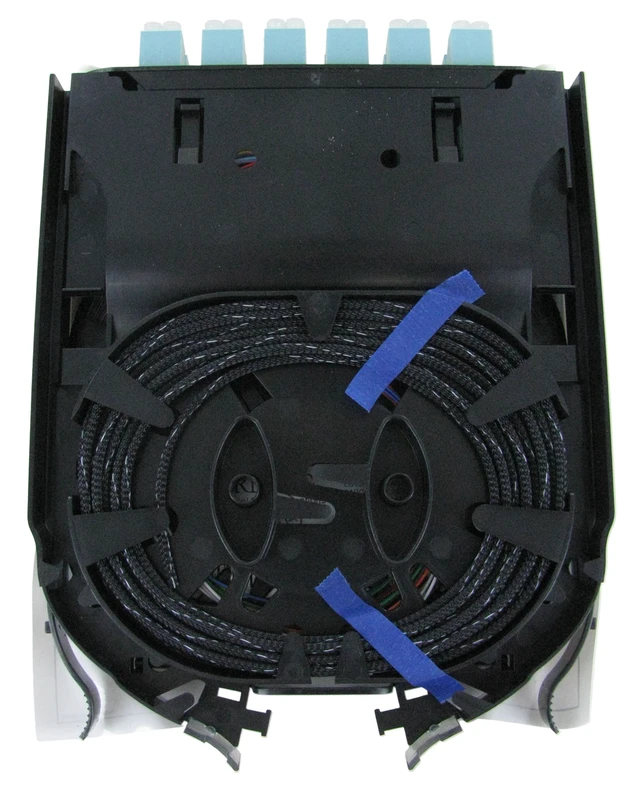

    The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

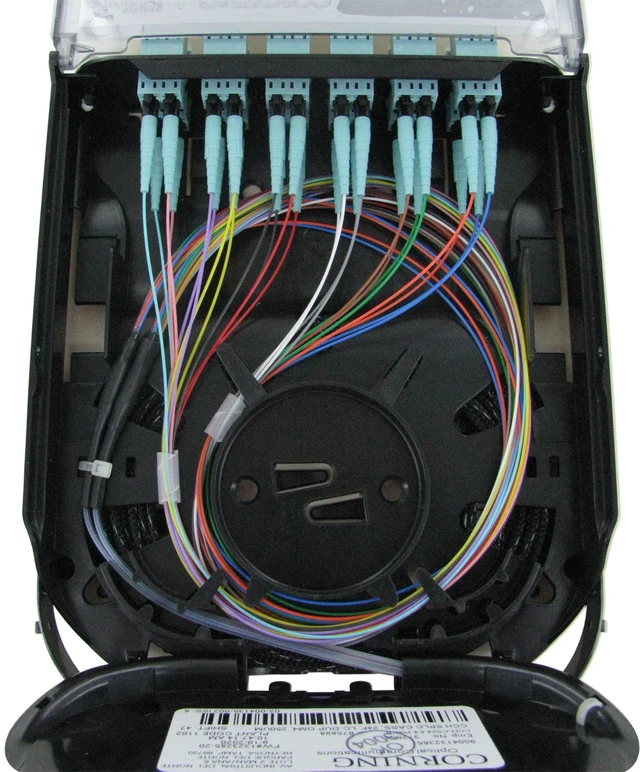

    The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

    With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

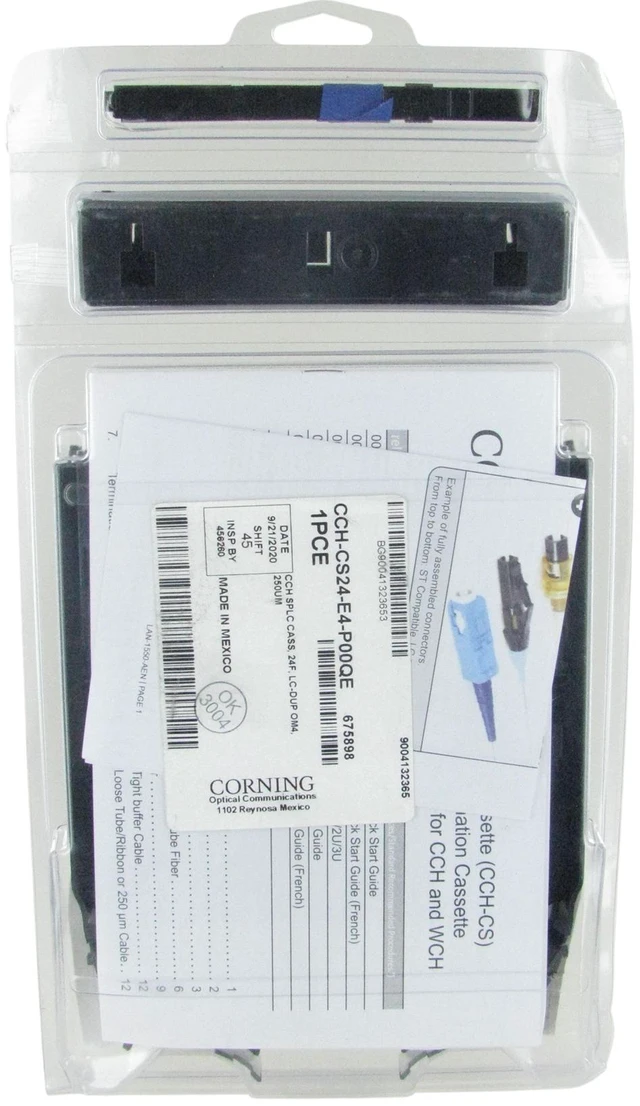

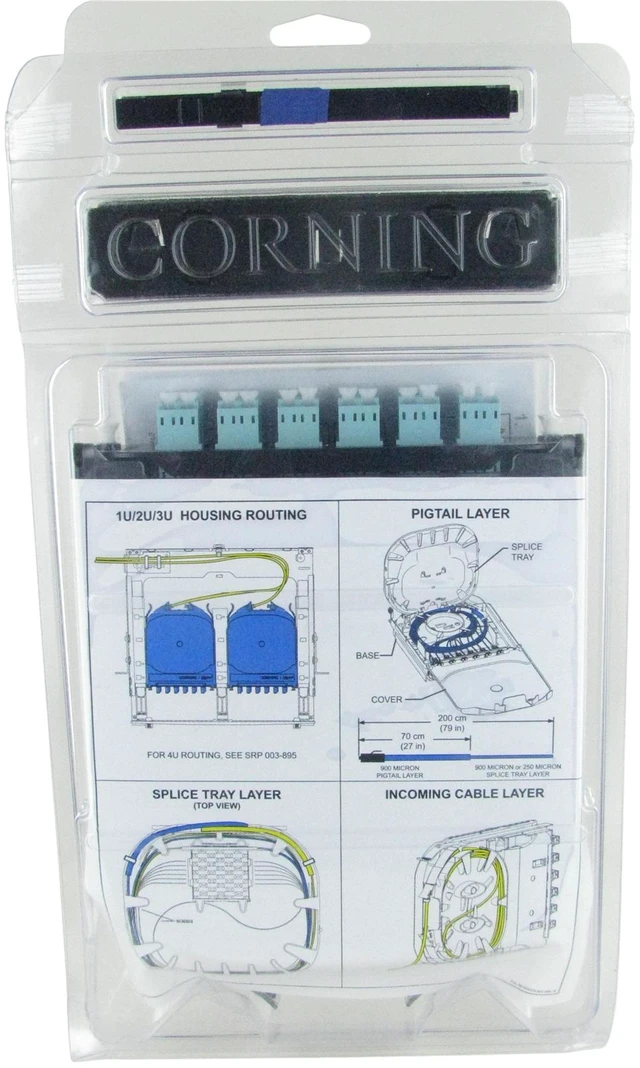

    Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.
