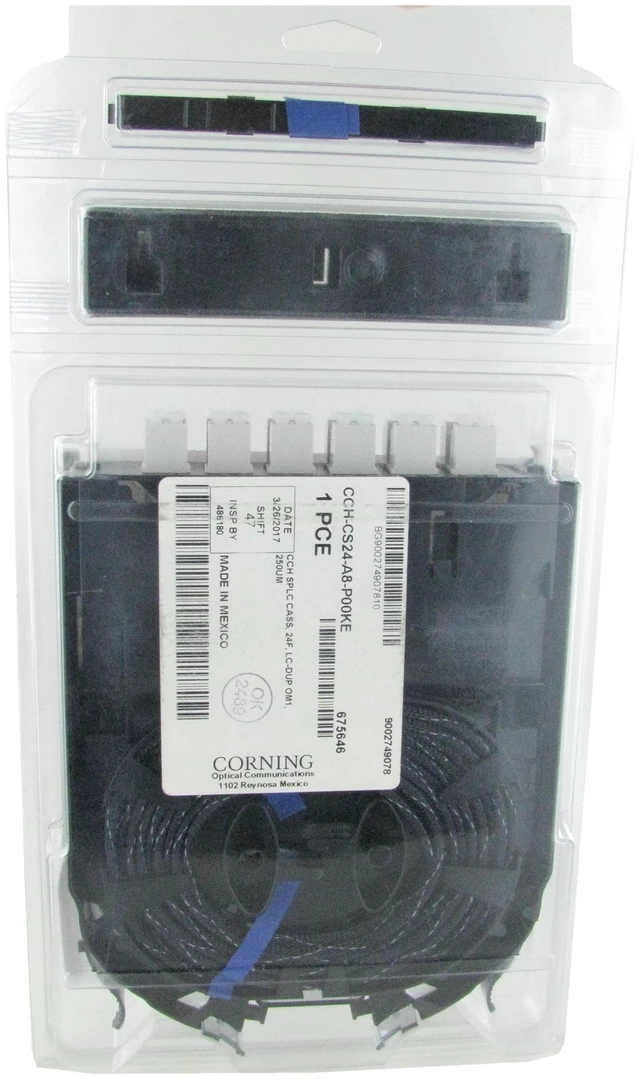

Corning CCH-CS24-A8-P00KE Pigtailed Splice Cassette, 24 F, LC Duplex OM1

Corning CCH-CS24-A8-P00KE Pigtailed Splice Cassette, 24 Fiber, LC UPC Duplex 62.5um Multimode OM1

Description:

Corning CCH Pigtailed Splice Cassette 24 F, LC UPC duplex, 62.5 µm multimode (OM1), single-fiber (250 µm)

Part # CCH-CS24-A8-P00KE

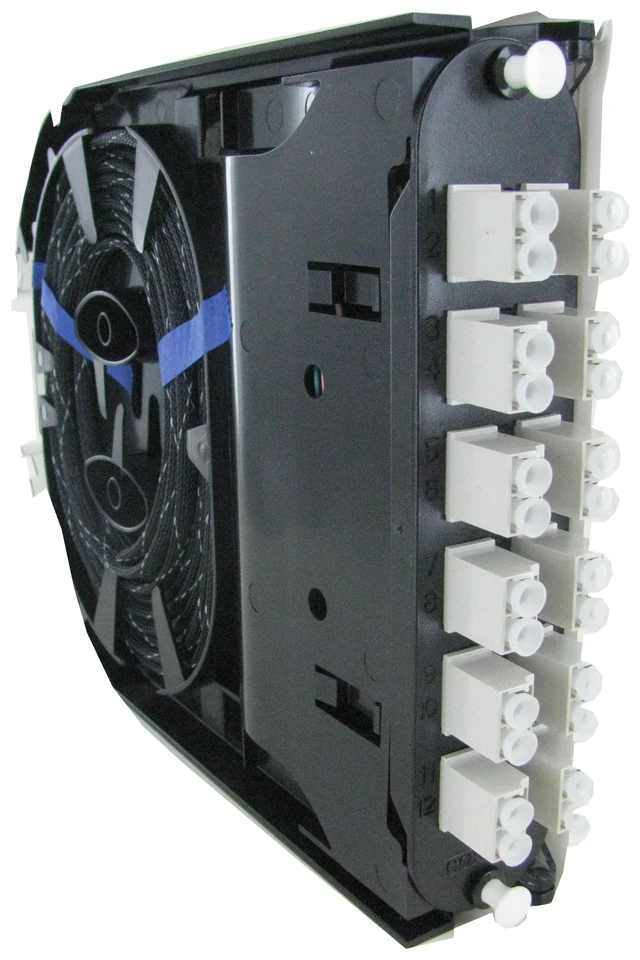

CCH Splice Cassettes enable fast field termination and easy modular management of connectorization within the housing.

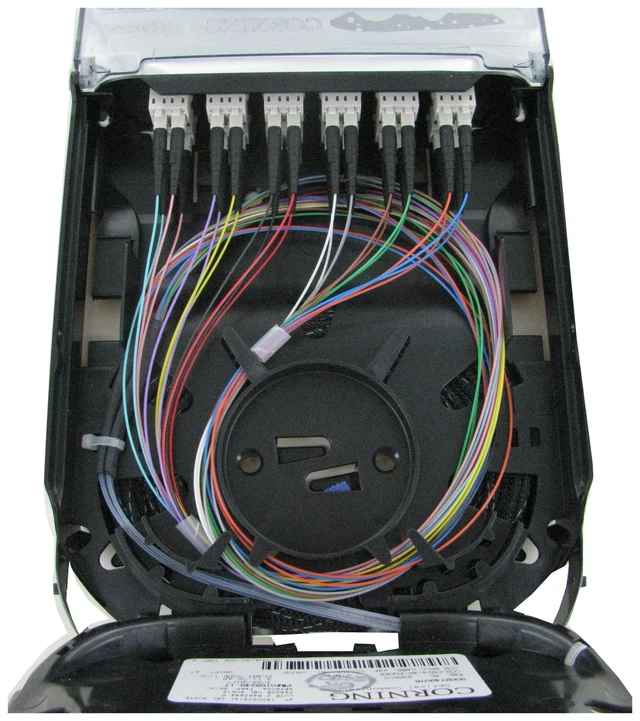

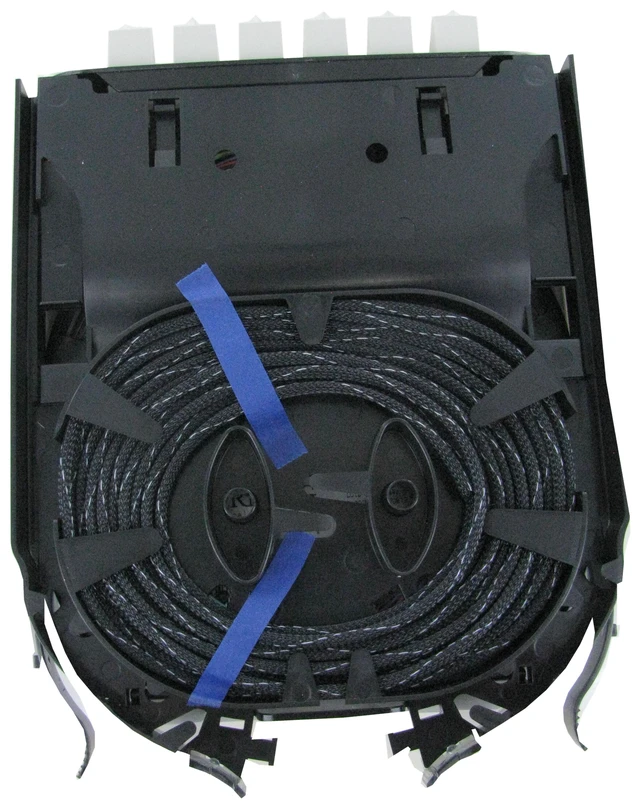

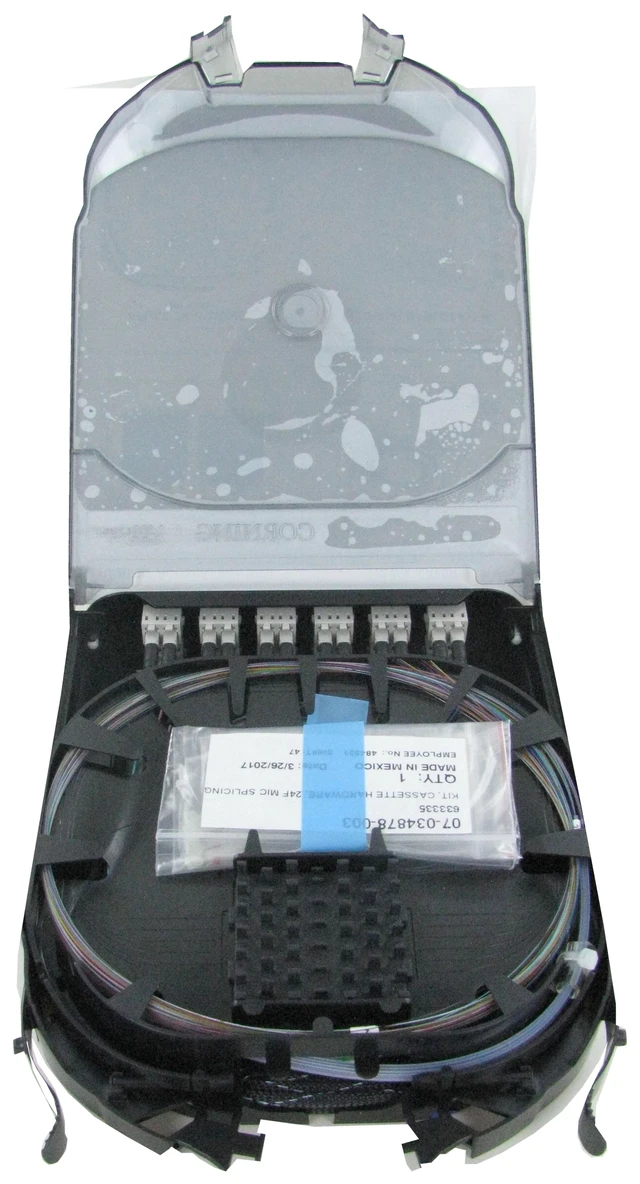

The CCH Splice Cassette supports fusion splicing of individual or ribbon fibers, with heat shrinks, pigtail slack and cable slack managed within a single space-saving footprint. This eliminates the need for individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

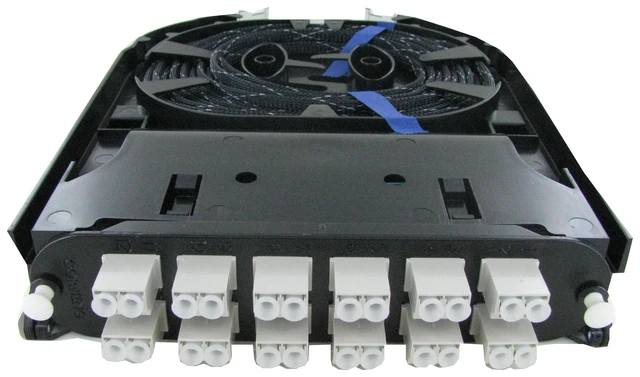

A CCH panel with the desired adapter configuration can be ordered separately and fits easily into the cassette. Each cassette is shipped with 1 rail for use with CCH-01U/2U/3U housings, and 2 rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective tubing for incoming cable are also included. Splice cassettes ship with 12 single-fiber heat-shrink splice protectors

Features:

Fiber Count 24

Connector Configuration LC Duplex

Polish UPC

Housing Type Cassettes

Panel or Module Type CCH

Splice Protectors Type Heat Shrink, Mass Fusion

Number of Splice Protectors 24

Number of Ports 24

Manage cable slack for a CCH panel in a modular footprint

Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)

Includes everything needed to convert a CCH housing for modular routing and/or splicing

Easy ordering and field installation

Modular splice capability

Manage all splices inside the housing

Colored 250 µm at splice point

Easy to identify and prep colored 250 µm for fast and easy splicing

Pre-prepped splice cassette

Saves time in the field with a ready to splice product

Broad operating temperature range (-40°C to +65°C)

Utility and flexibility
