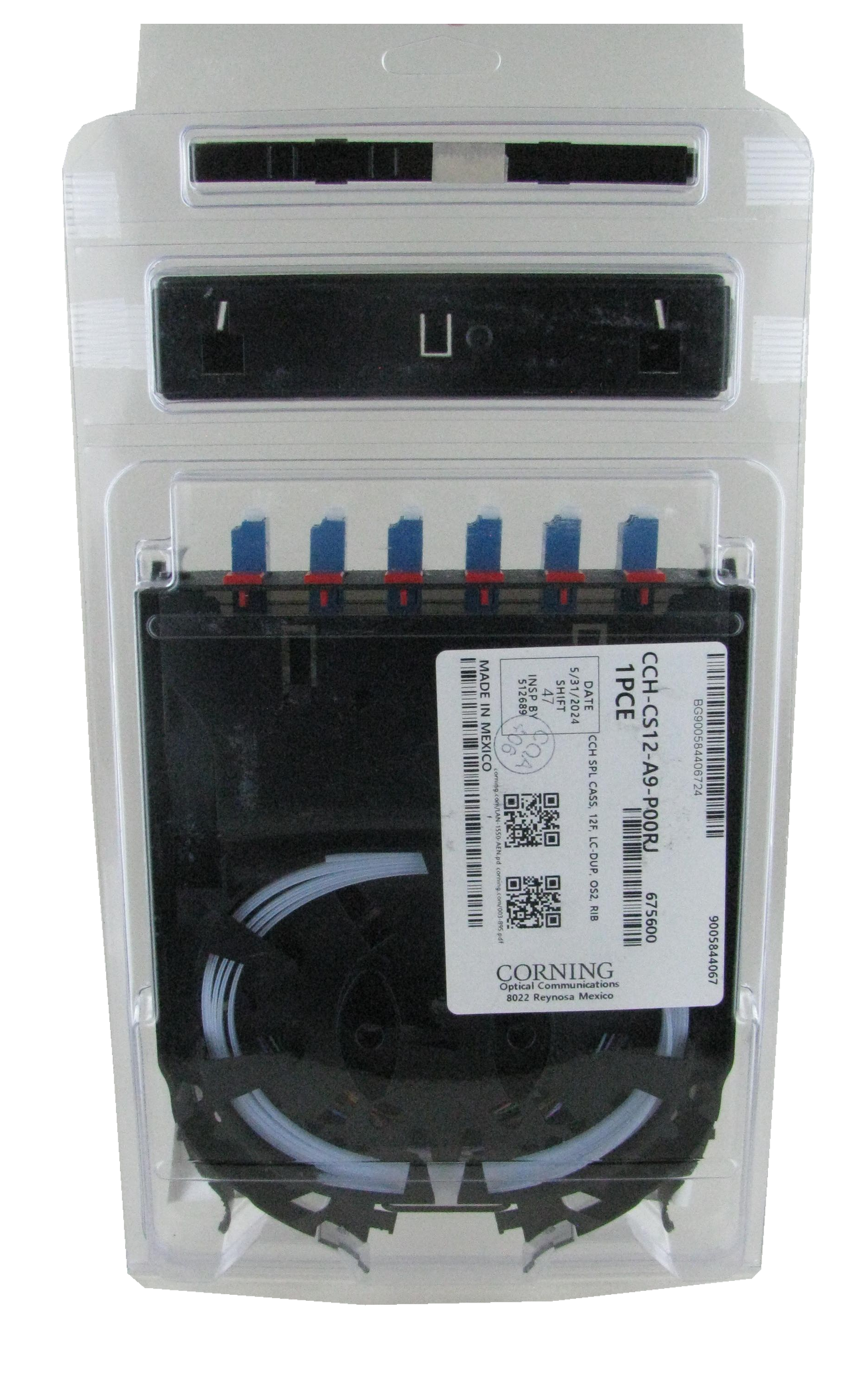

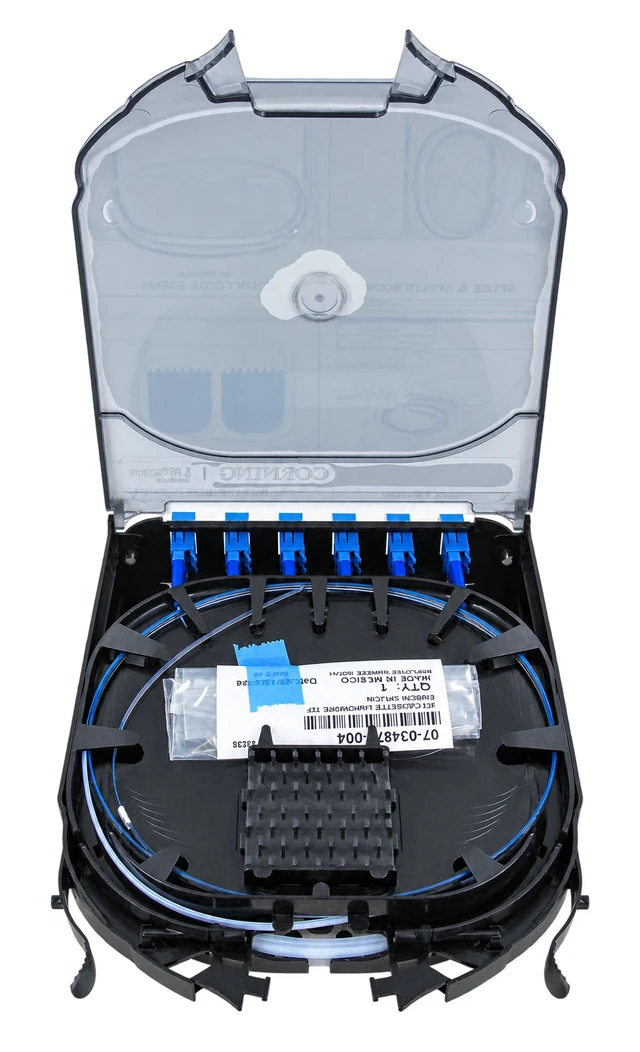

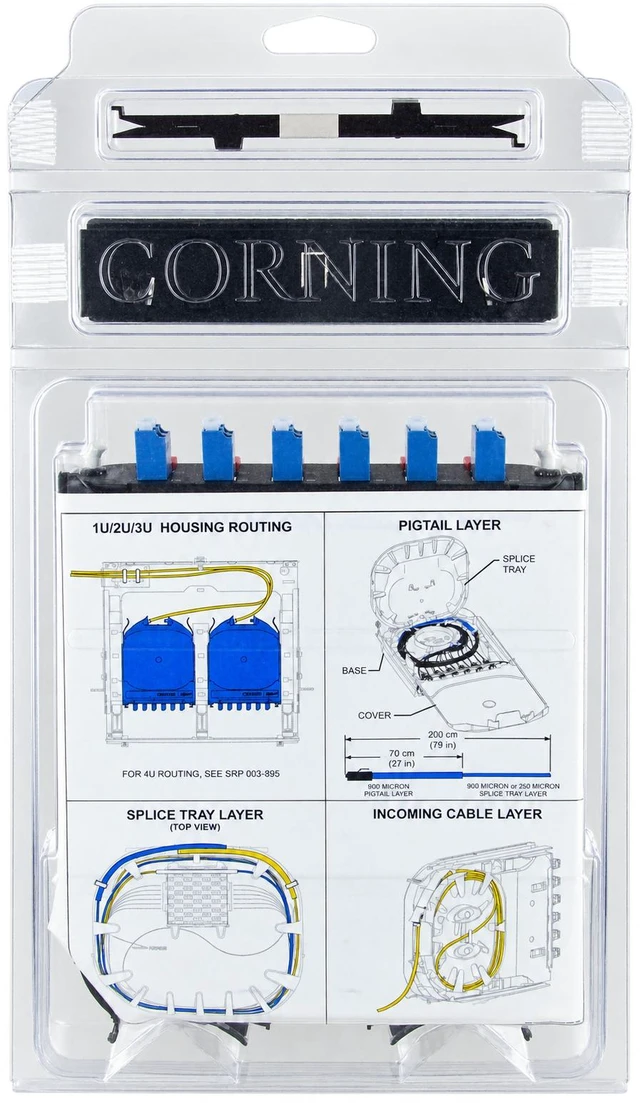

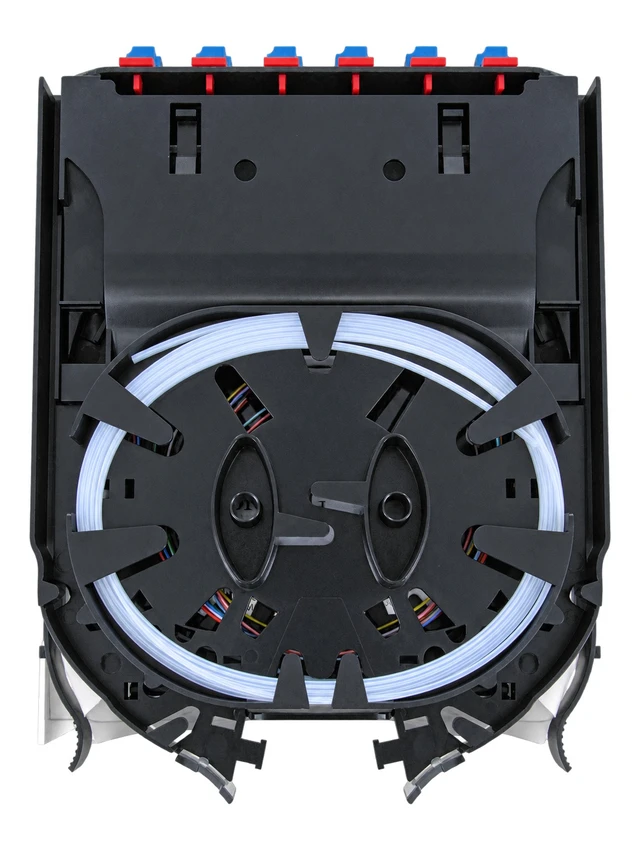

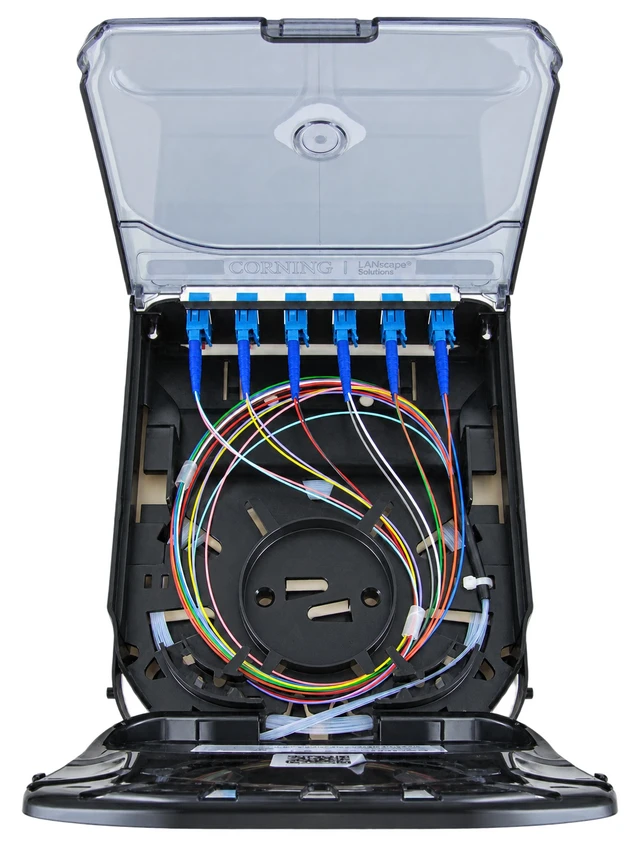

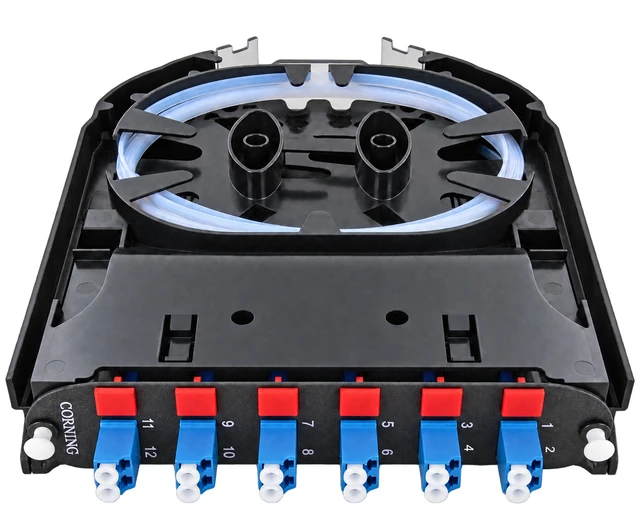

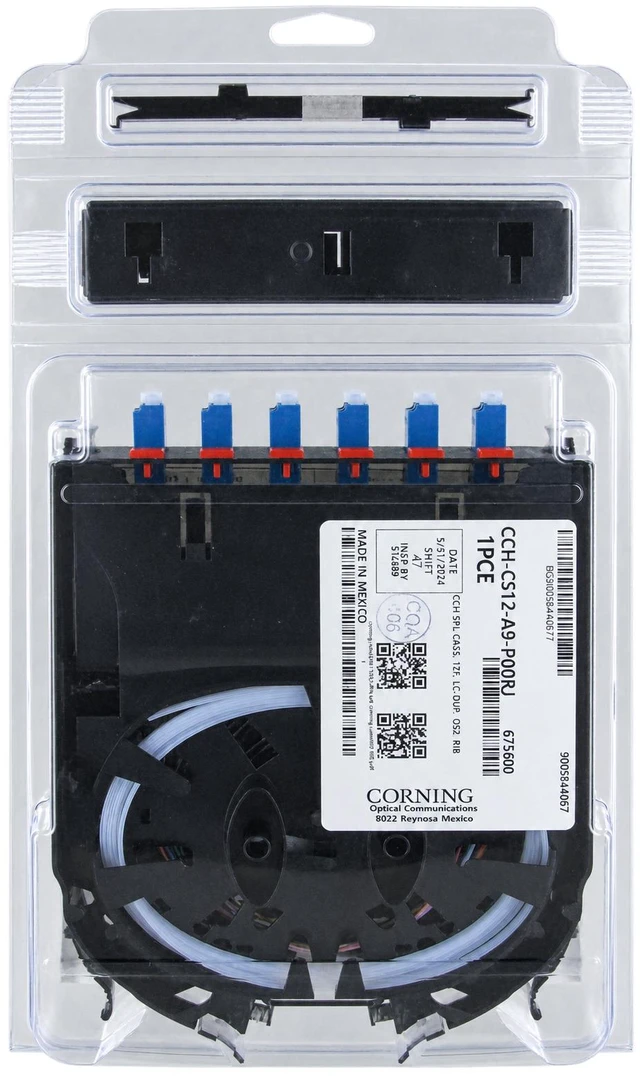

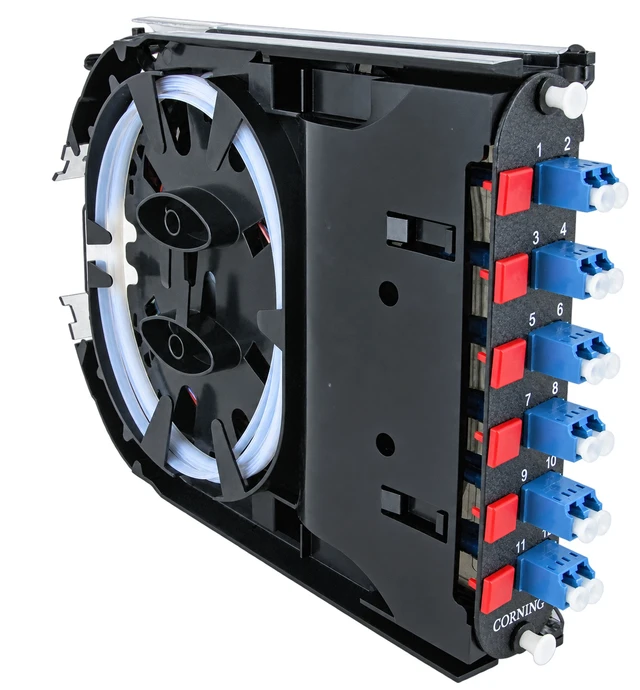

Corning CCH-CS12-A9-P00RJ Pigtailed Splice Cassette, 12 Fiber, LC Duplex Singlemode (OS2), Ribbon

Corning CCH-CS12-A9-P00RJ Closet Connector Housing Splice Cassette, 12 Fiber, LC Duplex Singlemode (OS2), Ribbon

Description:

Corning CCH Pigtailed Splice Cassette 12 F, LC UPC duplex, single-mode (OS2), ribbon

Part Number: CCH-CS12-A9-P00RJ

CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 3m pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.

Features:

Manage cable slack for a CCH panel in a modular footprint

Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)

Includes everything needed to convert a CCH housing for modular routing and/or splicing

Easy ordering and field installation

Modular splice capability

Manage all splices inside the housing

900 µm jacket at the connector panel

Added fiber protection at the connector

Colored 250 µm at splice point

Easy to identify and prep colored 250 µm for fast and easy splicing

Pre-prepped splice cassette

Saves time in the field with a ready to splice product

Specifications:

Application Enterprise Networks, Data Center

Product Type Rack-Mountable Hardware

Mounting Type CCH Housings, Wall-Mountable

Cable Type Ribbon

Fiber Category Single-mode (OS2)

Technology Fusion Splice

Approvals and Listings Meets ANSI/TIA/EIA-568A and 606

Connector Configuration LC duplex

Connector Polish UPC

Fiber Count 12

Panel or Module Type CCH

Splice Protectors Type Single fiber Heat-shrink

Number of Splice Protectors 12

Adapter Type LC duplex

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Units per Delivery 1/1

Dimensions (HxWxD) 5 cm x 20.3 cm x 36.8 cm (2 in x 8 in x 14.5 in )
