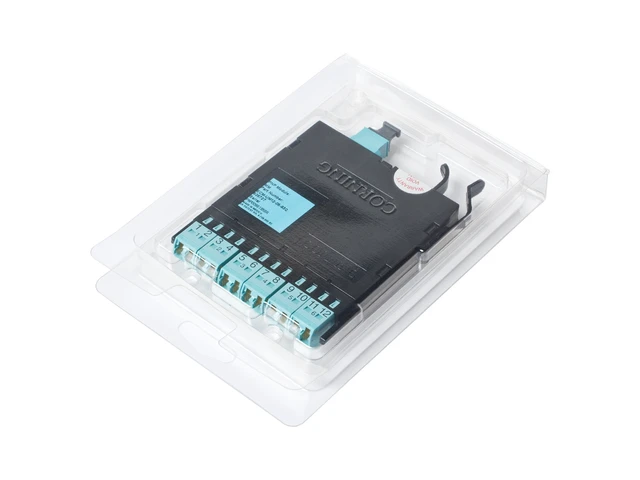

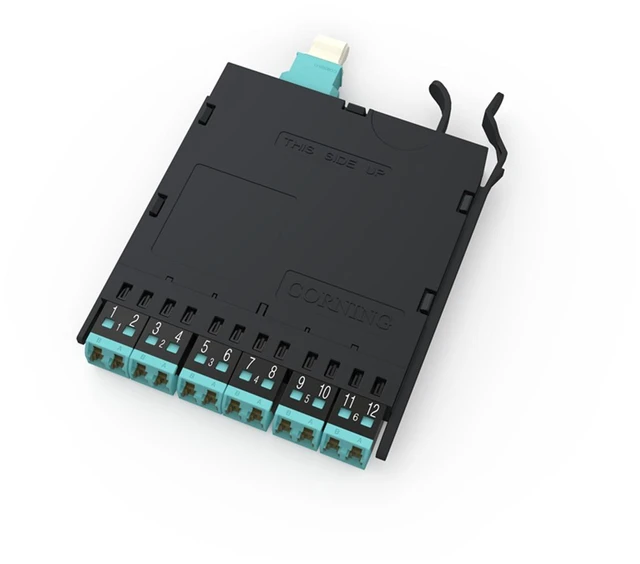

Corning ECM-UM12-05-93Q 12-Fiber Pretium Edge Module LC Duplex to MTP

Corning 12-Fiber Pretium Edge Module, LC Duplex to Pinned MTP 50um, SX+ OM4

Description:

Pretium EDGE® Module, 12 F, LC Duplex to MTP® Connector, 50 um multimode (OM4)

Part Number: ECM-UM12-05-93Q

The Pretium EDGE® modules provide the interface between the MTP® on the trunk and the LC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted. Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.

Features:

Part Number ECM-UM12-05-93Q

Product Description Pretium EDGE® Solutions Module, 12 F, LC Duplex to MTP® Connector, 50 um multimode (OM4)

Product Type Panels & Modules

Fiber Category 50 um MM (OM4)

Fiber Count 12

Units per Delivery 1/1

Connector modules

Allow for fiber modularity while offering both front- and rear-loading capability

Shuttered modules

Create one-hand operation while eliminating need to keep up with dust caps

Specifications:

Application Data Center LAN/SAN

Product Type Panels & Modules

Fiber Category 50 um MM (OM4)

Fiber Count 12

Number of Adapters per Panel 6

Adapter Type Front Shuttered LC

Adapter Color Front Aqua

Adapter Type Back MTP®

Adapter Color Back Aqua

Dimensions (W x D x H) 90 mm 124 mm 12 mm (3.53 in 4.87 in 0.463 in)

Optical Specification - Hardware

Module Insertion Loss, Max 0.5 dB

Wavelengths 850 nm / 1,300 nm nm

Connector Type MTP® (pinned)

Ferrule Composite

Design - Connector B

Connector Type LC Uniboot

Ferrule Ceramic

Cable Design

Fiber Count 12

Polarity Universal

RoHS Free of hazardous substances according to RoHS 2002/95/EG
