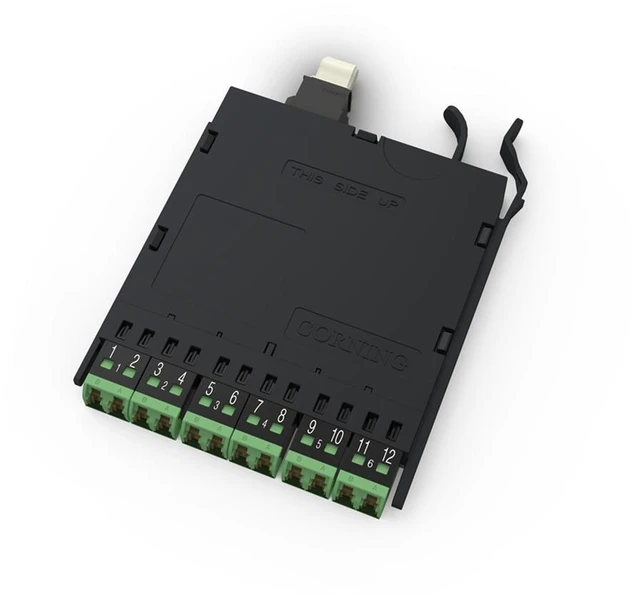

    Corning ECM-UM12-18-89G EDGE 12-Fiber OS2 LC APC to MTP APC Fiber Optic Module New

    Be the first to review this product...
    • 12 bend-improved OS2 single-mode fibers
    • Six front shuttered LC duplex APC connections with green adapters
    • Rear pinned MTP APC interface with black adapter
    • Universal polarity for Corning EDGE systems
    • New module; maximum insertion loss 1 dB; 1310/1550 nm wavelengths
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    OS2 connectivity for Corning EDGE

    ECM-UM12-18-89G

    A 12-fiber single-mode module with six front shuttered LC duplex APC connections and a rear pinned MTP APC interface.

    Technical details

    ECM-UM12-18-89G specifications

    Fiber count: 12
    Fiber: OS2 single-mode
    Front: Six LC duplex APC connections
    Rear: Pinned MTP APC
    Polarity: Universal
    System: Corning EDGE

    Fit and package contents

    Check before ordering

    Universal polarity for Corning EDGE systems. Check APC interface and system compatibility before ordering. Includes one new module.

    Corning ECM-UM12-18-89G EDGE 12-Fiber OS2 Single-Mode Fiber Optic Module


    New Corning EDGE module for data-center fiber connections. The module connects 12 bend-improved OS2 single-mode fibers between six front LC duplex APC connections and a rear pinned MTP APC interface. Universal polarity supports Corning EDGE fiber connectivity systems.


    Specifications:

    Manufacturer / Brand: Corning

    Part Number: ECM-UM12-18-89G

    Fiber Count: 12

    Fiber Type: Bend-improved single-mode OS2

    Front Interface: Shuttered LC duplex, APC polish, green adapters

    Rear Interface: MTP (pinned), APC polish, black adapter

    Polarity: Universal

    Maximum Module Insertion Loss: 1 dB

    Operating Wavelengths: 1310 nm / 1550 nm

    Module Width: 102 mm (4.02 in)

    Module Depth: 125 mm (4.92 in)

    EAN: 4042673431480


    Includes one Corning ECM-UM12-18-89G module. Confirm the part number, connector polish and compatibility with your fiber system before purchase.
