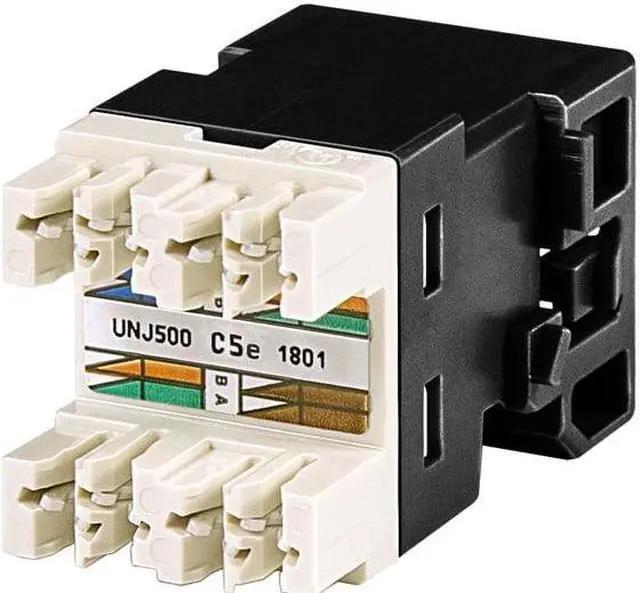

Commscope UNJ500-BK Cat5e M-Series Modular Jack, Black, 760237765
- Portfolio CommScope®
- Product Type Modular jack
- Product Series UNJ Series
- ANSI/TIA Category 5e
- Cable Type Unshielded
- Color Black
- Conductor Type Solid | Stranded
- Integrated Dust Cover Type None
- Mounting M Series faceplates and panels
- Outlet Feature Inverted jack face
- Outlet Type Standard
- Termination Tool SL Termination tool
- Termination Type IDC
- Transmission Standards ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
- Wiring T568A | T568B
- Panel Thickness, recommended 1.6 mm | 0.063 in
- Compatible Insulated Conductor Diameter, maximum 1.45 mm | 0.057 in
- Contact Plating Thickness 1.27 µm
- Compatible Conductor Gauge, solid 2422 AWG
- Compatible Conductor Gauge, stranded 2624 AWG
- Electrical Specifications
- Remote Powering Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
- PoE Durability Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cy
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Commscope M-Series Modular Jack, RJ45, Cat5e Unshielded, Black
Snaps into standard CommScope M-Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels
Snaps into standard CommScope M-Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels
