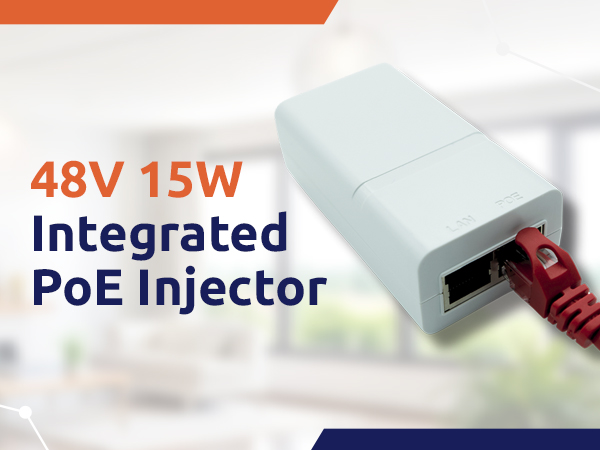

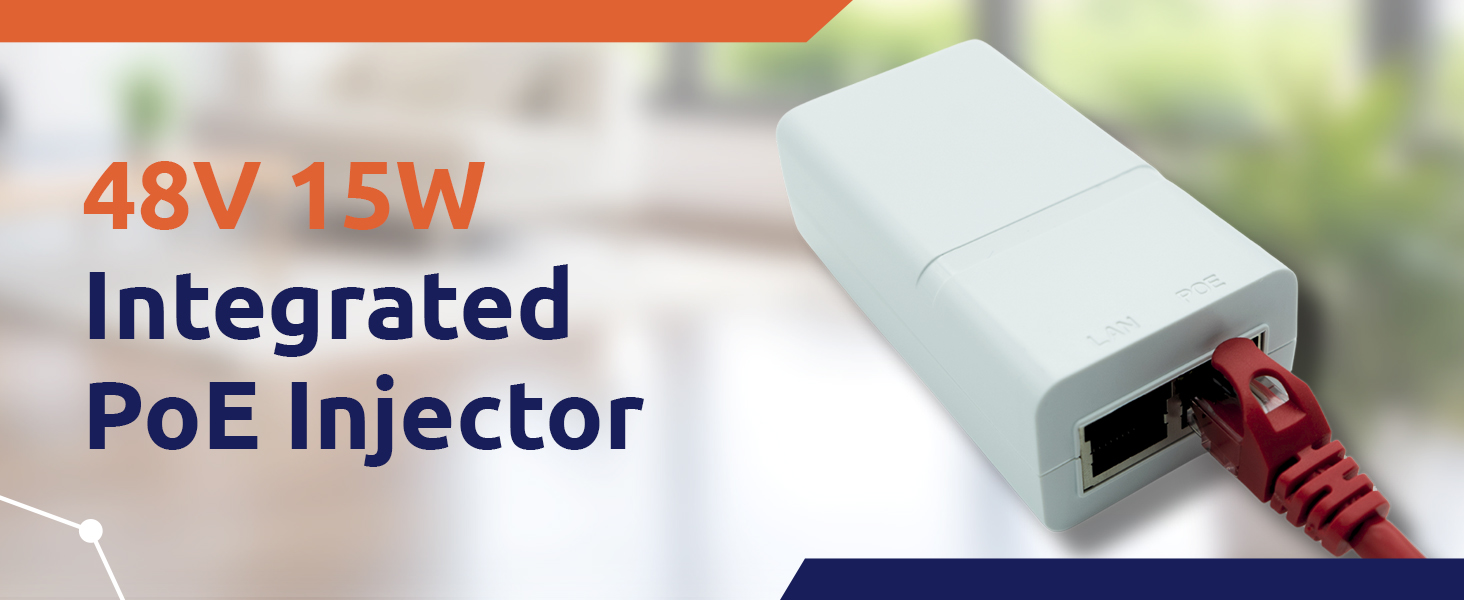

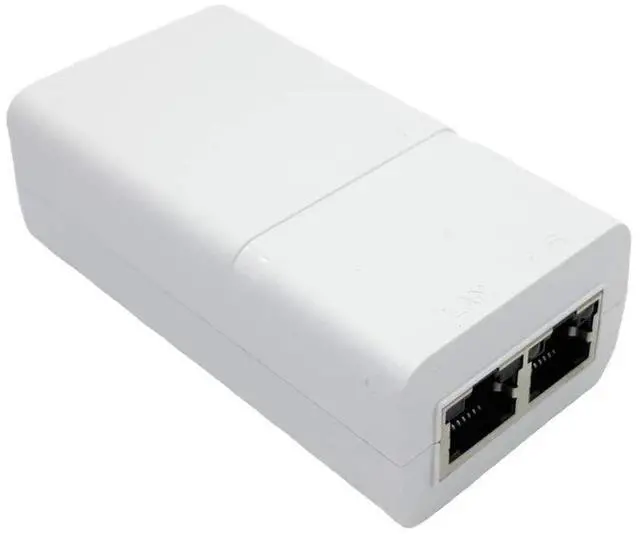

Upgrade your network to Power over Ethernet with this all-in-one solution. Includes integrated 48 Volt, 15 Watt power supply delivering power and 10/100/1000 Gigabit data through one cable to 802.3af devices up to 328 feet away. No separate power supply needed—plug into standard wall outlet.

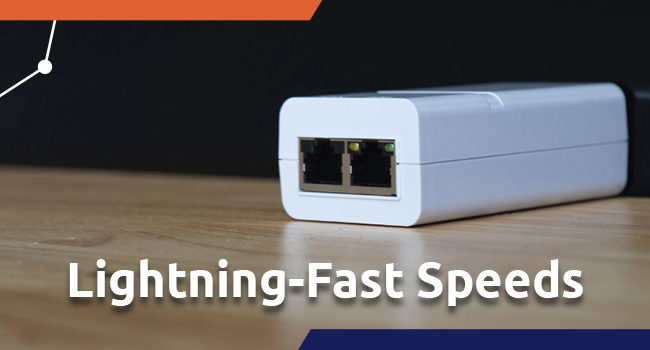

Complete Solution with Gigabit Capability
Transmits 10/100/1000 Gigabit data with zero signal quality loss. Features one Data In port and one Data + Power Out port for lightning-fast wired speeds through standard Ethernet cables. Extends both power and data up to 328 feet from your network switch to connected 802.3af devices.

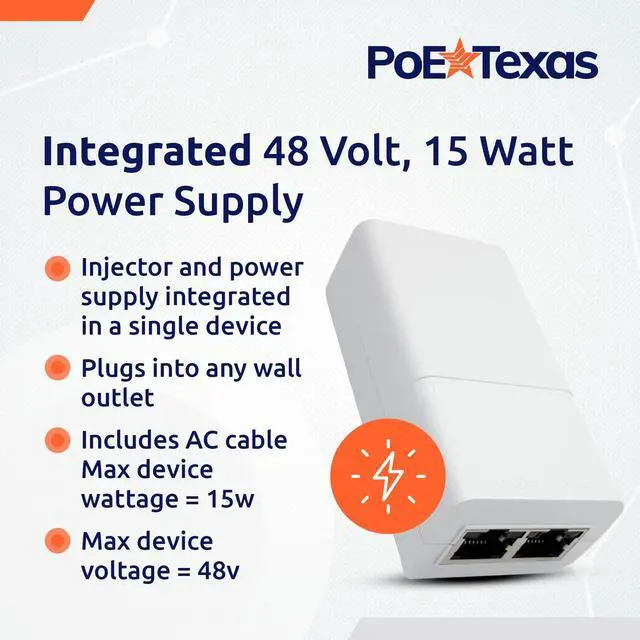

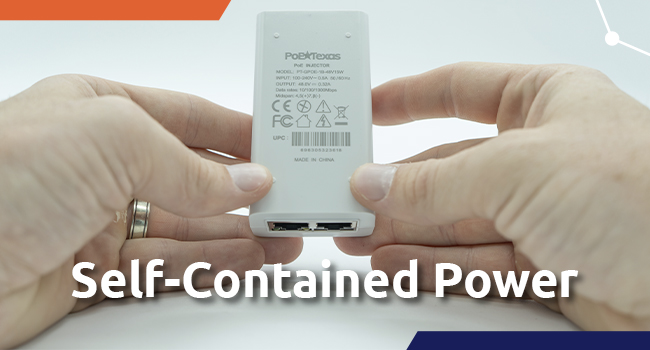

Includes integrated 48-volt 15-watt power supply - no separate power adapter required. Simply plug into any standard 100-240VAC wall outlet and connect your network cable. The all-in-one design eliminates extra equipment, reduces cable clutter, and simplifies installation for a streamlined setup.
Simplified PoE Installation
Merchant VideoWatch how the integrated 48 Volt power supply eliminates external adapters. This passive PoE injector delivers 15 watts with Gigabit speeds to 802.3af devices like cameras, phones, and WiFi access points.

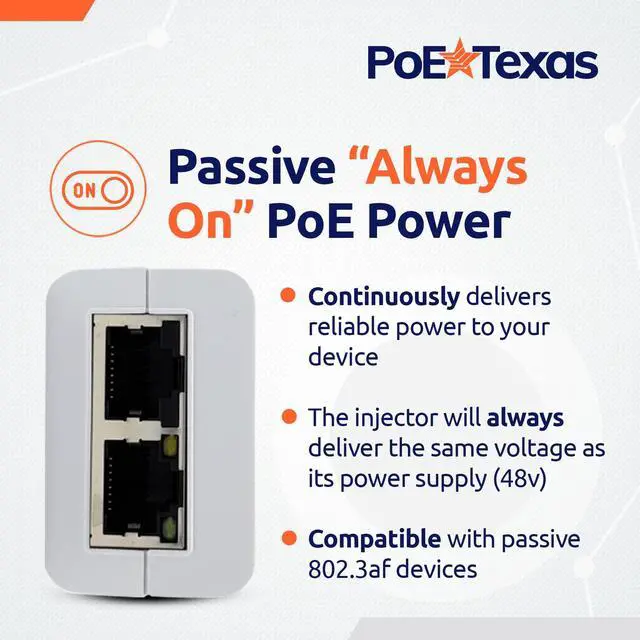

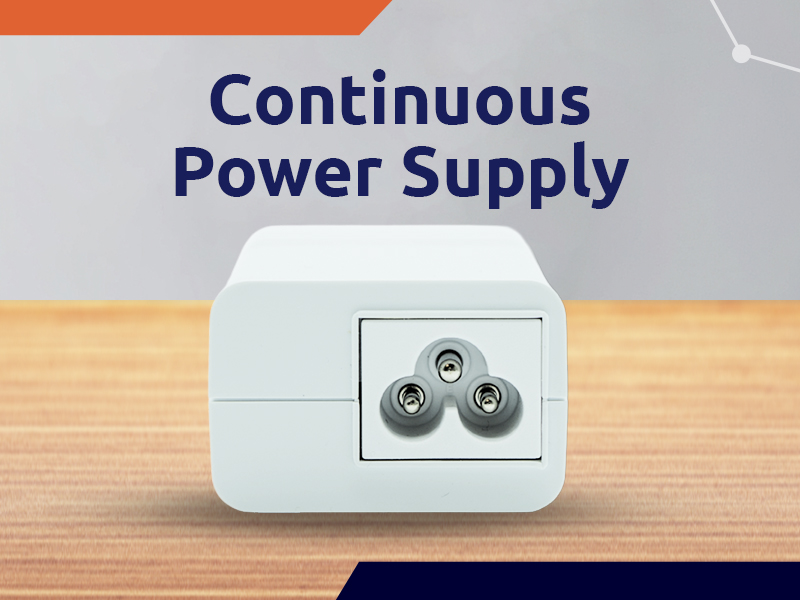

Designed for Devices Requiring Constant Power
This injector uses passive "Always On" power for continuous delivery without negotiation delays. The 48V output delivers consistent voltage to 802.3af equipment.
Mode B power delivery sends power through pins 4,5(+) and 7,8(-), compatible with devices requiring Mode B pinout like certain WiFi access points and IP cameras.
Passive PoE means power is always available. Maximum 15W at 48V with 320mA capacity. Important: Only connect PoE-compatible devices to avoid damaging non-PoE equipment.
Zero Configuration Required

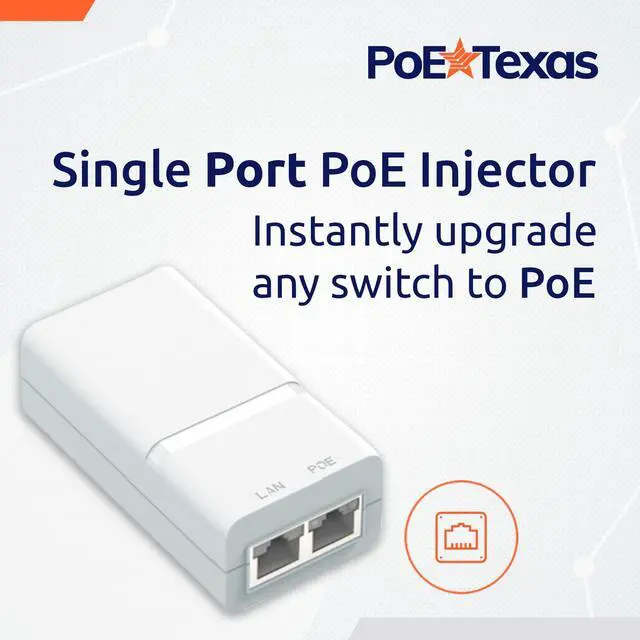

No setup needed. Plug into outlet, connect Data In from switch and Data + Power Out to device. Works immediately with zero configuration or software.
Compatible Equipment Types
Powers PoE splitters, IP cameras, VoIP phones, WiFi access points, and 802.3af devices through standard network cables. Maximum 15W output per device.
Multiple Network Types
Ideal for home networks, offices, surveillance, and hospitality locations like cafes, restaurants, hotels, and Airbnb properties with WiFi needs.
Universal Voltage Input
Accepts 100-240VAC input for worldwide use. Works with standard outlets in any country without voltage converters. Simplifies global deployments.
About Us
PoE Texas delivers Power over Ethernet solutions that expand the potential of your IT infrastructure without replacing it. With more than 150 products designed to integrate with existing network technology, PoE Texas makes the promise of PoE accessible to businesses all around the world. Our top-rated team of Austin, TX based PoE experts work with companies to deliver smart buildings for lighting and automation, displays, infrastructure, and anything else in need of intelligent power.
Comparison Table
 PT-GPOE-1B-48V15W |  GPOE-1AB |  BT-1-55v60w |  BT-1-55V60W-IN |  AT-1-52V30W | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
PoE Type | PoE | PoE/POE+ | PoE++ | PoE++ | PoE+ |
Passive/Active | Passive | Passive | Active | Active | Active |
Power Supply | 48V 15W (integrated) | No | 55V60W (Integrated) | 55V60W (Integrated) | 52V 30W (integrated) |
PoE Budget | 15W | 30W (single), 60W (dual) | 60W | 60W | 30W |
Special Feature | Single Unit | Wall Mount; dual mode | Wall-mount surge protection | Wall Mountable | Single Unit |
