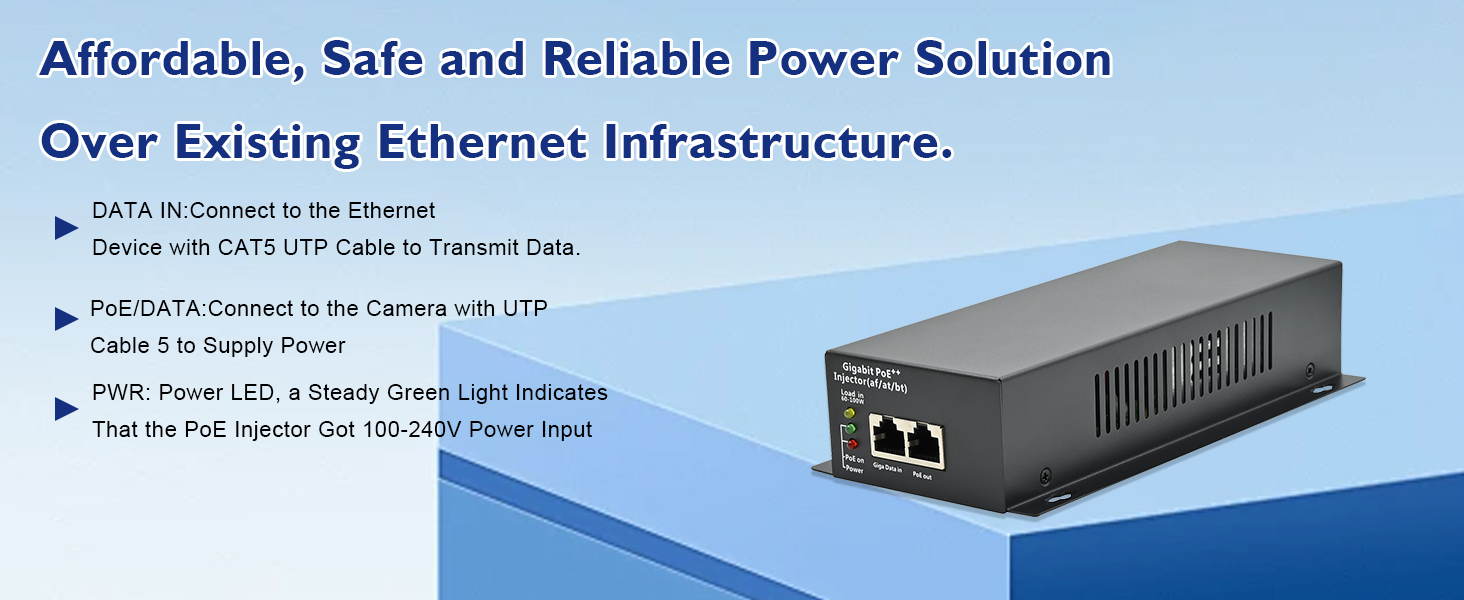

Product Specifications

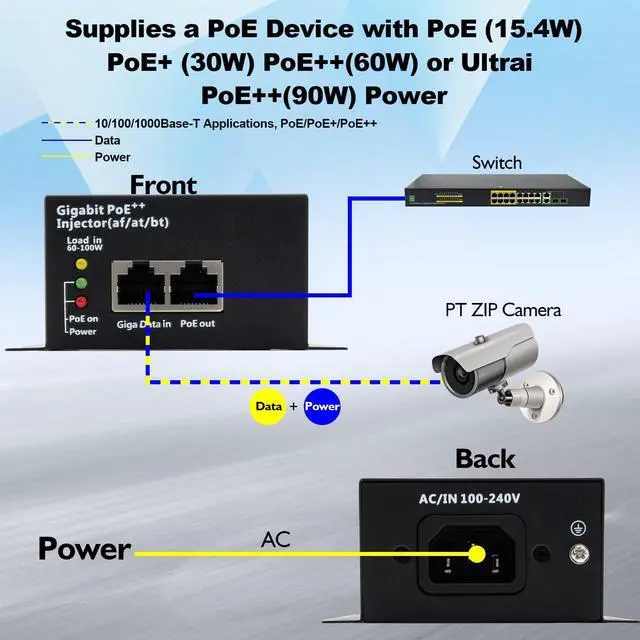

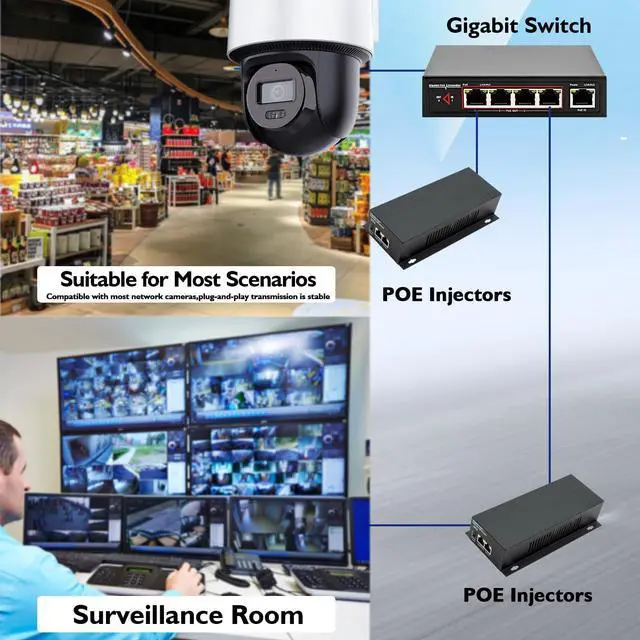

I have a TP-Link 8 port switch in my studio, can this PoE injector power my devices at the other end?
If your device is standard, it can be used.
I have a standard device that is 75W, will this PoE injector match it?
Of course, the maximum power of this PoE can reach 95W.
I see the description says PoE++, 802.3bt, can it actually reach the power?
Of course, this device is PoE++, its maximum power can reach 95W.
What is the output voltage of this PoE?
The output voltage of this PoE is standard 48-56V.
Does the device come with an AC power cord? Does it require an additional power supply?

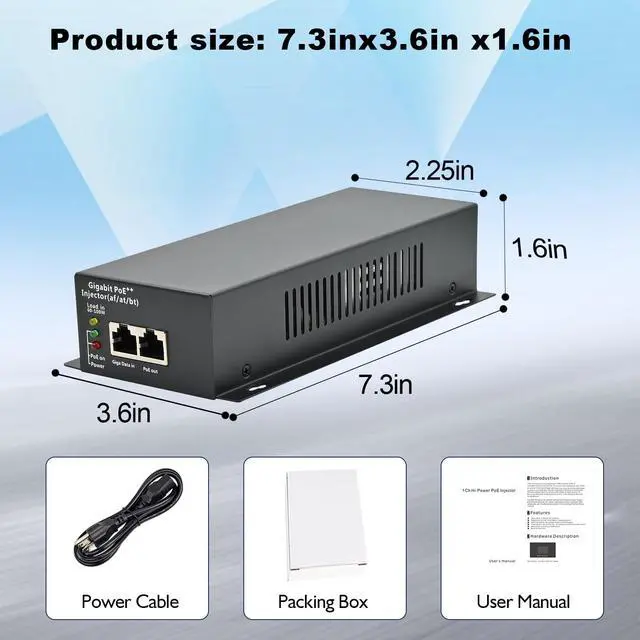

Yes, the device comes with a 3.3ft long power cord, it does not require an additional power supply.
Product Specifications

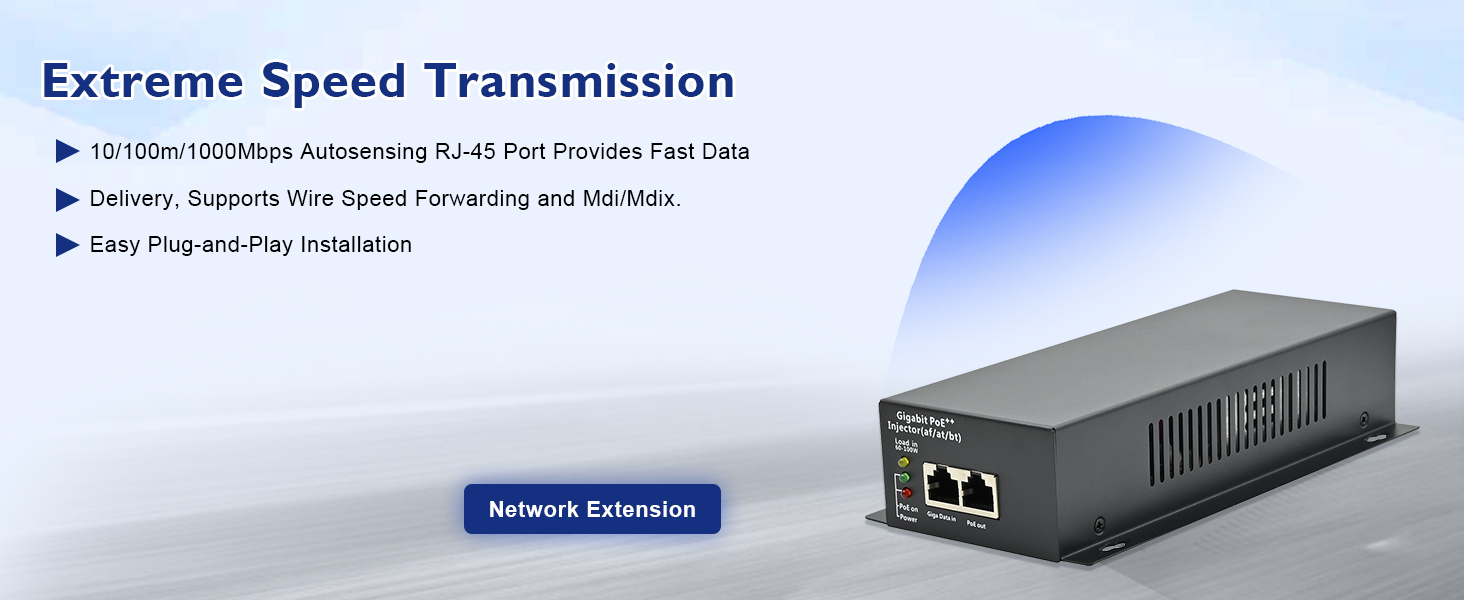

| Transmission Rate | 10/100/1000Mbps |
|---|---|
| Pin Assignment and Polarity | 1/2(-)3/6(+),4/5(+)7/8(-) |
| Output Power Voltage | 48-54VDC |
| User Port Power | 95W MAX |

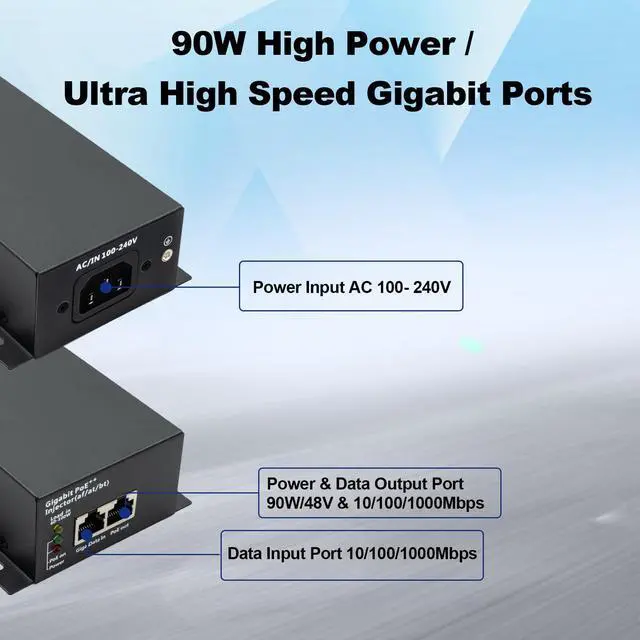

| AC Input Voltage | 100 to 240 Vac |
| AC Input Current | 1A 100-240 Vac |
| AC Frequency | 50 to 60 Hz |

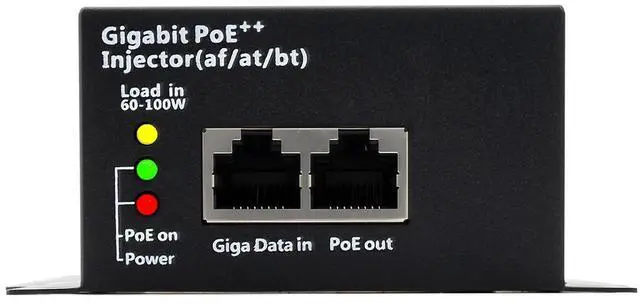

| System Indicator | AC Power |
| 30W | When the Output Power is 0 to 30W, LED Lights up |
| 60W | When the Output Power is 0 to 60W, LED Lights up |
| 90W | When the Output Power is 0 to 90W, LED Lights up |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over Current Protection/Over Load Protection/Over Voltage Protection/Anti-Interference Protection |

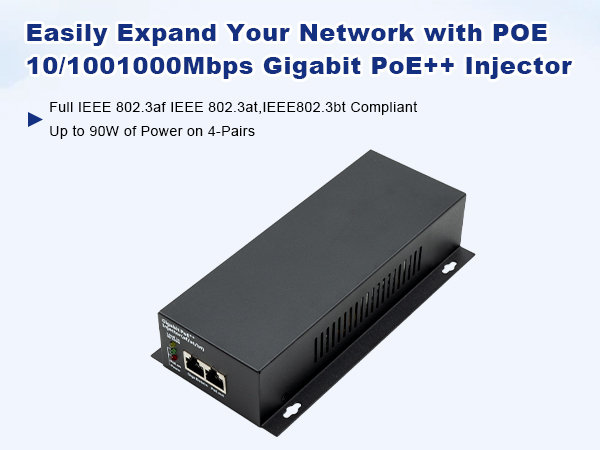

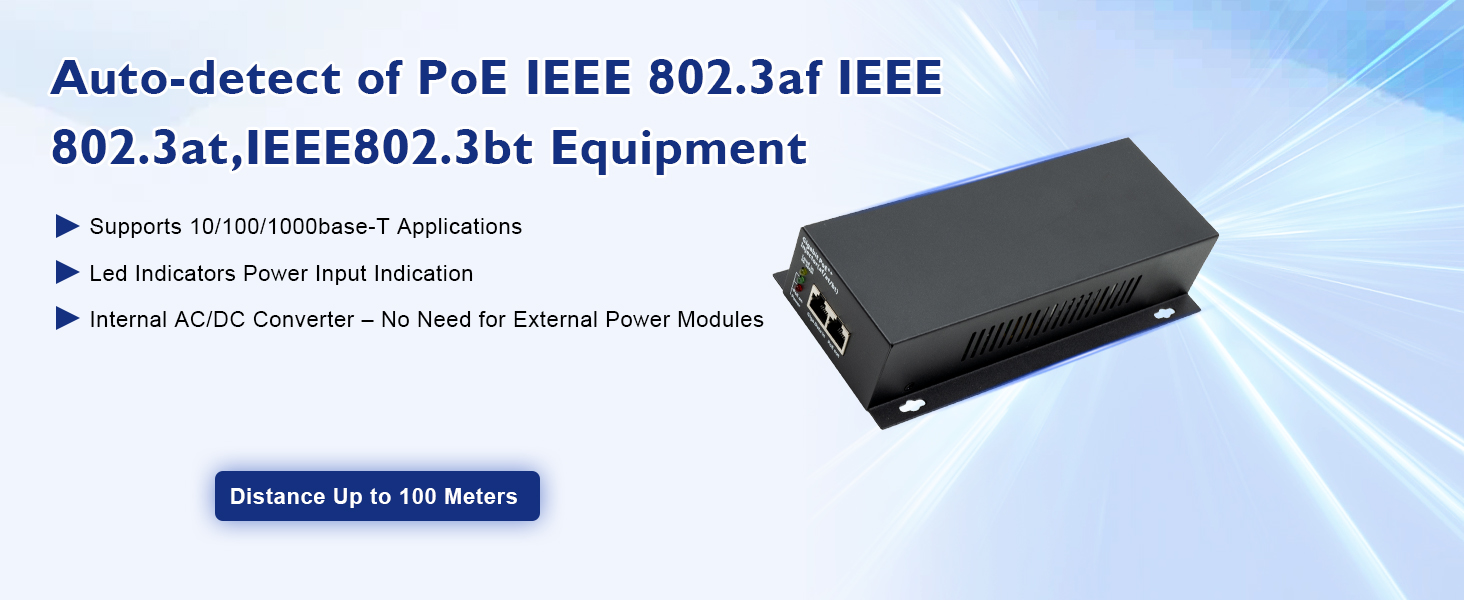

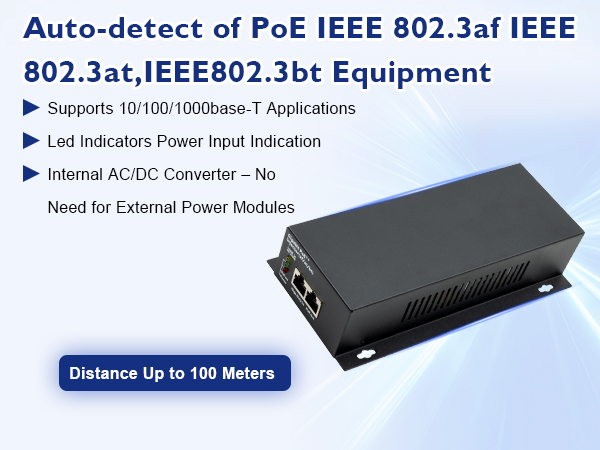

| Regulatory Compliance | IEEE 802.3af (15.4W)IEEE 802.3at (30W)IEEE802.3bt (95W) |
| Operating Ambient Temperature | 0 to 45? |
