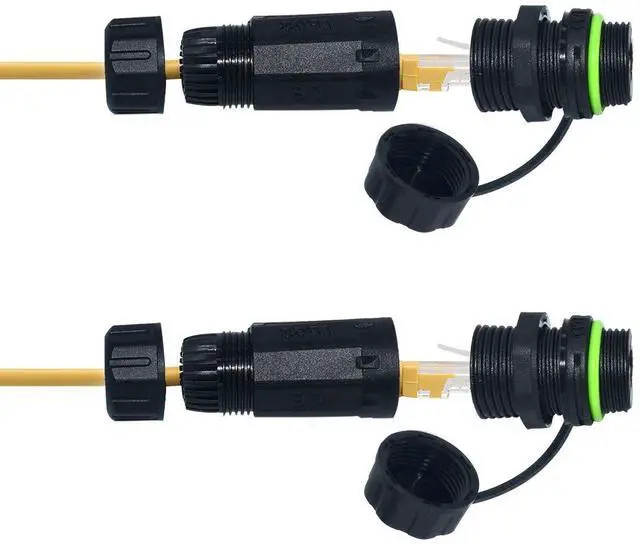

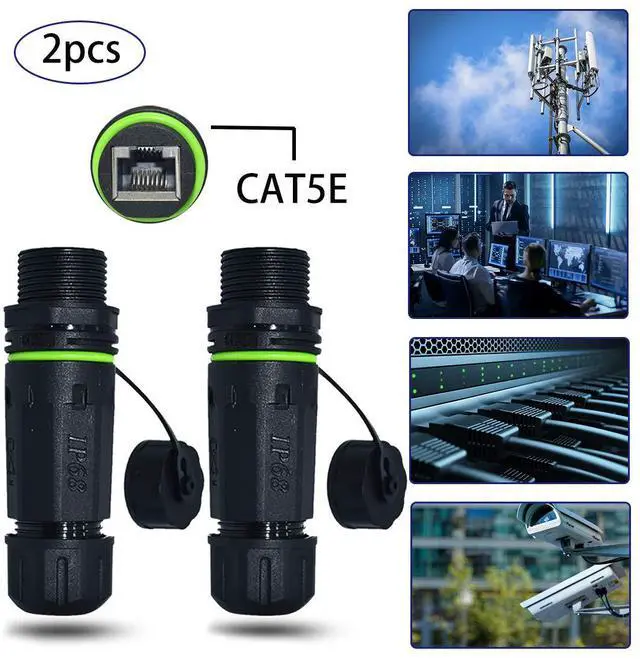

RJ45 Waterproof Connector IP68 Cable Connector, Panel Mount Coupler Female to Female, with Shielding Cable Coupler-CAT5E-YMP20-Green-2 PCS

2020 Upgrade IP68 Waterproof Junction Box IP68 Waterproof / Moisture-proof / Dust-proof. Silicon rings and clamping nuts provide the perfect waterproof and excellent sealing, which is safe for indoor and outdoor ethernet connection. The casing is made of nylon PA66 with high-temperature resistance( -20° C - 110° C). The sealing element is Silicone Ring with a perfect waterproof level
SUITABLE CABLE SIZEApply to cable size: Ø7.5-14.5mm.Cat5e has a transmission frequency bandwidth of 100MHz, and Cat5e network cable is used in Gigabit Ethernet, the transmission distance can reach 100m, and can support 1000Mbps transmission speed

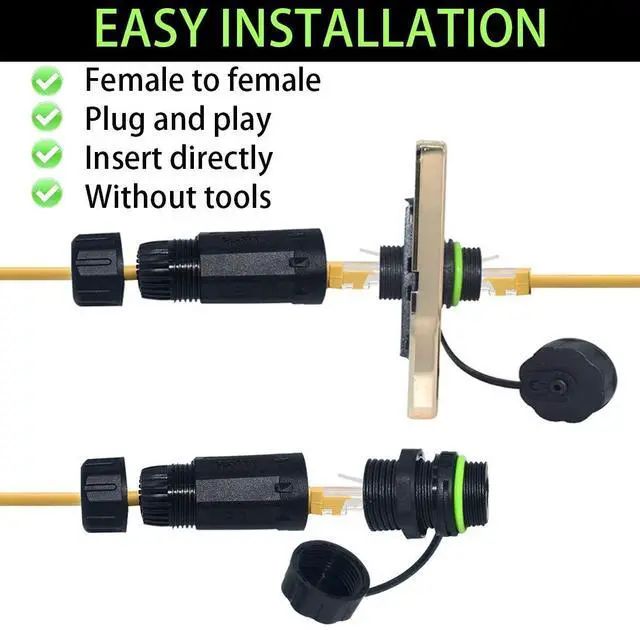

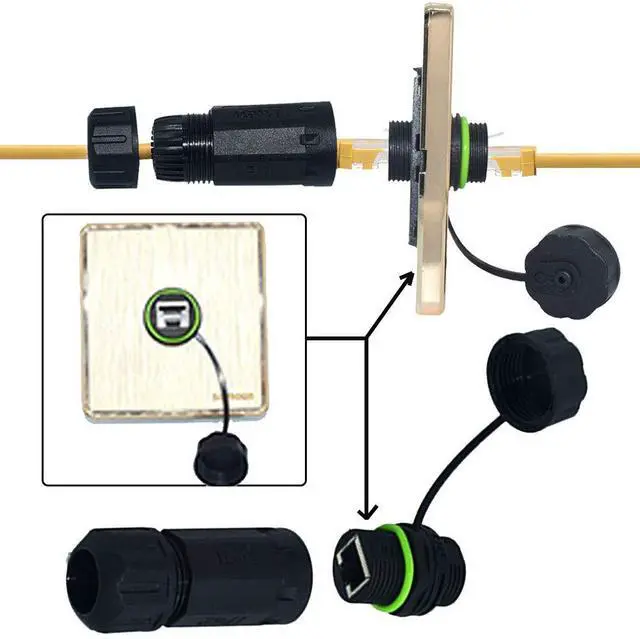

EASY INSTALLATION Female to female mount, plug and play. It is miniaturization, and save installation space, RJ45 female to female coupler, It can convert existing Ethernet connectors into dustproof and waterproof, can be quickly connected paraded, and can work well
Extension of network cableIt is ideal for extending an ethernet connection by connecting 2 short network cables together. Using this RJ45 in-Line Coupler can save cost and time compared with replacing a network with insufficient length
SERVICE & GUARANTEEWe have confidence in our product. If you have any questions or concerns about our connector, just feel free to contact us for the first time. We will provide a 24-months guarantee, and we promise to reply to you within 12 hours with a satisfactory solution

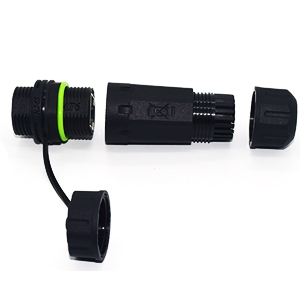

Elifeapply Waterproof CAT6 RJ45 Female to Female LAN Ethernet Network/Extension Coupler/Waterproof RJ45 Connector with Shield Used to connect two RJ45 cables together, Make two RJ45 cables work as one cable Straight through configuration

The waterproof connectors are sealed and ready to be installed in your case.

INGRESS PROTECTION: IP68(Waterproof and dustproof)

COLOR: Black+Blue

MATERIAL: nylon PA66 + Metal

The casing is made of nylon PA66 with high-temperature resistance( -20° C - 110° C). The sealing element is Silicone Ring with a perfect waterproof level

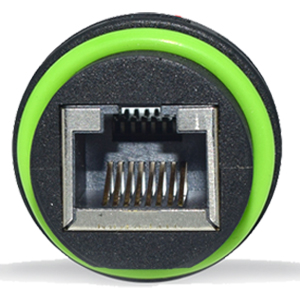

CONNECT PORT: RJ45

WORKING TEMPERATURE: -20°C-110°C

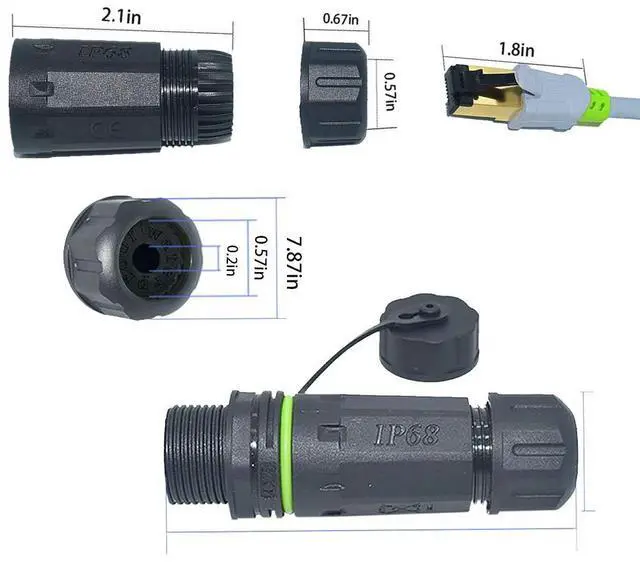

SIZE: 4.72 in × 1.1in

WEIGHT: 38g

WORKING CURRENT: 1.5A

WORKING VOLTAGE: 48V

WATERPROOF RING: Silicone Ring

CONNECTION METHOD: plug the network cable at both ends

THREAD: M25

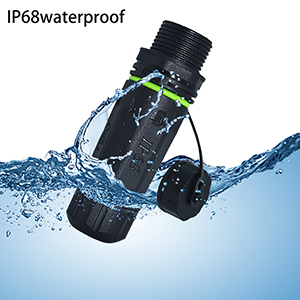

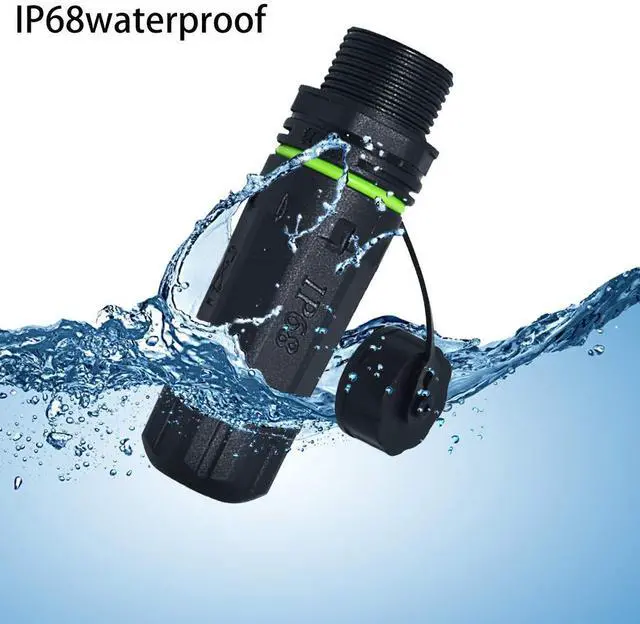

WATERPROOF GRADE

IP68 Waterproof / Moisture-proof / Dust-proof

The casing of our waterproof cable connector is made of nylon PA66 with high-temperature resistance( -20° C - 110° C); The inner conductor is copper core filling for better abrasion resistance and electronic conductivity; The sealing element is Silicone Ring with a perfect waterproof level, far more secure than another RJ45 inline ethernet coupler female to female

CAT5E

CAT6 RJ45 Connector

Cat6 RJ45 inline ethernet coupler female to female can provide up to 10Gbps transmission speed in 250MHz bandwidth, and it is suitable for applications with a transmission rate of 1Gbps

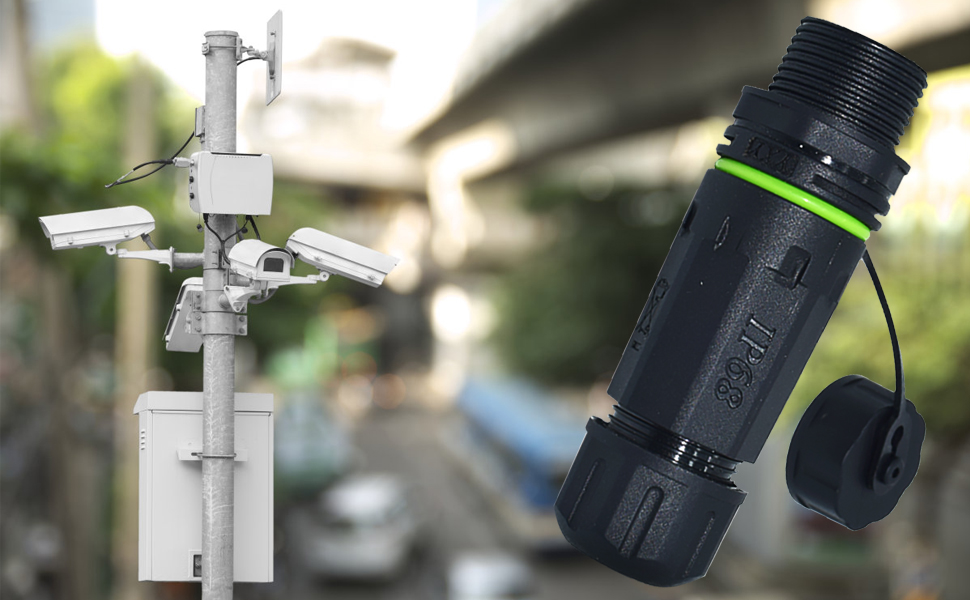

Great suitable for Outdoor LAN equipment, CCTV (closed-circuit monitor series), factory automation control, wireless bridge, etc

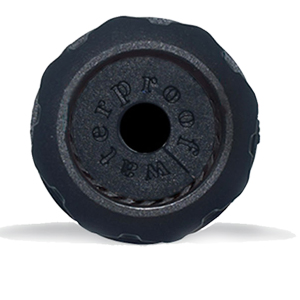

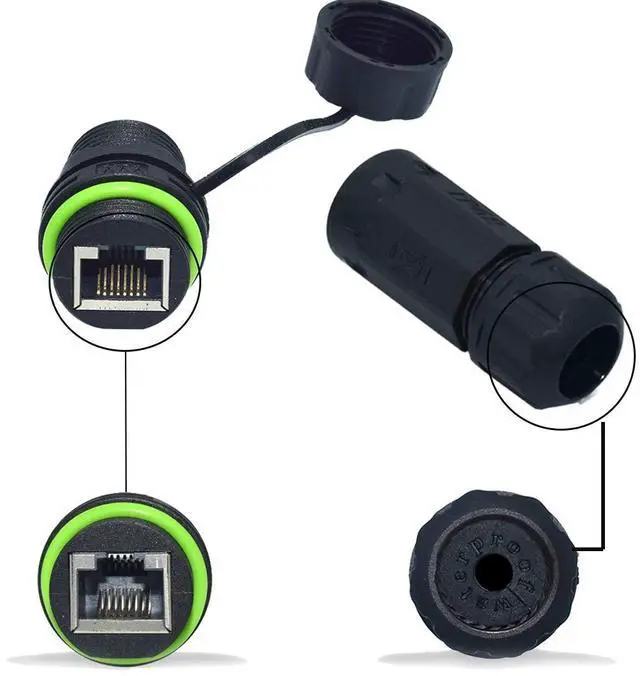

SILICON RING

Silicon rings and clamping nuts provide the perfect waterproof and excellent sealing

It's great for use in marine, warehouse, or any wet environment. It also has potting inside of it to prevent any water intrusion in case the cable breaks or someone forgets to put the seal-cap back on

PA66 NYLON

Used for PA66 nylon native environmental protection material, and UV resistance, make it anti-aging and long service life.

This ethernet coupler is Miniaturization, and save installation space
