Stable Connection High Speed Transmission

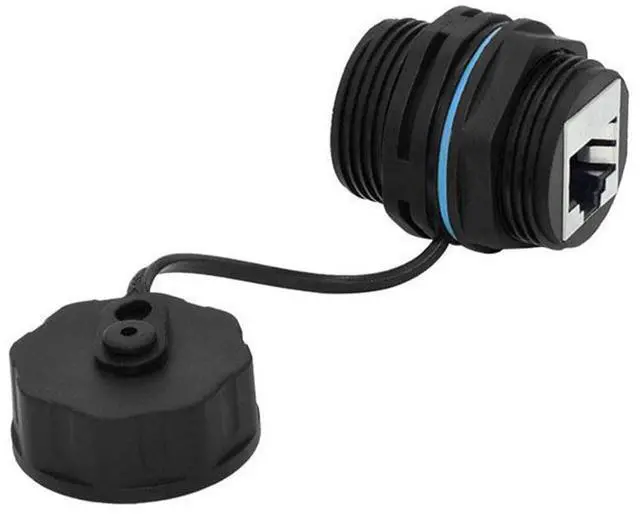

- The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.

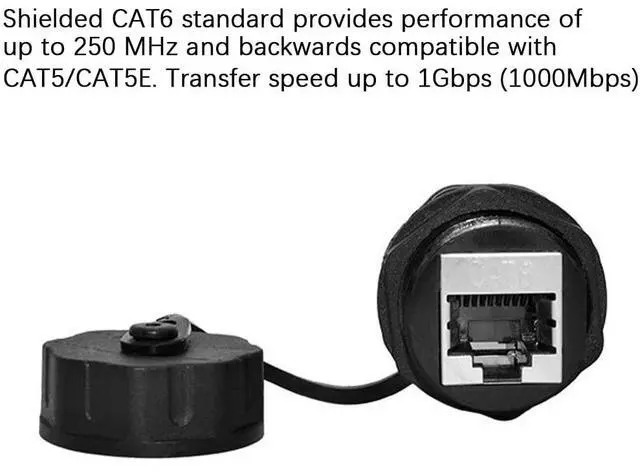

- Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
- It is injection molded from PA66 nylon plus fiber (UL94V-0), flame retardant, UV resistant, anti-aging, and has a longer service life.
Specifications
INGRESS PROTECTION: IP68(With dust/waterproof cap)
Package Included:

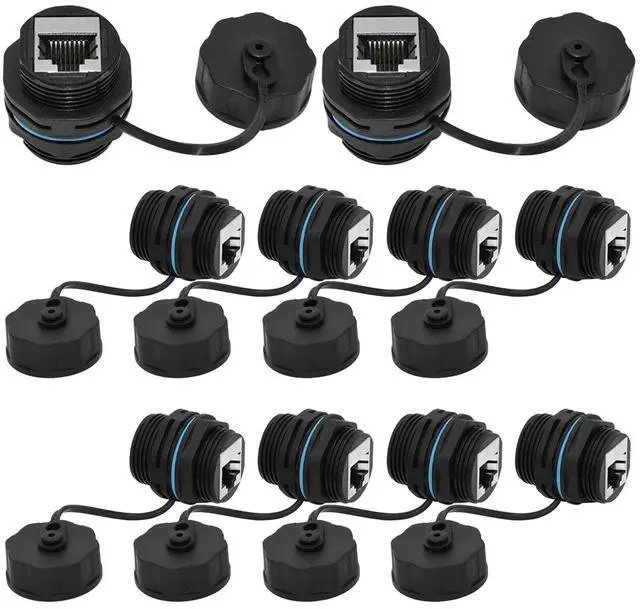

- 10x M23 Shielded Waterproof RJ45 Connector
Installation Method

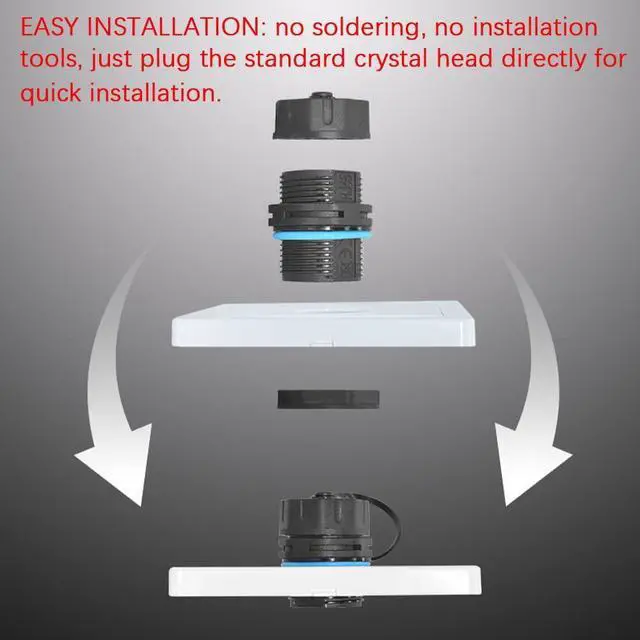

STEP1
Disassemble the connector and prepare the network cable
STEP2
Put the female seat into the mounting hole and put on the waterproof cover rubber ring
STEP3
Put on the nut and tighten
STEP4
Insert the crystal head in the equipment chassis and the network cable outside the chassis. The installation is complete

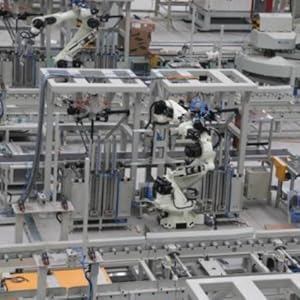

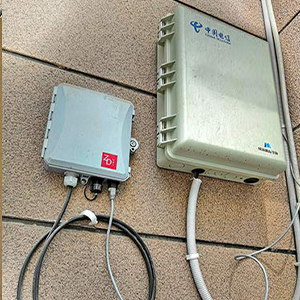

APPLICATIONS

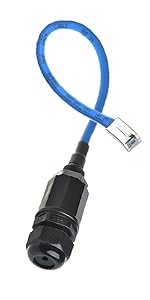

 M22 RJ45 Waterproof Connector |  M20 RJ45 Waterproof Connector |  M20 RJ45 Waterproof Connector with Cable |  Panel Mounting RJ45 Connector |  Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M20 | M20 | M24 | M20 |
Stable Connection High Speed Transmission
- The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
- Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
- It is injection molded from PA66 nylon plus fiber (UL94V-0), flame retardant, UV resistant, anti-aging, and has a longer service life.
Specifications

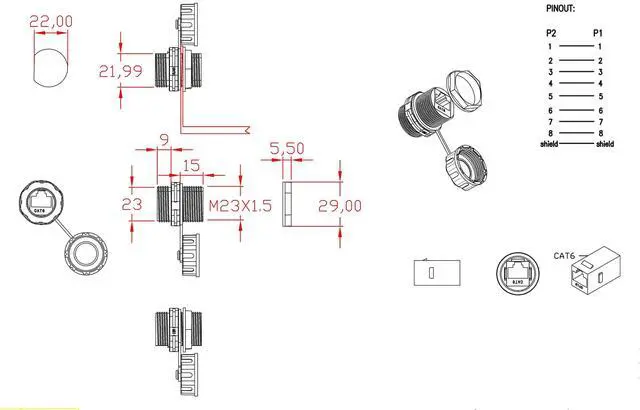

| Pins | 8P8C |
| Connection Type | RJ45 |
| Transmission Category | CAT6 |
| Transfer Sspeed | 10BASE-T?100 BASE-T?1000 BASE-T?10000BASE-T |
| Thread | M23 |
| Rated Voltage/Current | 125VAC, 75VDC / 1.5A |
| Insulation Resistance | greater than 500MO |
| Withstand Voltage(AC.V)1min | AC1000V 50HZ or 60HZ for 1 minute |
| Durability | more than 500 mating&unmating cycles |
| Shell Material | PA66 nylon plus fiber (UL94V-0) |
| Socket Contact Pin Material | 0.5mm diameter phosphor copper wire |
| Contact Pin Plating | 6FU gold |
| Waterproof Rubber Ring | silicone |
| Working Temperature | -40?~120? |
| Relative Humidity | less than 90% |
| Flame Retardant Rating | UL94V-0 |

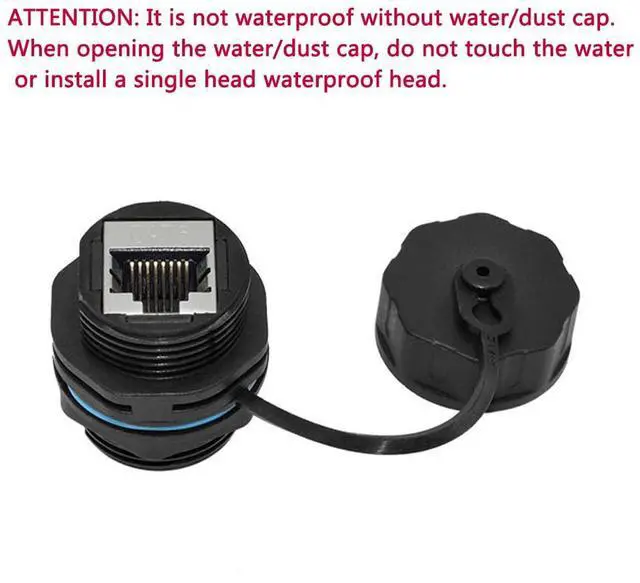

INGRESS PROTECTION: IP68(With dust/waterproof cap)
Package Included:
- 10x M23 Shielded Waterproof RJ45 Connector
Installation Method
STEP1
Disassemble the connector and prepare the network cable
STEP2
Put the female seat into the mounting hole and put on the waterproof cover rubber ring
STEP3
Put on the nut and tighten
STEP4
Insert the crystal head in the equipment chassis and the network cable outside the chassis. The installation is complete
APPLICATIONS
M22 RJ45 Waterproof Connector | M20 RJ45 Waterproof Connector | M20 RJ45 Waterproof Connector with Cable | Panel Mounting RJ45 Connector | Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M20 | M20 | M24 | M20 |
