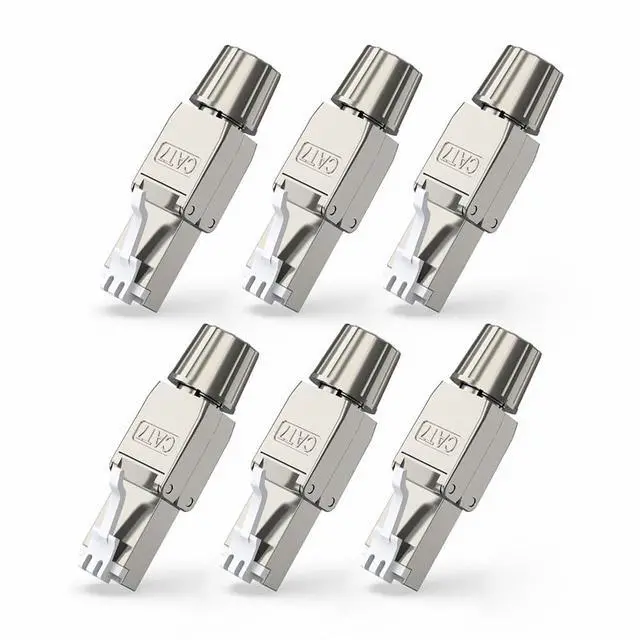

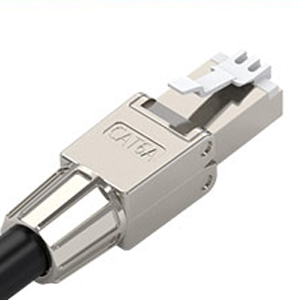

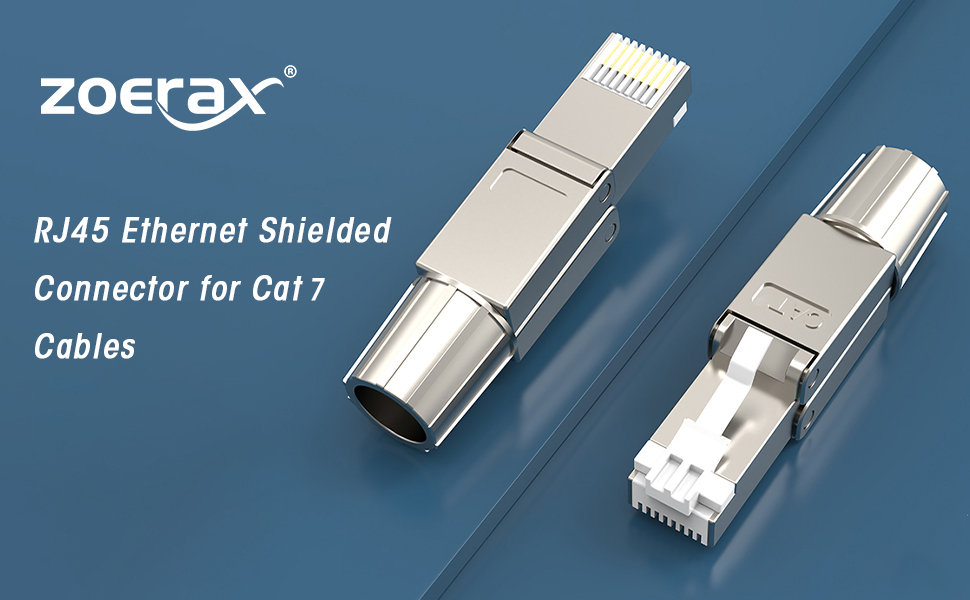

ZoeRax RJ45 Ethernet shielded Connector for Cat7 Cat6a Cables - 10G Easy Internet Plug

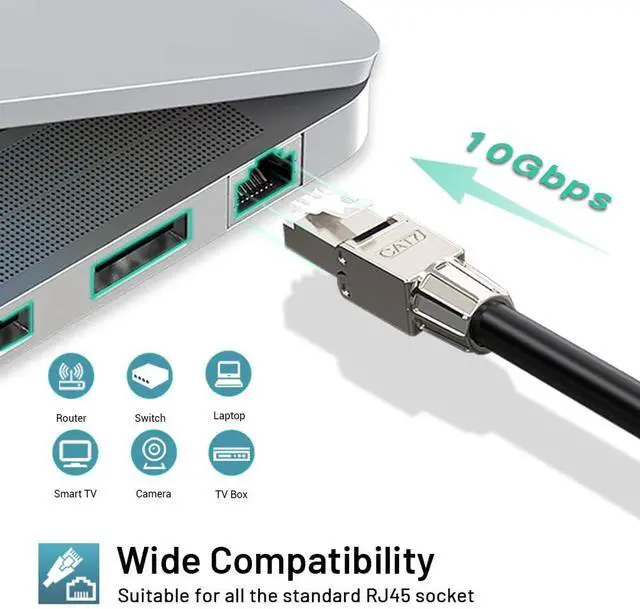

The ZoeRax Cat7 Cat6a Shielded RJ45 Connectors are designed to terminate shielded cable for use in high-bandwidth 10 Gigabit networks. Applications include IP security cameras, HD-BaseT cable assemblies, wireless access points, building automation devices and more. Supports PoE+ applications with compliant Cat7 Cat6a cabling.

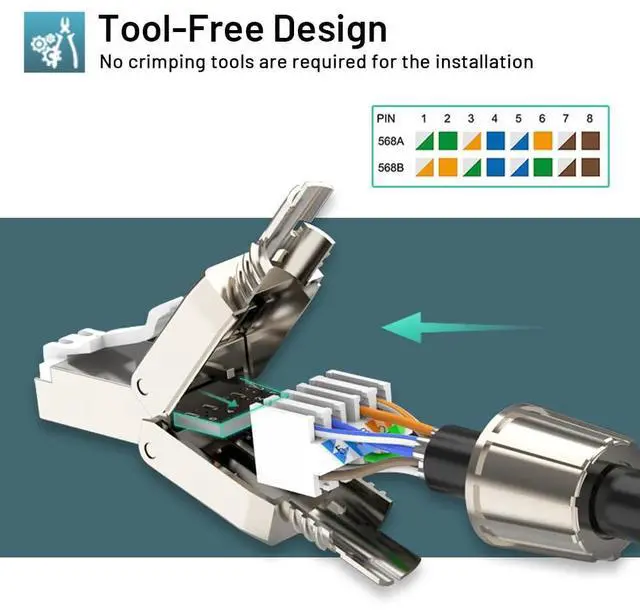

Easy Tool-less System

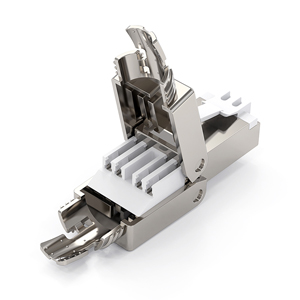

Heavy-duty die cast housing
- The ZoeRax Cat7 Cat6a ethernet connector is designed for fast and easy installation.
- A wire threading aid and the cable fixing thanks to the screw cap, assembly is quick and easy. The assembly can be done almost without tools. To shorten the cores, only a cutting tool is required.
We want to make sure you have a better using experiences using ZoeRax Products. We are always ready and happy to assist.
- Package content:
- Cat7 Cat6a RJ45 connector x 6pcs

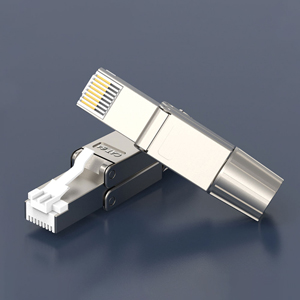

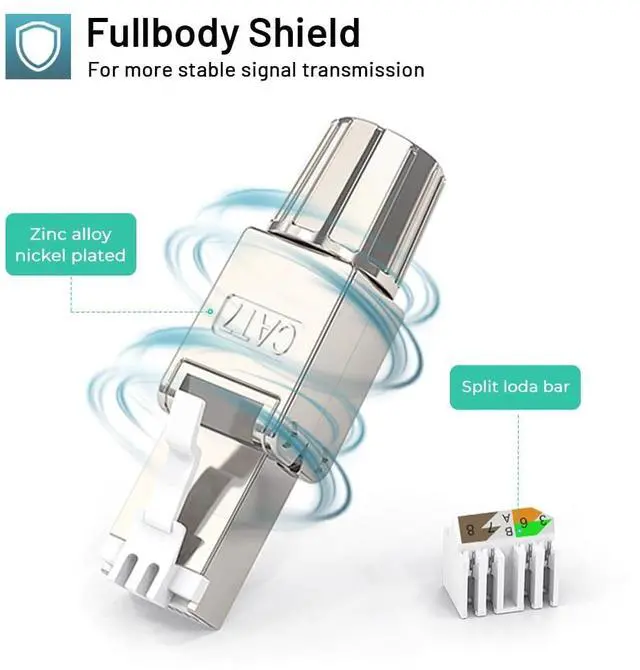

Secure Metal Housing
- Supports IEEE 802.3at PoE+ (Power over Ethernet Plus)
- Connect to an IP security camera or wireless access point

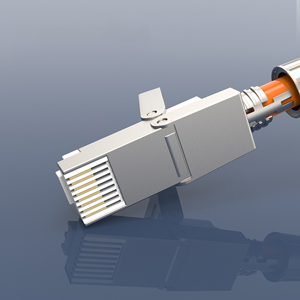

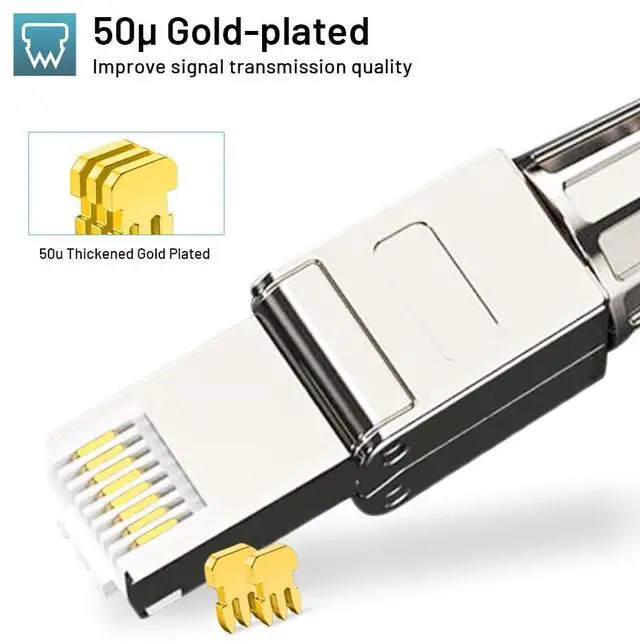

50µ Gold-plated Pins
- 50µ gold-plated pins for best performance, improving the quality of the signal transmission
- PCB circuitry reduces NEXT (Near-End Crosstalk)

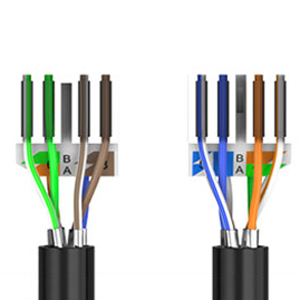

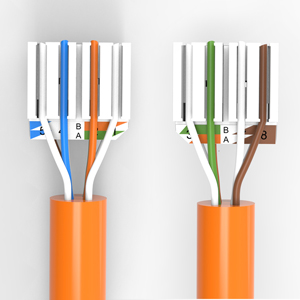

T568A or T568B
- 568a or 568b standed or solid 23 AWG to 26 AWG wires
- wire OD: â??1.02 ~ â??1.4

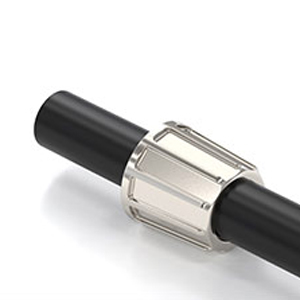

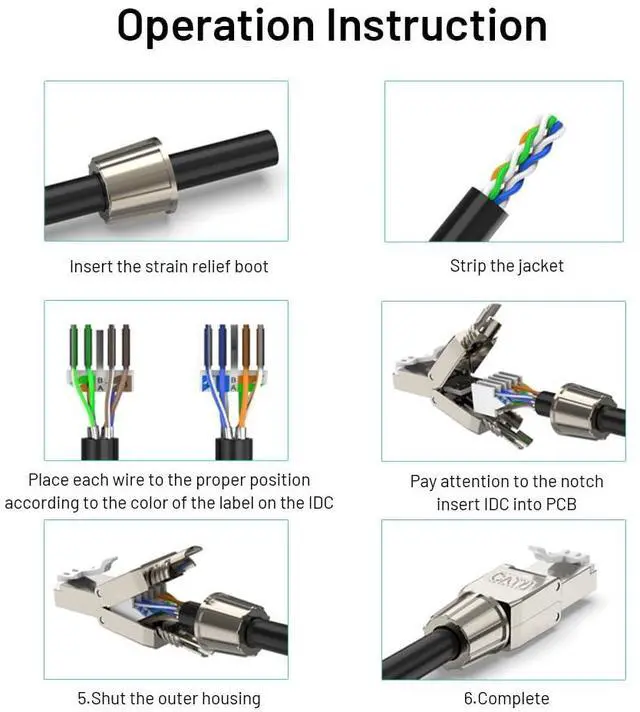

- Insert the strain relief boot

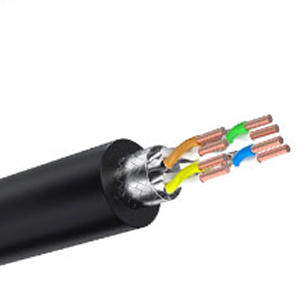

- Strip the jacket
- Get the btaided shielding twisted and put it aside
- Arrange the wires

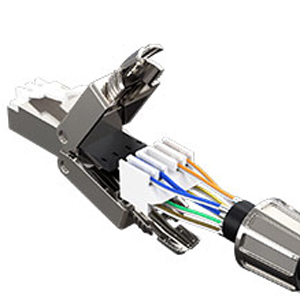

- Place each wire to the proper position according to the color of the label on the IDC
- Cut the extra wires off
- Check the wiring order on PCB

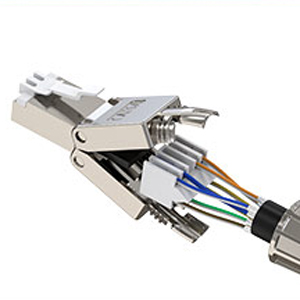

- Pay attention to the notch insert IDC into PCB
- Shut the outer housing
- Tighten the nut
- Complete

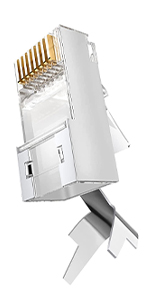

 Cat7 Cat6a Pass Through connectors-Gold |  Cat7 Cat6a Pass Through connectors-silver | |
|---|---|---|
| Customer Reviews | — | — |
| Hole diameter | 1.5mm | 1.5mm |
| Applicable insulated conductor diameter | 1.4-1.45mm | 1.4-1.45mm |
| Applicable wire gauge | 23-24awg | 23-24awg |
| Applicable Ethernet Cable Categories | CAT6A CAT7 | CAT6A CAT7 |
| Quantity | 30PCS | 30PCS |
ZoeRax RJ45 Ethernet shielded Connector for Cat7 Cat6a Cables - 10G Easy Internet Plug
The ZoeRax Cat7 Cat6a Shielded RJ45 Connectors are designed to terminate shielded cable for use in high-bandwidth 10 Gigabit networks. Applications include IP security cameras, HD-BaseT cable assemblies, wireless access points, building automation devices and more. Supports PoE+ applications with compliant Cat7 Cat6a cabling.
Easy Tool-less System
Heavy-duty die cast housing
- The ZoeRax Cat7 Cat6a ethernet connector is designed for fast and easy installation.
- A wire threading aid and the cable fixing thanks to the screw cap, assembly is quick and easy. The assembly can be done almost without tools. To shorten the cores, only a cutting tool is required.
We want to make sure you have a better using experiences using ZoeRax Products. We are always ready and happy to assist.
- Package content:
- Cat7 Cat6a RJ45 connector x 6pcs
Secure Metal Housing
- Supports IEEE 802.3at PoE+ (Power over Ethernet Plus)
- Connect to an IP security camera or wireless access point
50µ Gold-plated Pins
- 50µ gold-plated pins for best performance, improving the quality of the signal transmission
- PCB circuitry reduces NEXT (Near-End Crosstalk)
T568A or T568B
- 568a or 568b standed or solid 23 AWG to 26 AWG wires
- wire OD: Ø1.02 ~ Ø1.4
- Insert the strain relief boot
- Strip the jacket
- Get the btaided shielding twisted and put it aside
- Arrange the wires
- Place each wire to the proper position according to the color of the label on the IDC
- Cut the extra wires off
- Check the wiring order on PCB
- Pay attention to the notch insert IDC into PCB
- Shut the outer housing
- Tighten the nut
- Complete

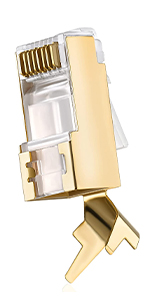

Cat7 Cat6a Pass Through connectors-Gold | Cat7 Cat6a Pass Through connectors-silver | |
|---|---|---|
| Customer Reviews | — | — |
| Hole diameter | 1.5mm | 1.5mm |
| Applicable insulated conductor diameter | 1.4-1.45mm | 1.4-1.45mm |
| Applicable wire gauge | 23-24awg | 23-24awg |
| Applicable Ethernet Cable Categories | CAT6A CAT7 | CAT6A CAT7 |
| Quantity | 30PCS | 30PCS |
