It may be more effective

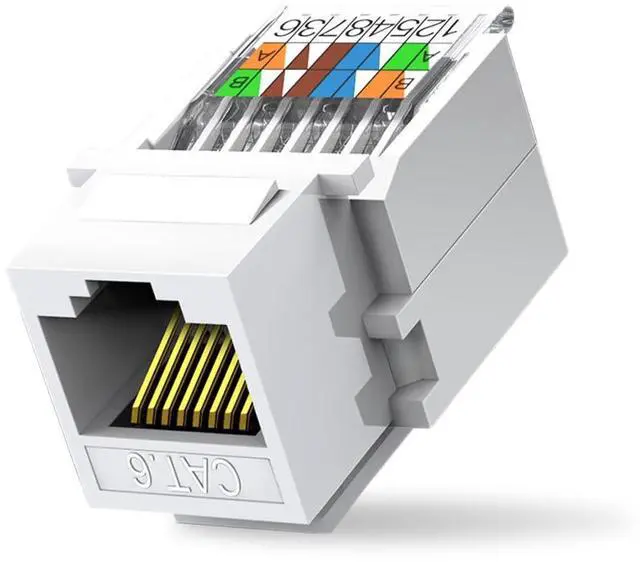

How to use ZoeRax RJ45 Keystone Jack
- Ensure optimal use by employing exclusively with supporting 24-26 AWG round or flat stranded wires and up to 6.1mm outer diameter; exclusively for solid CAT6 23awg cables.

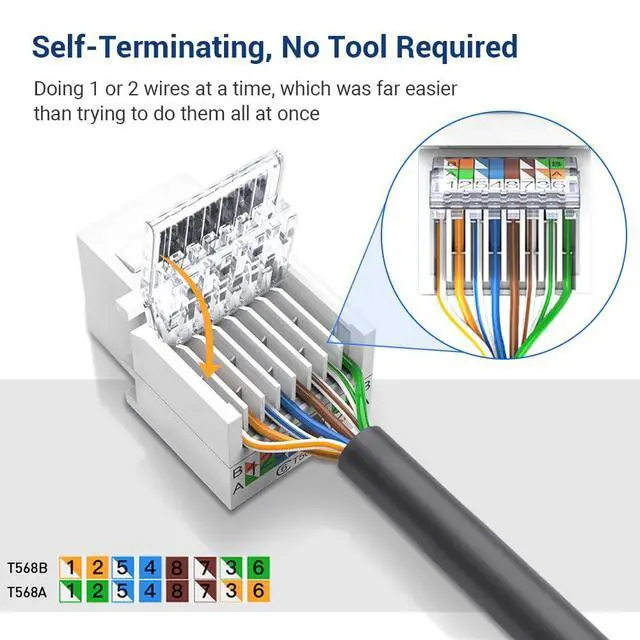

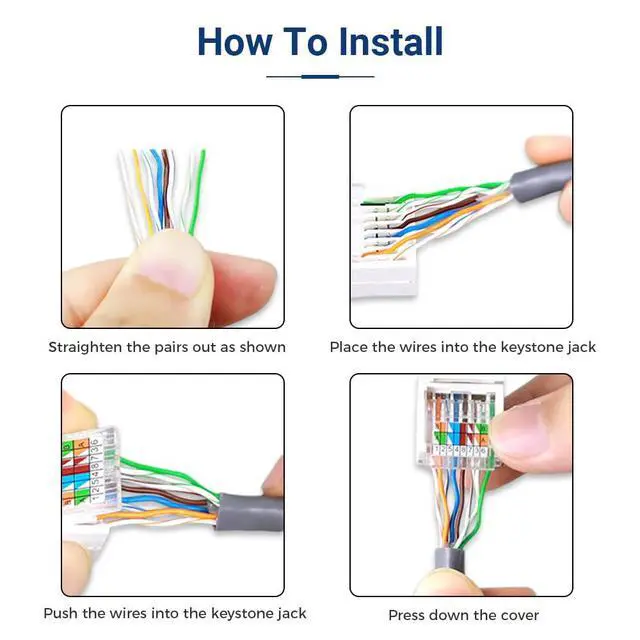

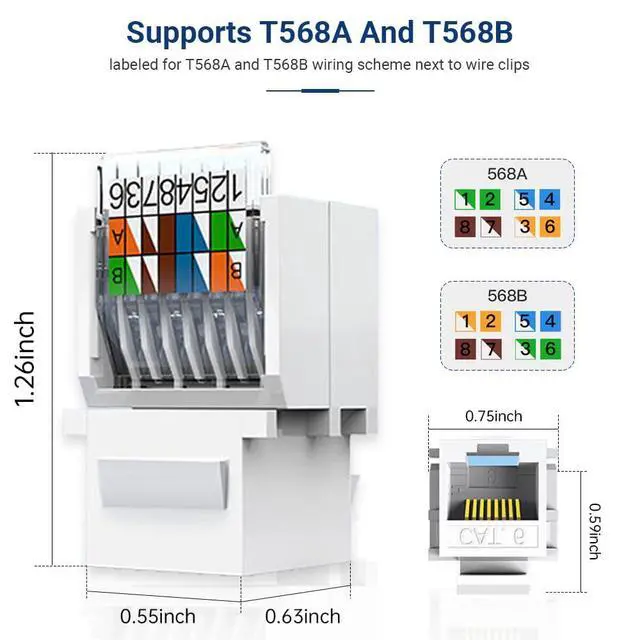

- For smooth installation, align wires with color-coded labels, insert one or two at a time, and secure with the snap-down cover.

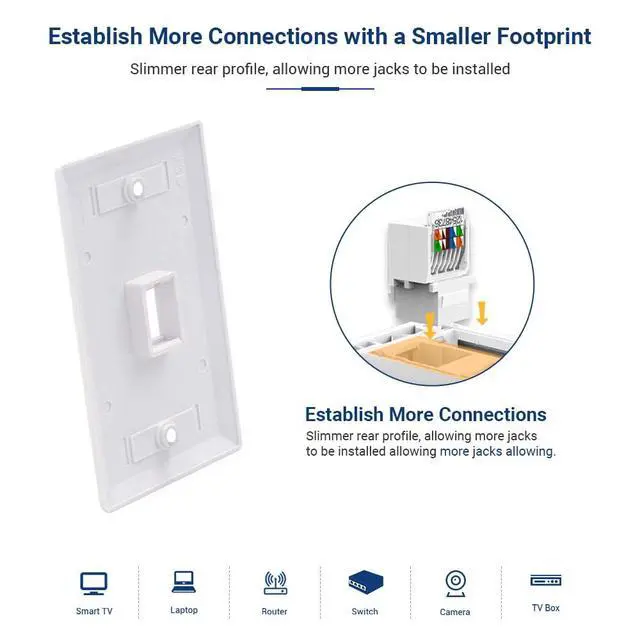

- Ideal for various surface mount boxes and wall plates; not intended for use with patch panels. Ensure compatibility prior to installation.
Is this keystone jack tool-less?
Yes, this keystone jack is tool-less and does not require the punch down tool for installation. You only need to prepare a stripping tool.
What cable diameters are compatible with this keystone jack?
This keystone jack is compatible with cat6 cables that have a diameter of 23 to 26 AWG; Conductor insulation range is 0.89 to 1.10mm; Outside diameter range is up to 6.1mm.
Can this keystone jack be used with standard patch panels?
The Jack is compatible with wall plates but not with standard patch panels
What types of cables can be used with this keystone jack?
This keystone jack is compatible with both Cat6 and Cat5e cables.
Is this keystone jack suitable for PoE (Power over Ethernet) applications?
Yes, this keystone jack is suitable for PoE applications and supports high-speed data transmission.
More Options from ZoeRax
 1-Port Wall Plate |  2-Port Wall Plate |  CAT6 Keystone Coupler |  CAT7 Keystone Coupler |  CAT6A Keystone Jack |  CAT7 Keystone Jack |  CAT6 Coupler Wall Plate | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Package Content | 10-Pack | 10-Pack | 12-Pack | 24-Pack | 12-Pack | 12-Pack | 3-Pack |
Transmission Speed | / | / | 1000Mpbs | 10Gbps | 10Gbps | 10Gbps | 1000Mbps |
Bandwidth | / | / | 250Mhz | 600Mhz | 550Mhz | 600Mhz | 250Mhz |
Interface | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 |
Shielded | / | / | x | v | v | v | x |
Wallplate | ? | ? | ? | ? | ? | ? | ? |
