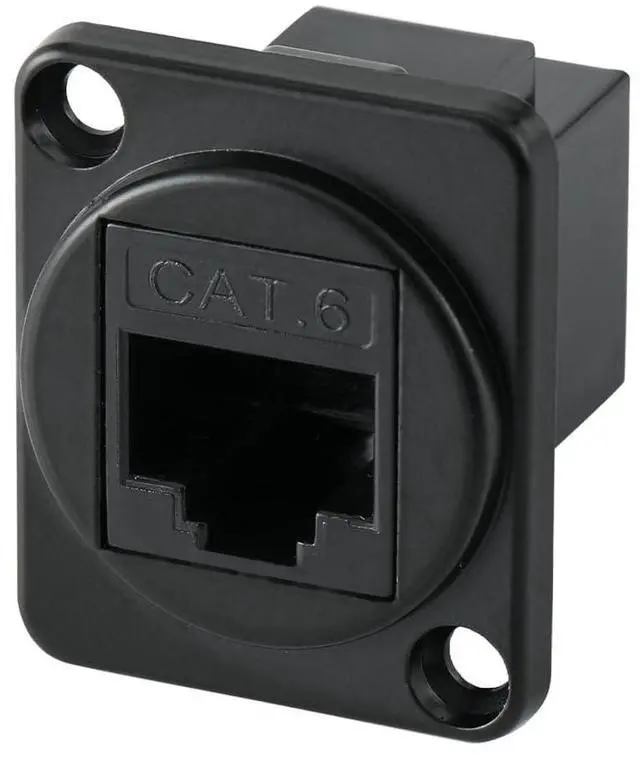

5PCS Panel Mounting RJ45 Cat6 8P8C Ethernet Connector Black Zinc Alloy Housing Double Head Coupler Adapter Female to Female Extension Adapter
- Usage: The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.

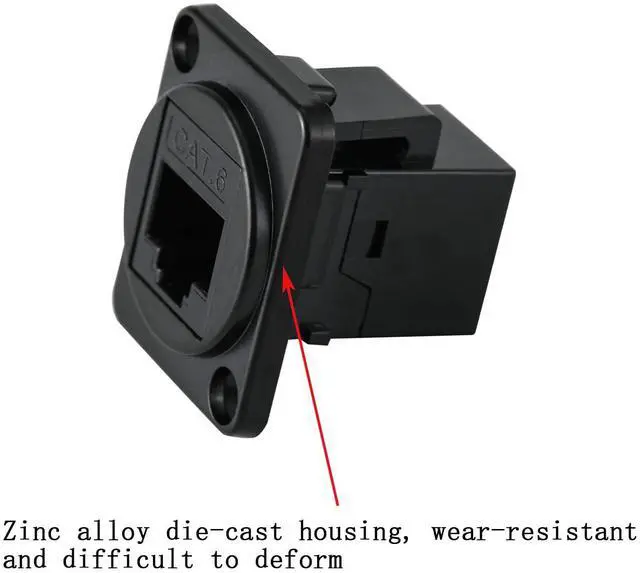

- Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.

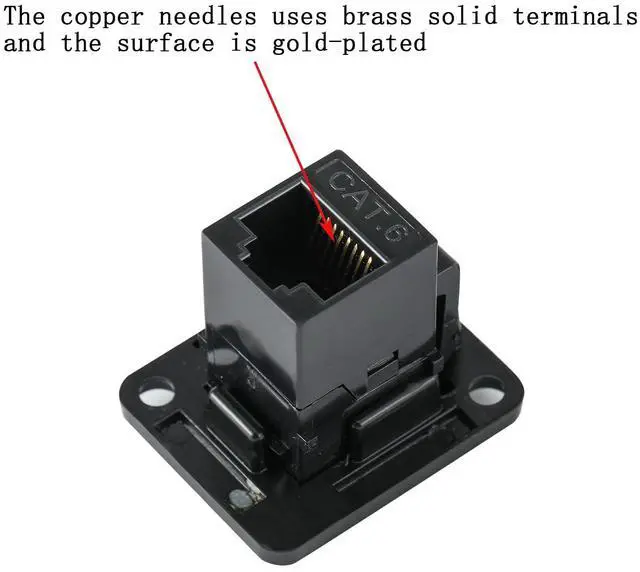

- Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 1000Mbps.
- Standard D-Series Connector for Panel-Mount Installations, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX.
Technical Specifications:
Number of cores: 8 pin
Connection type: RJ45 (standard port)
Electrical parameters:
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times

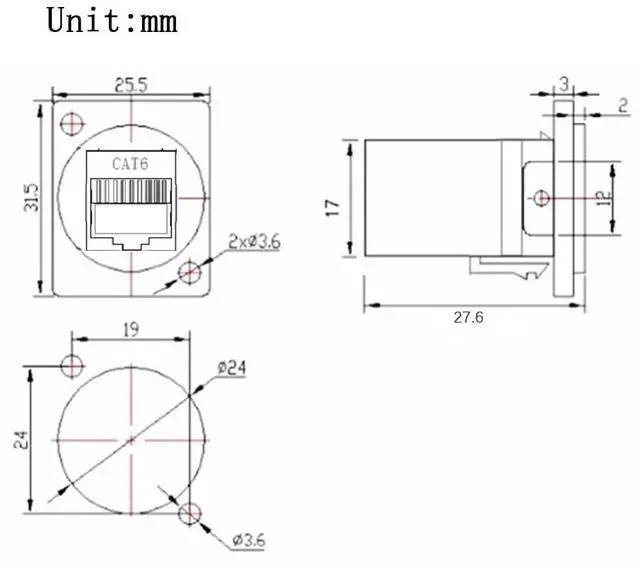

Installation panel thickness: min 2.0mm-max 10mm
Base shape: D type
Package includes:

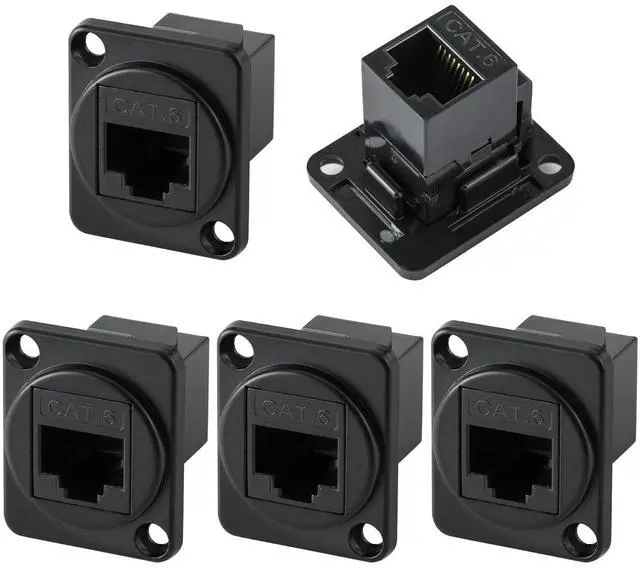

5 x Panel Mounting RJ45 Connector
