Features:

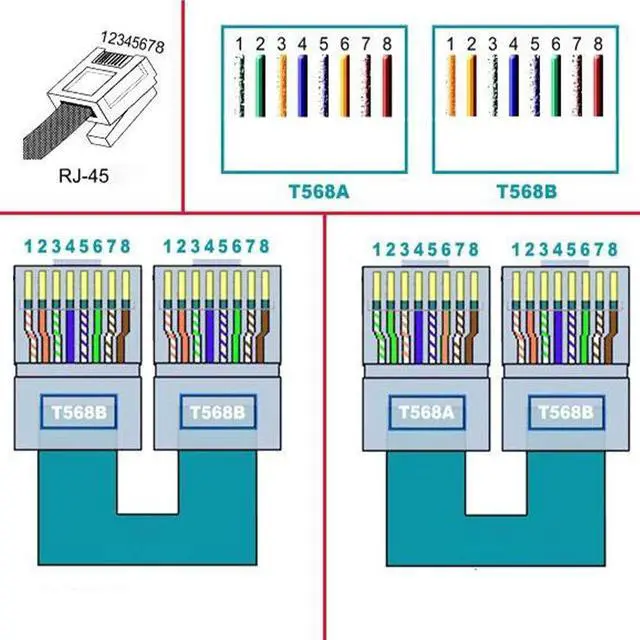

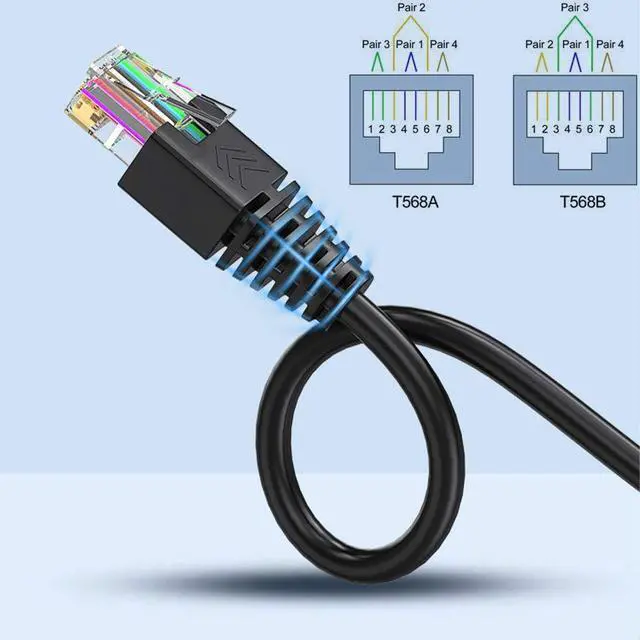

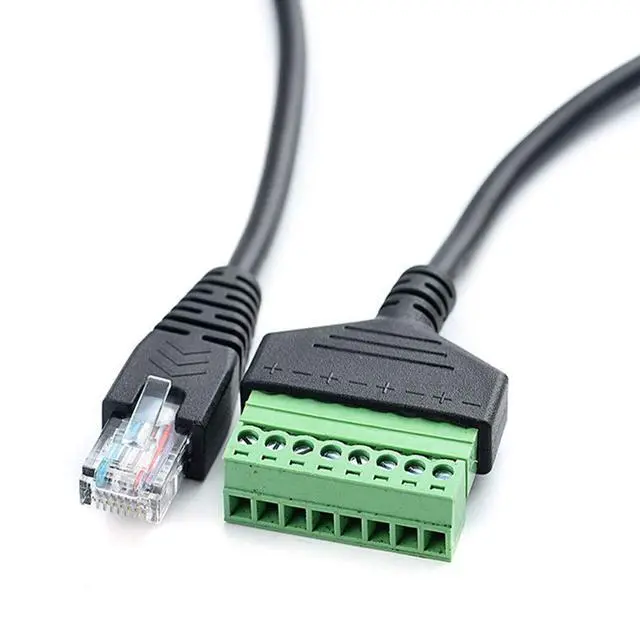

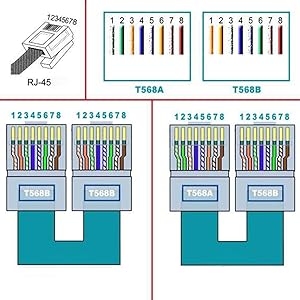

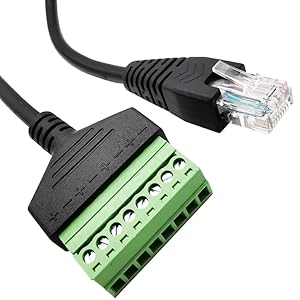

This RJ45 Male to 8 Pin Screw Terminal adaptor is wired in accordance with the EIA/TIA T568B wiring standard for structured cabling.It can connect external network cables and transmit network signals, is better shielding against electromagnetic interference. T568B wiring standard is usually used for interconnection between different devices, such as the connection between switches or PC/HUB devices. T568B Wiring Diagram: White-Orange ?Orange ?White-Green? Blue?White-Blue?Green?White-Brown? Brown. T568A Wiring Diagram: White-Orange? Orange?White-Green?Blue?White-Blue? Green? White-Brown? Brown (for Similar device connection as PC to PC or Switch to Switch) The RJ45 breakout board application range of using T568B direct connection interconnection is: both ends of the network cable are connected according to T568B. Computer and ADSL modem; WAN port of ADSL modem and ADSL router; LAN port of computer and ADSL router; computer and hub or switch.
Product Feature
Stability
Reliable connection, made of pure copper wire, strong signal stability and reliability. It is used to connect external network cables and transmit network signals.
EIA/TIA 568B wiring standard
This RJ45 screw terminal adaptor cable is wired in accordance with the EIA/TIA 568B wiring standard for structured cabling.
Easy to use

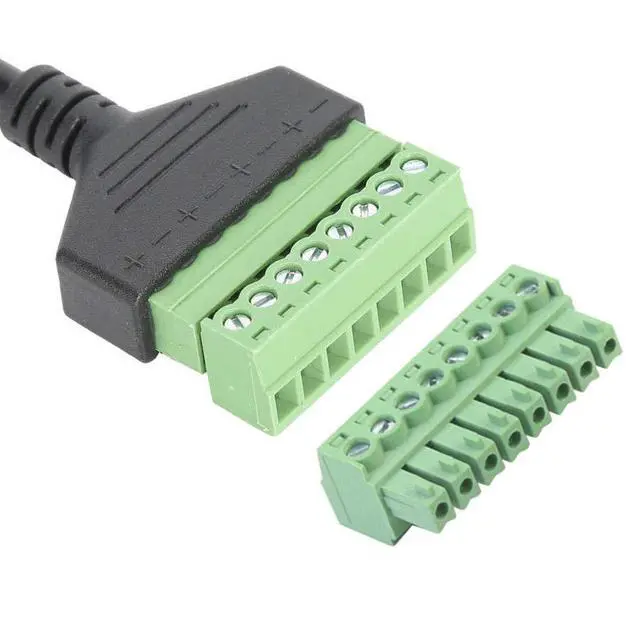

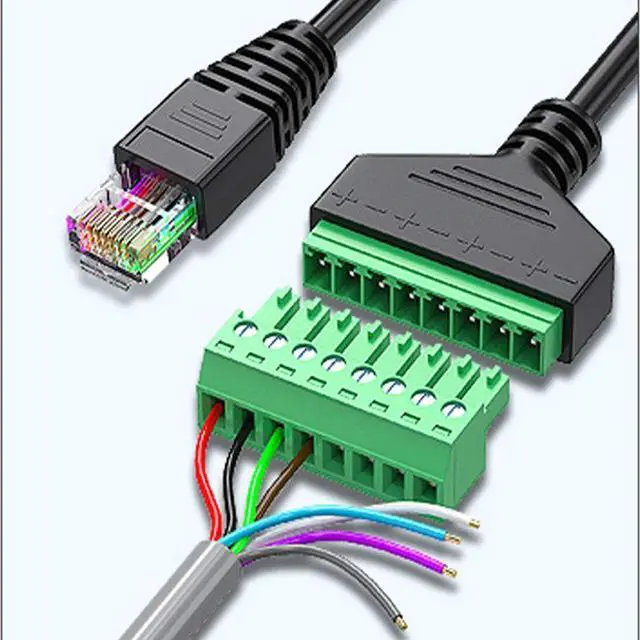

No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. Save you from solder trouble, great for splitting pairs on UTP cable,and CCTV camera or data distribution.
Instructions for Use

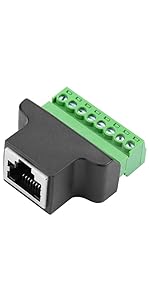

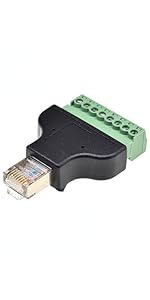

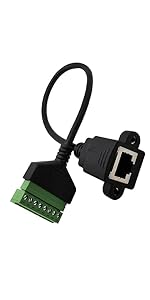

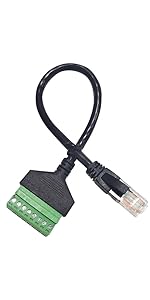

 RJ45 Female to 8 Pins Screw Terminal Block Adapter |  RJ45 Male to 8 Pins Screw Terminal Block Adapter |  RJ45 Male Plug to 8pins Terminal Ethernet Connector |  RJ45 Female Jack to 8pins Terminal Ethernet Connector | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — no data | — no data | — | — |
| Connector Type | RJ45 | RJ45 | RJ45 | RJ45 |
| Cable Type | Ethernet | Ethernet | Ethernet | Ethernet |
| Pin | 8 pins | 8 pins | 8 pins | 8 pins |
