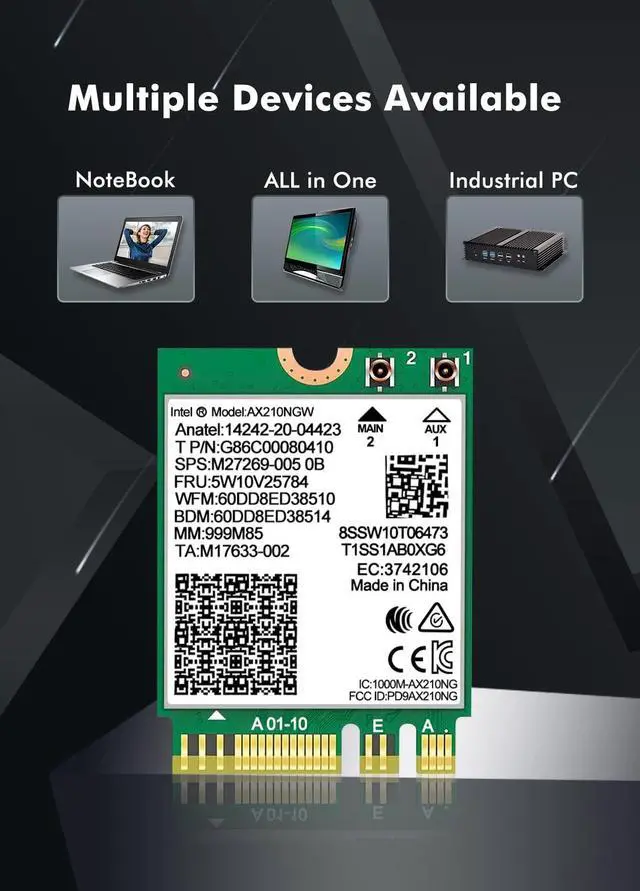

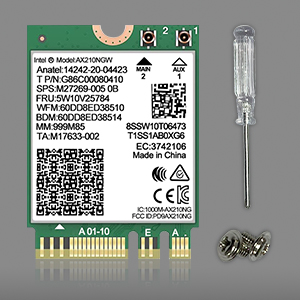

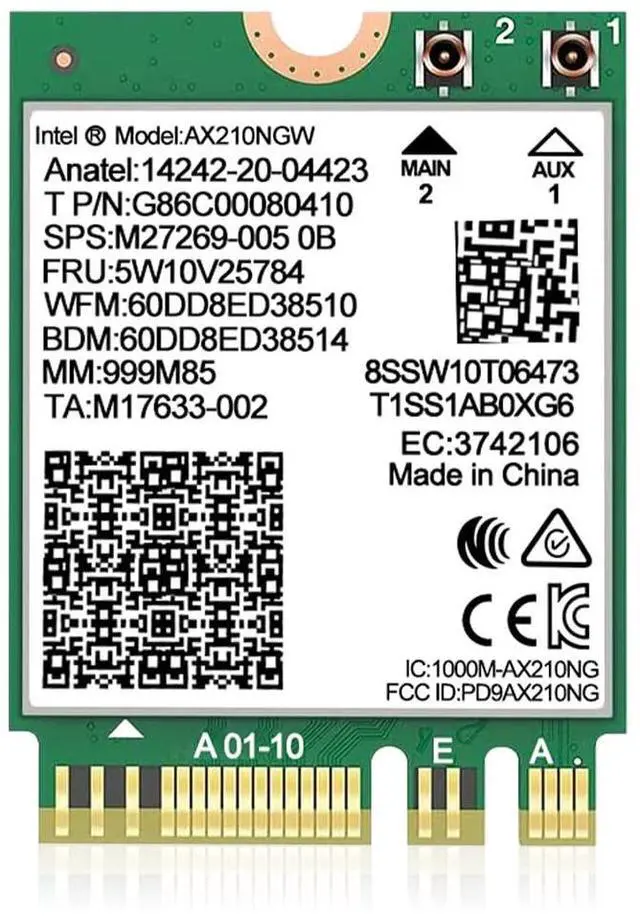

AX210NGW Wireless Network Card Features

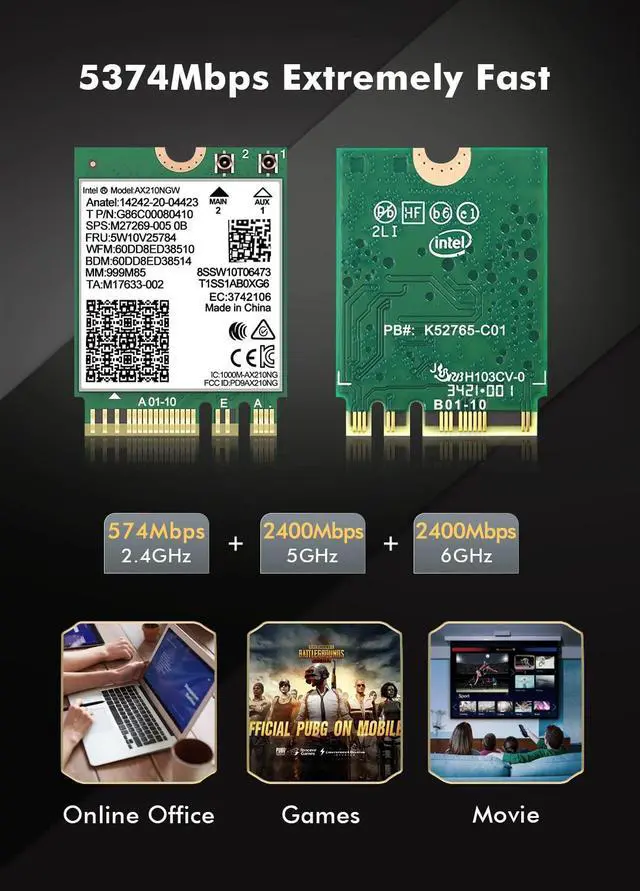

2.4Gbps - up to 2.4Gbps internet speed to avoid network lag

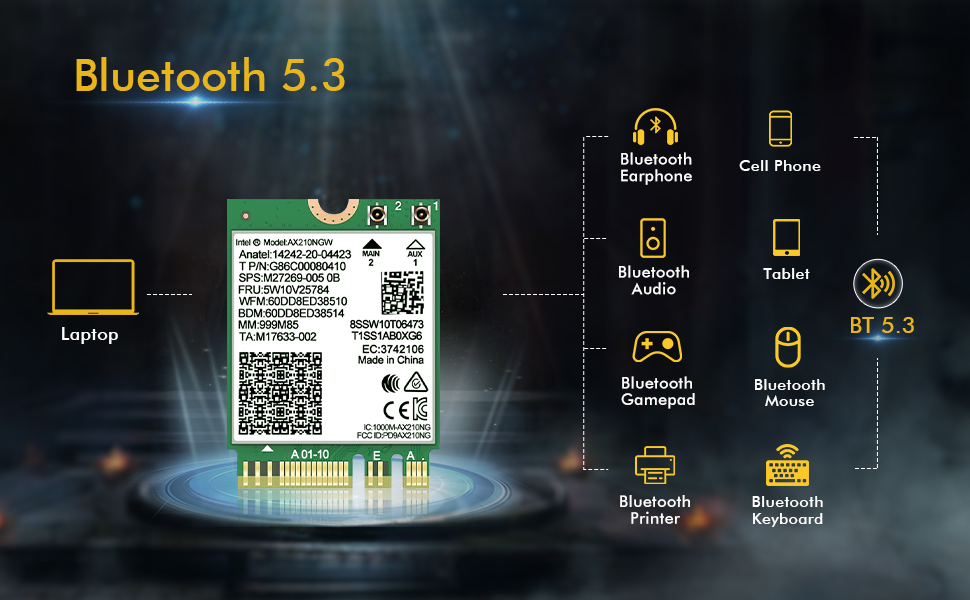

Bluetooth 5.3 - the latest Bluetooth 5.3 technology, compatible with all kinds of existing laptop Bluetooth 5.3 and below accessories

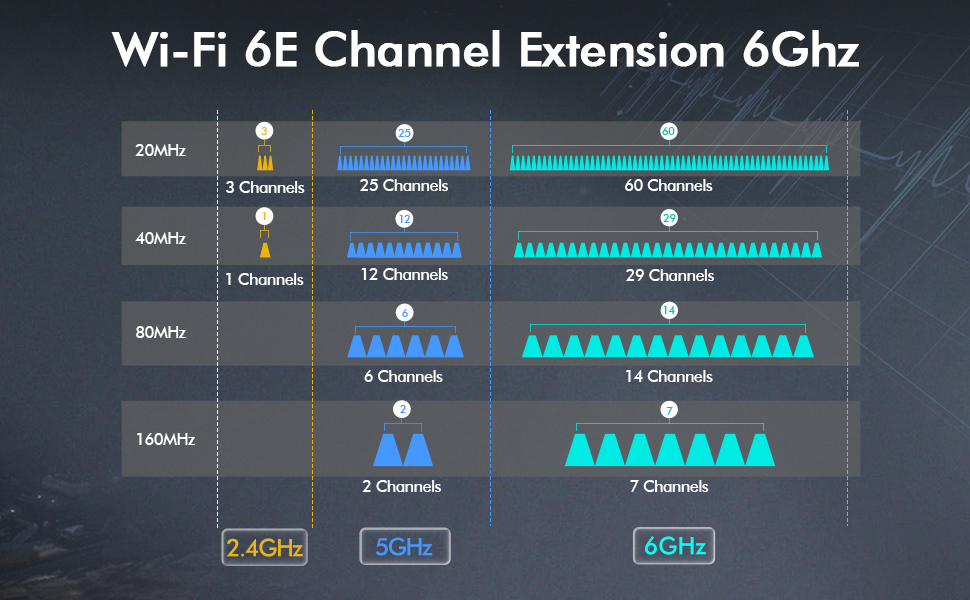

6GHz band - increased to 7 160MHz channels, 14 80MHz channels, 29 40MHz channels, 60 20MHz channels, reducing signal interference caused by high device density
WPA3 - Anti-virus, Anti-hijacking, Anti-hacking, Anti-scratching. Internet access is more secure.

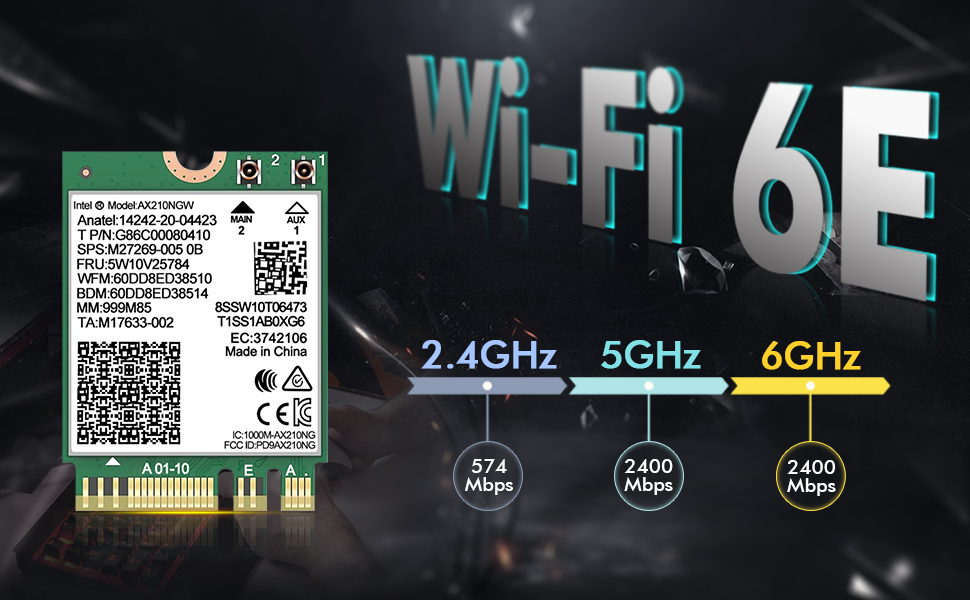

Wi-Fi 6E Technology
With the popularity of smart homes, the number of devices connected wirelessly by WiFi is also increasing dramatically, which will lead to overcongestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. AX210NGW adopts the latest Wi-Fi 6E technology with a new 6GHz channel, so that for smart homes, older devices and devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new band 6GHz band to improve the network experience.

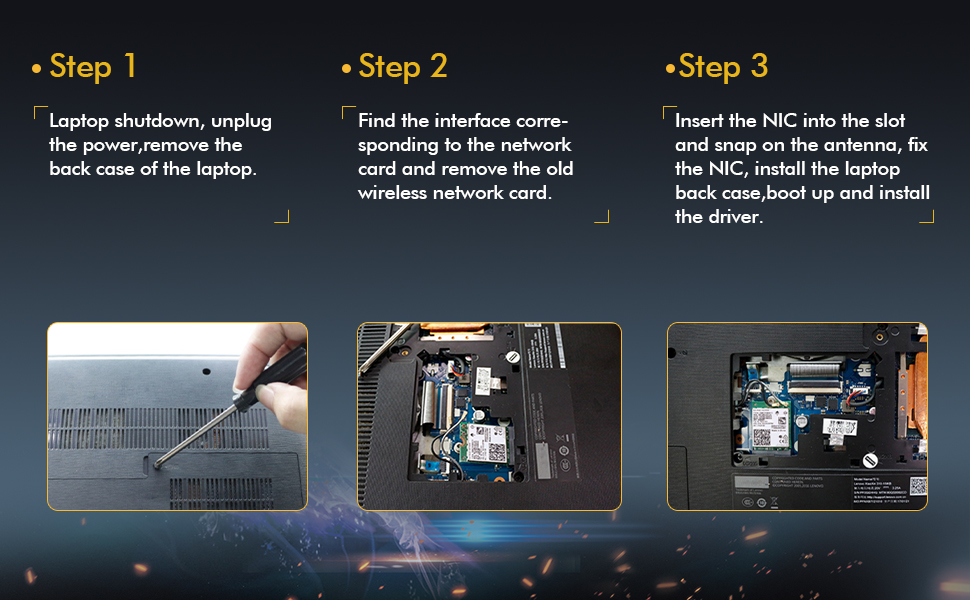

Installation Notes

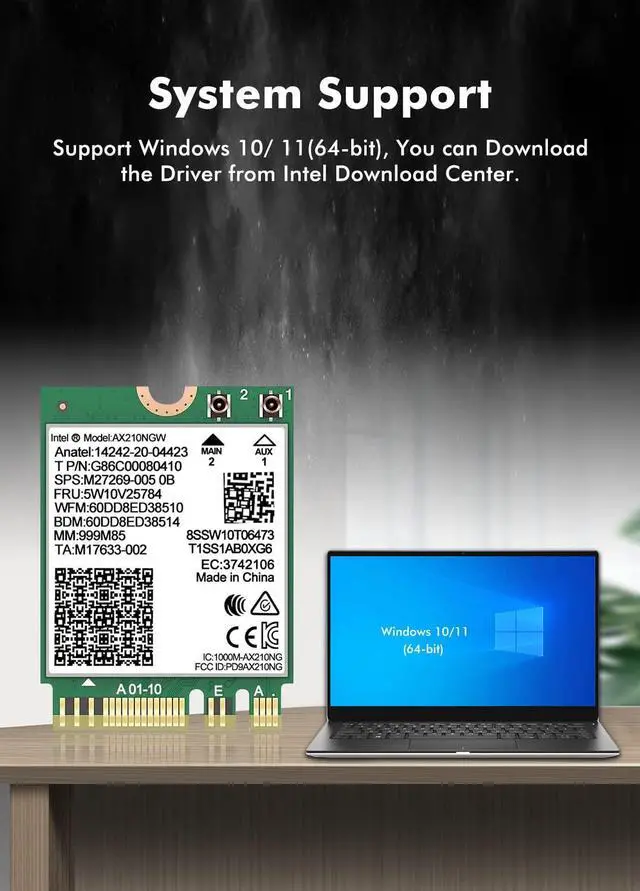

1. Only Windows 10/11, 64-bit is recommended. If the driver installation does not work, you need to update Windows 10 version to the latest version.
2. Works with Intel CPU and newer AMD CPU. Do not use on motherboards containing Intel 9560 CNVi modules.
3. Download the driver from the Intel website.(It is recommended to download the driver first and then install the network card.)
4. Requires a WiFi 6E router to enable the 6GHz band.
 Intel AX210 |  Intel BE200 |  Intel AX200 |  Intel AX201 |  Intel AX211 |  Intel AX411 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |

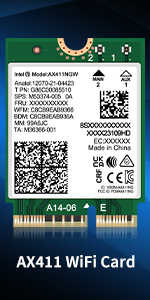

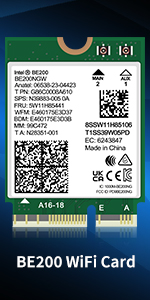

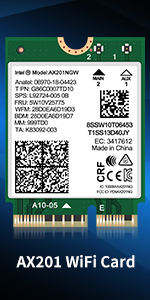

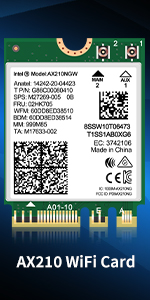

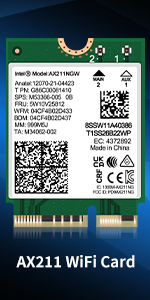

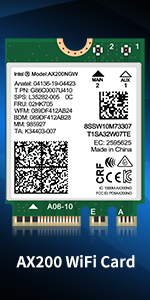

| Model | Intel AX210 | Intel BE200 | Intel AX200 | Intel AX201 | Intel AX211 | Intel AX411 |
| Product Collection | Intel Wi-Fi 6E (Gig+) Series | Intel Wi-Fi 7 Series | Intel Wi-Fi 6 Series | Intel Wi-Fi 6 Series | Intel Wi-Fi 6E (Gig+) Series | Intel Wi-Fi 6E (Gig+) Series |
| Bands | 2.4, 5, 6 GHz (160MHz) | 2.4, 5, 6 GHz | 2.4, 5 GHz (160MHz) | 2.4, 5 GHz (160MHz) | 2.4, 5, 6 GHz (160MHz) | 2.4, 5, 6 GHz (160MHz) |
| Max Speed | 2.4 Gbps | 5.8 Gbps | 2.4 Gbps | 2.4 Gbps | 2.4 Gbps | ~3.0 Gbps |
| Compliance | FIPS, FISMA | FIPS | FIPS, FISMA | FIPS, FISMA | FIPS, FISMA | FIPS, FISMA |
| Bluetooth Version | 5.3 | 5.4 | 5.2 | 5.2 | 5.3 | 5.3 |
| Board Form Factor | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1625 |
| System Interface Type | Wi-Fi(PCIe), BT(USB) | M.2: PCIe*, USB | Wi-Fi(PCIe), BT(USB) | M.2: CNVio2 | M.2: CNVio2 | M.2: CNVio2 |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* | Windows 11*, Windows 10* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* |
| CPU requirements | no data | no data | no data | Intel 10th generation and above CPU. And CNVIo2 protocol wifi slot | Intel 12th generation and above CPU. And CNVIo2 protocol wifi slot | Intel 12th generation and above CPU. And CNVIo2 protocol wifi slot |
AX210NGW Wireless Network Card Features
2.4Gbps - up to 2.4Gbps internet speed to avoid network lag
Bluetooth 5.3 - the latest Bluetooth 5.3 technology, compatible with all kinds of existing laptop Bluetooth 5.3 and below accessories
6GHz band - increased to 7 160MHz channels, 14 80MHz channels, 29 40MHz channels, 60 20MHz channels, reducing signal interference caused by high device density
WPA3 - Anti-virus, Anti-hijacking, Anti-hacking, Anti-scratching. Internet access is more secure.
Wi-Fi 6E Technology
With the popularity of smart homes, the number of devices connected wirelessly by WiFi is also increasing dramatically, which will lead to overcongestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. AX210NGW adopts the latest Wi-Fi 6E technology with a new 6GHz channel, so that for smart homes, older devices and devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new band 6GHz band to improve the network experience.
Installation Notes
1. Only Windows 10/11, 64-bit is recommended. If the driver installation does not work, you need to update Windows 10 version to the latest version.
2. Works with Intel CPU and newer AMD CPU. Do not use on motherboards containing Intel 9560 CNVi modules.
3. Download the driver from the Intel website.(It is recommended to download the driver first and then install the network card.)
4. Requires a WiFi 6E router to enable the 6GHz band.
Intel AX210 | Intel BE200 | Intel AX200 | Intel AX201 | Intel AX211 | Intel AX411 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |
| Model | Intel AX210 | Intel BE200 | Intel AX200 | Intel AX201 | Intel AX211 | Intel AX411 |
| Product Collection | Intel Wi-Fi 6E (Gig+) Series | Intel Wi-Fi 7 Series | Intel Wi-Fi 6 Series | Intel Wi-Fi 6 Series | Intel Wi-Fi 6E (Gig+) Series | Intel Wi-Fi 6E (Gig+) Series |
| Bands | 2.4, 5, 6 GHz (160MHz) | 2.4, 5, 6 GHz | 2.4, 5 GHz (160MHz) | 2.4, 5 GHz (160MHz) | 2.4, 5, 6 GHz (160MHz) | 2.4, 5, 6 GHz (160MHz) |
| Max Speed | 2.4 Gbps | 5.8 Gbps | 2.4 Gbps | 2.4 Gbps | 2.4 Gbps | ~3.0 Gbps |
| Compliance | FIPS, FISMA | FIPS | FIPS, FISMA | FIPS, FISMA | FIPS, FISMA | FIPS, FISMA |
| Bluetooth Version | 5.3 | 5.4 | 5.2 | 5.2 | 5.3 | 5.3 |
| Board Form Factor | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1216 | M.2 2230, M.2 1625 |
| System Interface Type | Wi-Fi(PCIe), BT(USB) | M.2: PCIe*, USB | Wi-Fi(PCIe), BT(USB) | M.2: CNVio2 | M.2: CNVio2 | M.2: CNVio2 |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* | Windows 11*, Windows 10* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS* | Windows 11, 64-bit*, Windows 10, 64-bit*, Linux* |
| CPU requirements | no data | no data | no data | Intel 10th generation and above CPU. And CNVIo2 protocol wifi slot | Intel 12th generation and above CPU. And CNVIo2 protocol wifi slot | Intel 12th generation and above CPU. And CNVIo2 protocol wifi slot |
