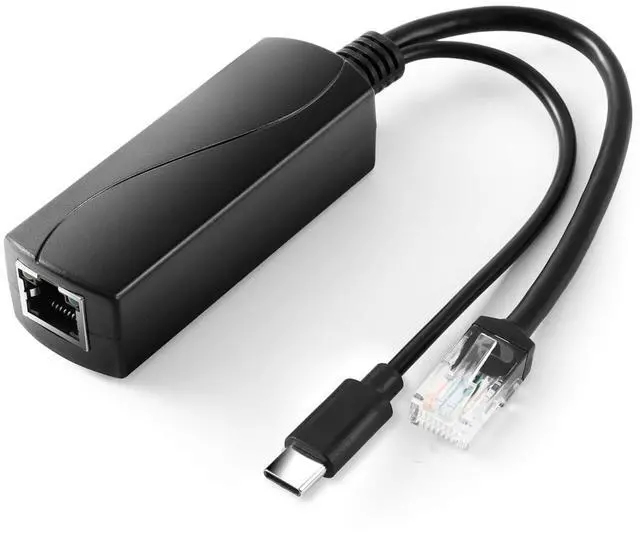

2.5G Type C PoE Splitter 5V/4A, 48V PoE to USB-C 5V/4A 20W Output, 2.5Gbps Ethernet Comply IEEE802.3af/at, Plug and Play for Smart Home/Pi 4B/4B+ (TYPEC0504G)

Note:

2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment support 2.5G Ethernet.

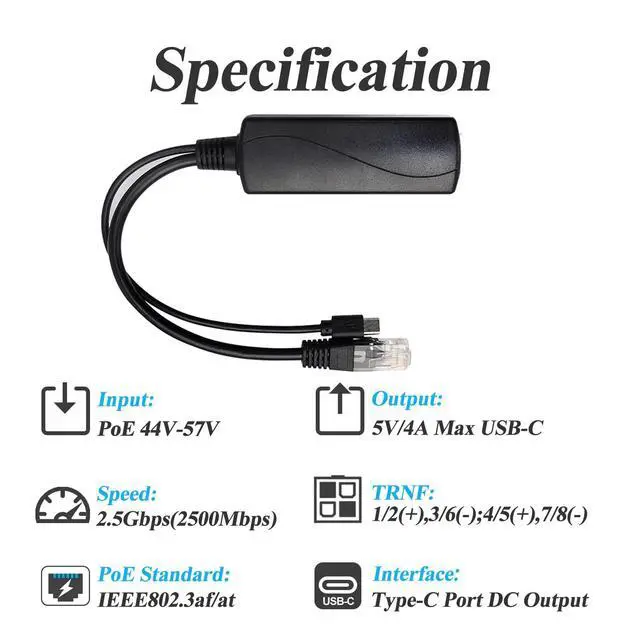

Specifications

Support international standard IEEE802.3 af/at;

POE port Support 10/100/1000Mdata transmission

PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module

5V/4A power output using Type-C, the Type-C port only for power-charging.

Support the isolation circuit protection, can effectively protect electrical equipment.

Support the short circuit, overvoltage protection

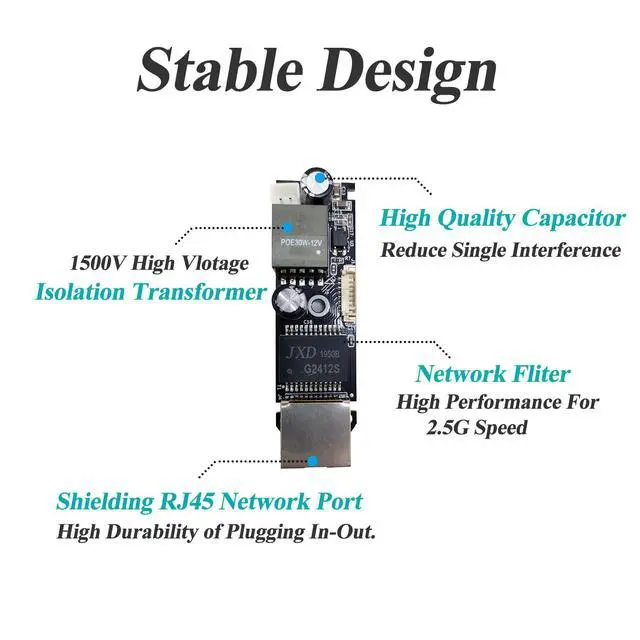

1500V high voltage isolation

Model: TYPEC0504G

Transfer Rate: 10/100/1000Mbps

Power: Input 48V DC/0.6A, Output 5V/4A

Standard: IEEE802.3 af/at

TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)

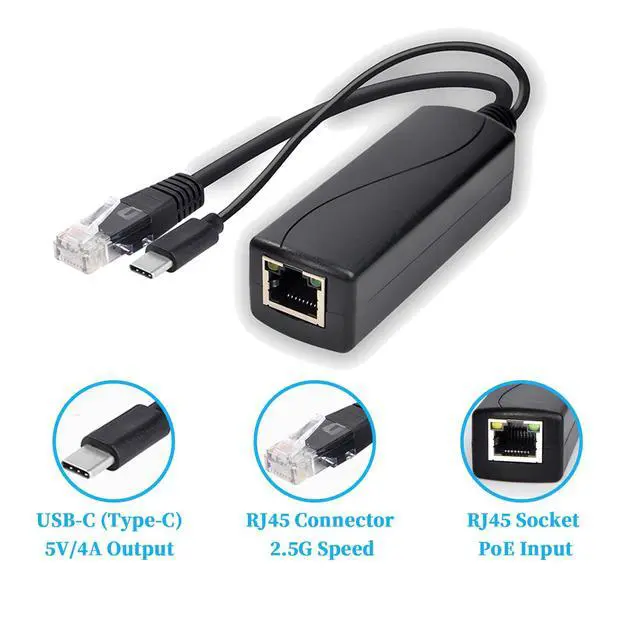

Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC outputType-C

Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at

LED: Yellow PoE lamp

Temperature: Work within -20~50°,Storage within -30~60°

Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)

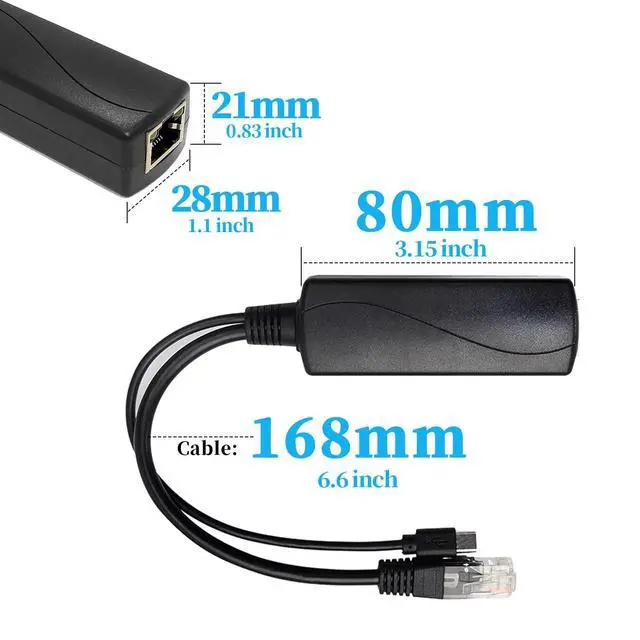

Abmessungen: 27.5 x 2.8 x 2.3 cm (L*W*H)

Weight: 0.05kg

Package Content:

1 x Gigabit POE Splitter (TYPEC0504G)
