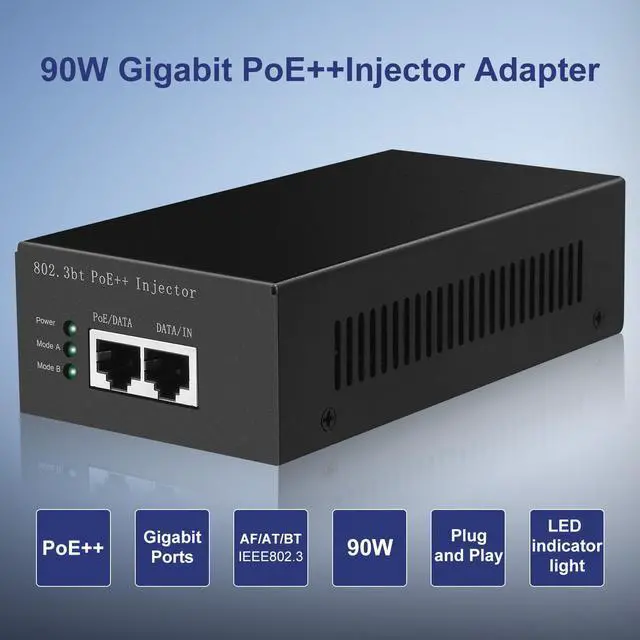

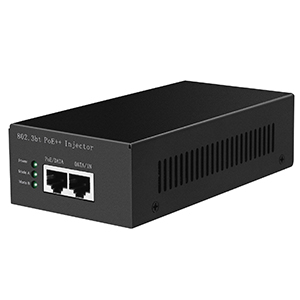

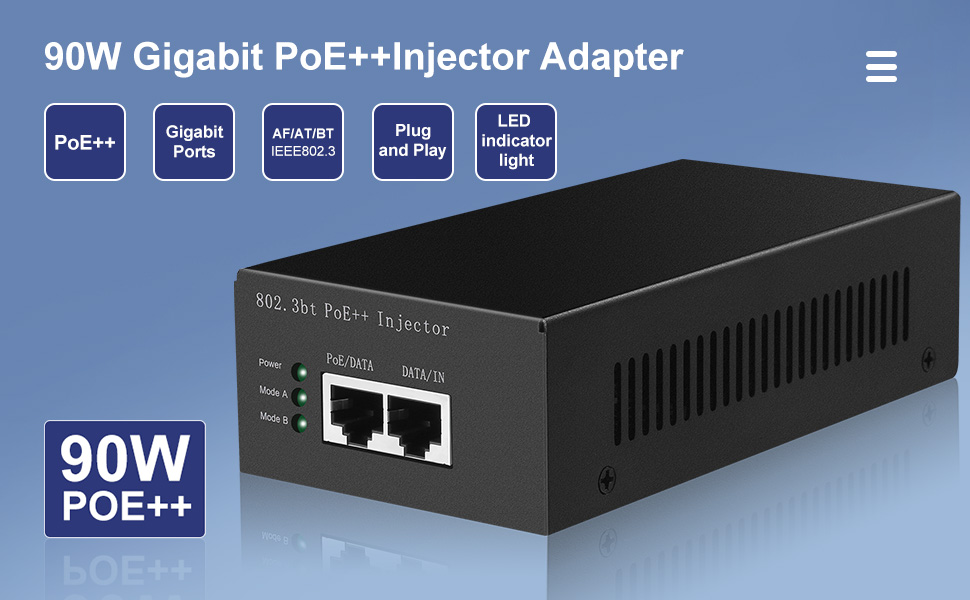

POE90 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3af Compliant, Up to 90W Ultra Power Supply, 10/100/1000Mbps Shielded RJ-45, Plug & Play, Metal housing

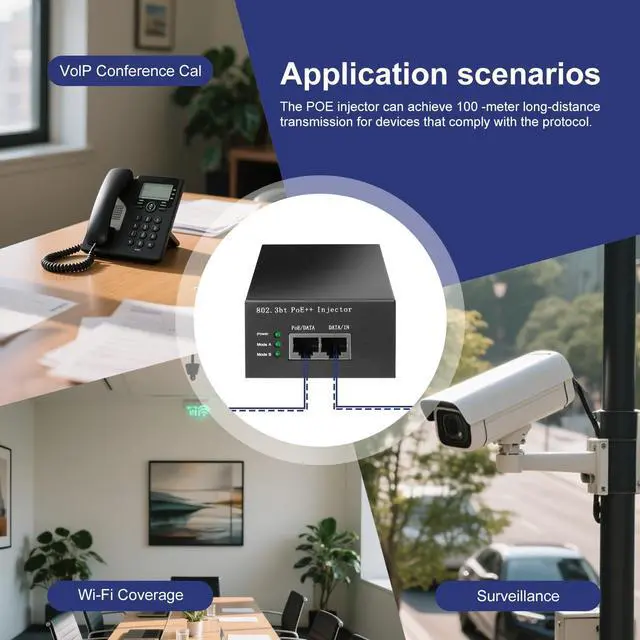

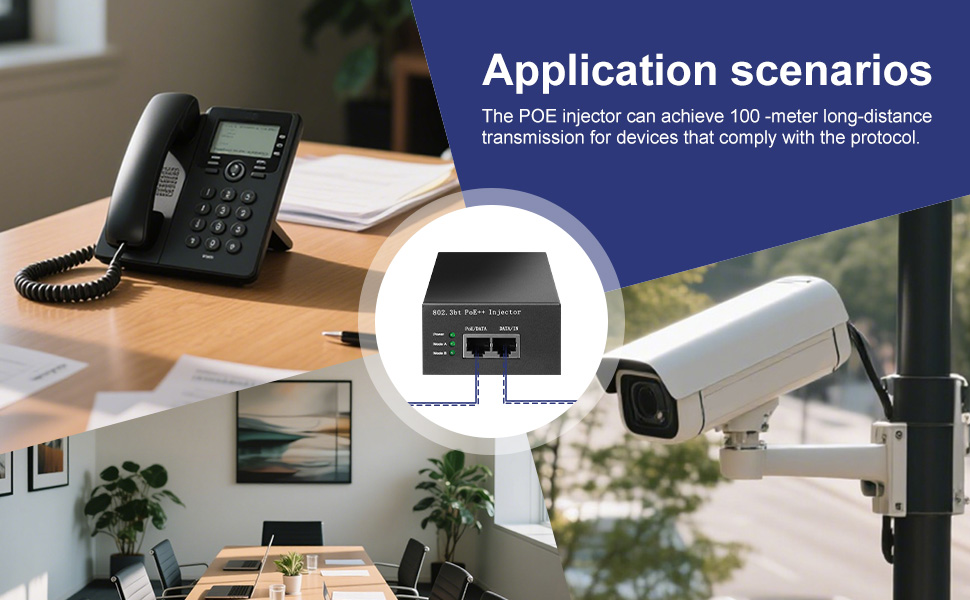

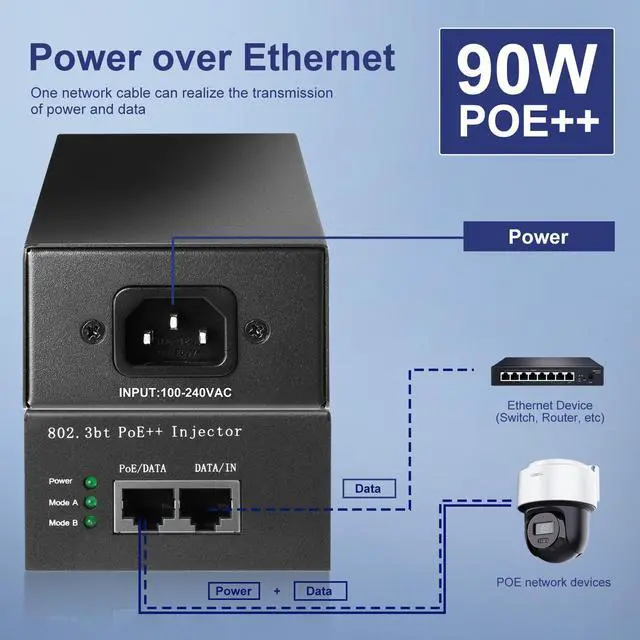

Gigabit PoE Injector, 1 Gigabit Ethernet port input and 1 PoE / PoE+ / PoE++ Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds. Ideal for small installations of PoE IP phone, PoE surveillance camera or PoE wireless access point.

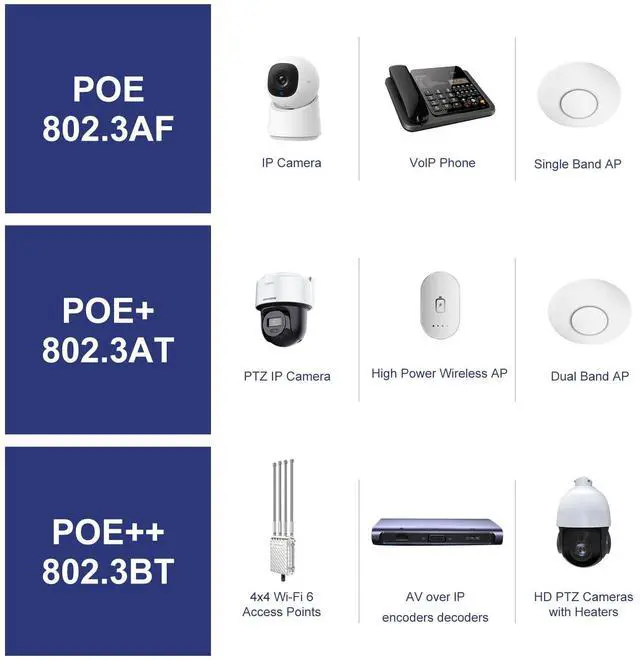

With Auto-sensing technology, this PoE adapter delivers up to 90W to a PoE++ device with backwards compatibility for 802.3bt/at 4 pair (60w), 802.3at 2 pair (30w) PoE+ device and 802.3af PoE (15.4W) devices.

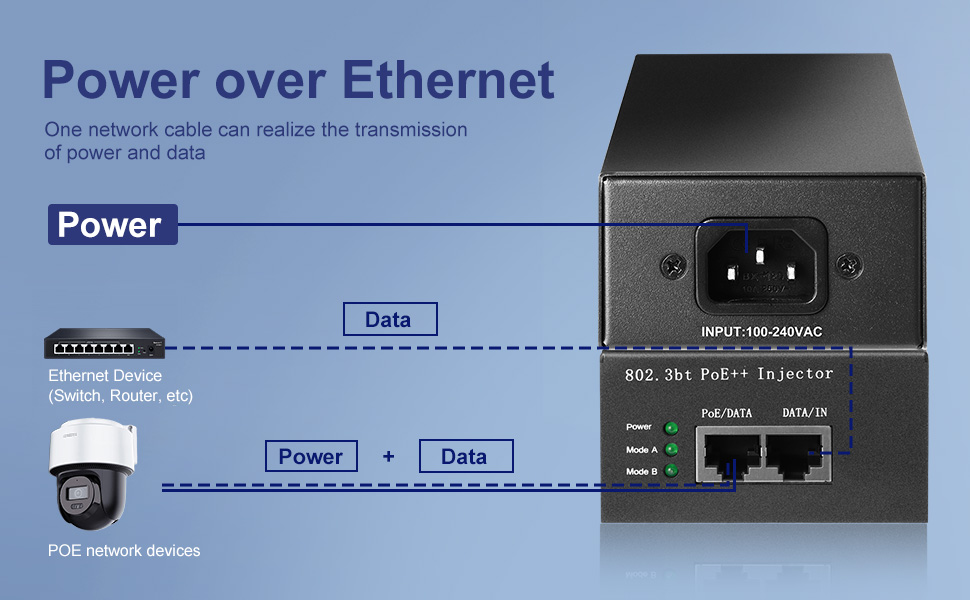

Converts a non-PoE Gigabit port to a PoE / PoE+ / PoE++ Gigabit port and network a PoE device located up to 100 meters (328 ft.) away.

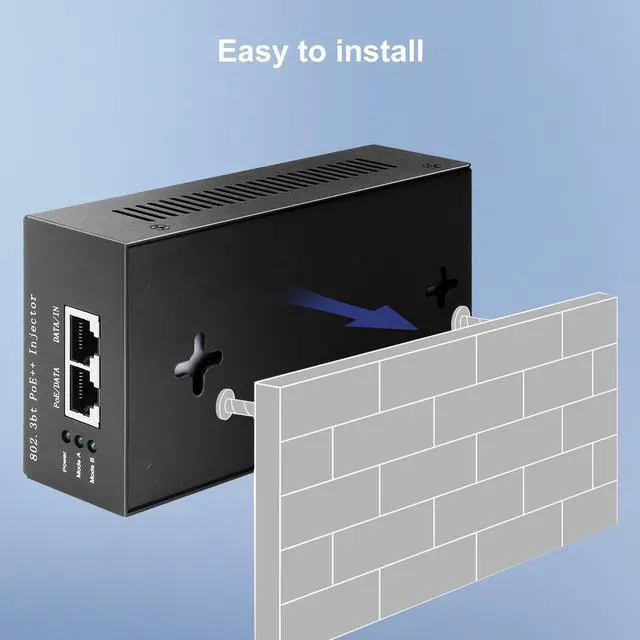

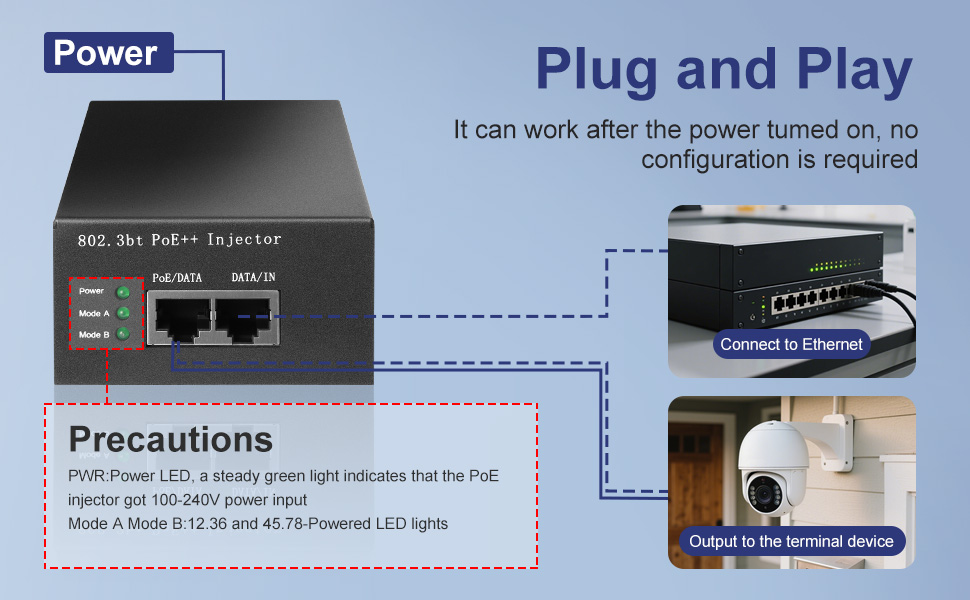

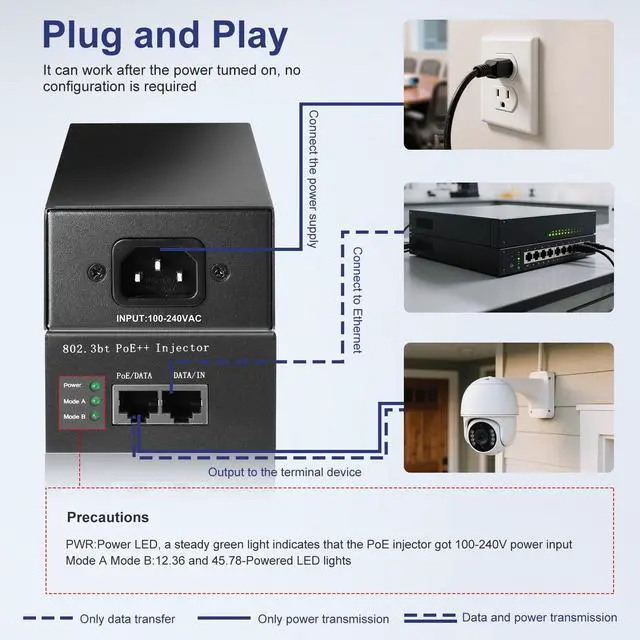

High Quality Chipset Inside. Use TPS high quality POE chip to ensure stable operation of the product. Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installations scenarios.
Compact Gigabit PoE injector, IEEE 802.3bt/802.3af/802.3at compliant. Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5(+), 7/8(-).

	POE90 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3a...	POE60 60W Gigabit Ultra PoE+ Injector, Up to 60W Ultra Power Supply, 10/100/1...	30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 8...	POE40E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C...	POE30E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C...

Customer Reviews	—	—	—	—	—
Price	—	—	—	—	—
PoE Output	90 Watts max, Typical Voltage:56V, Support any PoE/PoE+/PoE++ device	60 Watts max, Typical Voltage:53V, Support any PoE/PoE+/POE++ device	30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device	90 Watts max, support any PoE/PoE+/PoE++ device	30 Watts max, support any PoE/PoE+ device
IEEE802.3bt	?	?	no data	?	no data
IEEE802.3at	?	?	?	?	?
IEEE802.3af	?	?	?	?	?
size	5.86"L x 2.96"W x 1.61"H	5.43"L x 2.48"W x 1.31"H	4.76"L x 1.96"W x 1.41"H	3.2"L x 2.2"W x 0.9"H	3.2"L x 2.2"W x 0.9"H
Ethernet port	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100 Mbps
Pin Assignment and Polarity	1/2(-)3/6(+),4/5(+)7/8(-)	1/2(-)3/6(+),4/5(+)7/8(-)	1/2 (-), 3/6 (+)	1/2,3/6 and 4/5,7/8	1/2,3/6 and 4/5,7/8
Input Voltage	100 ~ 240 V	100 ~ 240 V	100 ~ 240 V	no data	no data

Input Power Requirements:

AC Input Voltage: 100~240V
AC Input Current: 1A 100~240V
AC Frequency: 50 to 60 Hz

Environmental Conditions:

Operating Ambient Temperature: 0 to 40°C
Operating Humidity: Maximum 85%, Non-condensing
Storage Temperature:-40 to 40°C
StorageHumidity: Maximum 90%, Non-condensing

90watt Gigabit 802.11bt/at/af PoE+ Injector PoE Output :

- Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)

- Output Power Voltage: Typical:56V, Support any 802.3 bt/ 802.3at / 802.3af device

- User Port Power Output: 90W max

Protection:

- Over current protection

- Over load protection

- Over voltage protection

	POE90 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3a...	POE60 60W Gigabit Ultra PoE+ Injector, Up to 60W Ultra Power Supply, 10/100/1...	30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 8...	POE40E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C...	POE30E 4-Port Gigabit PoE Extender with 3 PoE Output Ports, IEEE 802.3af/at C...

Customer Reviews	—	—	—	—	—
Price	—	—	—	—	—
PoE Output	90 Watts max, Typical Voltage:56V, Support any PoE/PoE+/PoE++ device	60 Watts max, Typical Voltage:53V, Support any PoE/PoE+/POE++ device	30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device	90 Watts max, support any PoE/PoE+/PoE++ device	30 Watts max, support any PoE/PoE+ device
IEEE802.3bt	?	?	no data	?	no data
IEEE802.3at	?	?	?	?	?
IEEE802.3af	?	?	?	?	?
size	5.86"L x 2.96"W x 1.61"H	5.43"L x 2.48"W x 1.31"H	4.76"L x 1.96"W x 1.41"H	3.2"L x 2.2"W x 0.9"H	3.2"L x 2.2"W x 0.9"H
Ethernet port	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100 Mbps
Pin Assignment and Polarity	1/2(-)3/6(+),4/5(+)7/8(-)	1/2(-)3/6(+),4/5(+)7/8(-)	1/2 (-), 3/6 (+)	1/2,3/6 and 4/5,7/8	1/2,3/6 and 4/5,7/8
Input Voltage	100 ~ 240 V	100 ~ 240 V	100 ~ 240 V	no data	no data

Input Power Requirements:

AC Input Voltage: 100~240V
AC Input Current: 1A 100~240V
AC Frequency: 50 to 60 Hz

Environmental Conditions:

Operating Ambient Temperature: 0 to 40°C
Operating Humidity: Maximum 85%, Non-condensing
Storage Temperature:-40 to 40°C
StorageHumidity: Maximum 90%, Non-condensing

90watt Gigabit 802.11bt/at/af PoE+ Injector PoE Output :

- Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)

- Output Power Voltage: Typical:56V, Support any 802.3 bt/ 802.3at / 802.3af device

- User Port Power Output: 90W max

Protection:

- Over current protection

- Over load protection

- Over voltage protection
