1 Gb/s & 10 Gb/s Ethernet Converter
 Kit #1: SFP 550m |  Kit #31: 10G SFP 300m |  Kit #33: 10G SFP 10km |  Kit #2: SFP 20km |  Kit #5: BiDi 20 km |  SMF SC,20KM |  SMF SC,20KM,BiDi | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Data Rate | 1.25 Gb/s | 10 Gb/s | 10 Gb/s | 1.25 Gb/s | 1.25 Gb/s | 1.25 Gb/s | 1.25 Gb/s |
Wavelength | 850nm | 850nm | 1310nm | 1310nm | Tx1310/Rx1550-nm | - | - |
Interface | RJ45 to SFP | SFP+ to SFP+ | SFP+ to SFP+ | RJ45 to SFP | RJ45 to SFP | RJ45 to Dual SC | RJ45 to Bid iSC |
Fiber Type | Duplex LC MMF | Duplex LC MMF | Duplex LC SMF | Duplex LC SMF | Simplex LC SMF | Dulplex SC SMF | SMF, Single SC |
Transceiver incl. | 1x SFP SX | 1x 10GBase-T, 1x SFP+ SR | 1x 10GBase-T, 1x SFP+ LR | 1x SFP LX | A pair SFP BiDi | - | BIDI SFP LX |
Reach | 550-m | 300-m | 10-km | 20-km | 20-km | - | 20-km |
aplus content video
Gigabit Media Converter

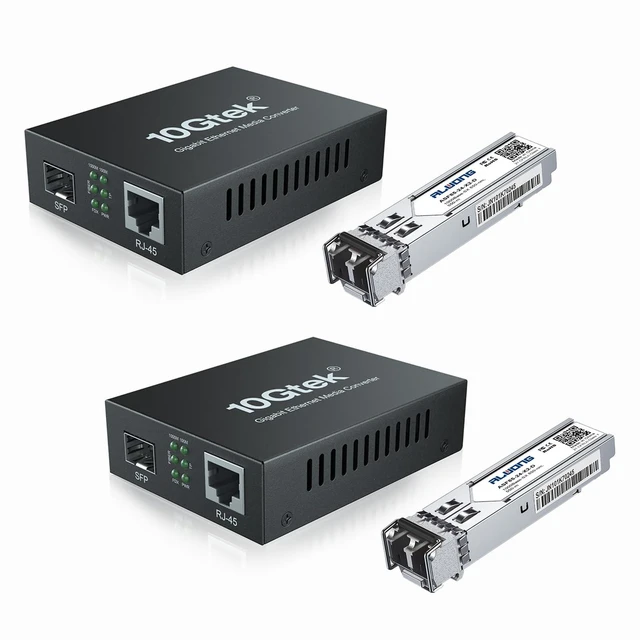

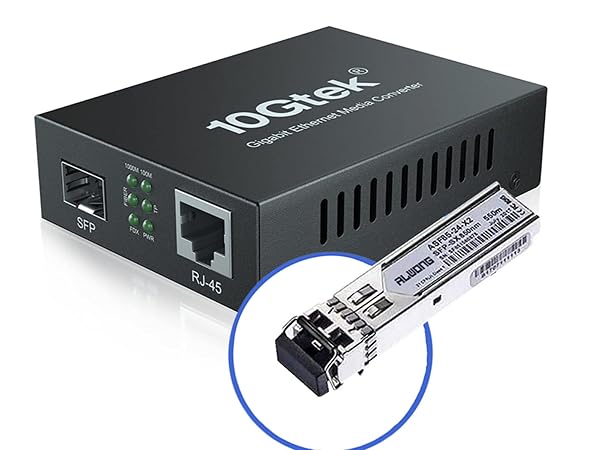

Gigabit Ethernet Media Converter with a SFP MMF 850-nm Module(550-Meter)
- 10/100/1000M RJ45 Port
- Supports Duplex and Half Duplex
- Supports MD!/MDI-X Auto Crossover
- Distance Reach up to 550m
- Gigabit SFP Port With a Multimode transceiver (1000base-sx)
Gigabit Fiber Media Converter
1
2
3
4
5
Gigabit Media Converter

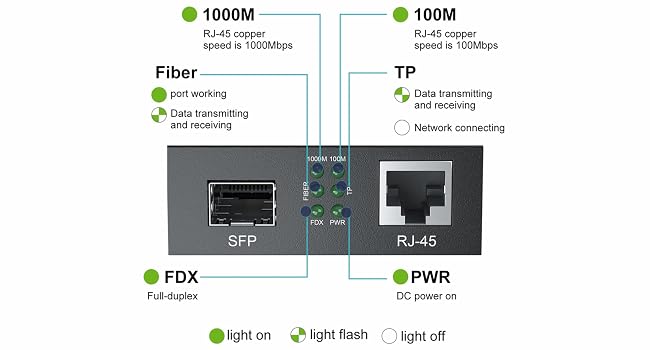

LED Indicators
- Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
- FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
- PWR: Light on when DC power on, else light off.

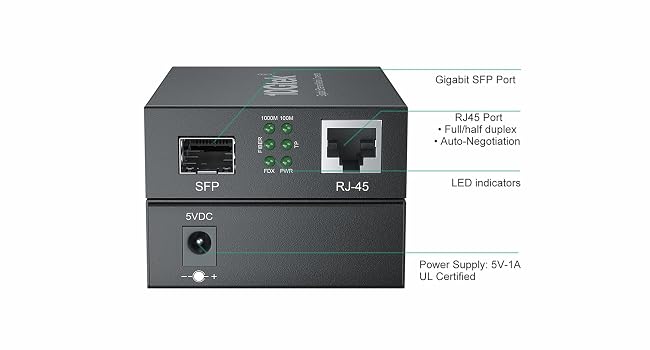

Ports introduction
- Gigabit SFP Port: 10/100/1000Mbps. Support SFP modules.
- RJ45 Port: 10/100/1000Mbps. Full/half Duplex. Auto-Negotiation. MDI/MDIX Auto-Crossover. @ UTP/STP/Cat.5/Cat.5e/Cat.6 or better.
- Power Supply: Input Voltage: AC100V~240V or DC36~72V, 50/60Hz.
- Output Voltage: 5V-1A
Is this Plug and Play?
Yes. Modulization configuration design. Just plug in SFP Optical port and RJ45 port. In accordance with Ethernet standards, Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab.

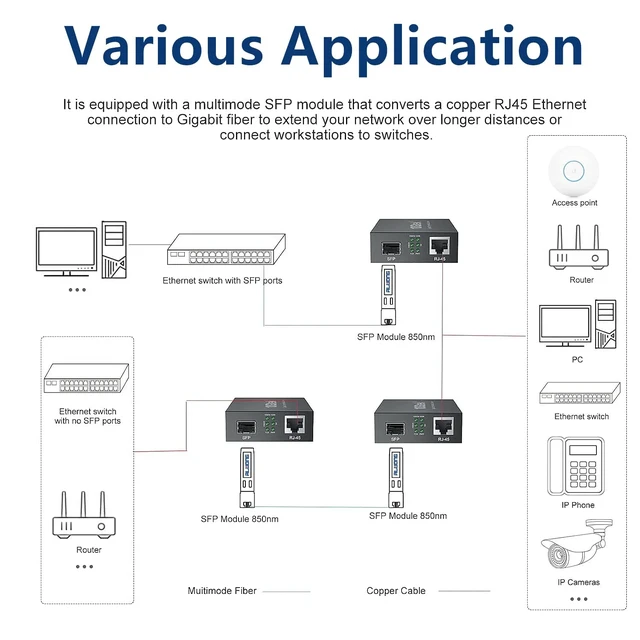

What are the applications?
Applicable to a variety of work environments, such as community networks, campus and enterprise networks, FTTB/FTTH, intelligent broadband, security monitoring etc.

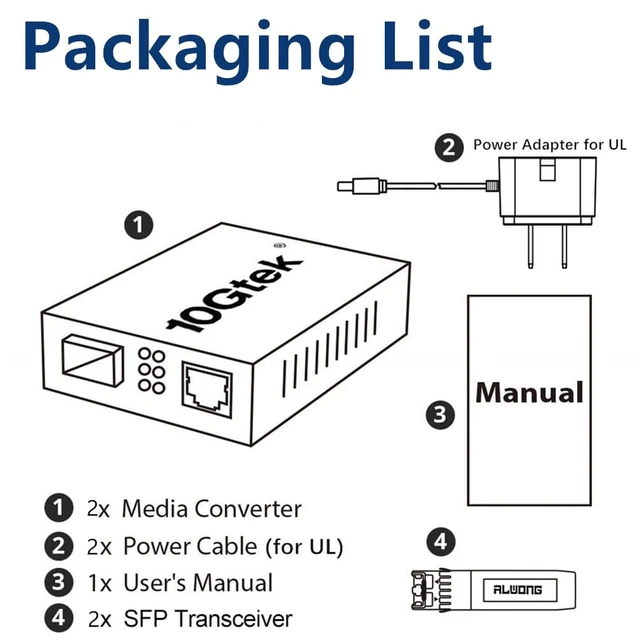

What You Get
1x SFP Gigabit Ethernet Media Converter, 1x 1000Base-SX module, 1x DC Socket UL Power Supply, 1x User's Manual.
Compare 4 kinds of Media Converters
SFP 10 Gigabit
Data Rate: 10 Gb/s
Size: 9.3cm *7.1cm *2.7cm
Interface: SFP+ to SFP+
SFP Gigabit
Data Rate: 1 Gb/s
Size: 9.3cm *7.1cm *2.7cm
Interface: RJ45 to SFP
SC Gigabit
Data Rate: 1 Gb/s
Size: 9.4cm*7.0cm*2.6cm
Interface: RJ45 to Dual SC
SFP Mini Gigabit
Data Rate: 1 Gb/s
Size: 6.9cm *5.0cm *2.5cm
Interface: RJ45 to SFP
1 Gb/s & 10 Gb/s Ethernet Converter
Kit #1: SFP 550m | Kit #31: 10G SFP 300m | Kit #33: 10G SFP 10km | Kit #2: SFP 20km | Kit #5: BiDi 20 km | SMF SC,20KM | SMF SC,20KM,BiDi |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Data Rate | ||||||
| 1.25 Gb/s | 10 Gb/s | 10 Gb/s | 1.25 Gb/s | 1.25 Gb/s | 1.25 Gb/s | 1.25 Gb/s |
| Wavelength | ||||||
| 850nm | 850nm | 1310nm | 1310nm | Tx1310/Rx1550-nm | - | - |
| Interface | ||||||
| RJ45 to SFP | SFP+ to SFP+ | SFP+ to SFP+ | RJ45 to SFP | RJ45 to SFP | RJ45 to Dual SC | RJ45 to Bid iSC |
| Fiber Type | ||||||
| Duplex LC MMF | Duplex LC MMF | Duplex LC SMF | Duplex LC SMF | Simplex LC SMF | Dulplex SC SMF | SMF, Single SC |
| Transceiver incl. | ||||||
| 1x SFP SX | 1x 10GBase-T, 1x SFP+ SR | 1x 10GBase-T, 1x SFP+ LR | 1x SFP LX | A pair SFP BiDi | - | BIDI SFP LX |
| Reach | ||||||
| 550-m | 300-m | 10-km | 20-km | 20-km | - | 20-km |
aplus content video
Gigabit Media Converter
Gigabit Ethernet Media Converter with a SFP MMF 850-nm Module(550-Meter)
- 10/100/1000M RJ45 Port
- Supports Duplex and Half Duplex
- Supports MD!/MDI-X Auto Crossover
- Distance Reach up to 550m
- Gigabit SFP Port With a Multimode transceiver (1000base-sx)
Gigabit Fiber Media Converter
Kit #1: SFP 550m

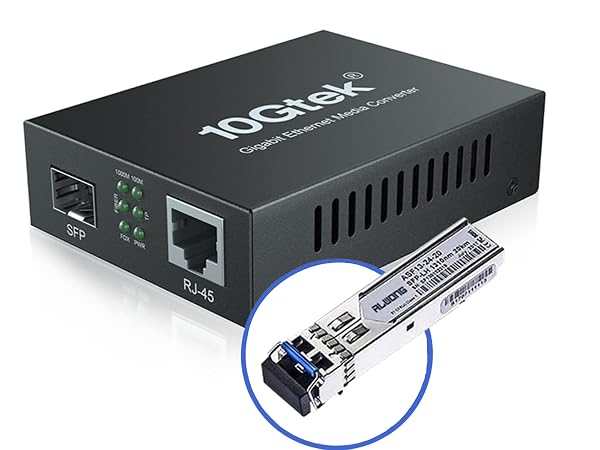

Kit #2: SFP 20km

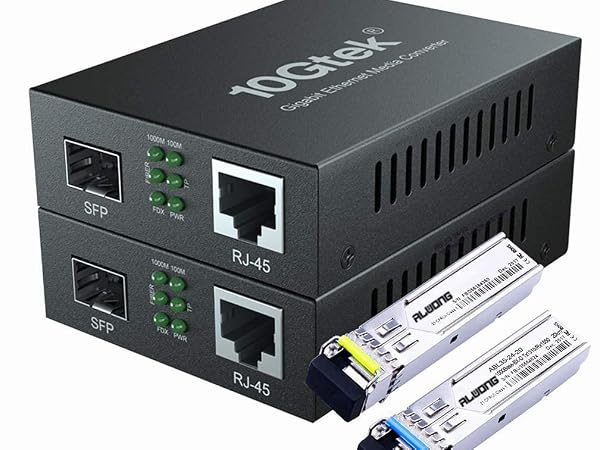

Kit #5: BiDi 20 km
SFP to RJ45

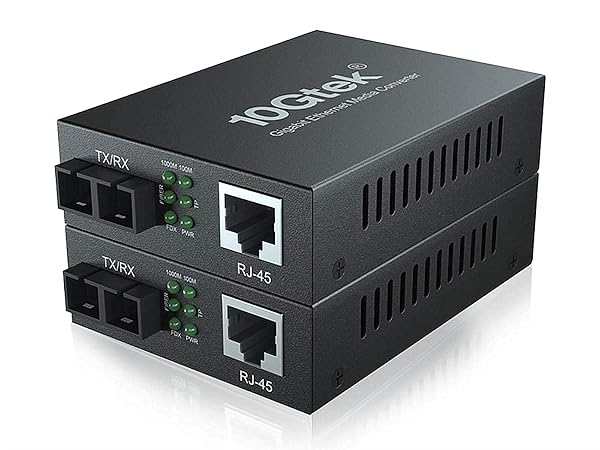

SMF SC,20KM
