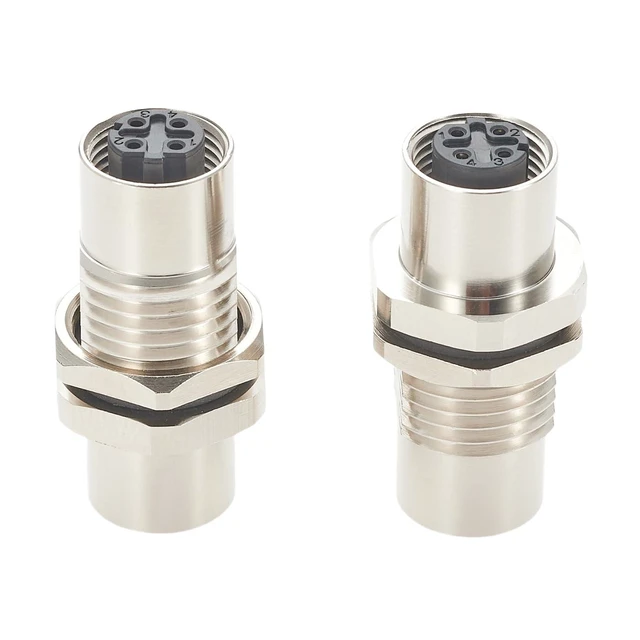

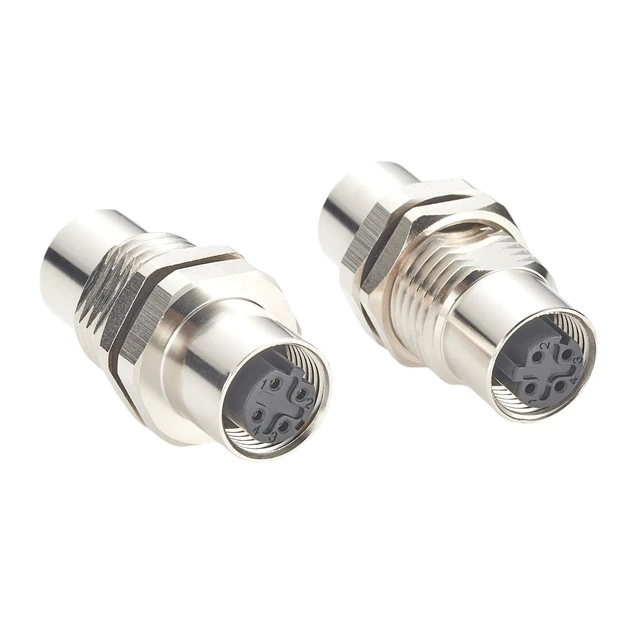

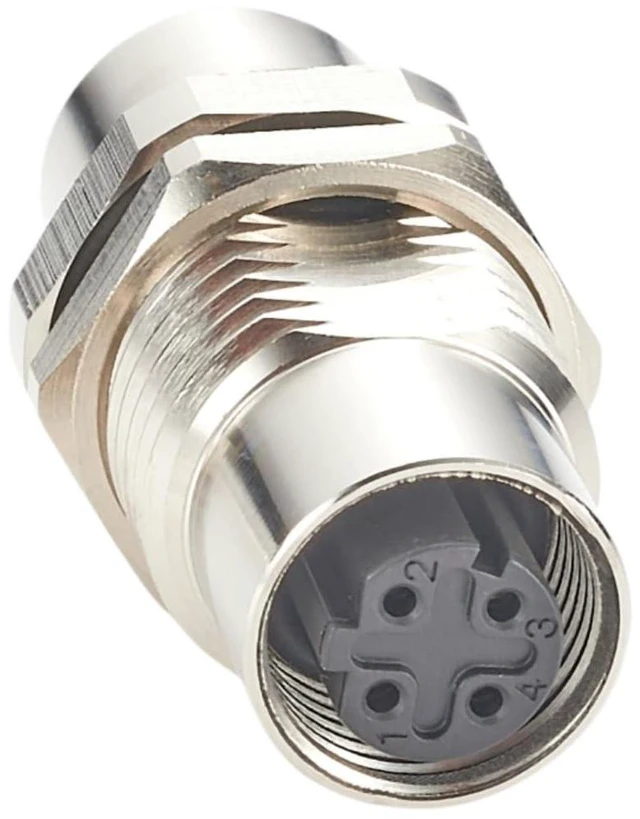

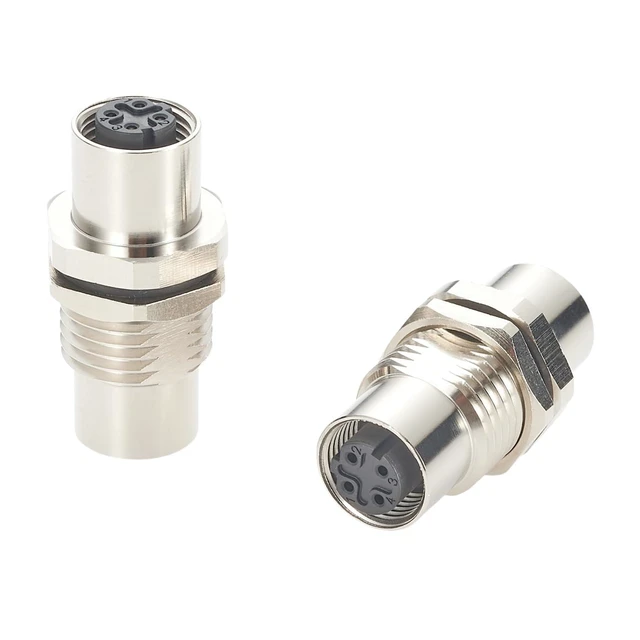

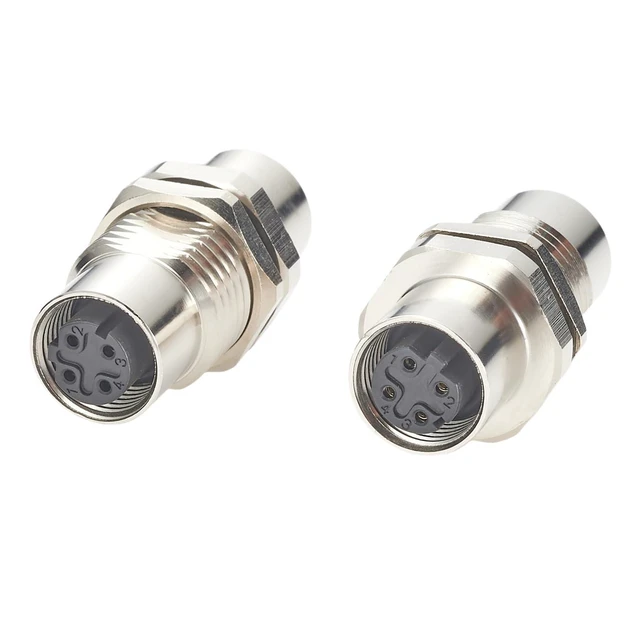

M12 D-Code 4-Pin Female to Female Bulkhead Connector IP67 Shielded Panel Mount Ethernet Socket Cat5 100Mbps Circular Adapter for Profinet EtherCAT Modbus-TCP PLC Sensors 16.5mm Cutout 1PCS
- M12 D-Code 4-pin bulkhead connector features female-to-female configuration for joining compatible M12 D-Code connections through a panel.
- Panel-mount design uses a bulkhead format and thread-locking mechanism; secure it with the included nut after cutting a 16.5 mm hole.
- IP67 protection helps shield the locked connector against water and dust, supporting use in demanding industrial environments.
- O-ring sealing works with the locked M12 receptacle to help maintain the stated IP67 protection at the connection point.
- Shielded circular construction helps protect the M12 D-Code connection for industrial Ethernet installations and control equipment.
- Gold-plated contacts support the connectors electrical interface, while the 4-pin layout matches the specified M12 D-Code design.
- Supports transmission rates up to 100Mbps over Cat5 Ethernet connections for industrial network installations.
- Specified for EtherNet/IP, Profinet, EtherCAT, and Modbus-TCP networks, with applications including PLCs, sensors, I/O modules, and actuators.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description:
M12 D Code 4 Pin female-to-female bulkhead connector designed for panel-mounted Cat5 Ethernet connections in industrial control cabinets, automation systems, and industrial enclosures. The shielded circular connector supports EtherCAT, Modbus-TCP, and Profinet network applications.
Core Selling Points:

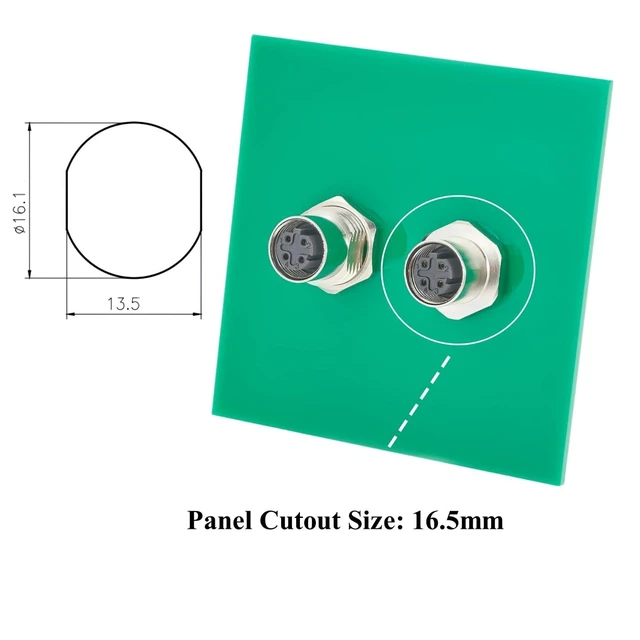

The panel-mount design supports installation through a 16.5 mm board hole and securing with the included nut-based thread-locking mechanism. When locked correctly, the IP67 socket provides waterproof and dustproof protection. Gold-plated contacts support reliable signal transmission, while the shielded construction is suitable for harsh industrial environments. The connector supports data transmission rates up to 100Mbps and can be used with PLCs, I/O modules, sensors, actuators, industrial switches, machine vision equipment, robotics, and control systems.
Technical Specifications:

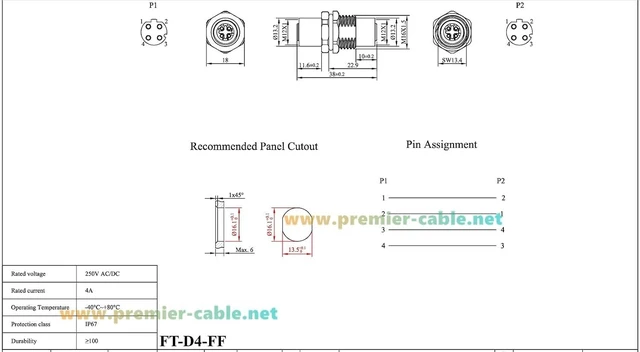

Connector type: M12 D Code 4 Pin bulkhead connector. Connector A: M12 D Code 4 Pin Female. Connector B: M12 D Code 4 Pin Female. Mounting type: Bulkhead panel mount. Cutout size: 16.5 mm. Protection class: IP67. Sealing: O-ring. Contact: Cooper, gold-plated. Transmission rate: 100Mbps. Supported applications and protocols: Cat5 Ethernet, EtherCAT, Modbus-TCP, and Profinet. Construction: Shielded circular connector.
Package Contents:
M12 D Code 4 Pin female-to-female bulkhead connector.
Before Purchase:
Confirm that your equipment uses M12 D Code 4 Pin female connections and that a 16.5 mm panel cutout is suitable for installation. The connector is intended for panel mounting and requires correct locking for IP67 protection. Verify that your network application uses the listed Cat5 Ethernet connection and supported protocols.
