DB9 DSUB 9 Pin Male Female Adapter RS232 Serial Terminal Board Signal Module 4+5 Position Screw Terminal Block Connector 5.08 mm Pitch for Project Commissioning Green Black 45 x 31 x 18 mm 2-Piece

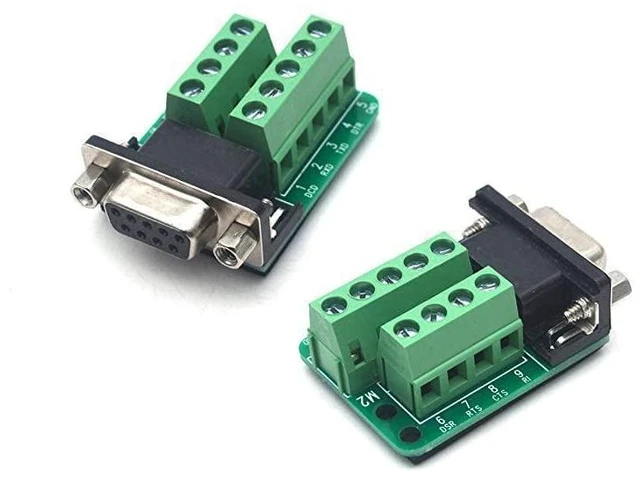

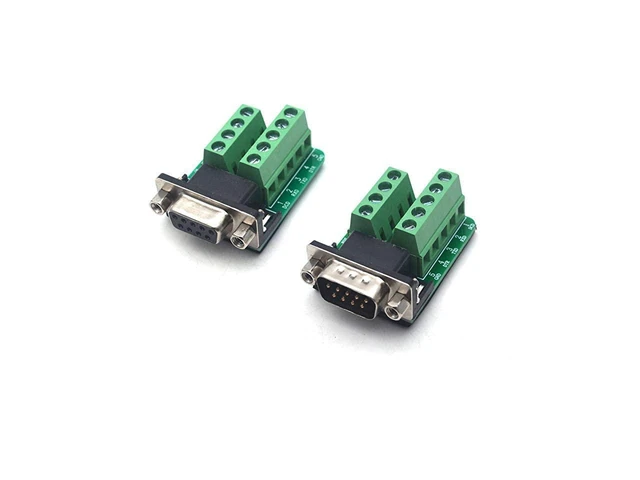

- DB9 male and female adapter set connects RS232 serial DB9 9-pin connections to a terminal board signal module.
- Features 4+5-position screw terminal blocks for terminating DB9 serial signal connections with screw-type wiring.
- Terminal block design uses a 5.08 mm terminal pitch to organize individual signal wire connections.
- Terminal screws can be removed using a slotted screwdriver with a 2.5 mm width.
- Compact overall size measures 45 x 31 x 18 mm (L x W x H) for space-conscious equipment installations.
- Includes 1 DB9 male adapter and 1 DB9 female adapter in the package.
- Provides 3 mm fixing holes with a 6 mm fixing-hole center distance for mounting.
- Insulation foam on the bottom and an all-copper base support contact performance and oxidation resistance.
- All signal ports are individually named and clearly labeled to simplify connection identification.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
DB9 DSUB 9-pin male and female adapter set for connecting RS232 serial DB9 interfaces to screw terminal blocks. Designed to simplify wiring for projects and on-site equipment commissioning.
Core Selling Points:
Features clearly named and labeled signal ports for organized connections. The adapters use screw-type terminals with an insulation foam bottom and all-copper base for improved contact and oxidation resistance. Removable terminal connections support convenient wiring adjustments.
Technical Specifications:
Connector type: DB9 male and DB9 female, 9-pin. Interface: RS232 serial DB9 to 4+5-position screw terminal block. Terminal pitch: 5.08 mm. Screw hole diameter: 2.5 mm; use a 2.5 mm wide slotted screwdriver. Total size: 45 x 31 x 18 mm (L x W x H). Fixing hole diameter: 3 mm. Fixing hole center distance: 6 mm. Material: metal and electric parts. Color: green and black. Weight: 45 g.
Package Contents:
1 x DB9 male adapter; 1 x DB9 female adapter.
Before Purchase:
Verify that your device uses a 9-pin DB9 RS232 serial connection and that the terminal layout, dimensions, and screw-terminal requirements match your installation.
