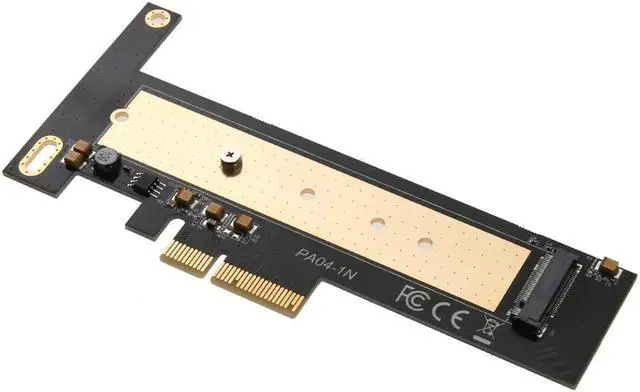

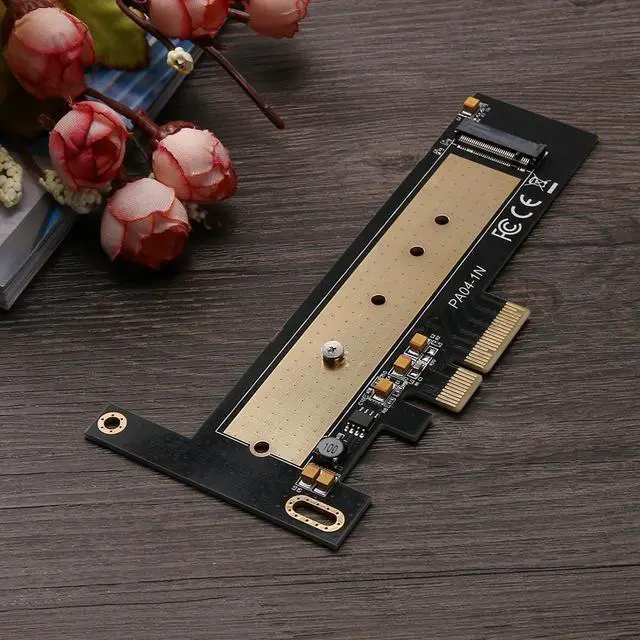

NVMe SSD to PCIE X4 adapter M Key interface card Suppor PCI-e PCI Express 3.0 x4 2230-2280 Size

NVME/NGFF SSD to PCI Expresse X4 X8 X16 Adapter Converter Card

Descriptions:

Insert the NGFF NVME (PCI-e protocol) solid-state drives for use.

Features:

This product can be NVME PCIE protocol solid-state hard drive to the desktop board PCIE slot to use.

Support for PCIE 4X 8X 16X, compatible with 2230 2242 2260 2280 22110 five specifications of the / NGFF interface SSD.

Compatible with any operating system (must be compatible with your hard disk under the operating system).

Increase the two-way power supply, increase the large area of heat, effectively reduce the SSD stability, faster and more stable.

Specifications:

Model: PA04

Voltage: 12V + 3.3V double voltage

Type: adapter card

Color: Black + Copper

Product size: 140 x 63 x 1.5mm/5.51 x 2.48 x 0.06"

Net weight: 21g

Gross weight: 65g

Notes:

It does not support NGFF (SATA protocol) solid-state hard drive.

Win 10 is needed to support reading disk for NVME PCI-e protocol solid-state hard drive.

PCI-E boot is required for motherboard BIOS when using as system disk.

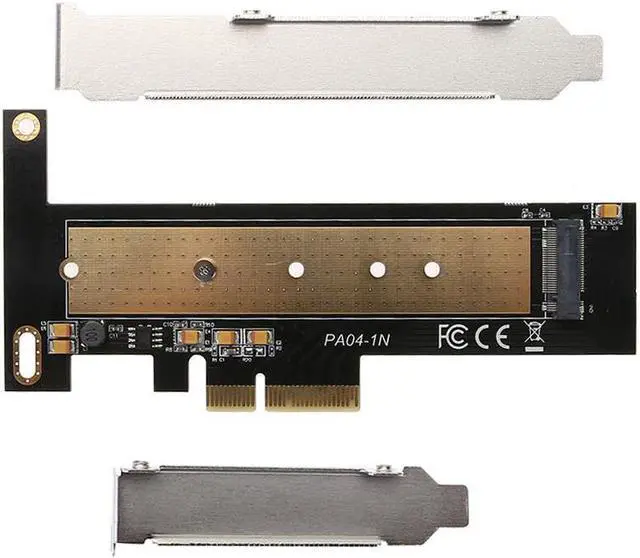

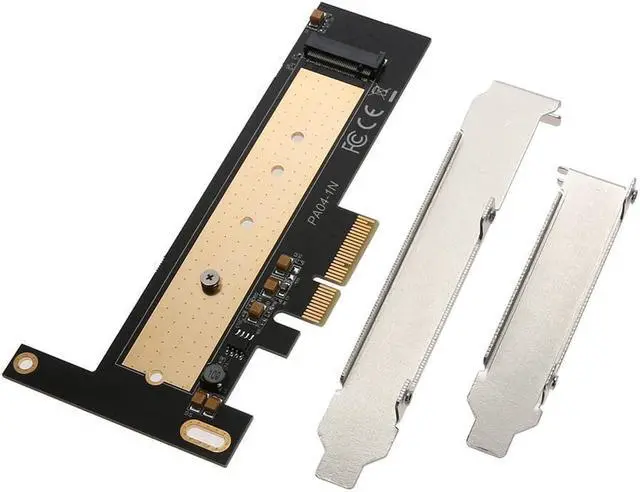

1 x Adapter Card

1 x Long Dam-board

1 x Short Dam-board

1 x Screwdriver

2 x Screws
